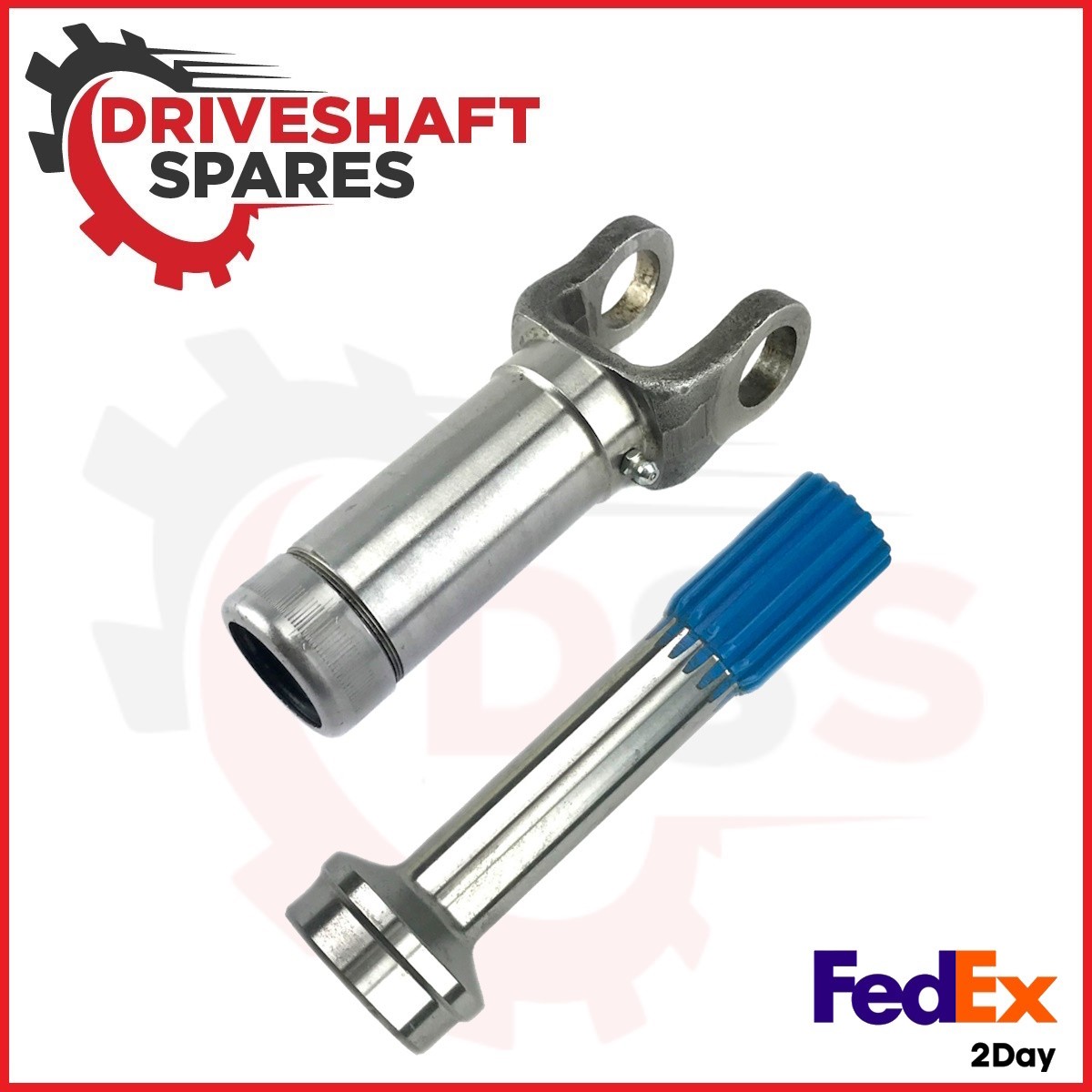

10-3-18KX, Slip Yoke, 1.250×16 (5.500) + 2-40-1741 , Spline Stub 1.750 x 0.65″.

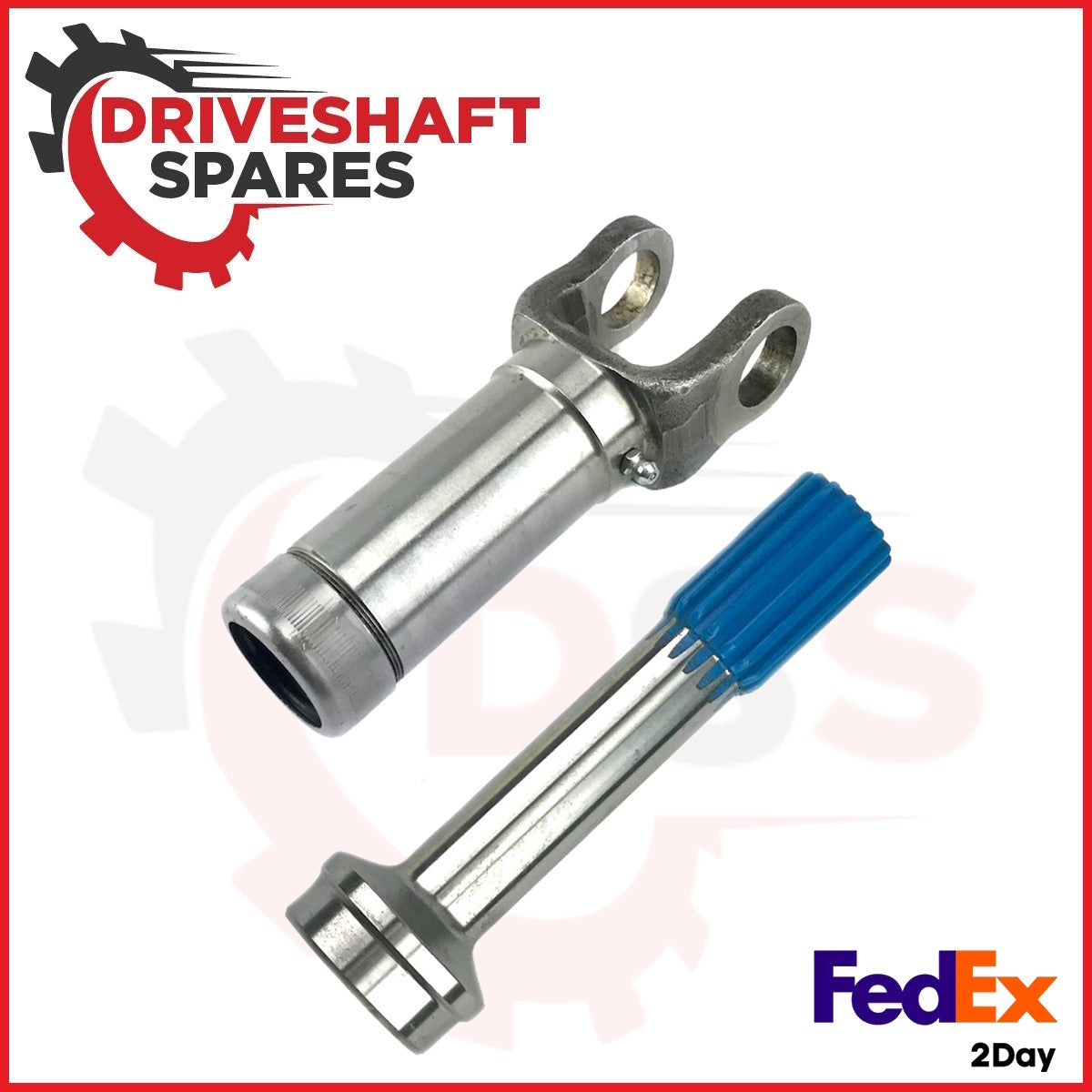

• YOU ARE BUYING a 10-3-18KX, Slip Yoke + a 2-40-1741 , Spline Stub Tube Shaft in kit form as seen in the cover image.

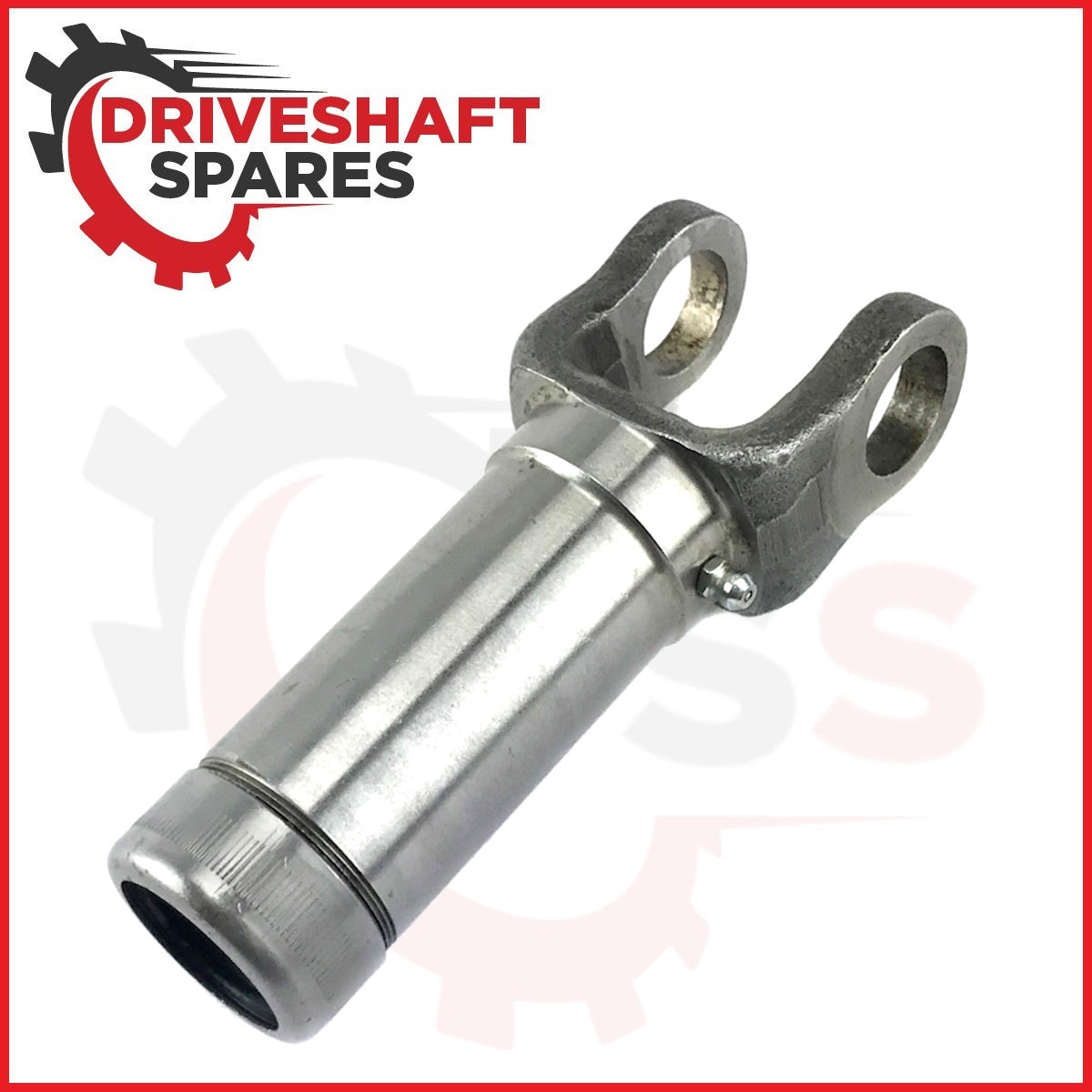

Slip Yokes
Series	1000 (0.938 x 1.500 I/C)
Spline	1.250×16
Centerline to End of Spline	5.500

• U-Joint Series 1000
• Spline Major Diameter 1.250
• Spline Count 16.000
• Max Joint Angle 60.000
• Universal Joint Retaining Width E 1.500
• Universal Joint Bearing Diameter D 0.938
• Centerline of Joint to End of Spline J 5.500
• Centerline of Joint to Face of Plug F 1.562

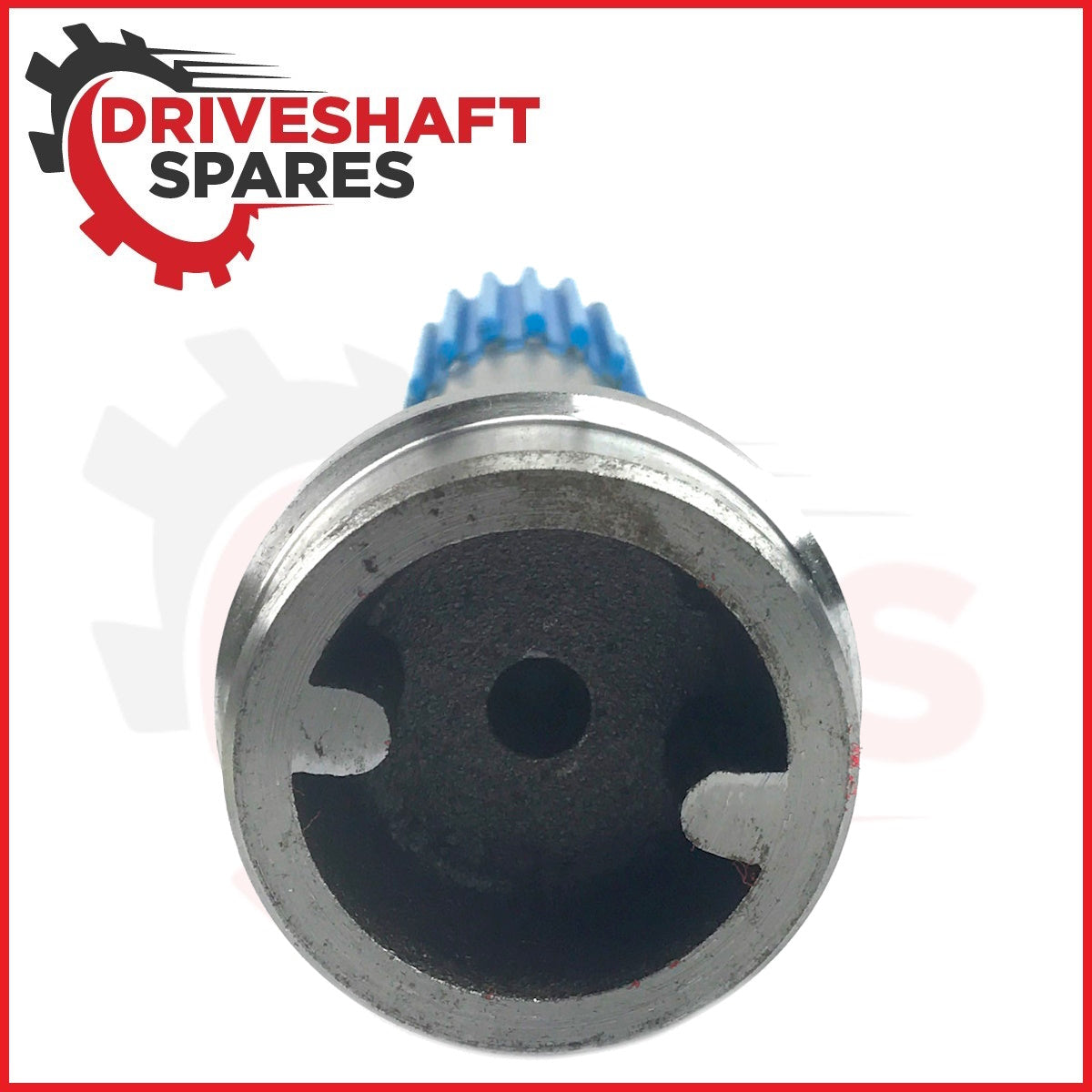

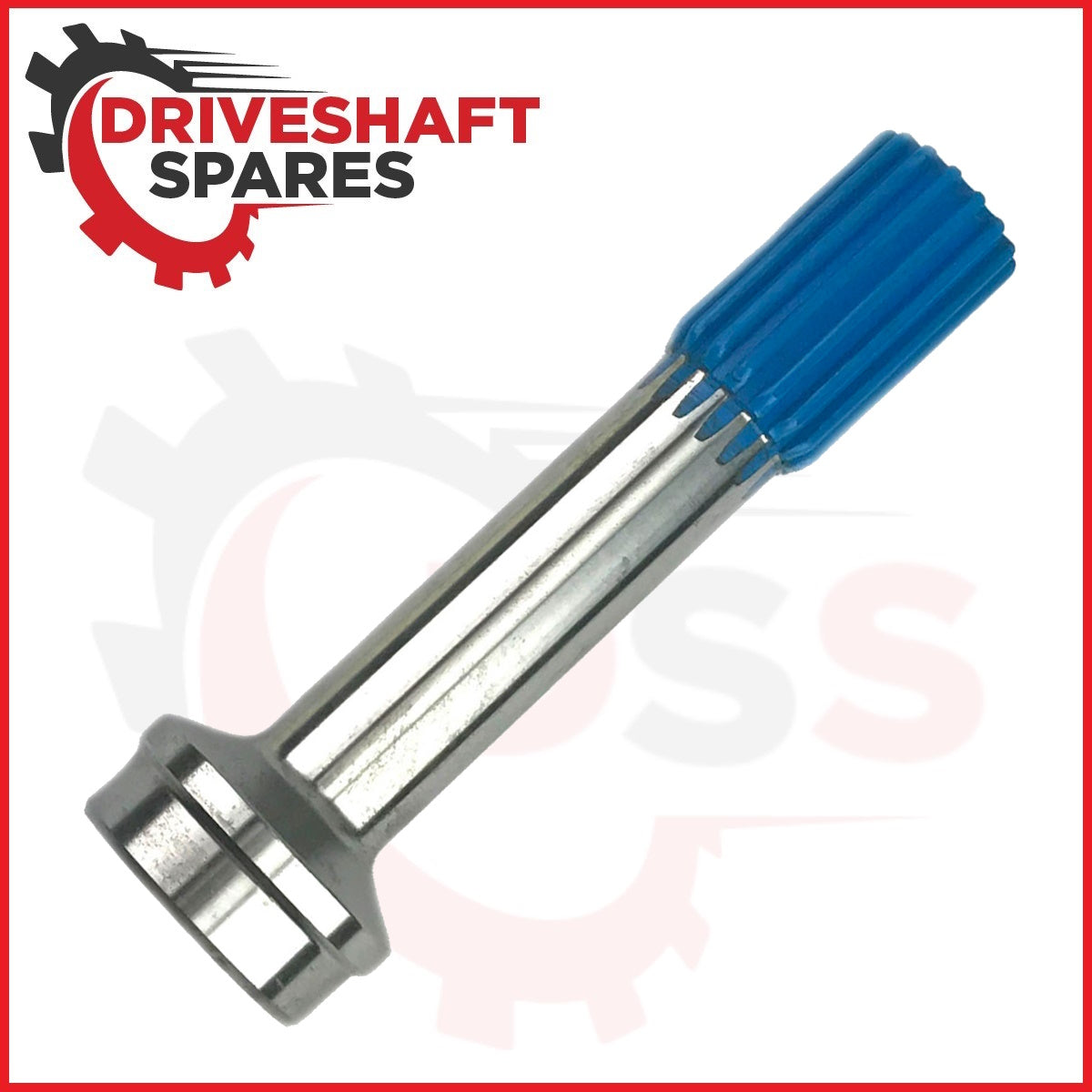

Splines
Spline	1.250×16
Tube	2.000 x .083
(K)	6.000
(L)	2.000
(R)	5.406
(B)	1.845

• Spline Stub 1.250×16 spline, 2.000 X .083 Tube
