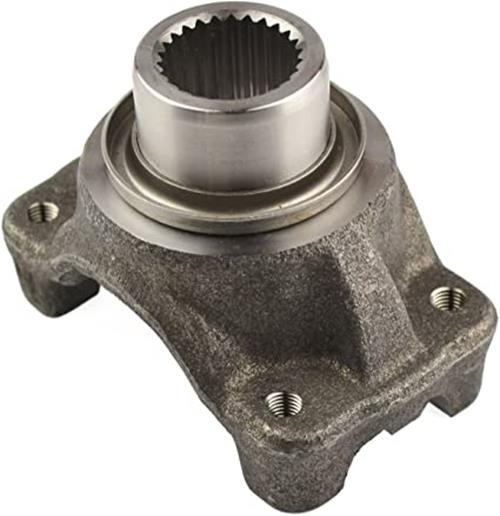

OEM Dana Spicer Pinion Yoke 3-4-5761X STRAP Style, This Pinion Yoke will fit a Dana 30,35 or 44 Front or Rear Axle That is 26 Spline.

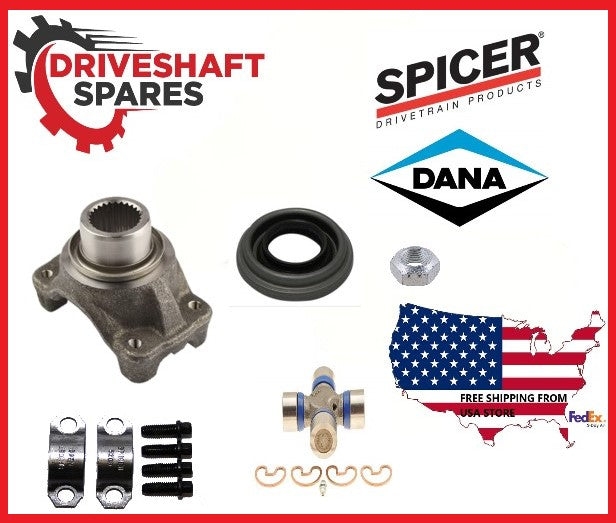

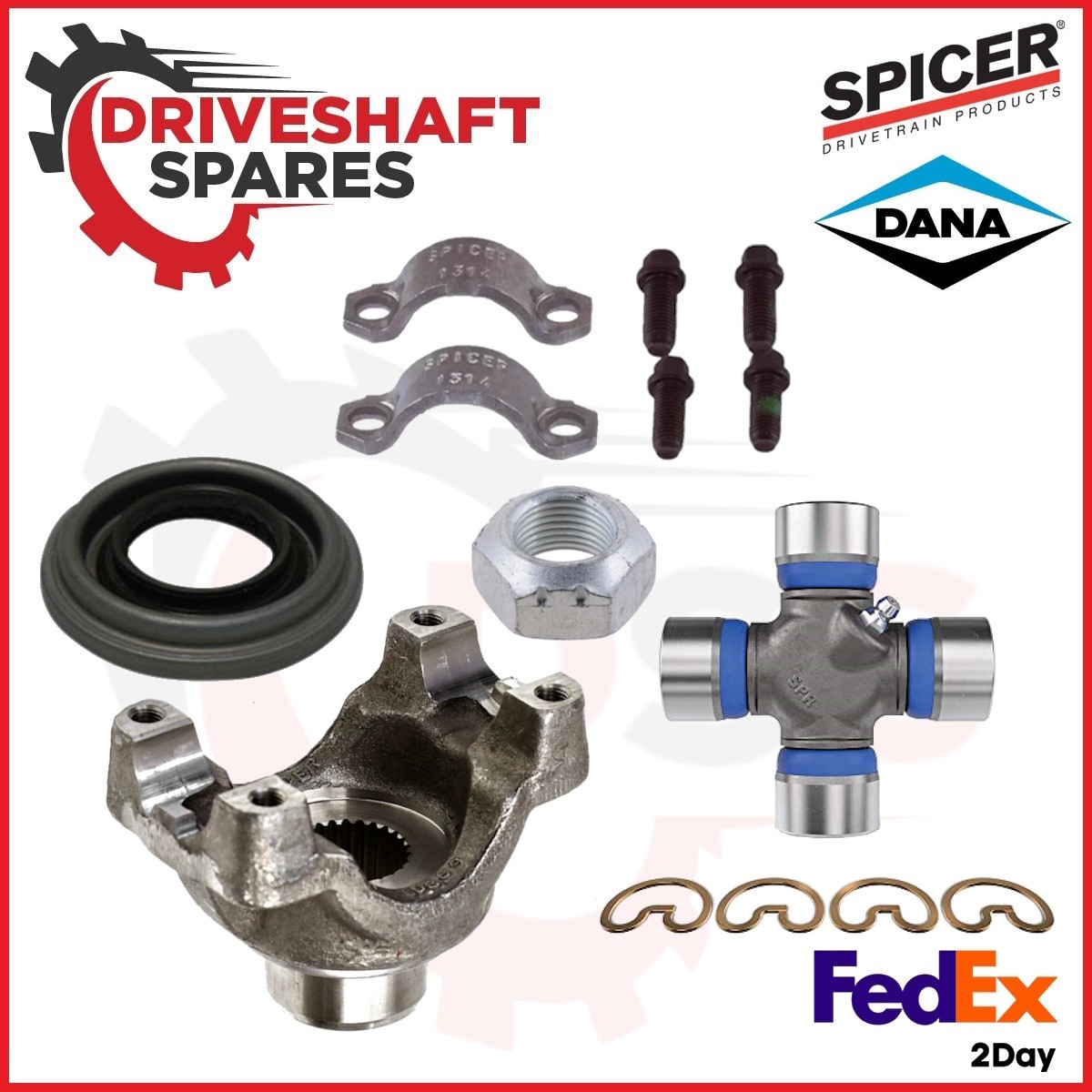

This listing includes all the parts as shown in the Cover image to fit a Dana 44 Front or Rear Axle:

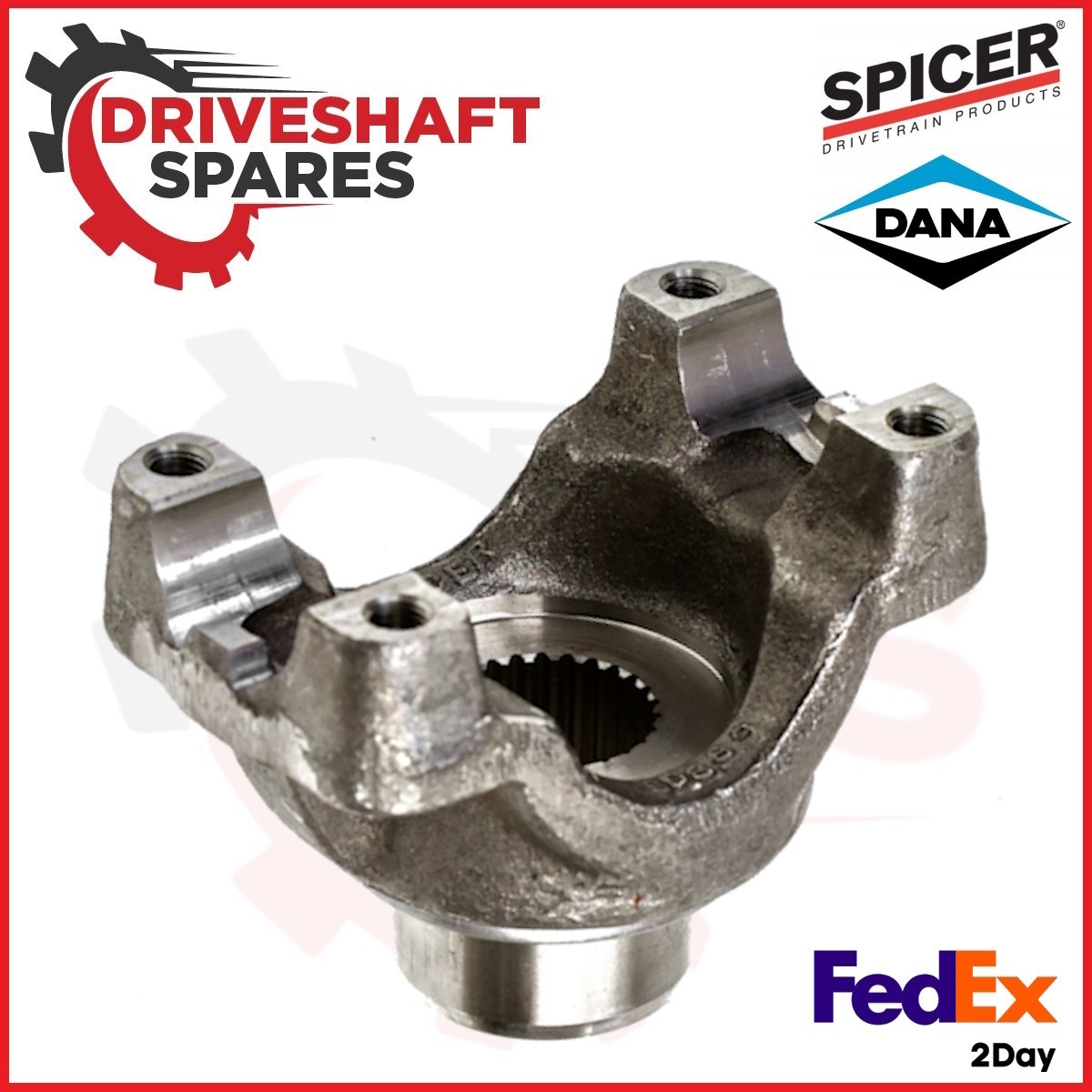

- Pinion Yoke Strap style 3-4-5761X

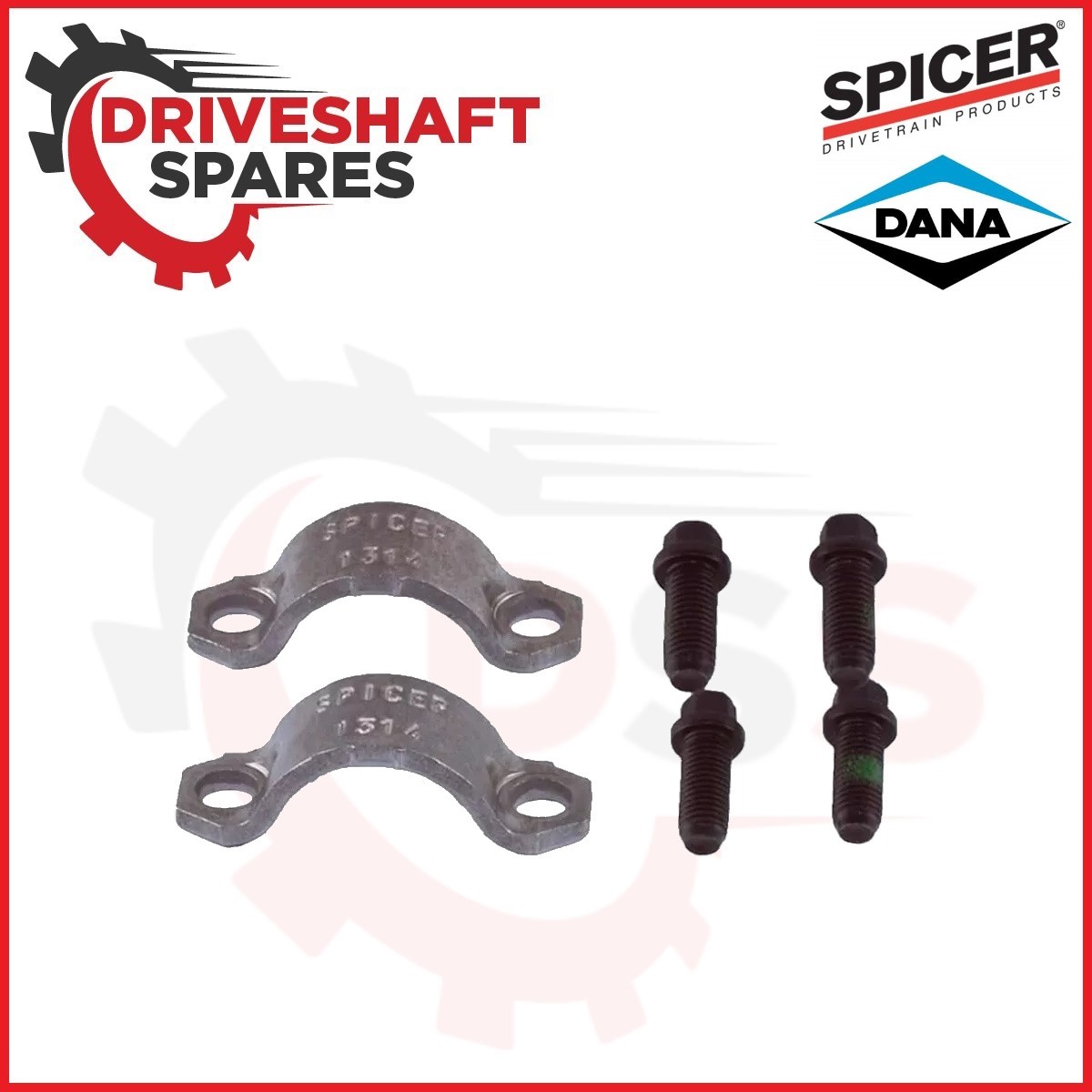

- STRAP Kit 3-70-28X
- Dana 44 Pinion Seal 44895
- Pinion Nut 30185
- U-JOINT 5-178XS
MOST Stock Jeep U-Joint Size Is 1310 Series this is not an O.E.M Replacement This Is a Upgrade to A Heavy Duty 1350 Pinion Yoke.
- 26 Spline
- Strap Style – Straps are included
- 1350 Series
- Will fit Dana 30, 35, or Dana 44 axles
- Can be used on XJ, TJ, YJ and CJ Model Jeeps as well as other applications with 26 splined pinions.
- Note when using this in a Dana 35 you will need to use Dana Spicer pinion Seal 40554
| End Yokes |
| Series |
1350 (1.188 x 3.625) |
| Splines |
26 |
| Major Dia |
1.146 |
| (R) |
1.550 |
| (S) |
3.000 |
| (Q) |
1.500 |
| Type |
3 |
| Imperial Universal Joints |
| (D) |
1.188 |
| (L) |
3.625 |
| Type |
2 |

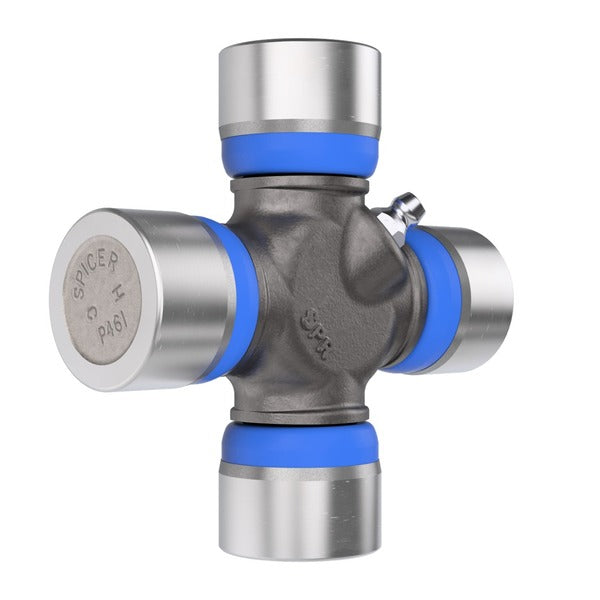

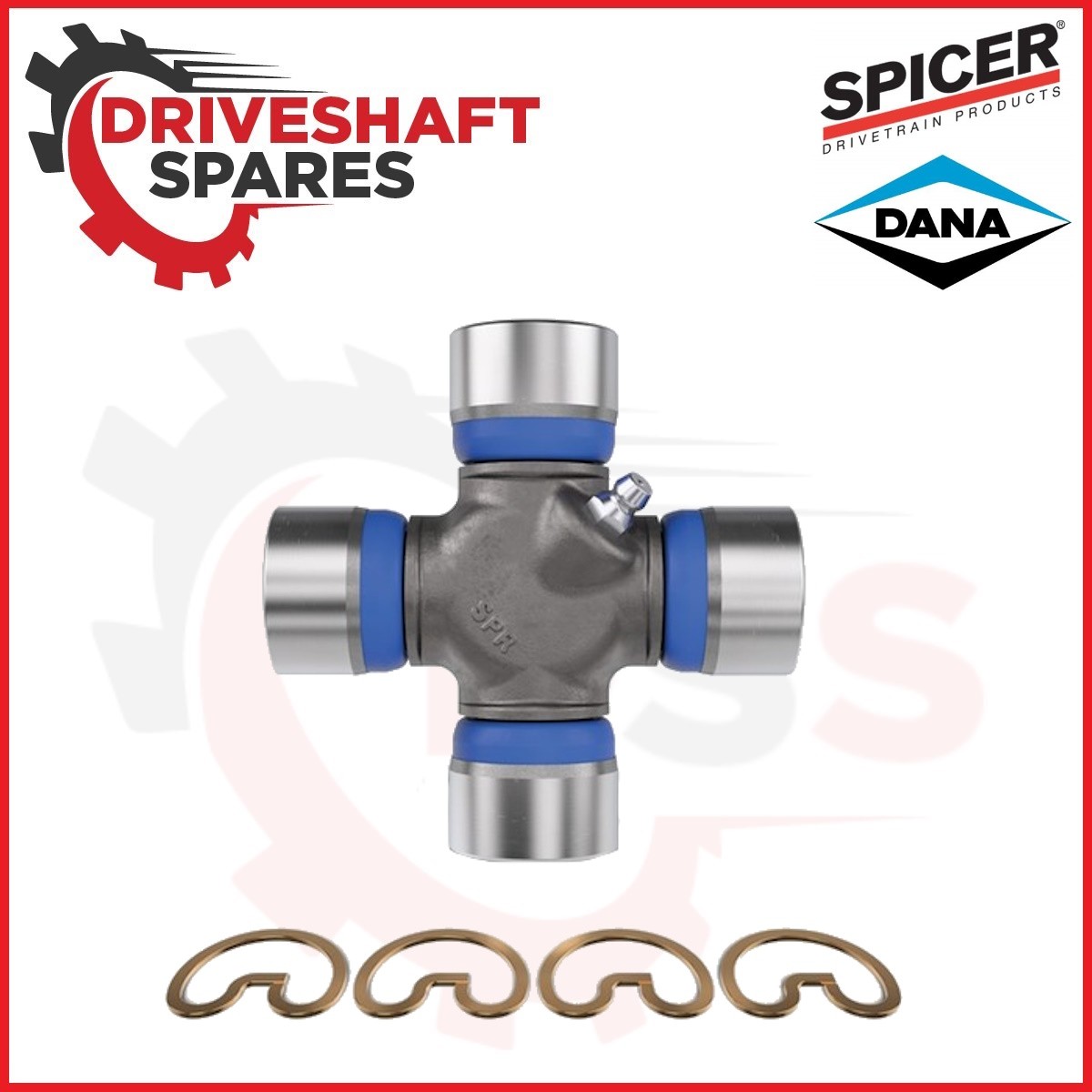

- Cap Diameter: 1.188″
- Distance between snaprings: 3.625″
- Spicer: 5-178X
- Precision: 331
- GMB: GU2200
- Rockwell/Meritor CP178X
- Borg Warner 114-635
- Neapco 2-0053
- Borg Warner 114-10HD, 114-578
- Chrysler 1516854, 2298823, 4797307, 4797307AB
- Ford 4OT7039A, 01T7039, B5T7039A, B5TZ4635A, C1TZ3249A, C5TZ4635E, F5TZ4635A, F81Z4635BB
- General Motors 374246, 609515
-
Toyota 043710C094, 043710C080

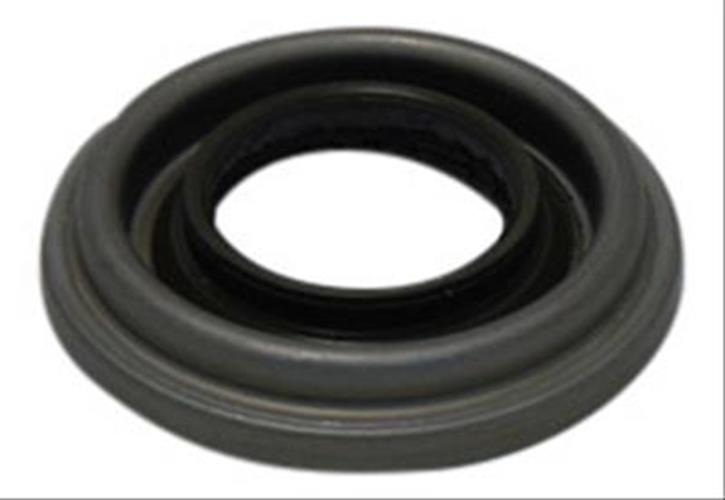

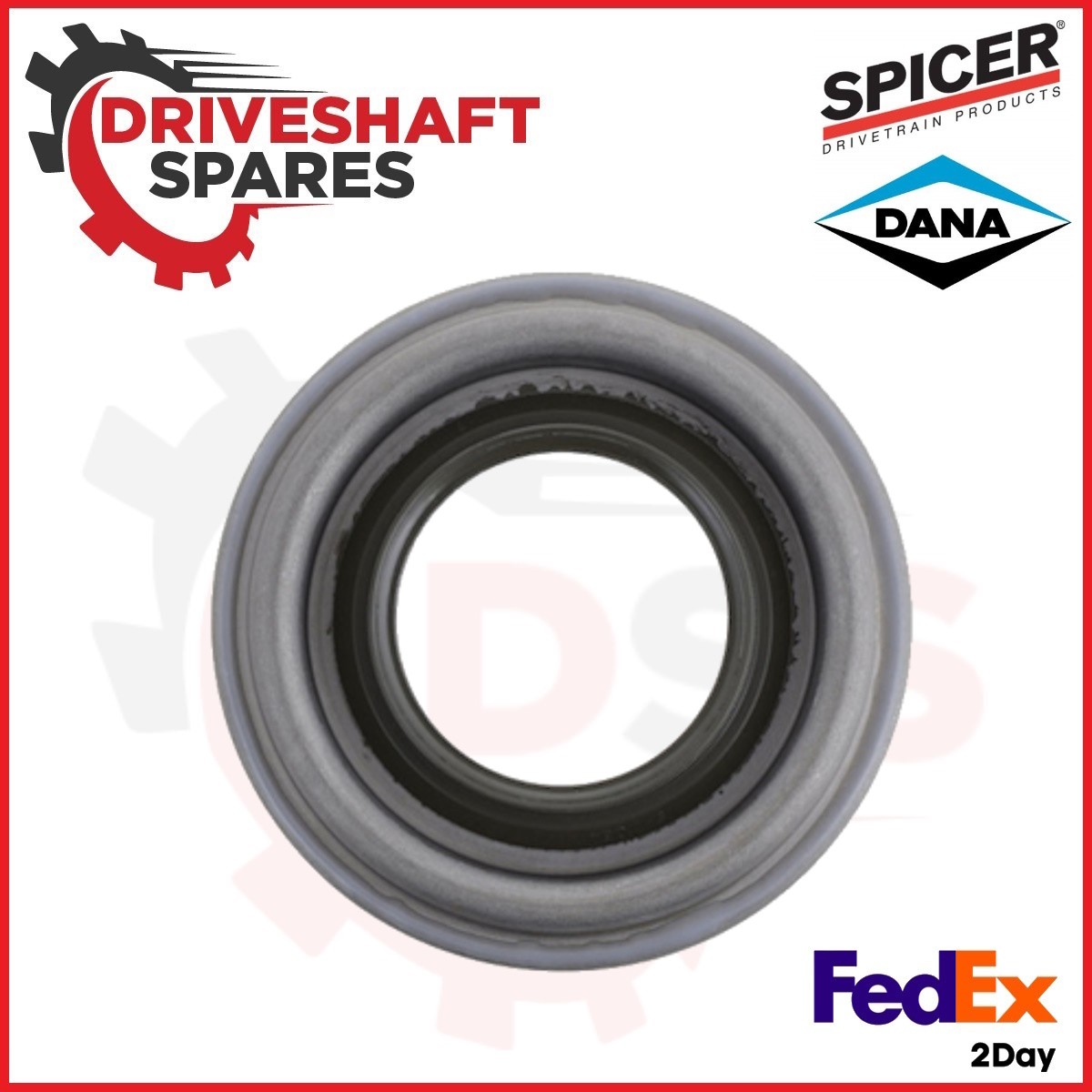

Dana Spicer 44895 30/44 Diff Pinion Seal OE: 04746772
- Spicer 44895
- Dana 30/44 Diff Pinion Seal OE: 04746772
|
U-Joint Series
|
|
1350/1410
|
|
Type
|
|
Bearing Strap
|
|
Bolt Thread
|
|
.312-24
|
|
Bolt Center-Center distance
|
|
1.806
|
|
U-Joint Cap Diameter
|
|
1.188
|
|
Bolt Length
|
|
0.750
|

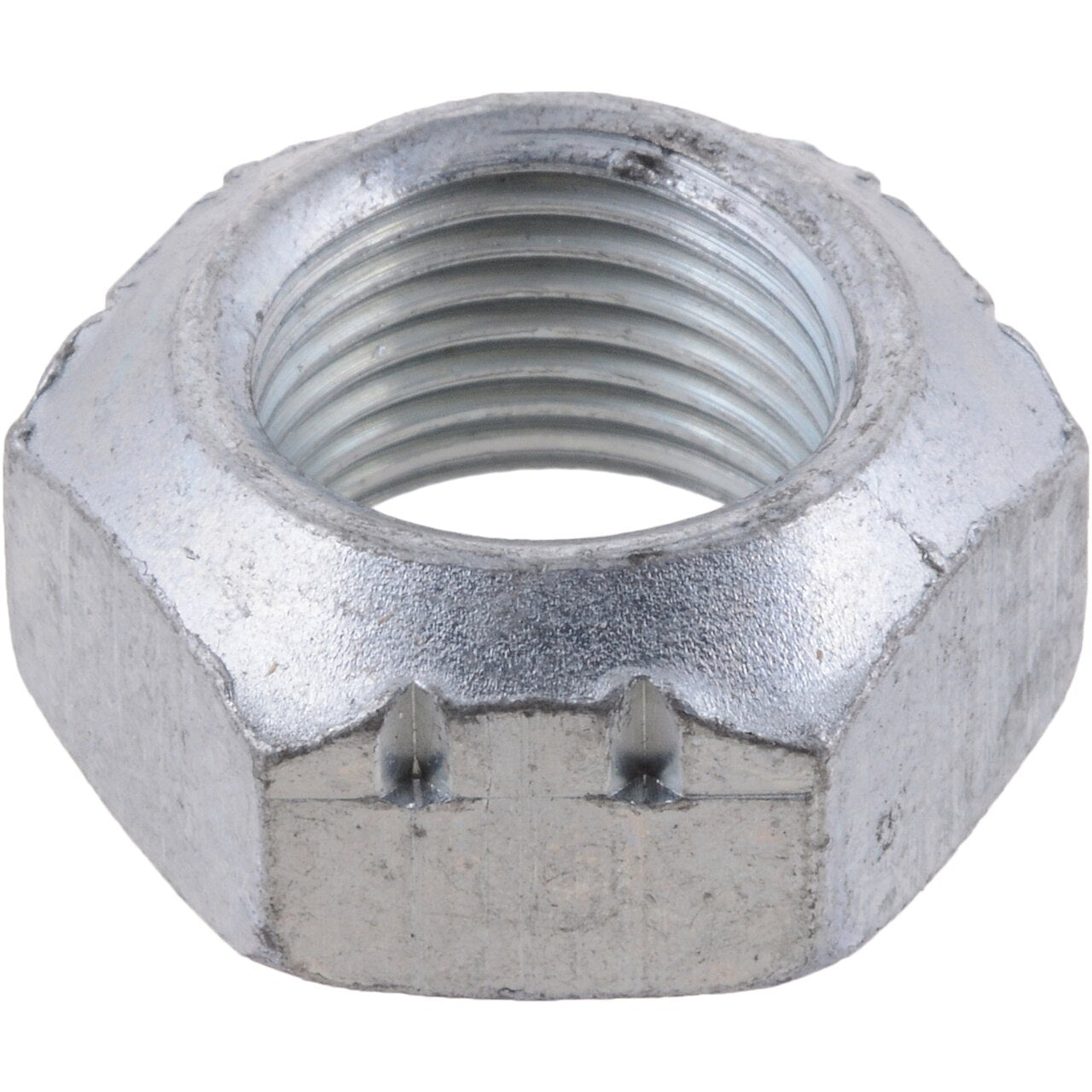

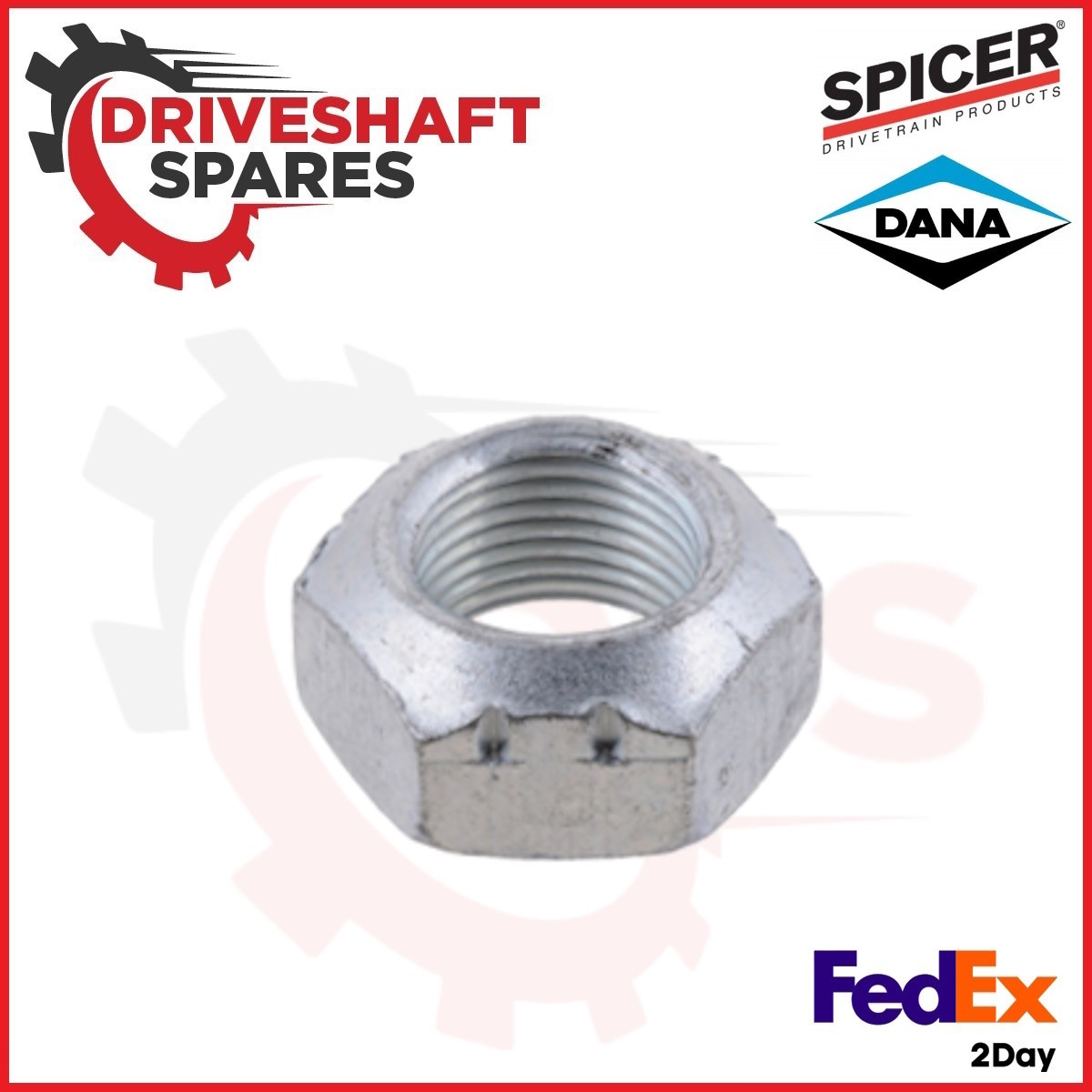

30185 Differential Drive Pinion Gear Nut:
- Self Locking Yes
- Thread Size 0.750-16
- Hex 27.890 mm
- Thickness 14.275 mm
- Flange Diameter 28.135 mm
- Shaft Not Torque (Ft/Lbs) 400 lbs
- 30185S
|
