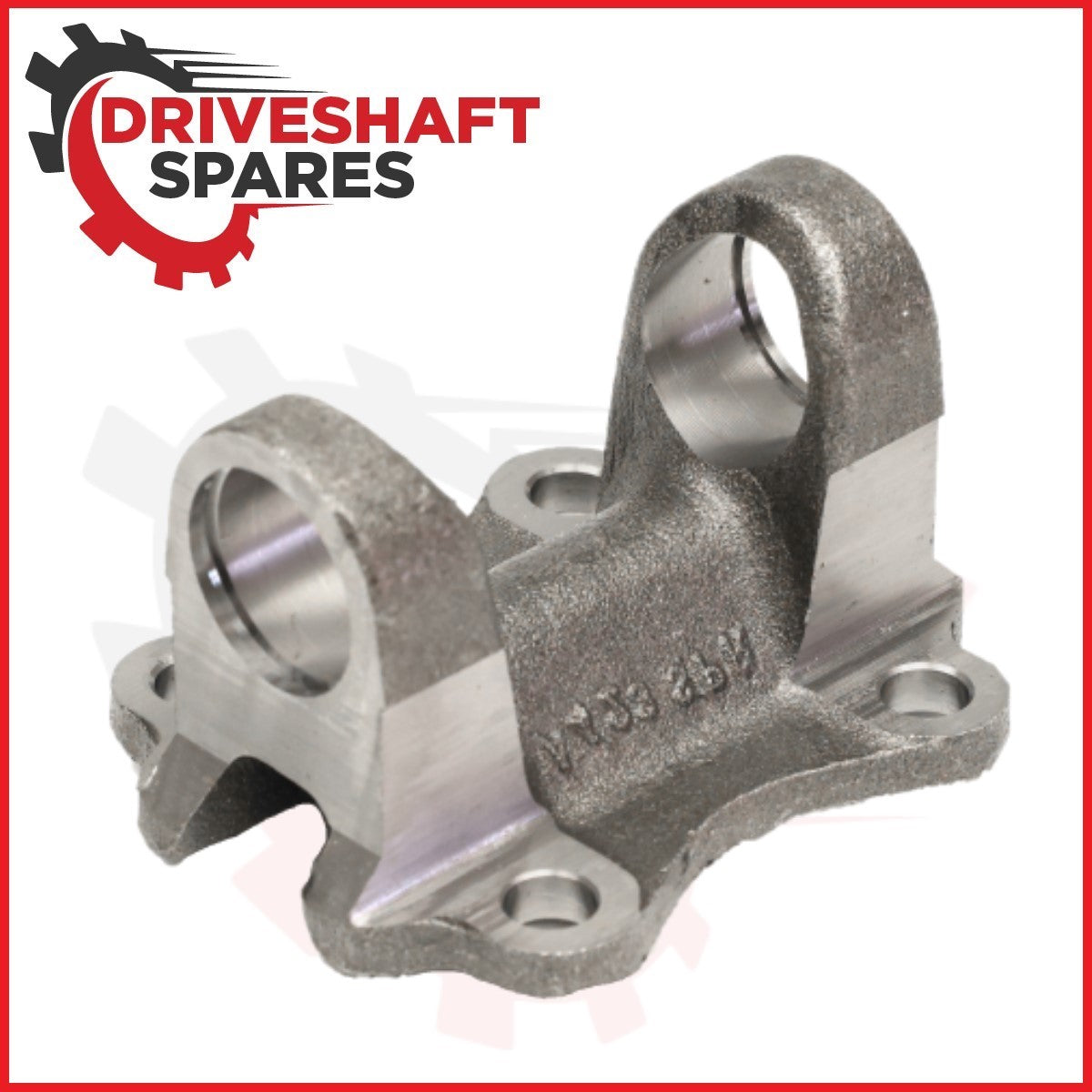

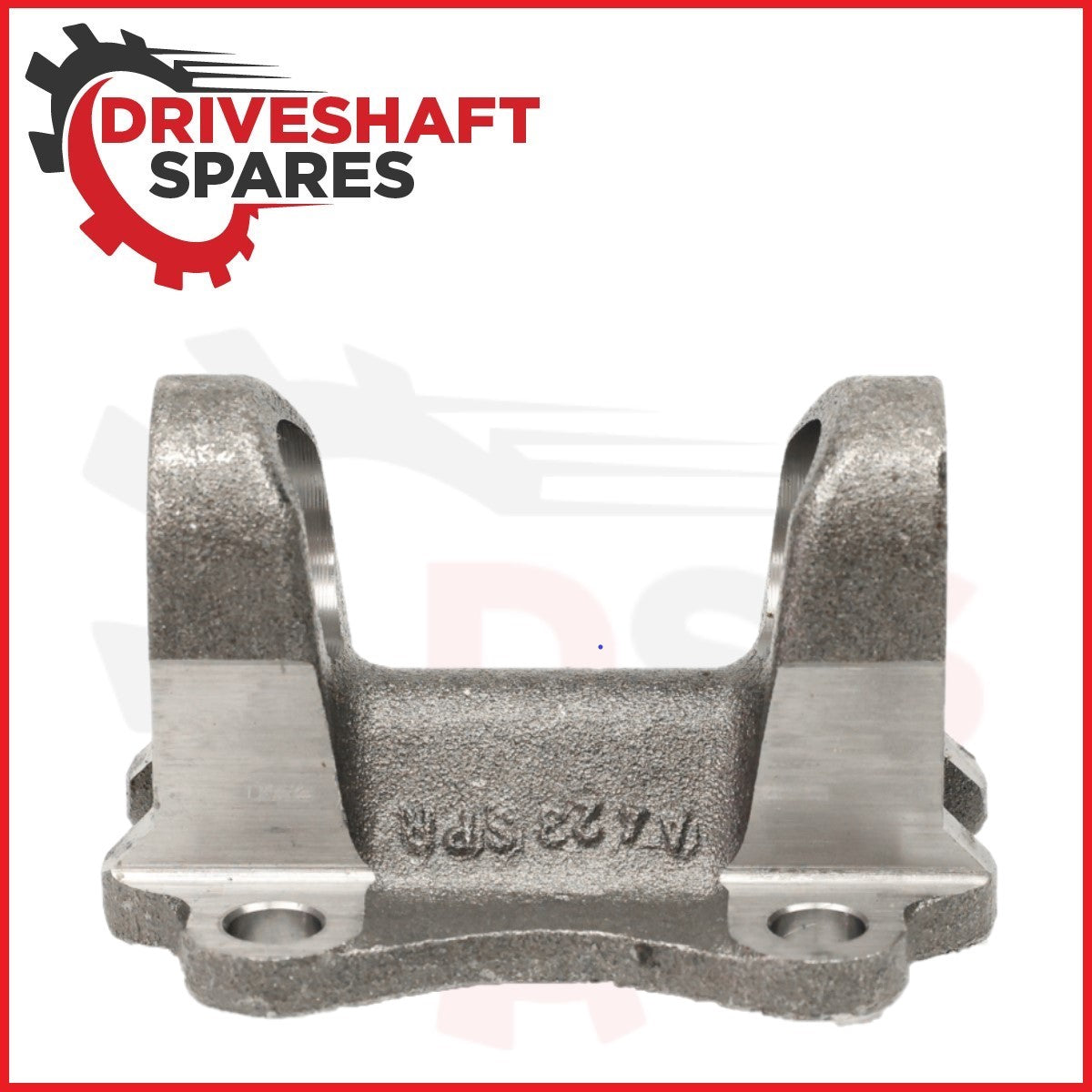

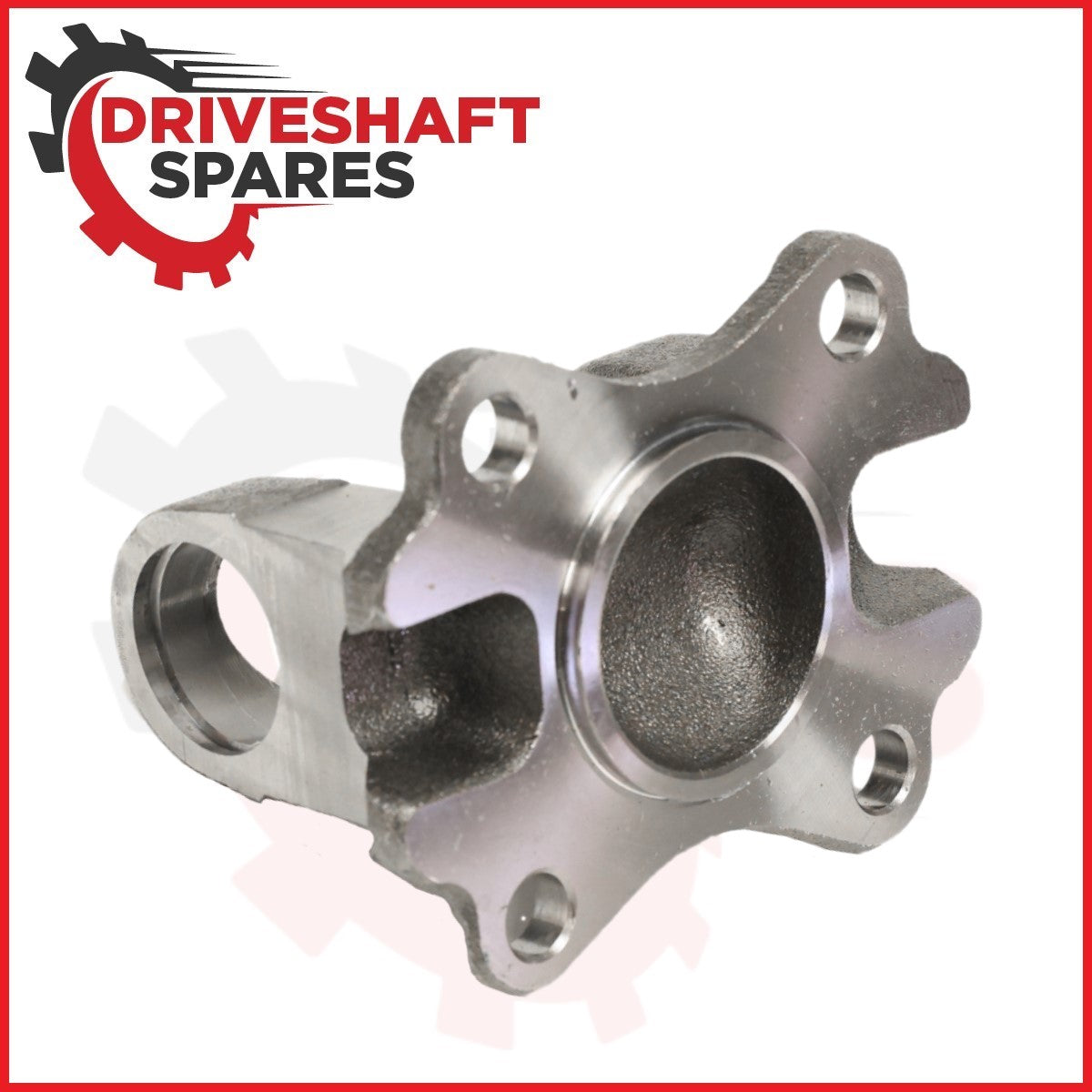

2-2-1679 – Toyota 4Runner 1310 Flange Yoke, 4xØ.406 Holes on 3.344BC, P1.812M
- Flange Yoke 1310 series, 4xØ.406 Holes on 3.344BC, Ø1.812M pilot
| Flanges | |
| Series | 1310 (1.062 x 3.219) |
| Pilot | 1.811M |
| Holes | 4 |
| Flanges (mm) | |
| OD (mm) | 4.250 |
| H (mm) | 1.625 |
| X (mm) | 2.362 |
| Y (mm) | 2.362 |
| Z (mm) | 3.340 |
- Design Style Snap Ring Design
- U-Joint Series 1310
- Universal Joint Retaining Width 3.469
- Universal Joint Bearing Diameter D 1.062
- Flange Diameter A 4.150
- Bolt Circle Diameter B 3.344
- Horizontal Distance Between Holes (center to center) 2.365
- Vertical Distance Between Holes (center to center) 2.365
- Bolt Hole Diameter .406-D
- Bolt Hole Quantity 4.000
- Pilot Diameter (M-Male, F-Female) C 1.812M
- Centerline of Joint to Flange Face G 1.770
- Compatible U-Joint Kits SPI-5-153X,SPI-5-1310X,SPI-5-1310-1X
- Notes 10 mm bolt holes, equally spaced
- Cast/Forged Forged
