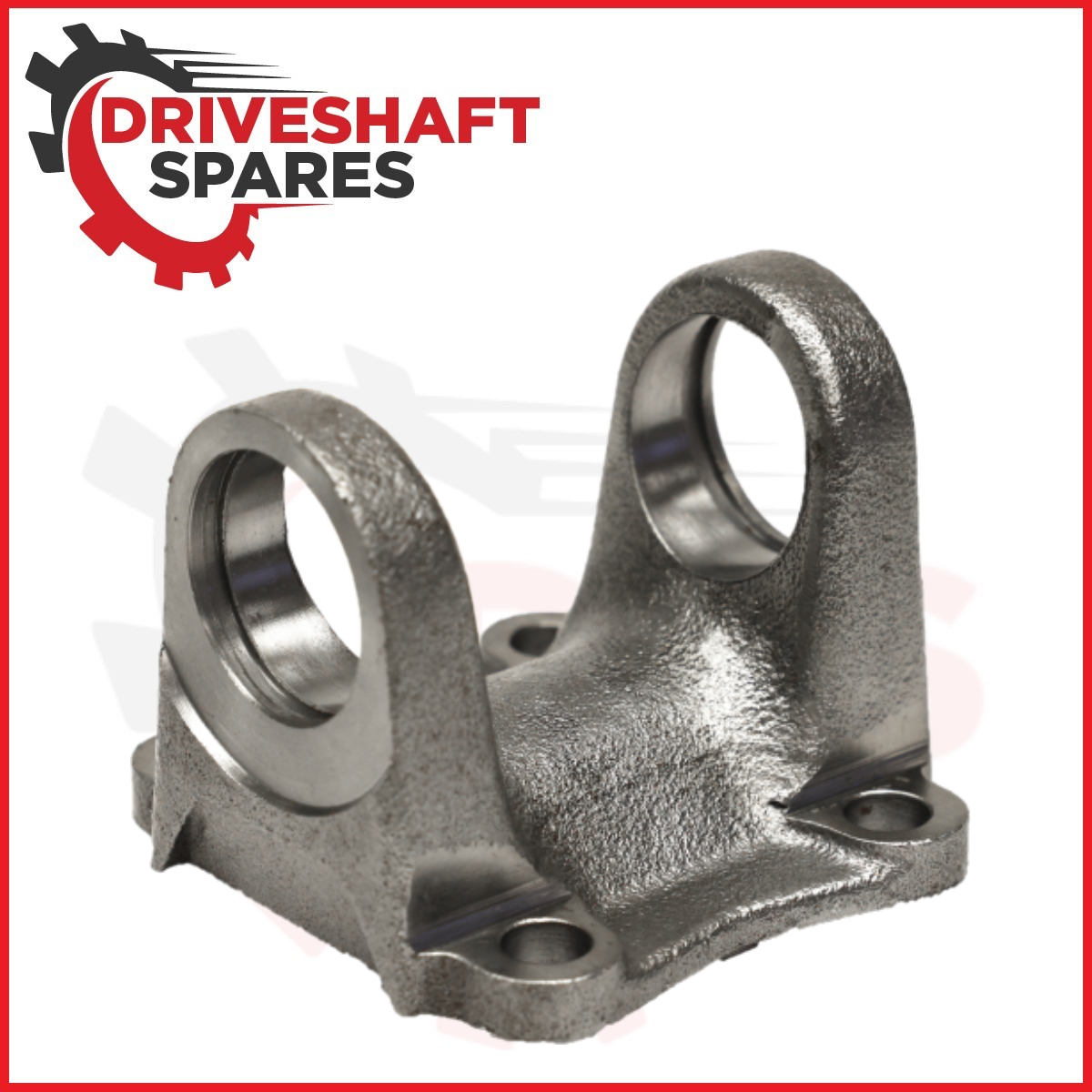

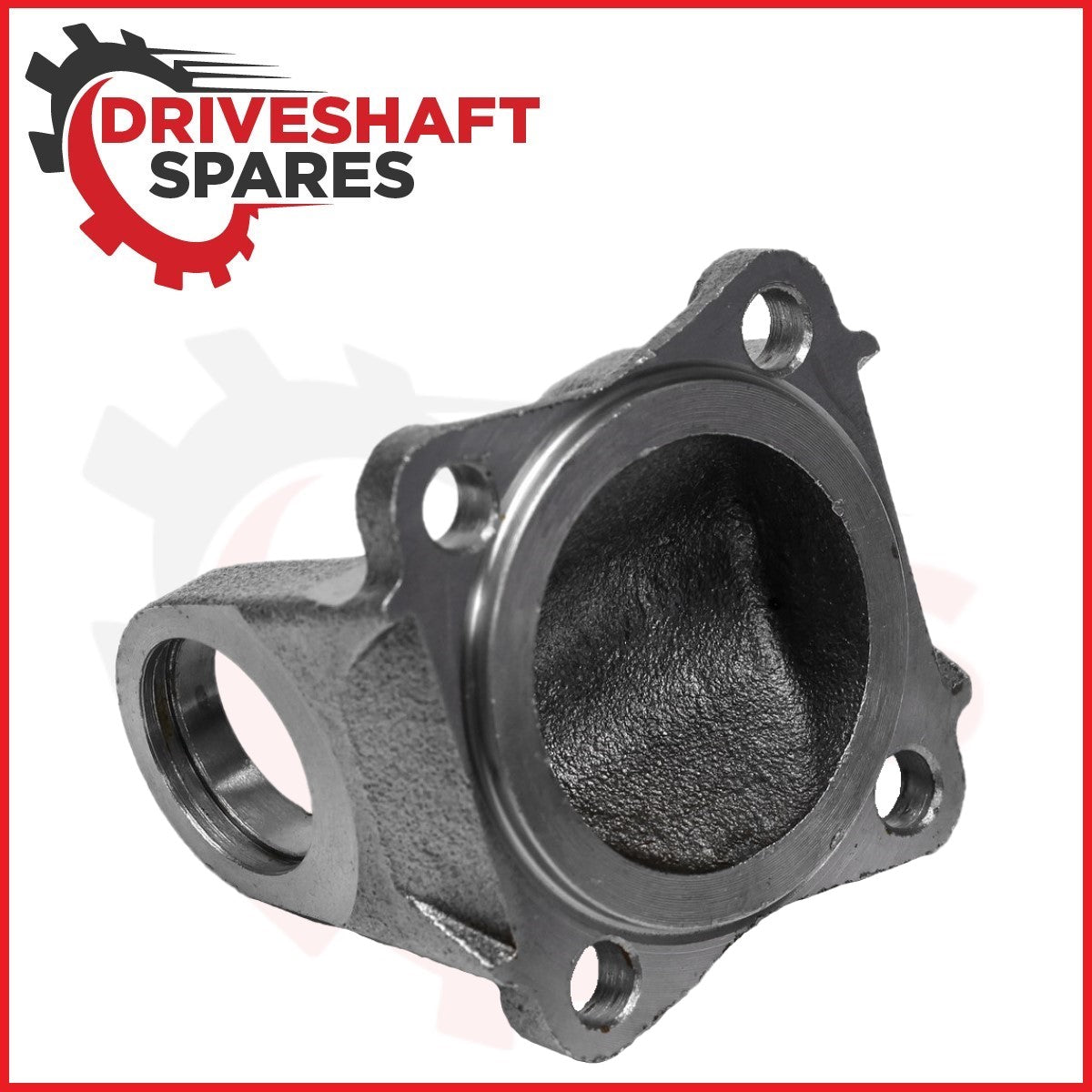

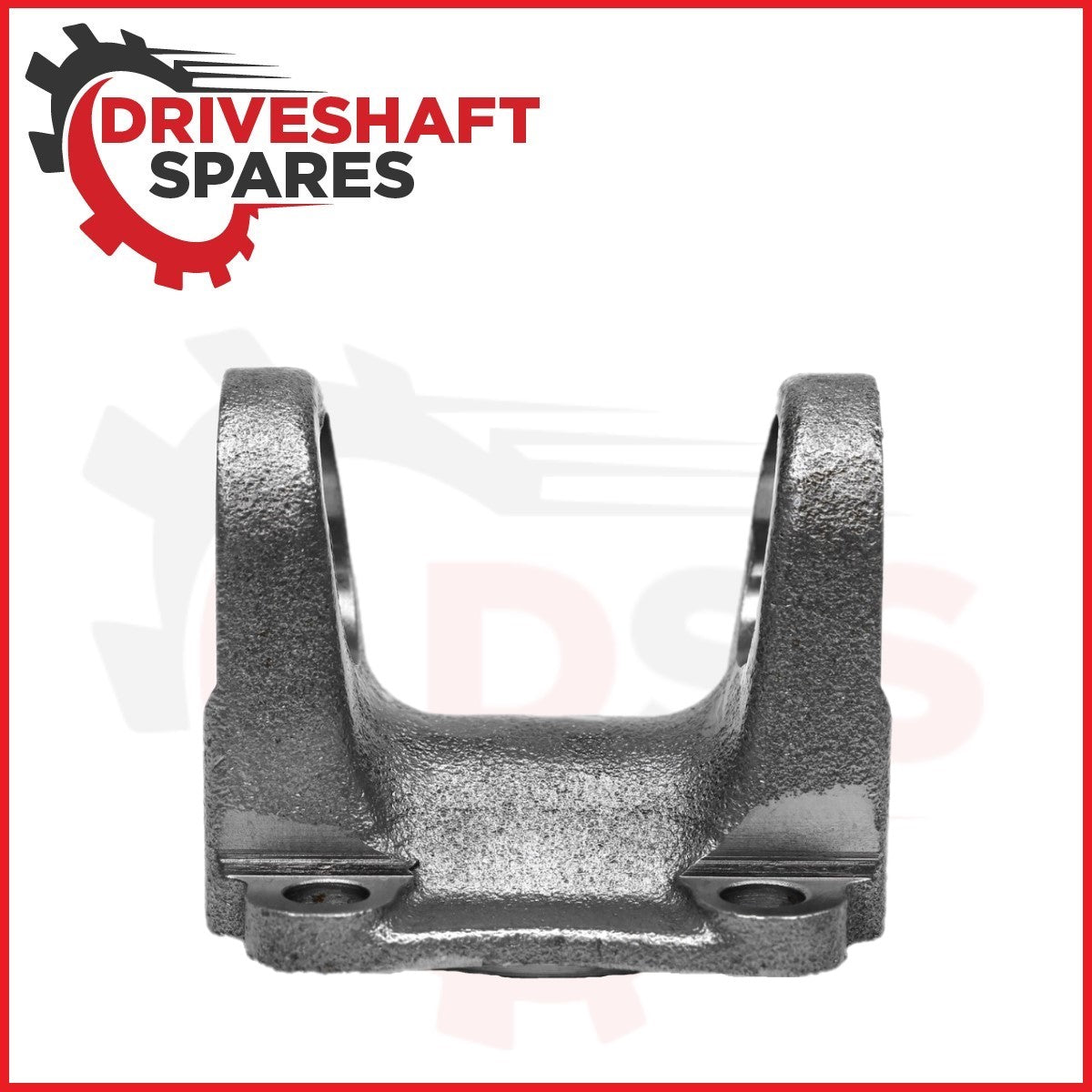

2-2-899 Flange Yoke 1210 series, 2.750BC, 2.250M pilot fits Nissan / Subaru

2-2-899 Flange Yoke 1210 series, 2.750BC, 2.250M pilot fits Nissan / Subaru
2-2-899 Flange Yoke 1210 series, 2.750BC, 2.250M pilot fits Nissan / Subaru - Image 2
2-2-899 Flange Yoke 1210 series, 2.750BC, 2.250M pilot fits Nissan / Subaru - Image 3
2-2-899 Flange Yoke 1210 series, 2.750BC, 2.250M pilot fits Nissan / Subaru - Image 4

$18,00

420 in stock

Description

2-2-899 Flange Yoke 1210 series, 2.750BC, 2.250M pilot fits Nissan / Subaru

Flanges
Series 1210 (1.062 x 2.688)
(OD) 3.406
Pilot 2.250M
(H) 1.484
(X) 1.768
(Y) 2.107
(Z) 2.750
Holes 4

Design Style     Snap Ring Design
U-Joint Series     1210
Universal Joint Retaining Width     2.688
Universal Joint Bearing Diameter   D   1.062
Flange Diameter   A   3.406
Bolt Circle Diameter   B   0.000
Horizontal Distance Between Holes (center to center)     1.768
Vertical Distance Between Holes (center to center)     2.107
Bolt Hole Diameter     .328-D
Bolt Hole Quantity     4.000
Pilot Diameter (M-Male, F-Female)   C   2.250M
Centerline of Joint to Flange Face   G   1.484
Compatible U-Joint Kits     SPI-5-443X
Notes     Fits several Nissan & Toyota pick-up trucks
Cast/Forged

Additional information

Weight 2 kg
