2-82-58X – Yoke Shaft 1310 Series – Ø1.376 x 16 spline, 7.062 Centerline to end

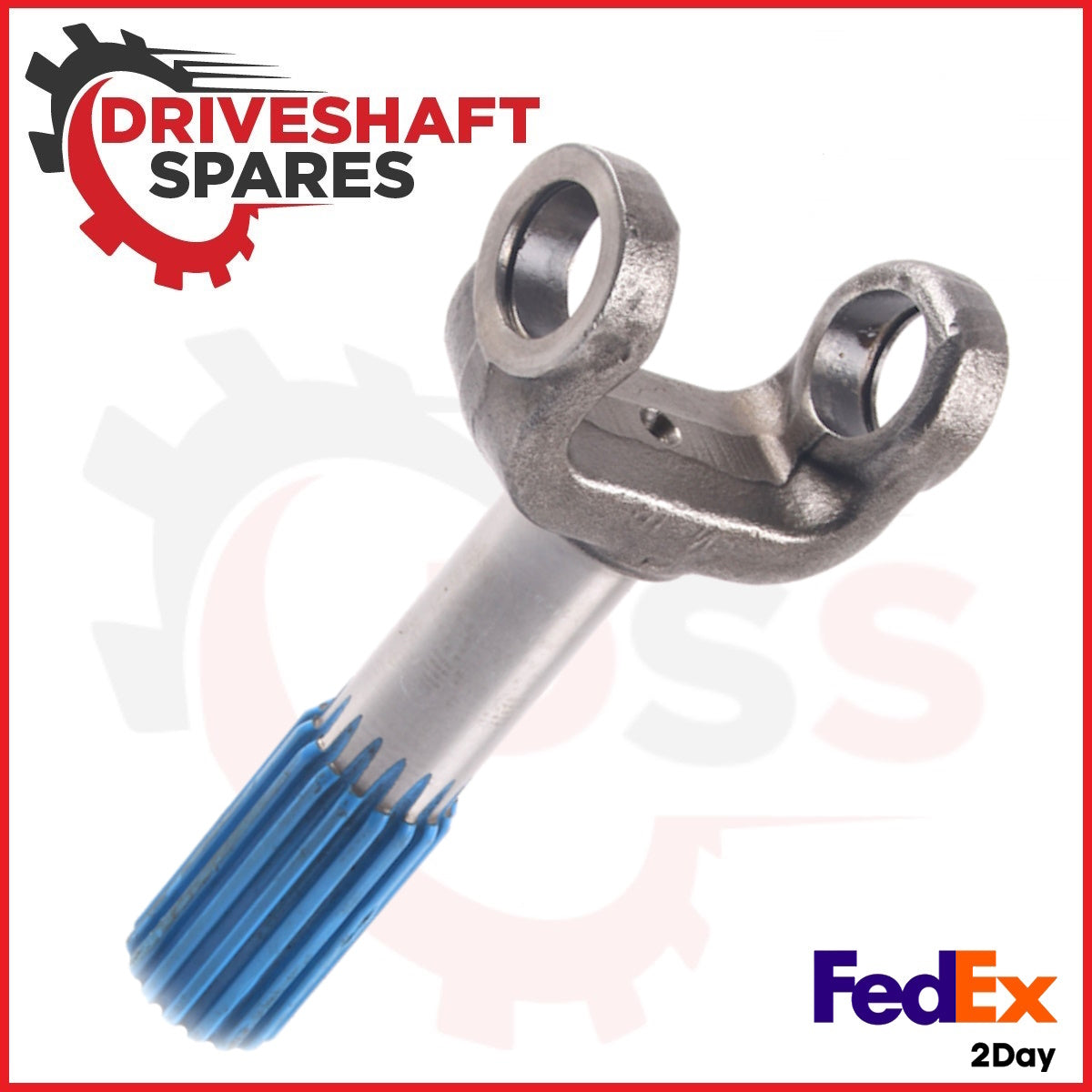

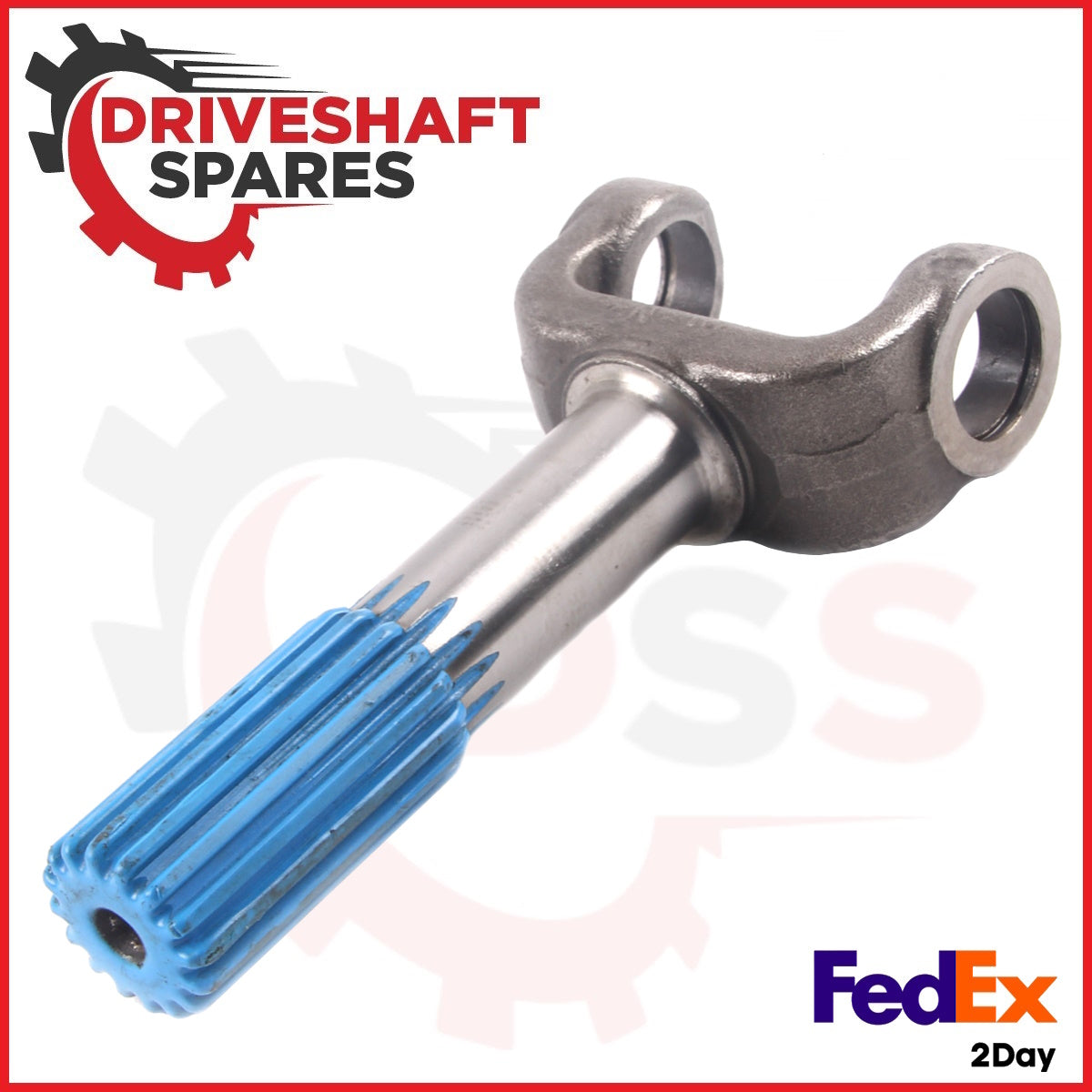

• YOU ARE BUYING a 2-82-58X, Yoke Shaft as seen in the cover image.

Yoke Shaft
Series	1310 (1.062 x 3.219)
Spline	1.376×16
C/L to End	7.062

• Spline Diameter 1.376
• Spline Count 16.000
• Spline Length 2.500
• Series 1310
• Joint Width 2.938
• Joint Bearing Diameter 1.062
• Width Across Ears 3.469
• Centerline to End 7.062
• End of Spline to Radius 5.190
