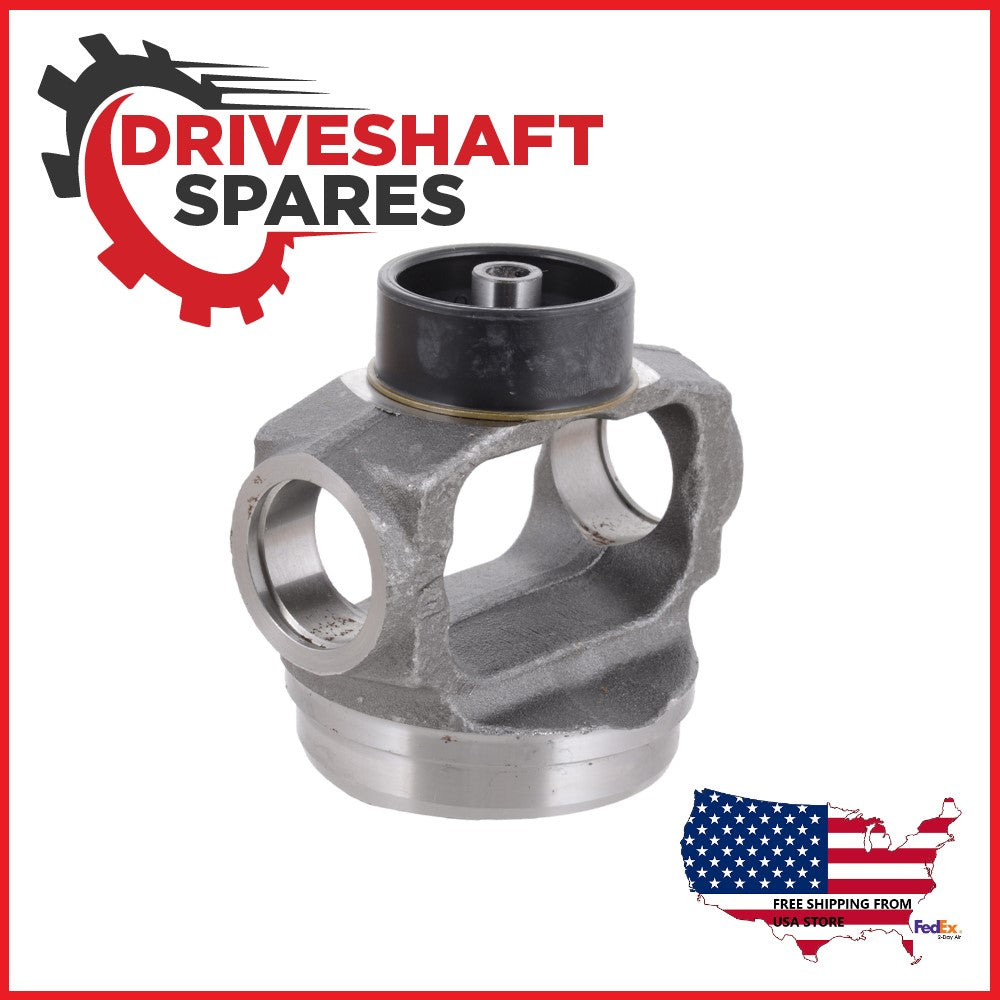

3-28-1327X, 1350 Series Driveshaft Double Cardan CV Ball Stud Tube Weld Yoke.

3-28-1327X, 1350 Series Driveshaft Double Cardan CV Ball Stud Tube Weld Yoke.

• Ball Stud Tube Yoke 1350 series, Ø3.000 X .083 W tube Rubber
• Fits Tube Diameter (In)    3.00
• Fits Tube Wall (In)    0.083
• Butt Diameter (In) F    2.844
• C/L To Weld (In) K    1.440
• C/L To Ball Stud End (In) J    1.732
• Ball Stud Length (In) L    0.590
• Ball Stud Diameter (In) H    0.500
• Slinger Or Seal Part Number    2-86-418
• Series  – 1350
• Material  – Steel
• Outside Yoke Dimension (In) E    3.785
• Bearing Cap Diameter (In) D    1.188
• Dust Cover is Rubber
