Description

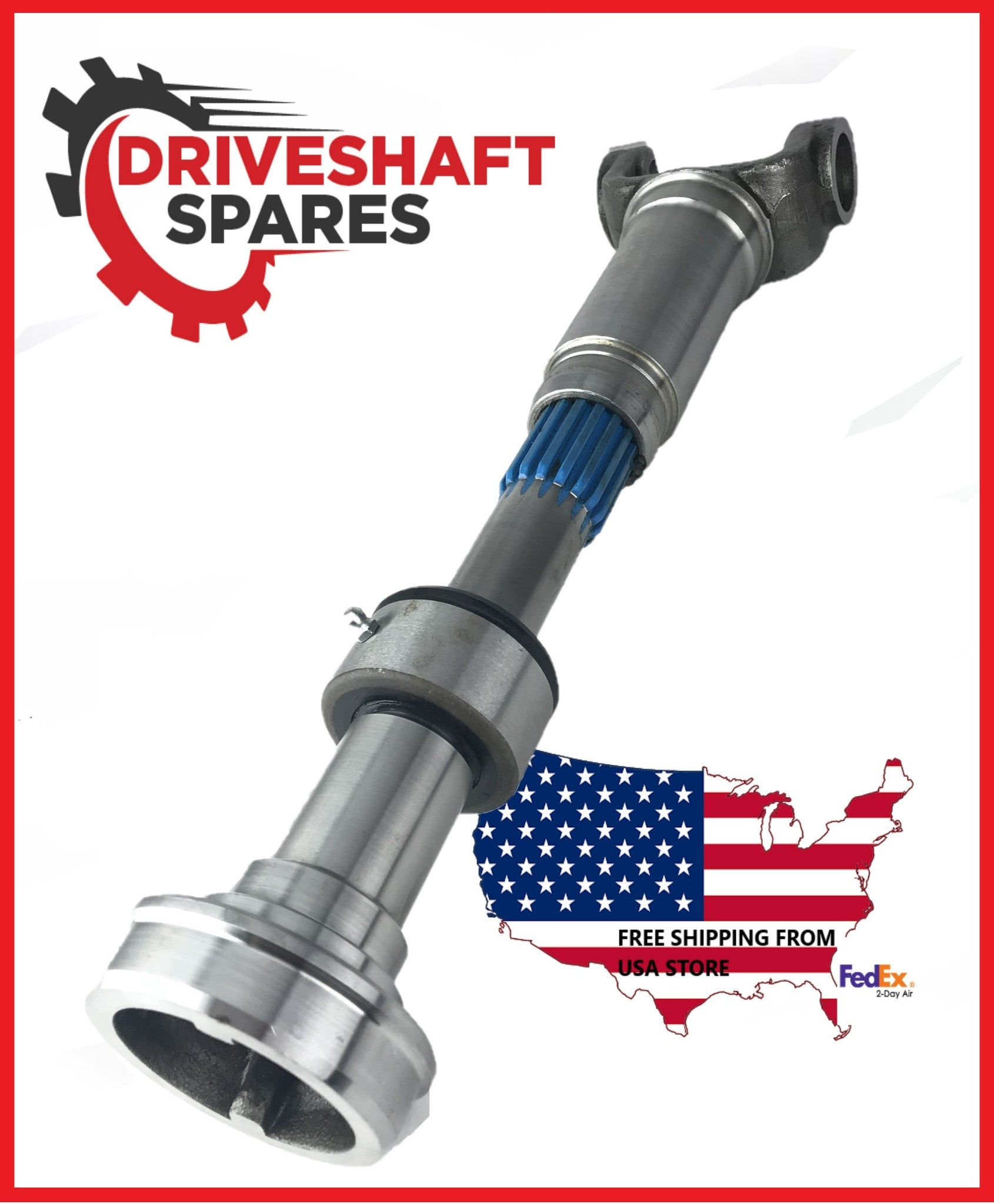

3-3-2701KX Slip Yoke 2-53-711 Splined Midship Tube Shaft 1350 Series
| General Design Type | LD-MD Driveshaft | |
| U-Joint Series | 1350 | |
| Spline Major Diameter | 1.375 | |
| Spline Count | 16.000 | |
| Spline Type | 15 Based On 16 Spline | |
| Max Joint Angle | 45.000 | |
| Universal Joint Retaining Width | E | 3.875 |
| Universal Joint Bearing Diameter | D | 1.188 |
| Centerline of Joint to End of Spline | J | 6.810 |
| Centerline of Joint to Face of Plug | F | 1.190 |
| Part Number of Lube Fitting | SPI-500174-1 | |
| Dust Cap & Washer Kit Number | SPI-211121X | |
| Slip Yoke Plug part number (included) | SPI-3-68-33 | |
| Boot Kit Assembly part number (order separately) | ||
| Compatible U-Joint Kits | SPI-5-178X,SPI-5-1350X,SPI-SPL30-1X | |
| Style | Snap Ring |
| General Design Type | For use with Outboard Slip Yokes | |
| Spline Major Diameter | D | 1.375 |
| Spline Count | 16.000 | |
| Spline Type | 15 Based On 16 Spline | |
| Bearing Diameter | C | 1.378 |
| Tube Diameter and Wall Size | 2.750 X .065 | |
| End of Spline to Bearing Shoulder | Y | 7.781 |
| End of Spline to Point of Weld | K | 8.844 |
| Length of Spline | L | 2.500 |
| Thread Size | ||
| Shoulder Diameter | B | 1.688 |
| Length of Shoulder | G | 0.812 |
