Description

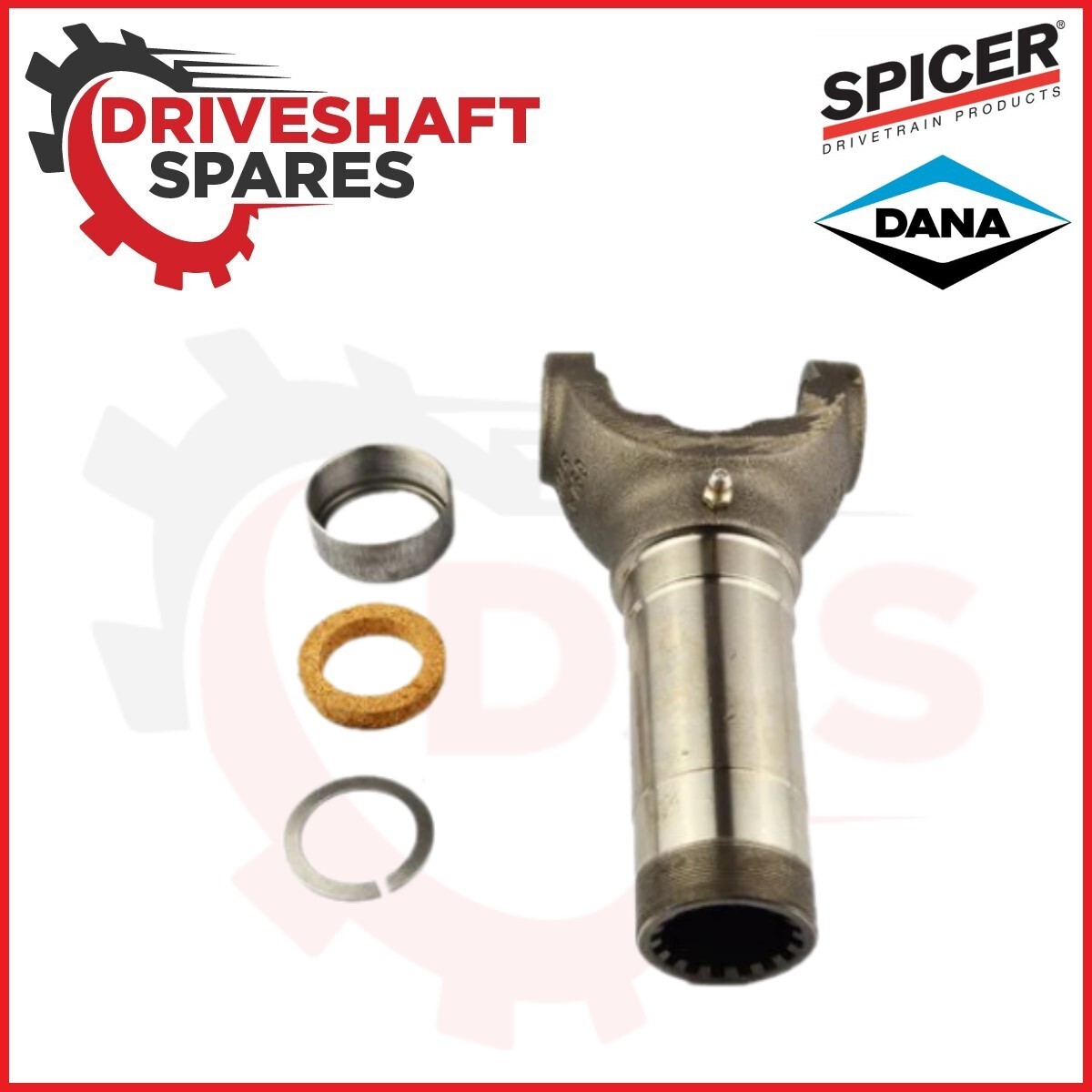

DANA SPICER 3-3-488KX Driveshaft Slip Yoke 1350 series, 1.500 x 16 spline 7.312″ C/L to End specifications:
| Slip Yokes | |
| Series | 1350 (1.188 x 3.625) |
| Spline | 1.500×16 |
| Centerline to End of Spline | 7.312 |
- Spicer
- Series: 1350
- Material: Steel
- Outside Yoke Dimension (E) In.: 3.875
- Inside Yoke Dimension (K) In.: –
- Bearing Cap Diameter (D) In.: 1.188
- C/L To End Of Spline (J) In.: 7.312
- C/L To Face Of Plug (F) In.: 1.188
- Spline O.D.: 1.5
- No. Of Splines: 16
- Involute: No
- Style: SR
- VMRS: 24002038
- Joint Angle #1: 20
Features:
- Brand new parts
- Fast and free US continental shipping
- No hassle returns
