3-3-758KX Slip Yoke 1350 series, Ø1.375×16 spline5.250 Centerline to End

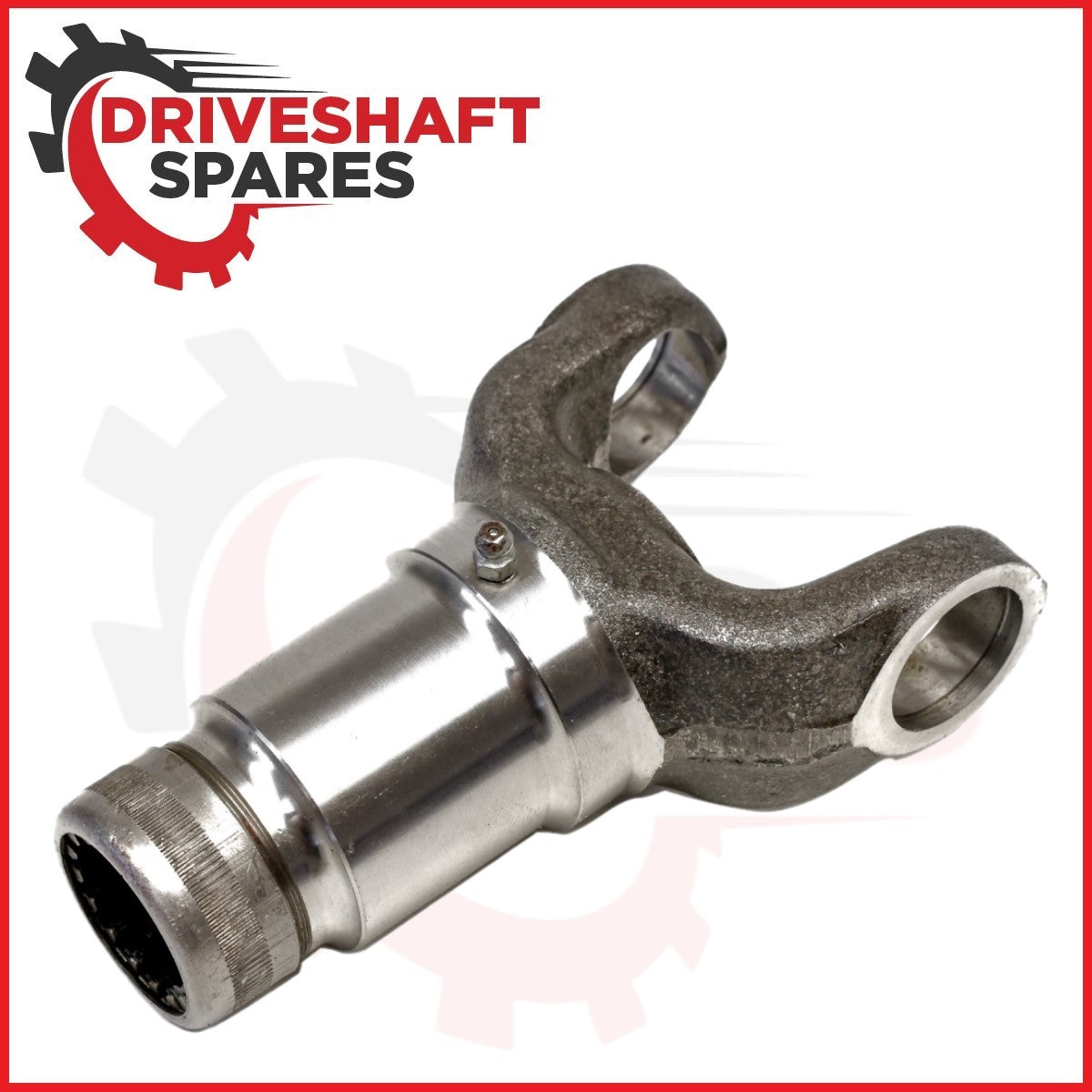

3-3-758KX Slip Yoke 1350 series, Ø1.375x16 spline5.250 Centerline to End

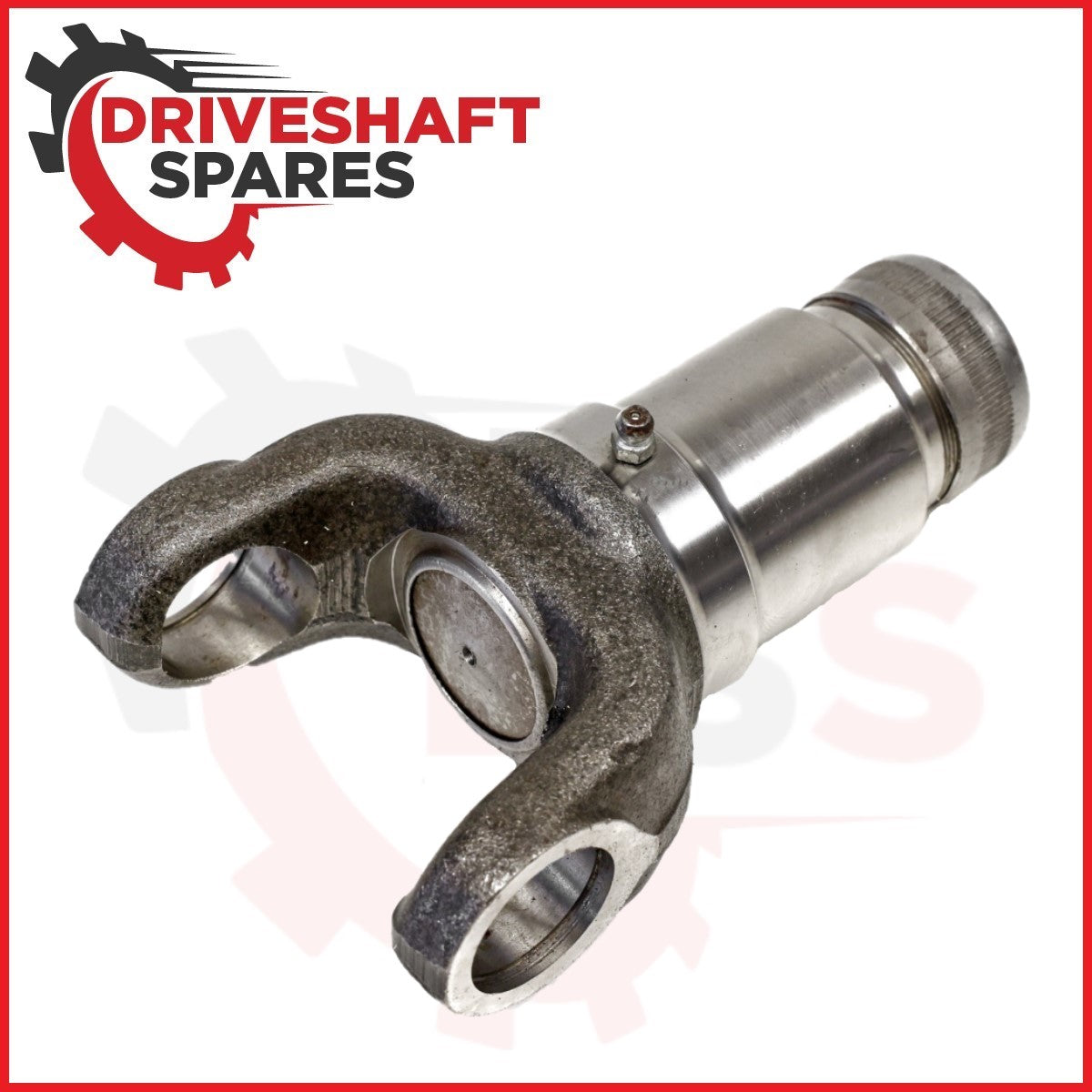

3-3-758KX Slip Yoke 1350 series, Ø1.375x16 spline5.250 Centerline to End - Image 2
3-3-758KX Slip Yoke 1350 series, Ø1.375x16 spline5.250 Centerline to End - Image 3

$57,60

25 in stock

Description

3-3-758KX  Slip Yoke 1350 series, Ø1.375×16 spline5.250 Centerline to End

  • You are buying a High-Quality Aftermarket, Forged Slip Yoke



     Part Description:

  • Spline Major Diameter  1.375
  • Spline Count  16.000
  • Spline Type  Parallel
  • Max Joint Angle  20.000
  • Universal Joint Retaining Width  E  3.875
  • Universal Joint Bearing Diameter  D  1.188
  • Centerline of Joint to End of Spline  J  5.250
  • Centerline of Joint to Face of Plug  F  1.188
  • Ø1.375×16 spline
  • Slip Yoke 1350 series

           Additional Part Information:
  • General Design Type  LD-MD Driveshaft
  • U-Joint Series  1350
  • Part Number of Lube Fitting  SPI-500174-1
  • Dust Cap & Washer Kit Number  SPI-D3E
  • Slip Yoke Plug part number (included)  SPI-3-68-33
  • Boot Kit Assembly part number (order separately)
  • Compatible U-Joint Kits  SPI-5-178X,SPI-5-1350X,SPI-SPL30-1X
  • Style  Snap Ring

Additional information

Weight 3,13 kg
