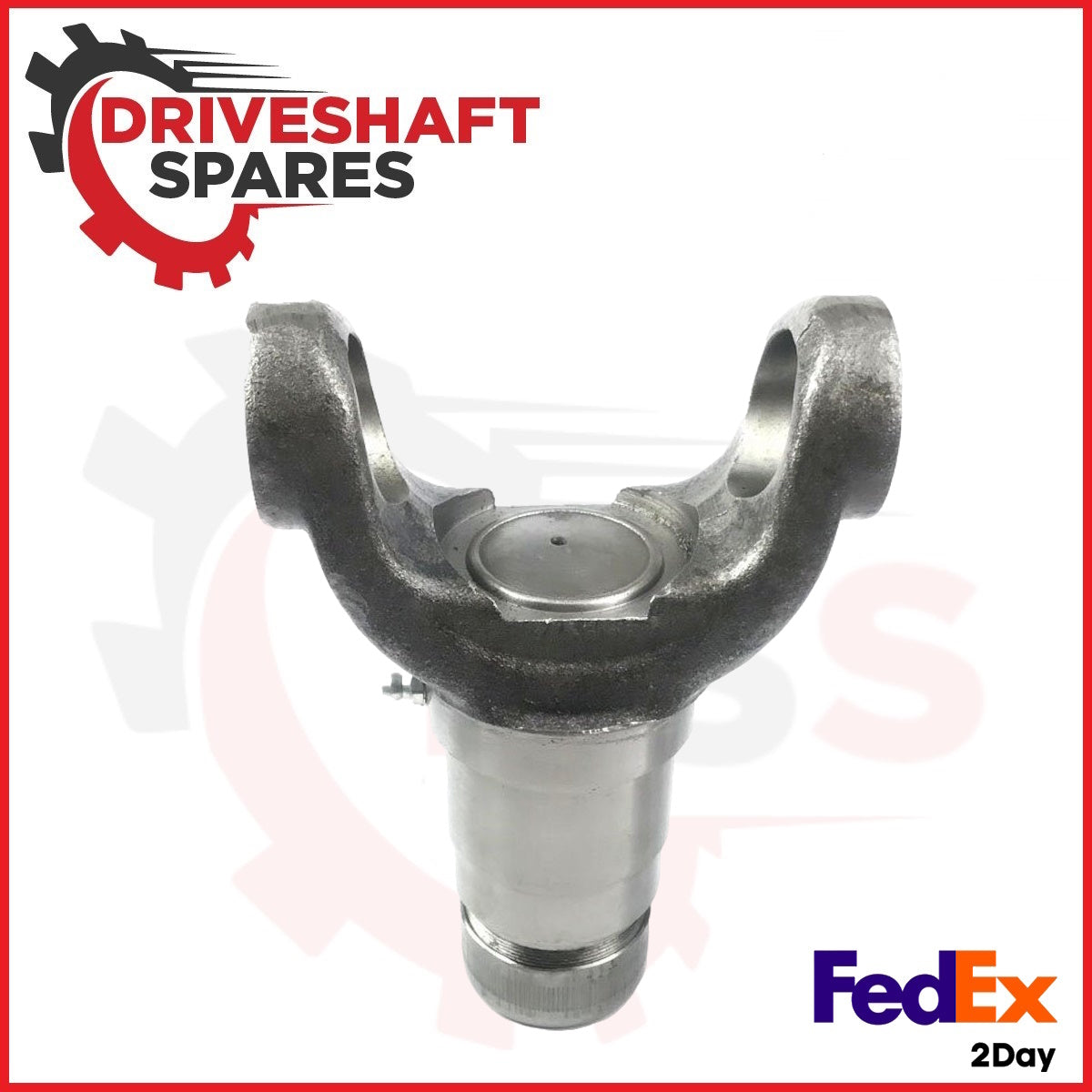

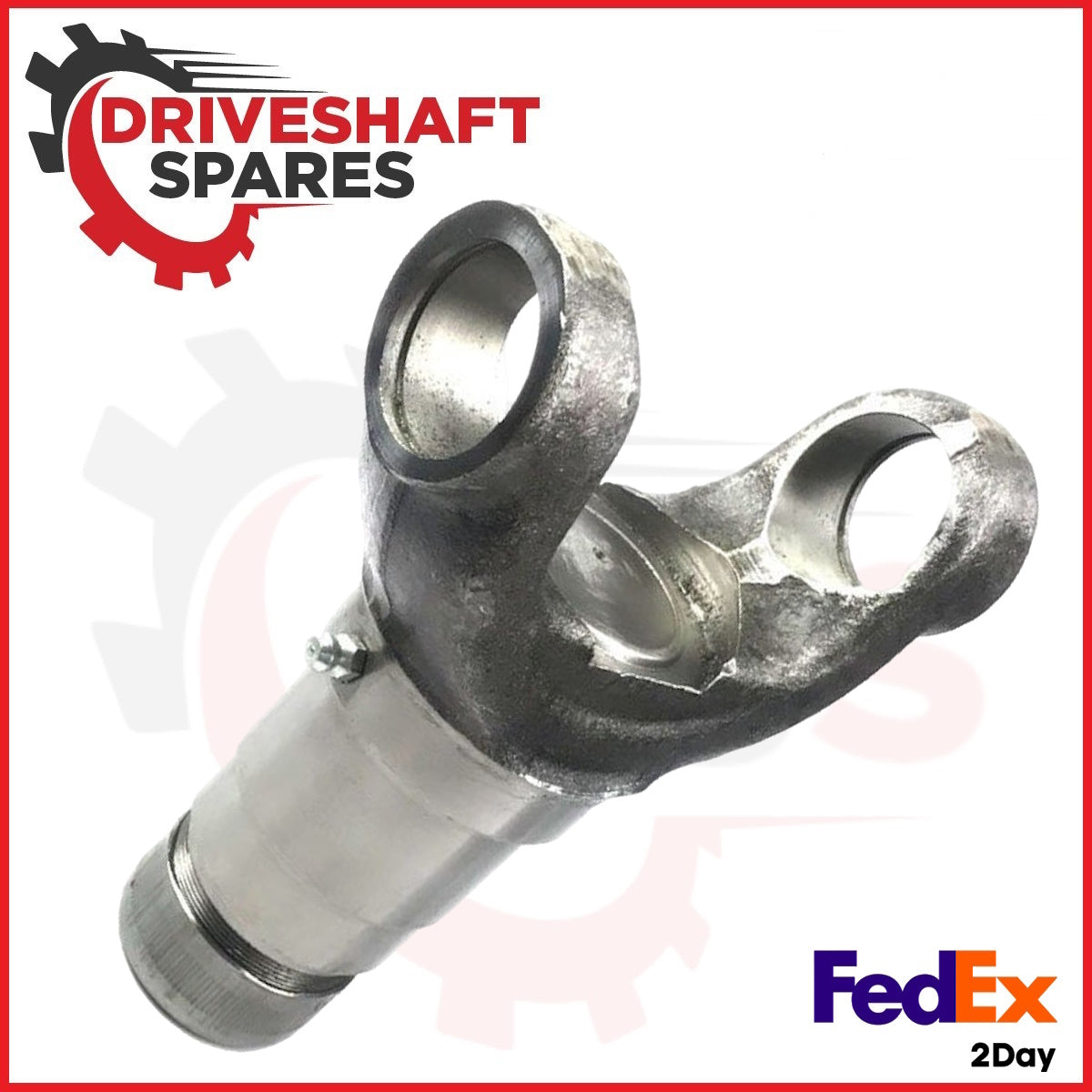

Driveshaft Slip Yoke 1410 series, Ø1.375×16 spline 5.250 Centerline to End 3-3-788KX + 5-160X UNIVERSAL JOINT

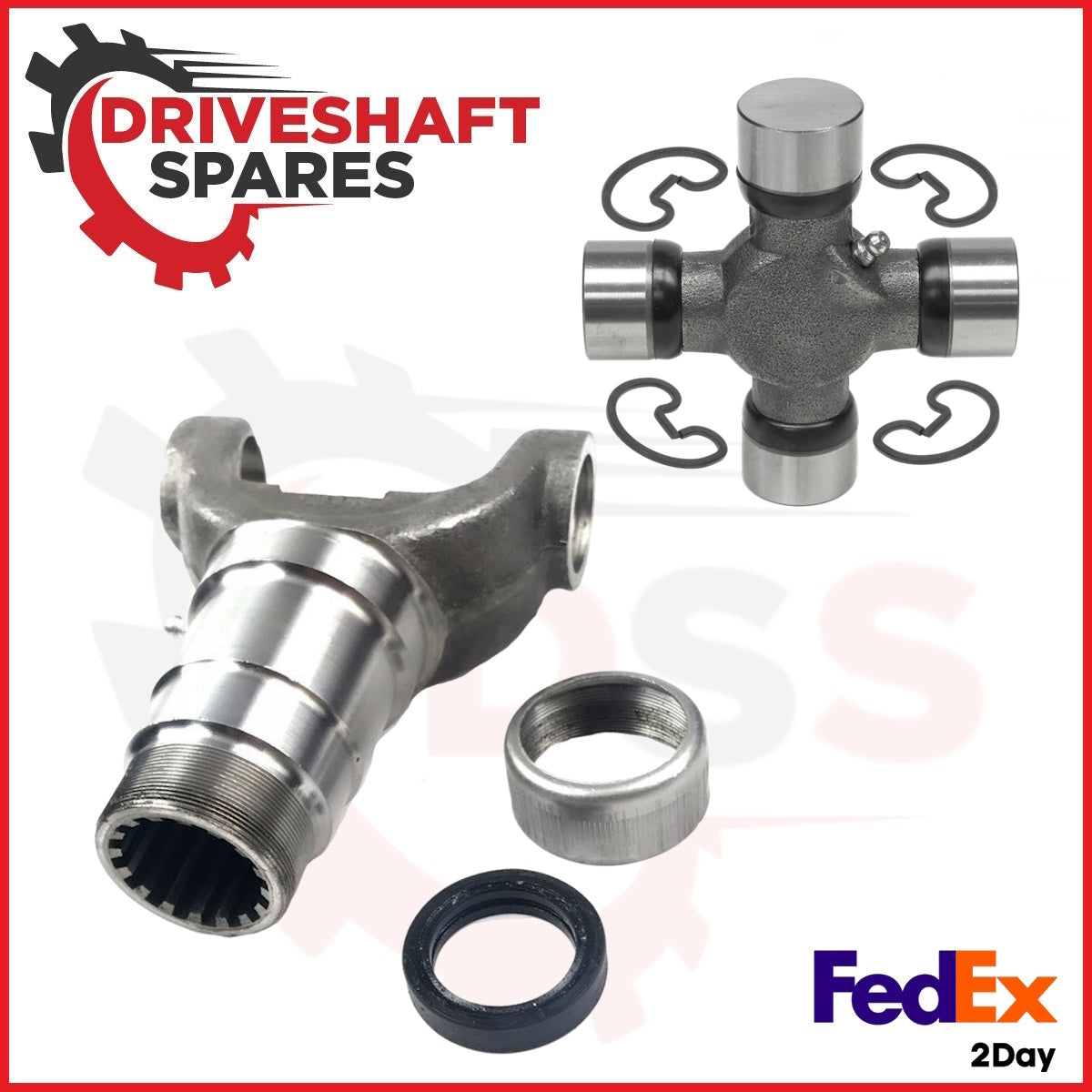

• YOU ARE BUYING 2 BRAND NEW PARTS IN KIT FORM AS SEEN IN THE COVER IMAGE.

General Design Type		LD-MD Driveshaft
U-Joint Series		1410
Spline Major Diameter		1.375
Spline Count		16.000
Spline Type		Parallel
Max Joint Angle		20.000
Universal Joint Retaining Width	E	4.438
Universal Joint Bearing Diameter	D	1.188
Centerline of Joint to End of Spline	J	5.250
Centerline of Joint to Face of Plug	F	1.156

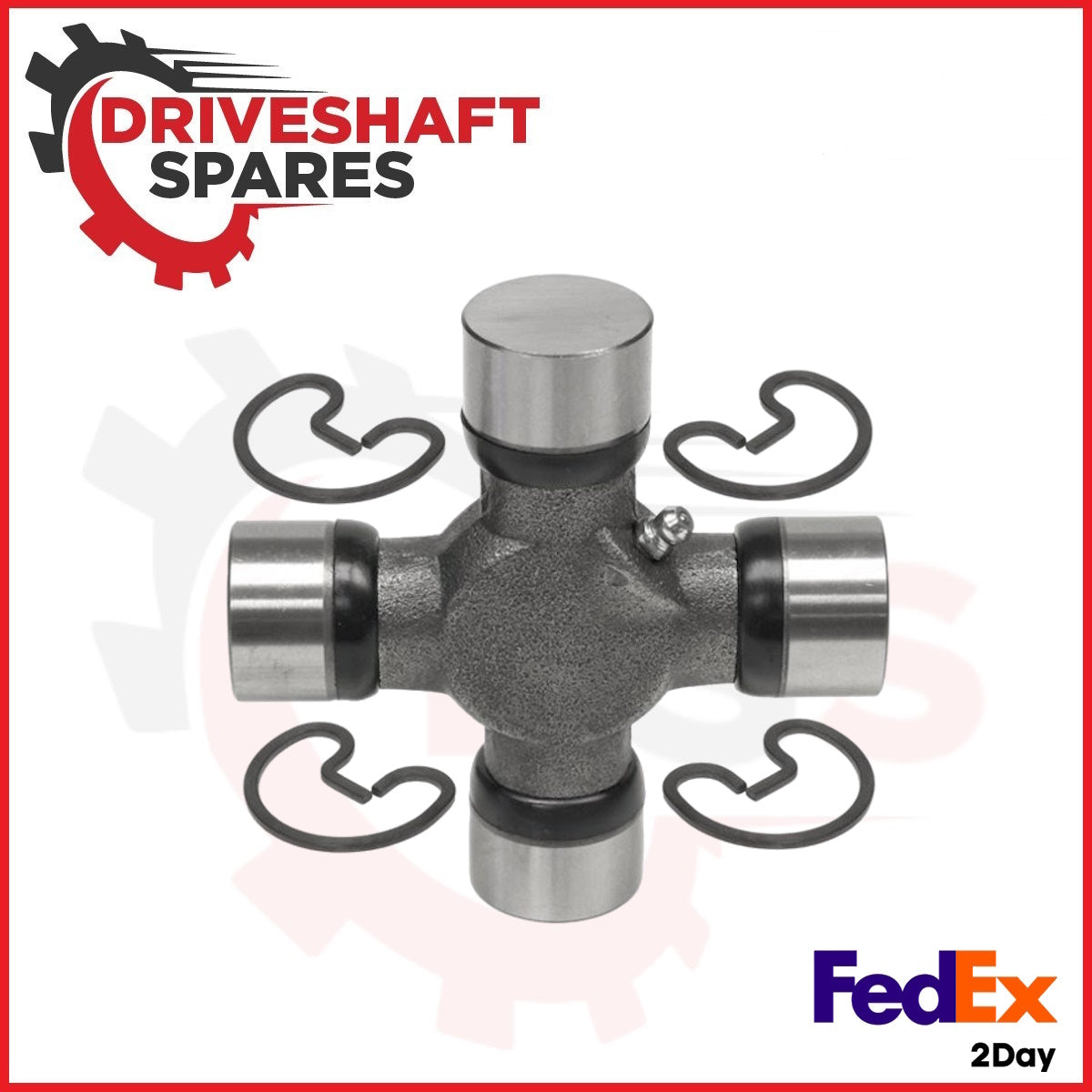

UNIVERSAL JOINT 5-160X

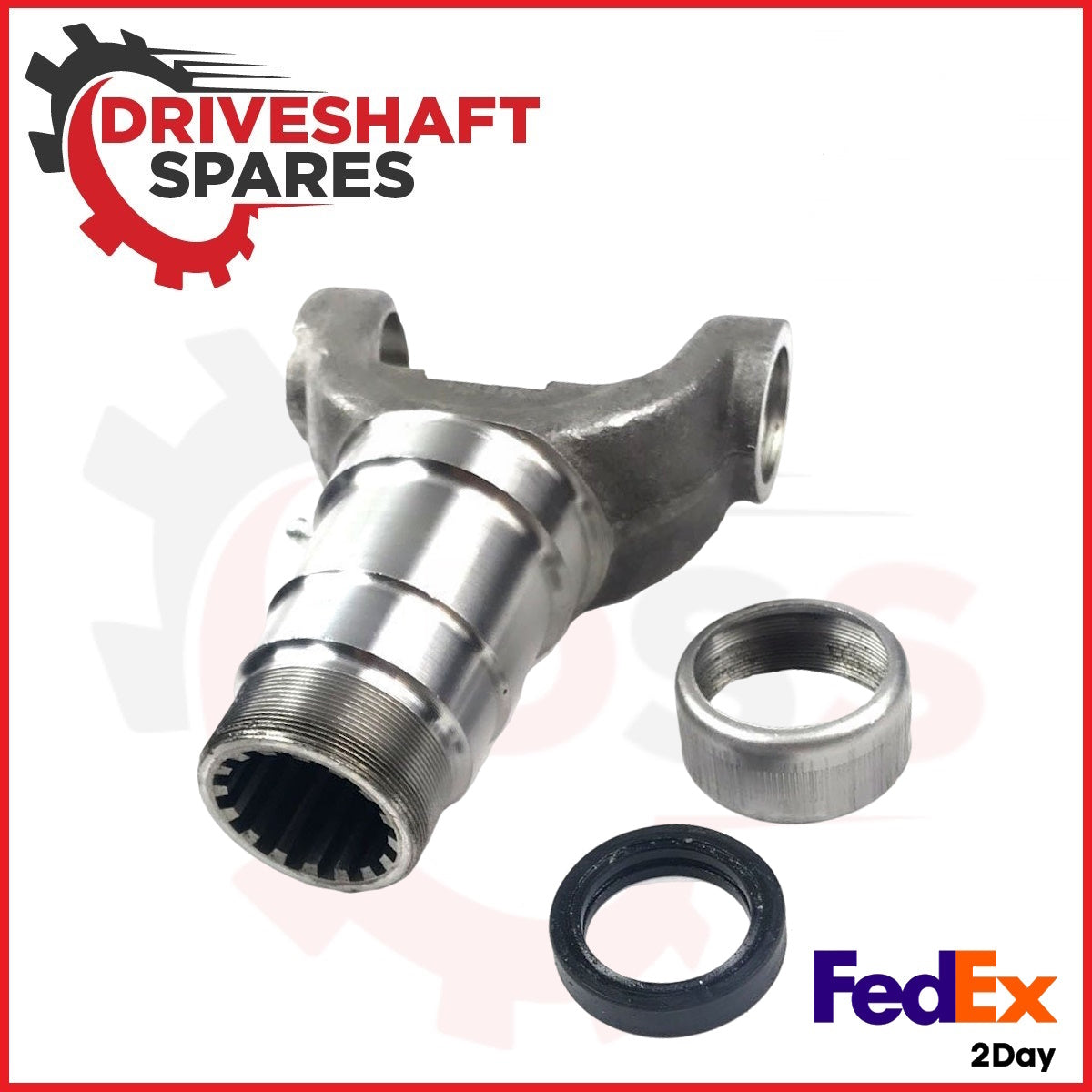

Slip Yoke 1410 series, Ø1.375×16 spline 5.250 Centerline to End
Imperial Universal Joints (D) 1.188 (L) 4.188 Type 2
5-160X 1410 Series, U-Joint – Outside Snap Rings – Greasable.
