Description

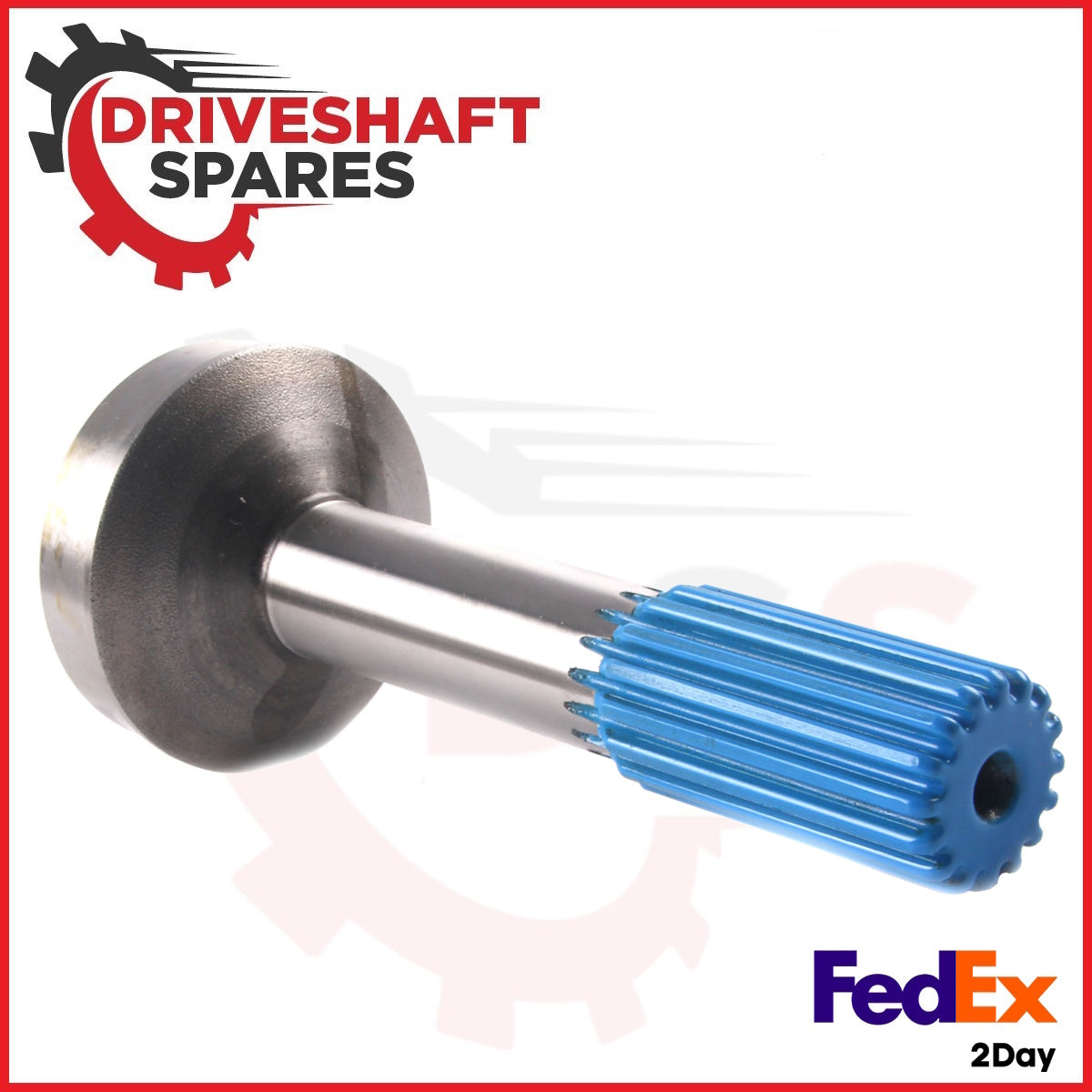

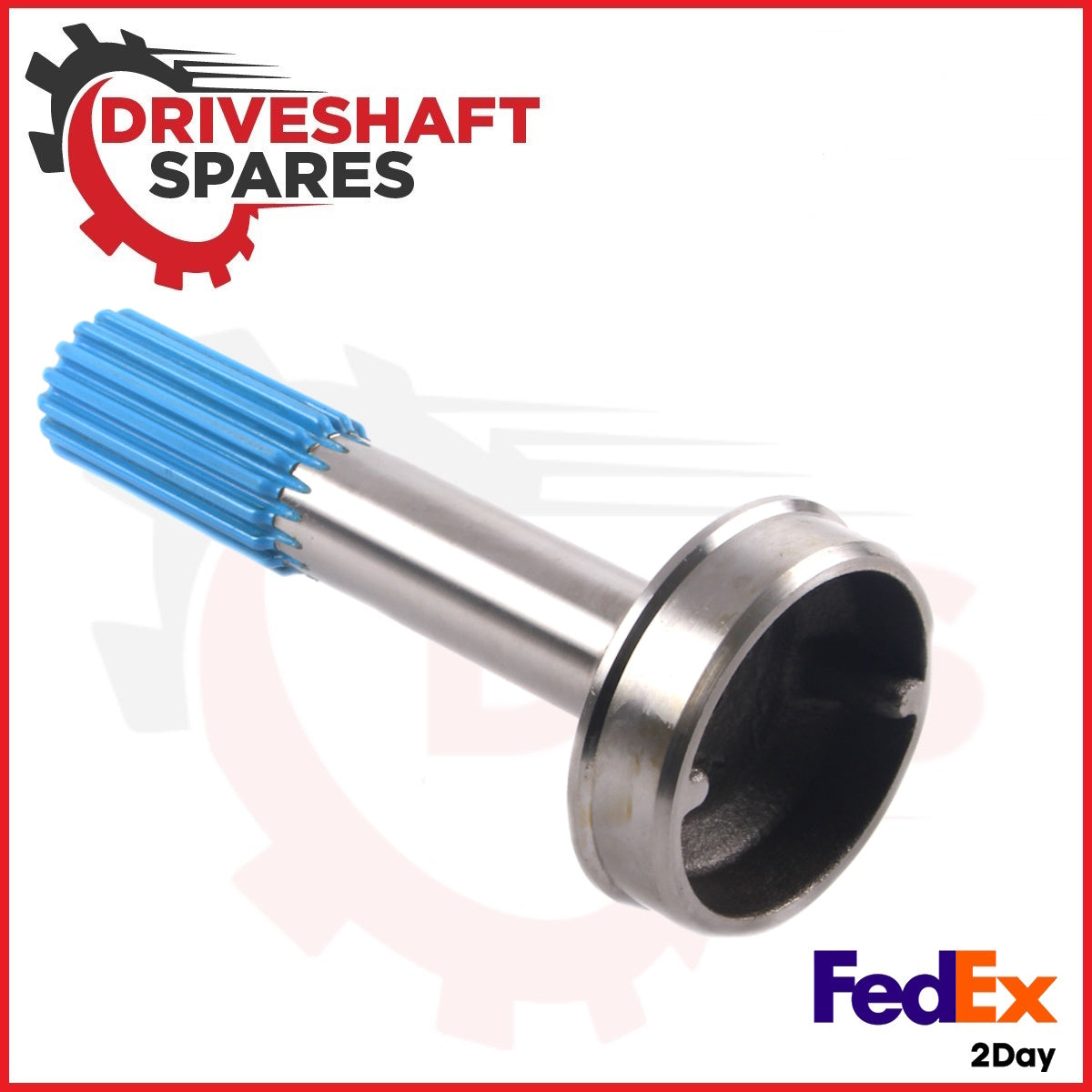

3-40-1491 Splined Stub Shaft 1310-1480 (1.500×16 Spline 3.5 x 0.083 Tube L 7.531)
| Splines | |
| Spline | 1.500×16 |
| Tube | 3.500 x .083 |
| (K) | 7.531 |
| (L) | 3.000 |
| (R) | 6.594 |
| (B) | 3.345 |
- Spline Major Diameter 1.500 Spline Count 16.000 Tube Diameter and Wall Size 3.500 X .083 End of Spline to Weld K 7.531 Length of Spline L 3.000 End of Spline to Radius R 6.594
