Description

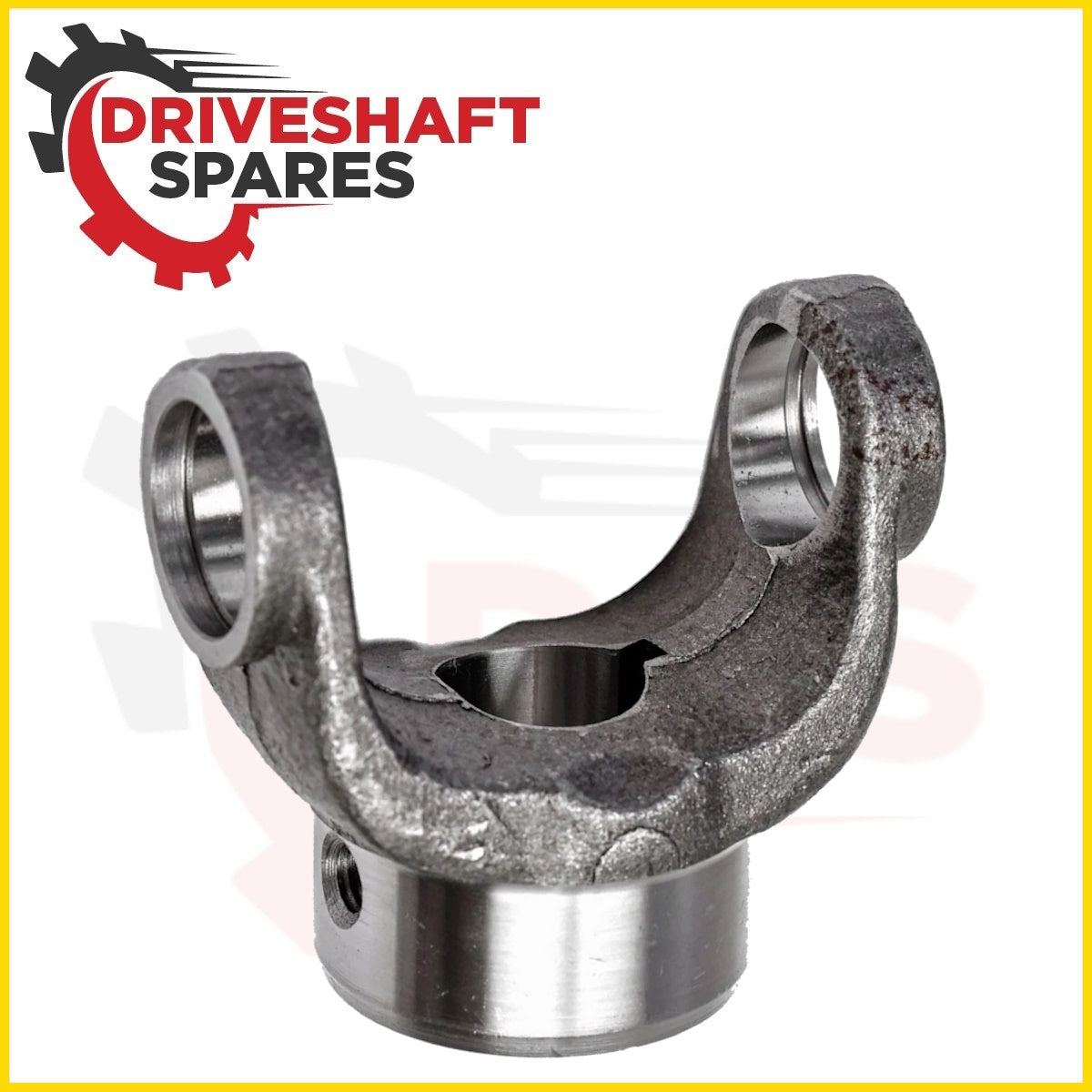

2-4-523 End Yoke 1310 Ø1.125 Bore w/0.312 keyway, Ø2.125 hub diameter
| End Yokes | |
| Series | 1310 (1.062 x 3.219 ) |
| (P) | 1.125 |
| (R) | 2.125 |
| (S) | 2.562 |
| (X) | 0.312 |
- General Design Type Round Bore
- U-Joint Series 1310
- Bore Diameter P 1.125
- SAE Keyway Width X 0.312
- Hub Diameter R 2.125
- Universal Joint Retaining Width E 3.469
- Universal Joint Bearing Diameter D 1.062
- Length Thru Bore Q 0.000
- Centerline of Joint to End of Hub S 2.562
- Set Screw Thread 0.375
- Keyway Location 12
- Set Screw Location Clock position viewed at Hub End and Keyway at 12 W 6
