Drive Shaft Yoke Shaft 1410 Series 1.500 x 16 spline 3-82-1191

Drive Shaft Yoke Shaft 1410 Series 1.500 x 16 spline 3-82-1191

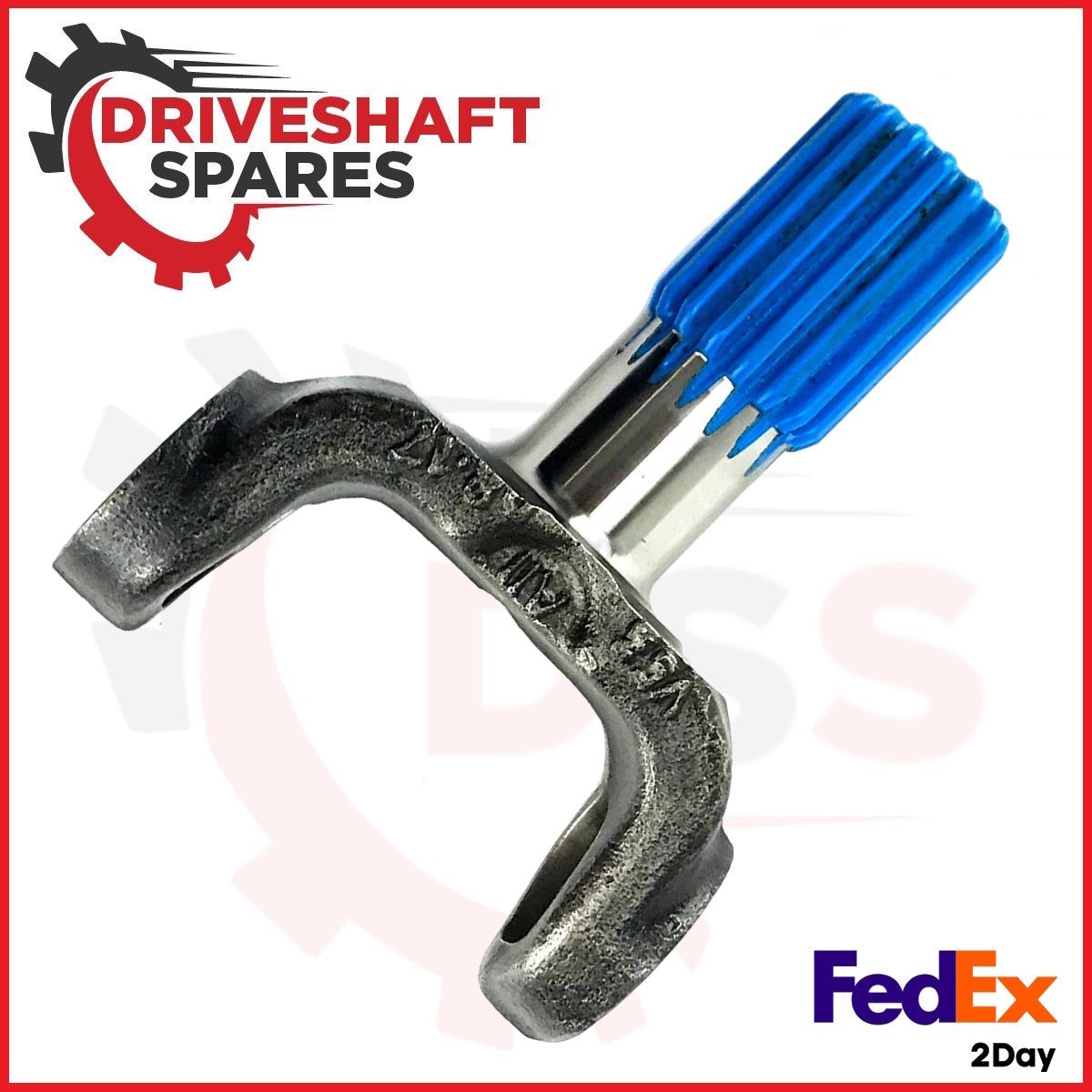

Drive Shaft Yoke Shaft 1410 Series 1.500 x 16 spline 3-82-1191 - Image 2

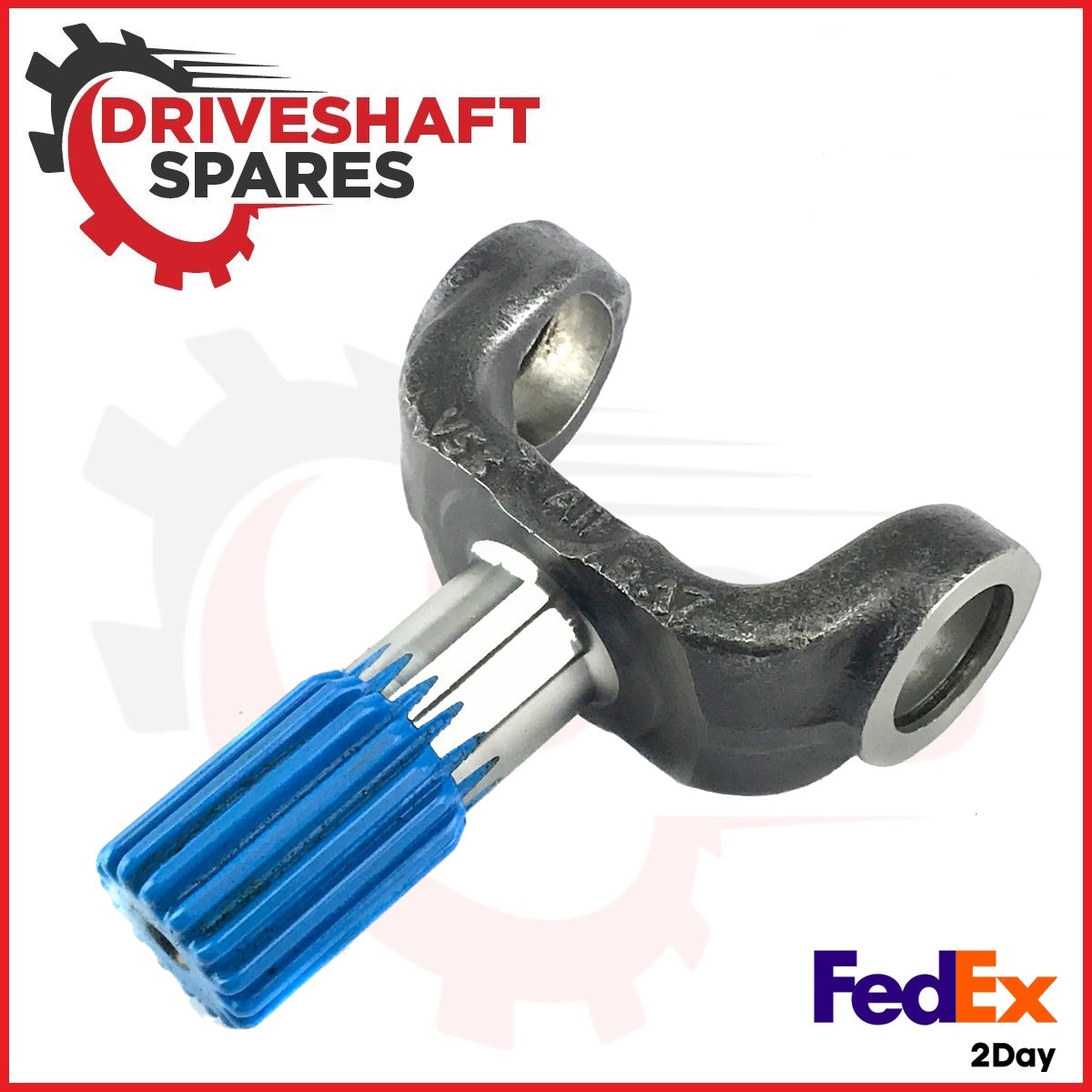

Drive Shaft Yoke Shaft 1410 Series 1.500 x 16 spline 3-82-1191 - Image 3

$108,00

57 in stock

Description

Drive Shaft Yoke Shaft 1410 Series 1.500 x 16 spline 3-82-1191

Yoke Shaft
Series 1410 (1.188 x 4.188)
Spline 1.500×16
C/L to End 4.969
  • UJ: 1.188″ x 4.188″Spline: 1.500″ x 16C/L to end: 4.969″
Spline Diameter     1.500
Spline Count     16.000
Spline Length   L   2.000
Series     1410
Joint Width   E   4.178
Joint Bearing Diameter   D   1.188
Width Across Ears     4.438
Centerline to End   K   4.969
End of Spline to Radius   R   3.250
Joint Angle     0.000

Additional information

Weight 3 kg
