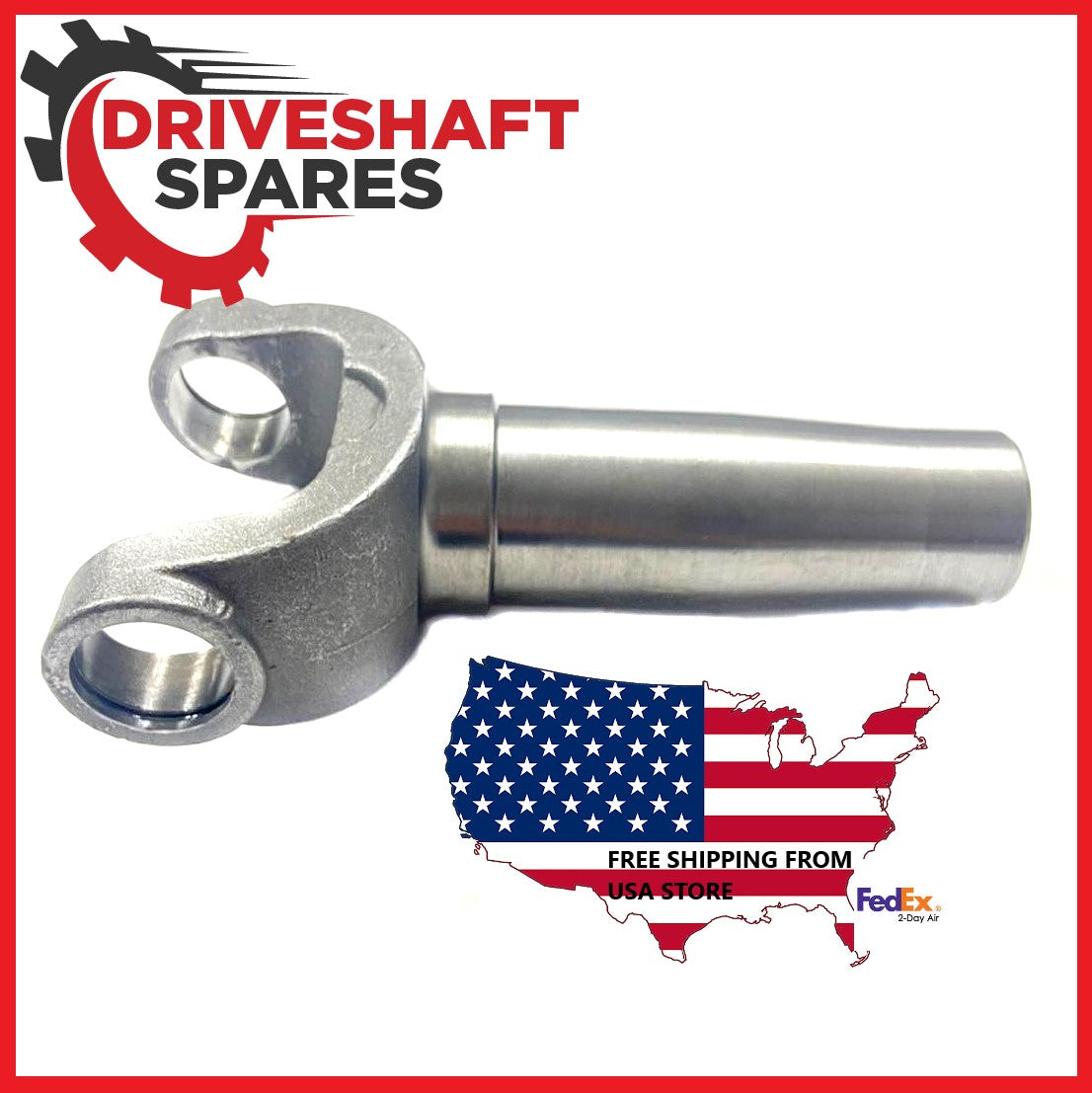

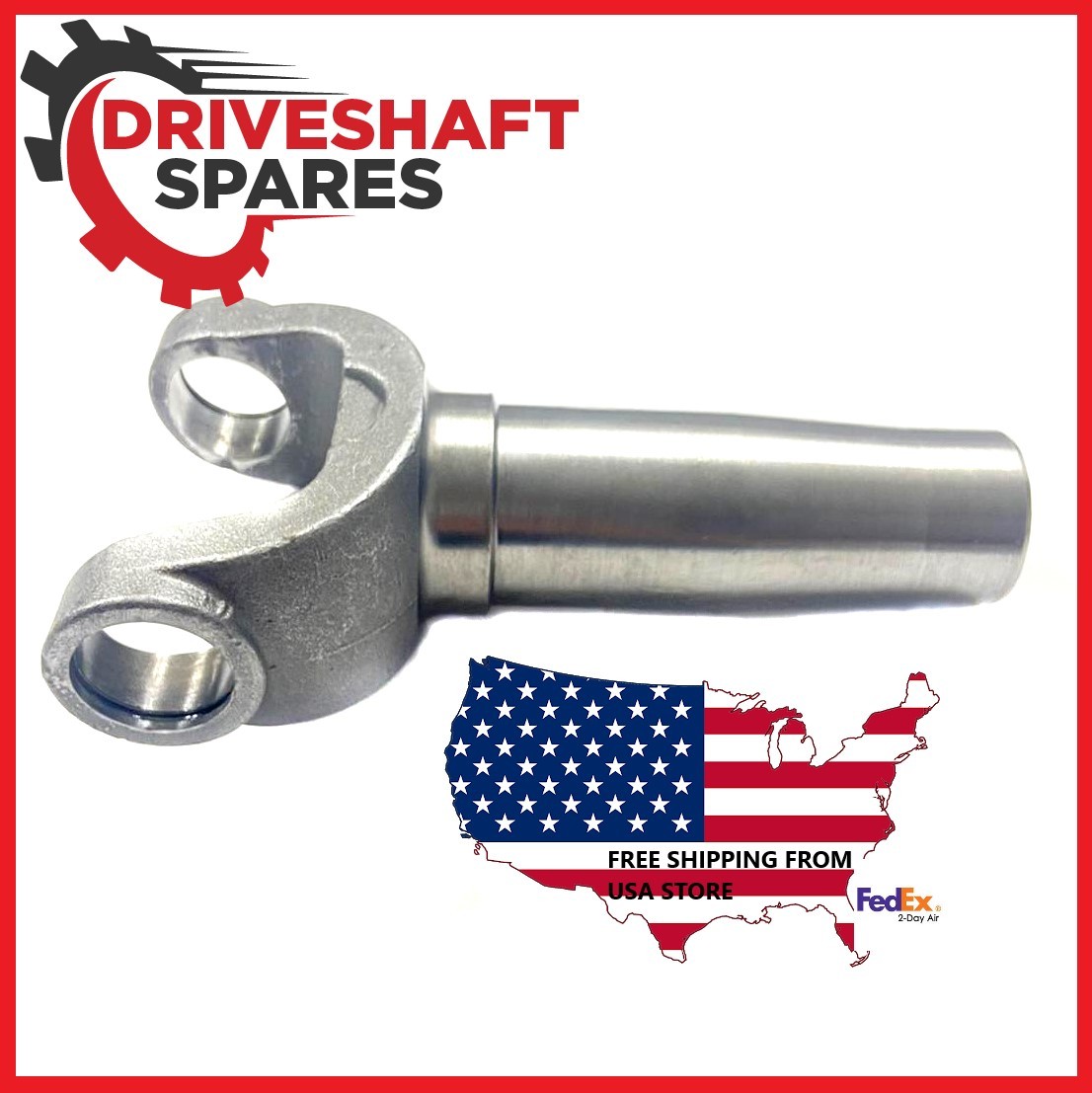

Driveshaft Slip Yoke 3-3-6341X 1410 series 21/22 spline 7.310″ Centerline to end

$66,00

41 in stock

Description

Driveshaft Slip Yoke 3-3-6341X 1410 series 21/22 spline 7.310″ Centerline to end

You are buying a High-Quality Aftermarket, Forged Slip Yoke


General Design Type     LD-MD Driveshaft
U-Joint Series     1410
Spline Major Diameter     1.463
Spline Count     22.000
Spline Type     21 Based On 22 Spline
Max Joint Angle     0.000
Universal Joint Retaining Width   E   4.438
Universal Joint Bearing Diameter   D   1.188
Centerline of Joint to End of Spline   J   7.310
Centerline of Joint to Face of Plug   F   1.160
Part Number of Lube Fitting
Dust Cap & Washer Kit Number
Slip Yoke Plug part number (included)     SPI-500166-24
Boot Kit Assembly part number (order separately)     SPI-212094X
Compatible U-Joint Kits     SPI-5-160X,SPI-5-1410X
Style     Snap Ring

Additional information

Weight 2,5 kg
