Description

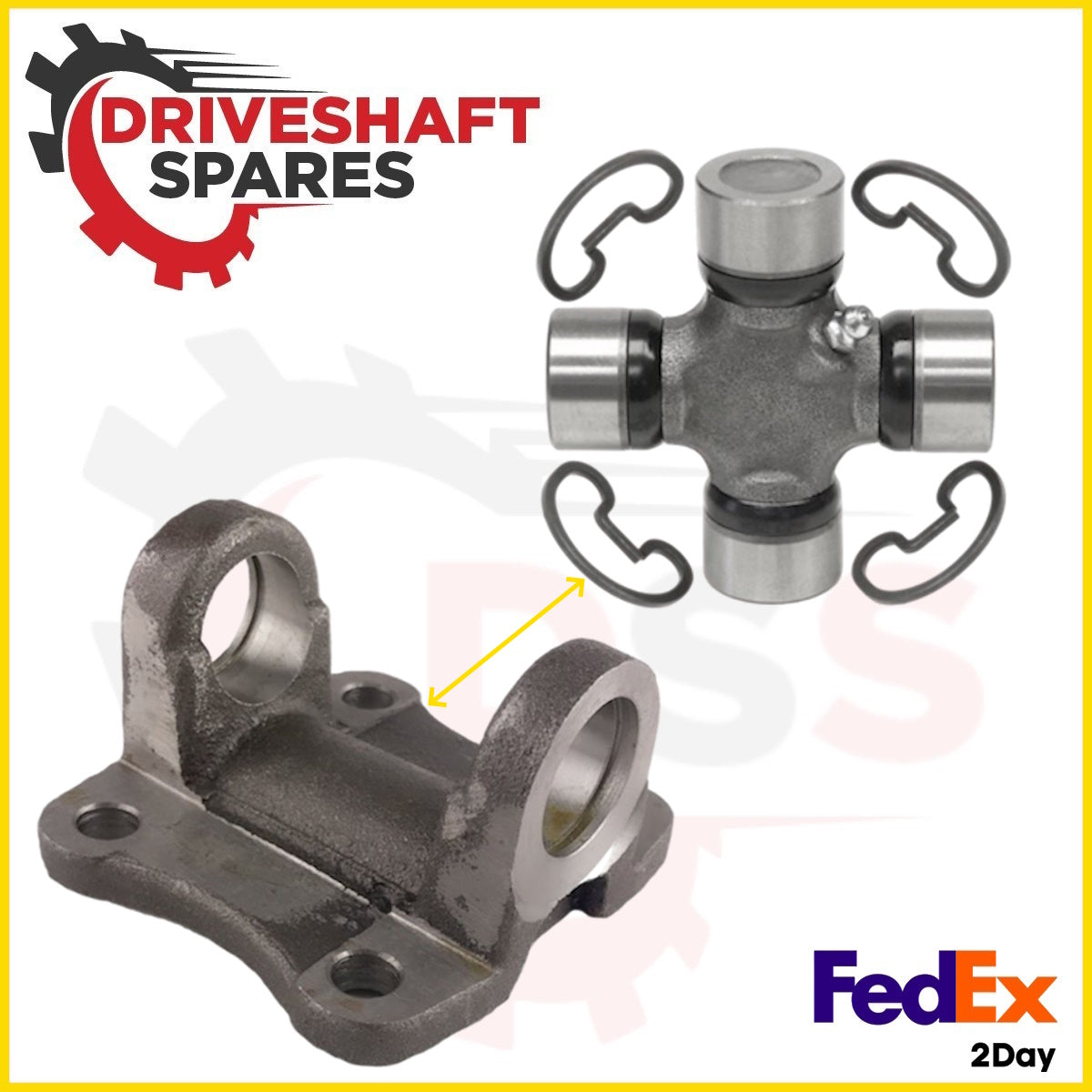

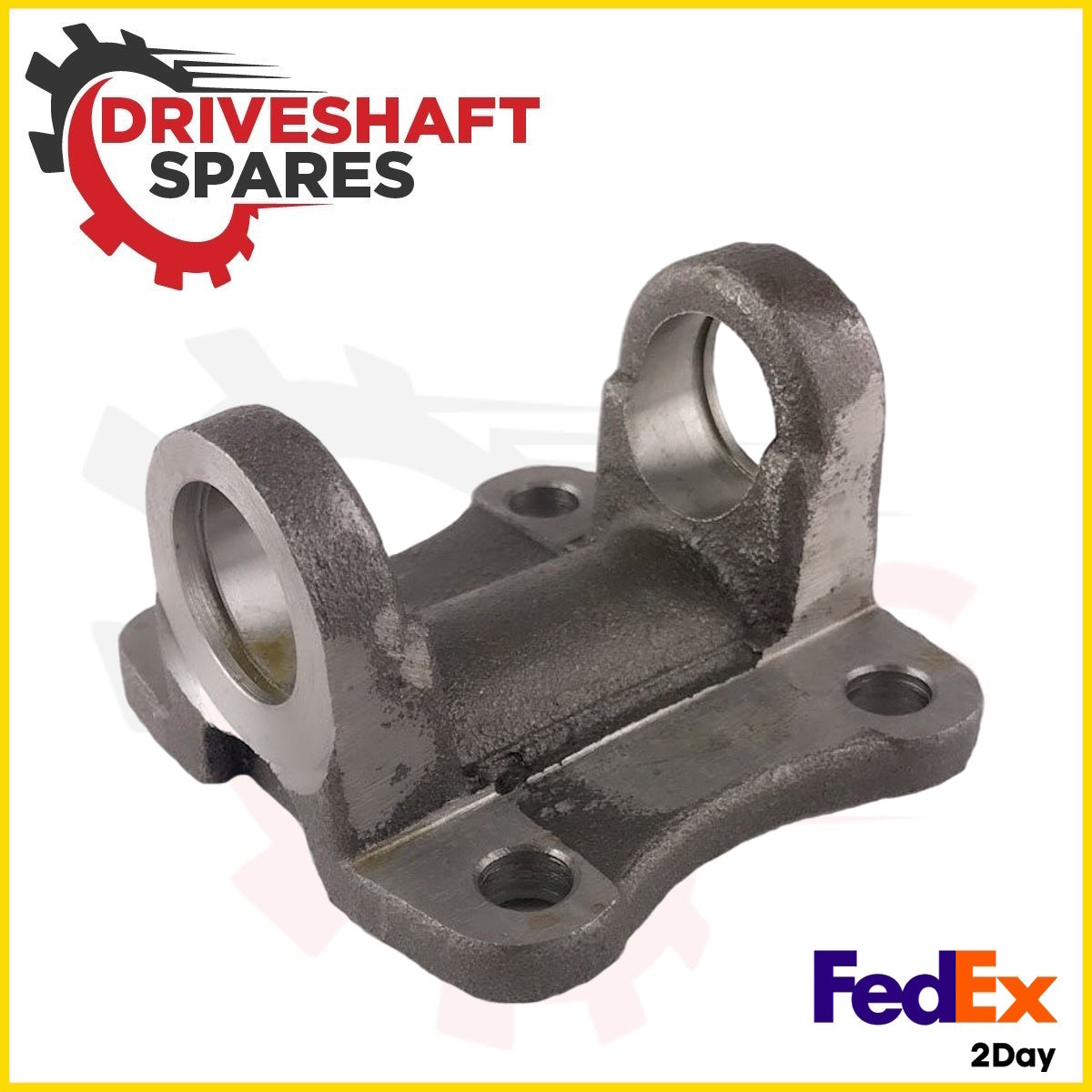

FLANGE YOKE AND UNIVERSAL JOINT-JCB BACKHOE – PUMP DRIVE SHAFT 4 (PART NO. 914/60041 or 914/44500)
- YOU ARE BUYING THE FLANGE AND UNIVERSAL JOINT ONLY

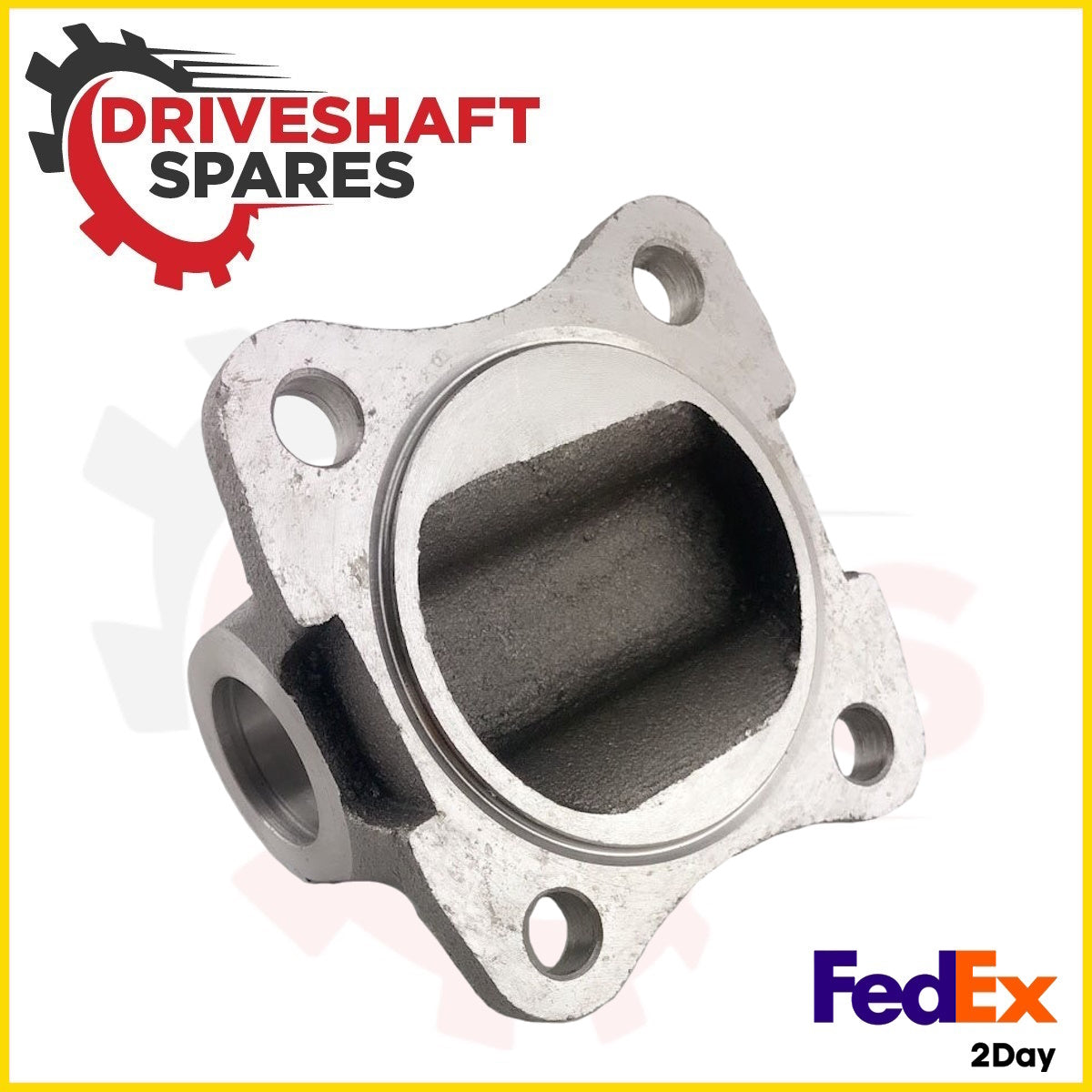

| Flanges | |
| Holes | 4 |
| Series | 1310 (1.062 x 3.219) |
| (OD) | 4.625 |
| Pilot | 2.750M |
| (H) | 1.375 |
| (X) | 2.410 |
| (Y) | 2.873 |
| (Z) | 3.750 |
- U-Joint Series 1310
- Universal Joint Retaining Width 3.469
- Universal Joint Bearing Diameter D 1.062
- Flange Diameter A 4.625
- Bolt Circle Diameter B 3.750
- Horizontal Distance Between Holes (center to center) 2.410
- Vertical Distance Between Holes (center to center) 2.873
- Bolt Hole Diameter .438-D
- Bolt Hole Quantity 4.000
- Pilot Diameter (M-Male, F-Female) C 2.750M
- Centerline of Joint to Flange Face G 1.375
| Imperial Universal Joints | |
| (D) | 1.062 |
| (L) | 3.219 |
| Type | 2 |

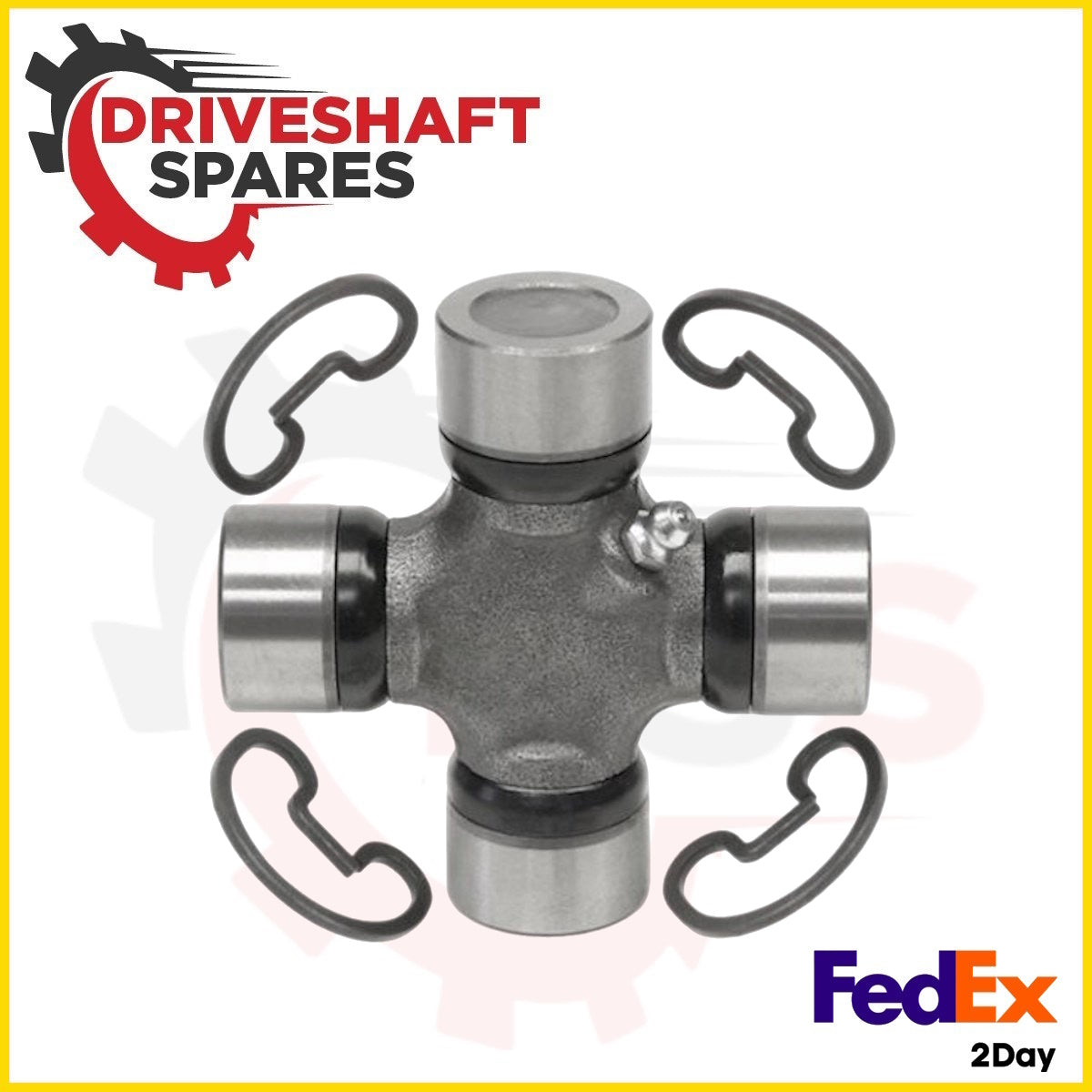

- 5-153X Greaseable Univeral Joint
- Grease Fitting in body of u-joint 1310 series
- A 3.219 inches (3-7/32 inches)
- B 3.219 inches (3-7/32 inches)
- C 1.062 inch (1-1/16 inch) diameter
- D 1.062 inch (1-1/16 inch) diameter
- Outside snap rings
- Part Number: 5-153X
