Description

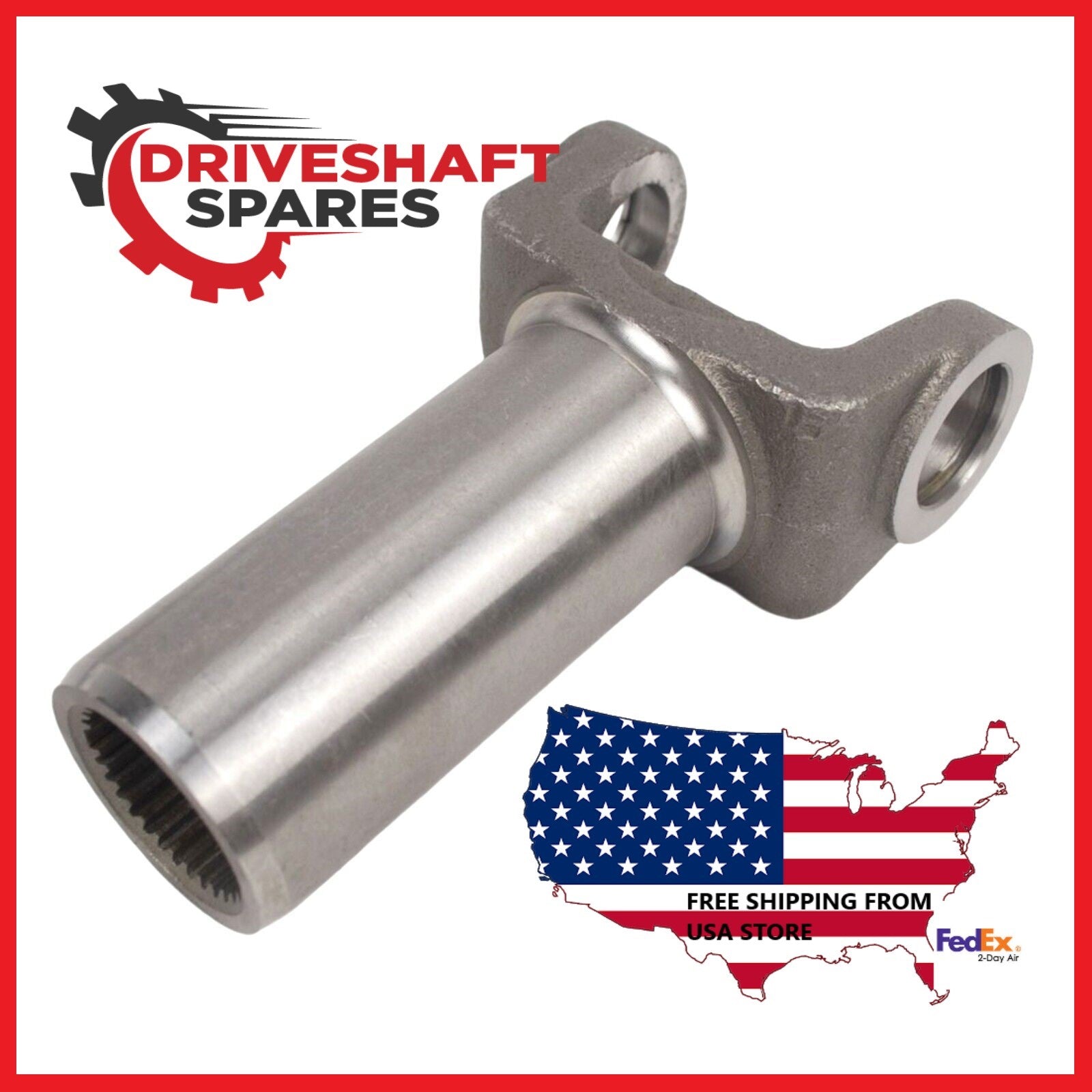

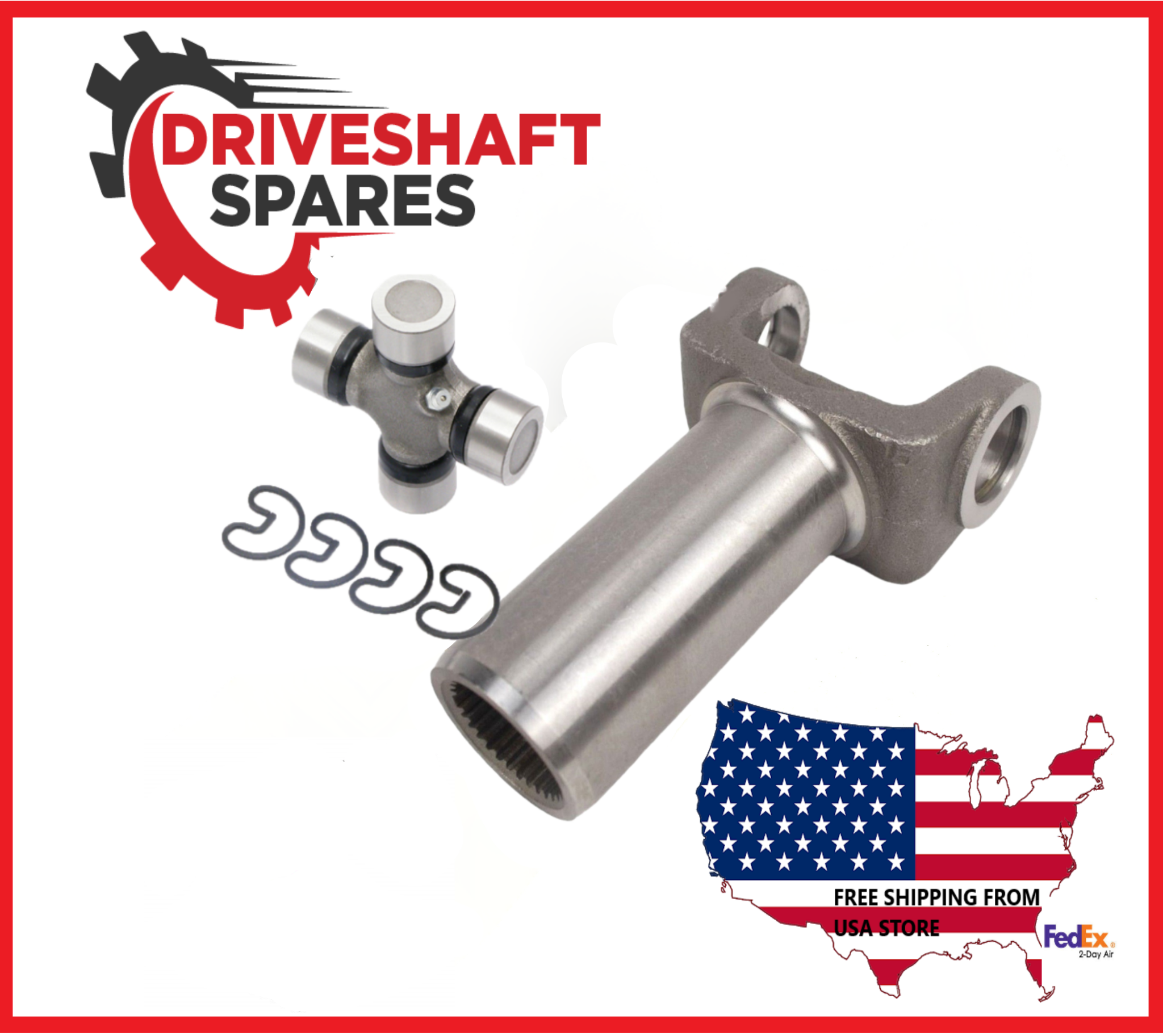

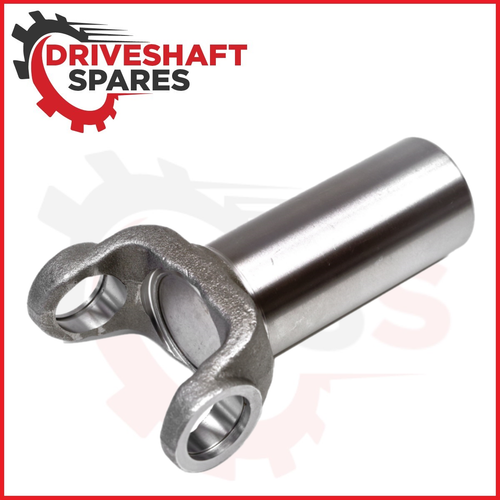

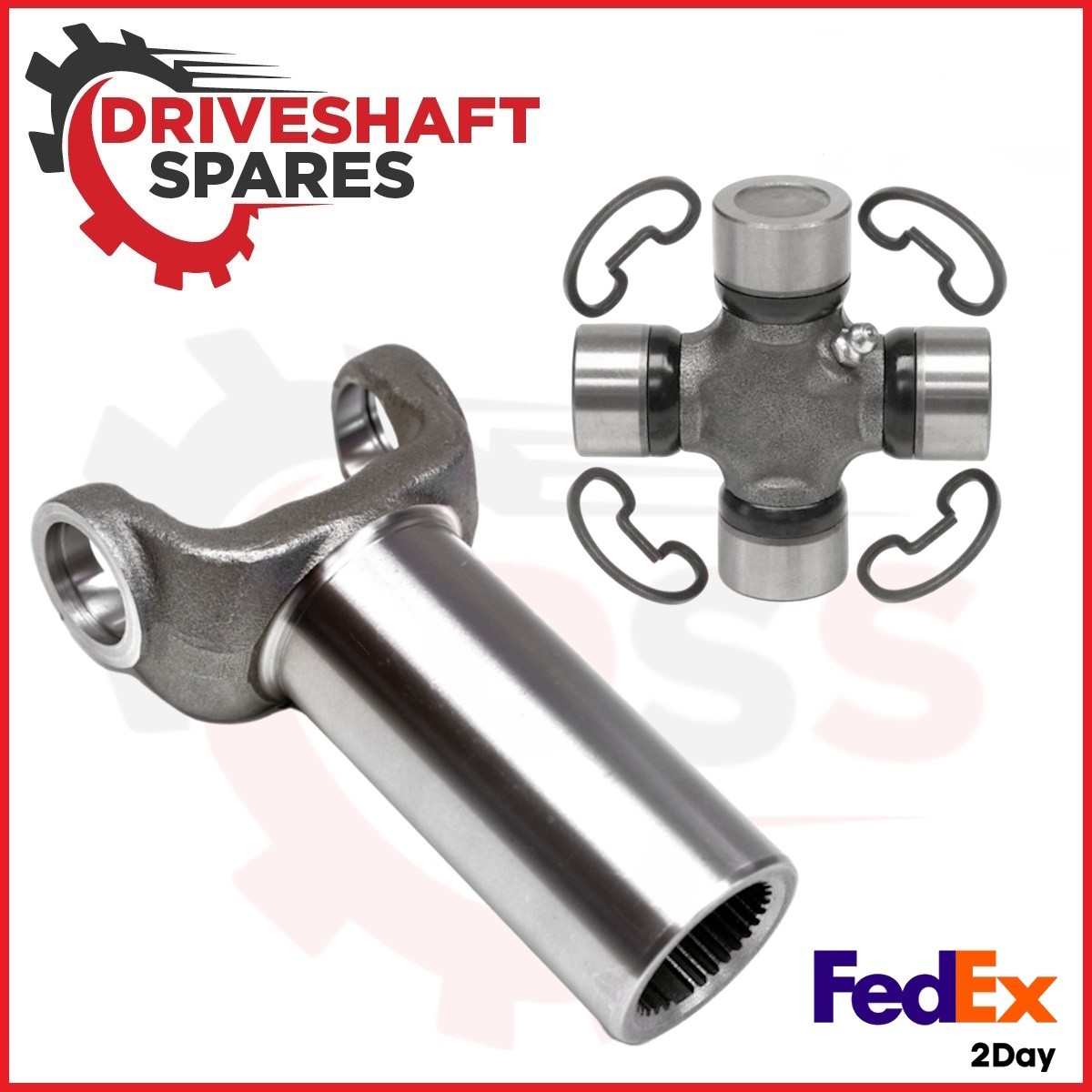

GM Turbo 400, TH400, MUNCIE 4L80E SUPER T10 TRANSMISSION SLIP YOKE 1310 Series FITS 32 SPLINE OUTPUT (369) + 5-153x Aftermarket U-JOINT 3.219 X 1.062
This Slip Yoke fits the Following GM Transmissions & Transfer Cases since the 1960’s:
- TH / Turbo Hydromatic / Turbo 400
- 4l80E & 4L85E
- Muncie M21 & M22
- Borg Warner Super T10
U-Joint Series 1310
Spline Major Diameter 1.397

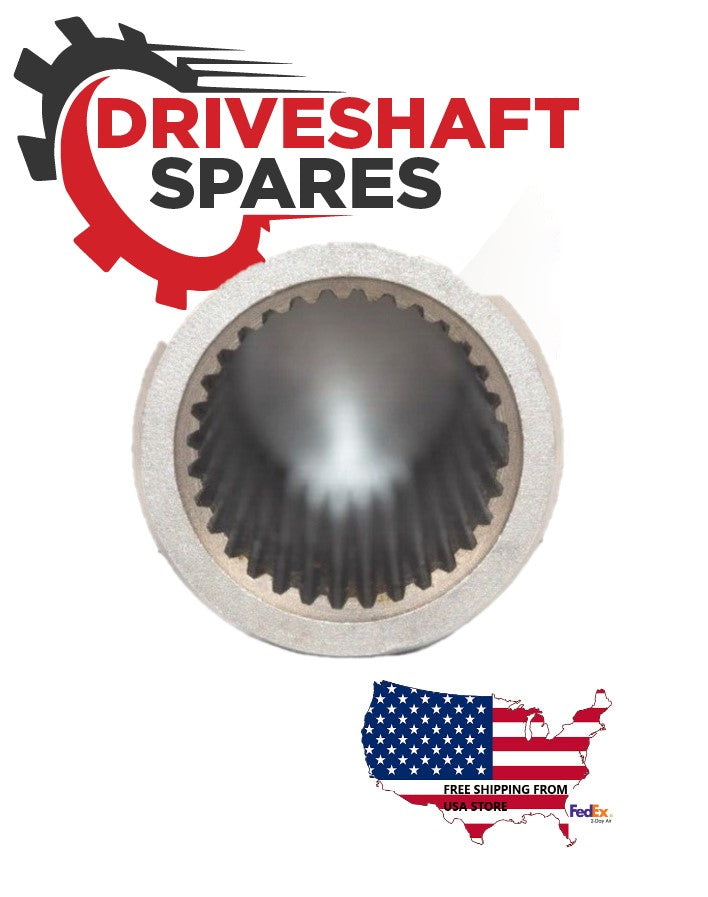

Spline Count 32.000
Spline Type 31 Based On 32 Spline

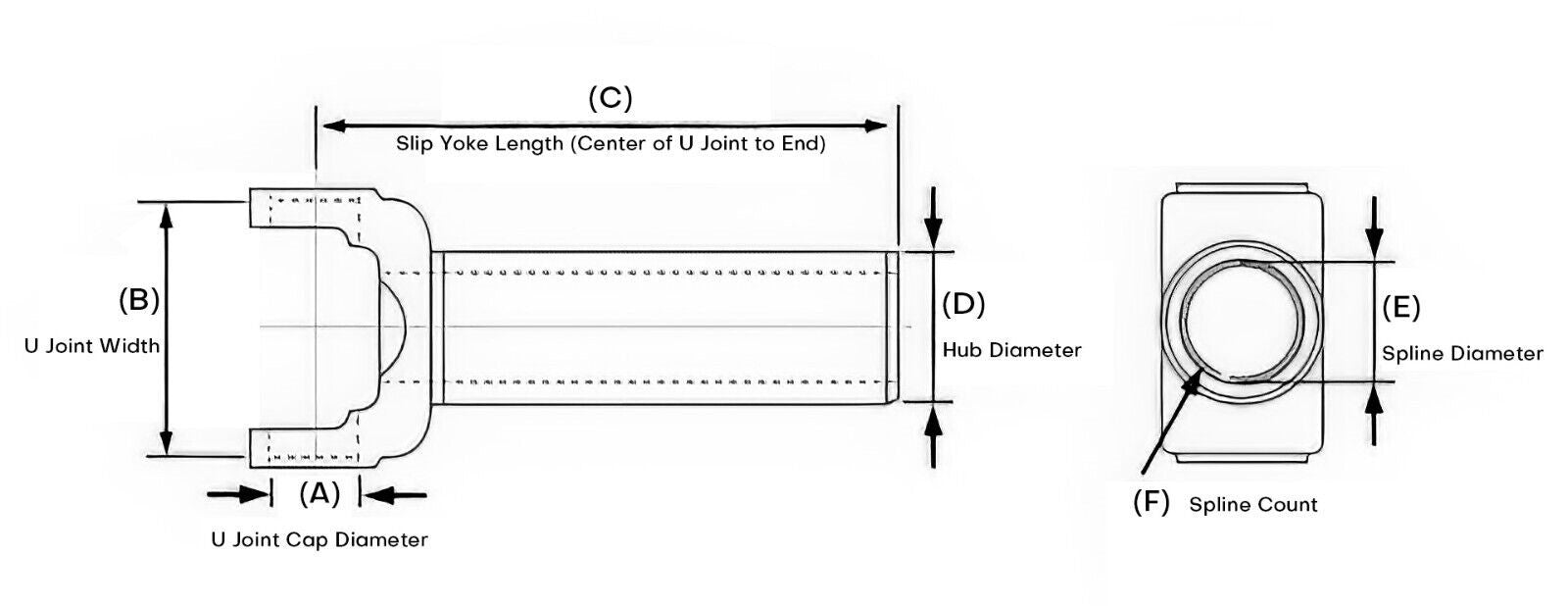

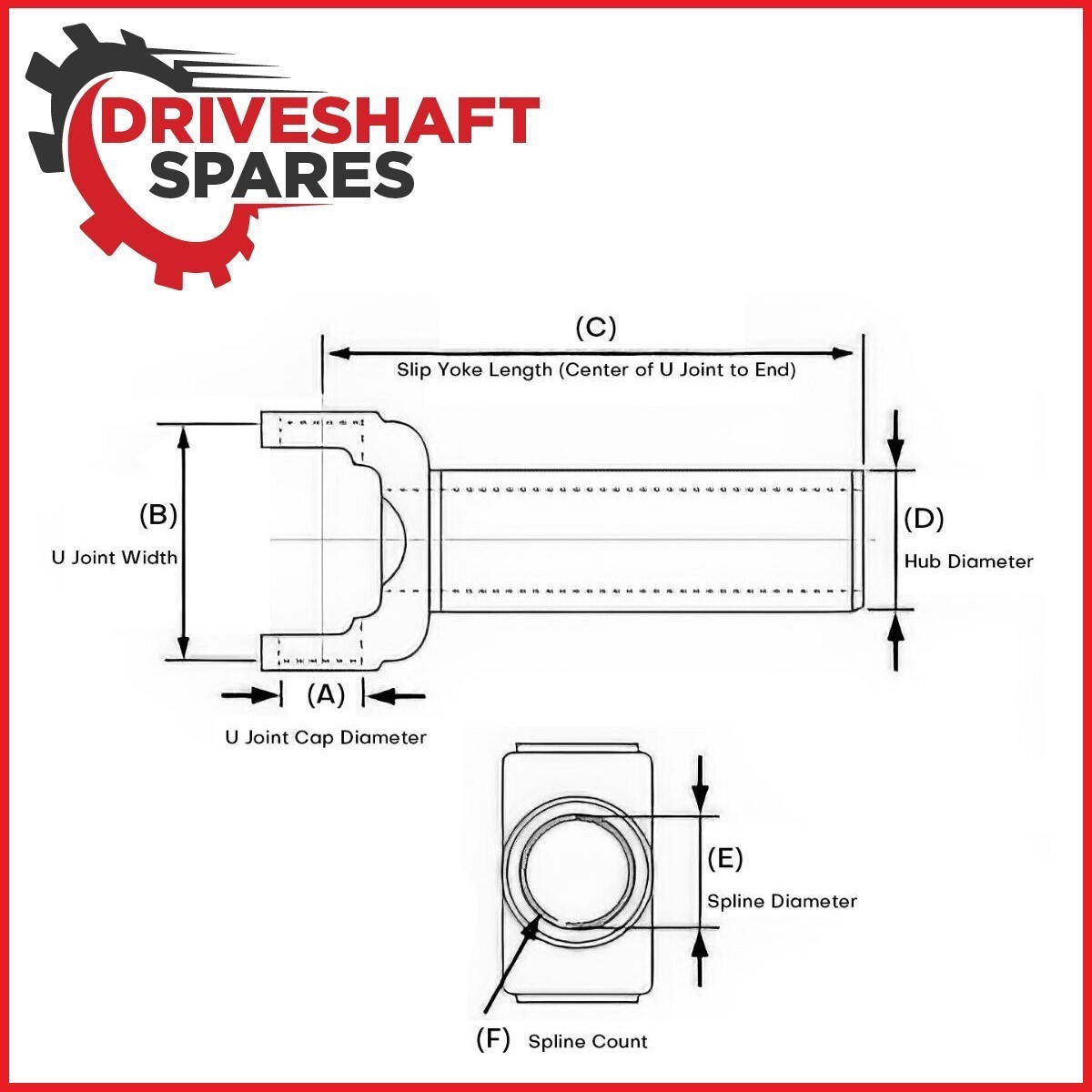

Universal Joint Retaining Width E 3.469
Universal Joint Bearing Diameter D 1.062
Centerline of Joint to End of Spline J 5.500
Ground Hub Diameter R 1.885
Style Snap Ring
Slip Yoke Plug part number (included) SPI-500166-22
Compatible U-Joint Kits SPI-5-153X,SPI-5-1310X,SPI-5-1310-1X
| Imperial Universal Joints | |
| (D) | 1.062 |
| (L) | 3.219 |
| Type | 2 |

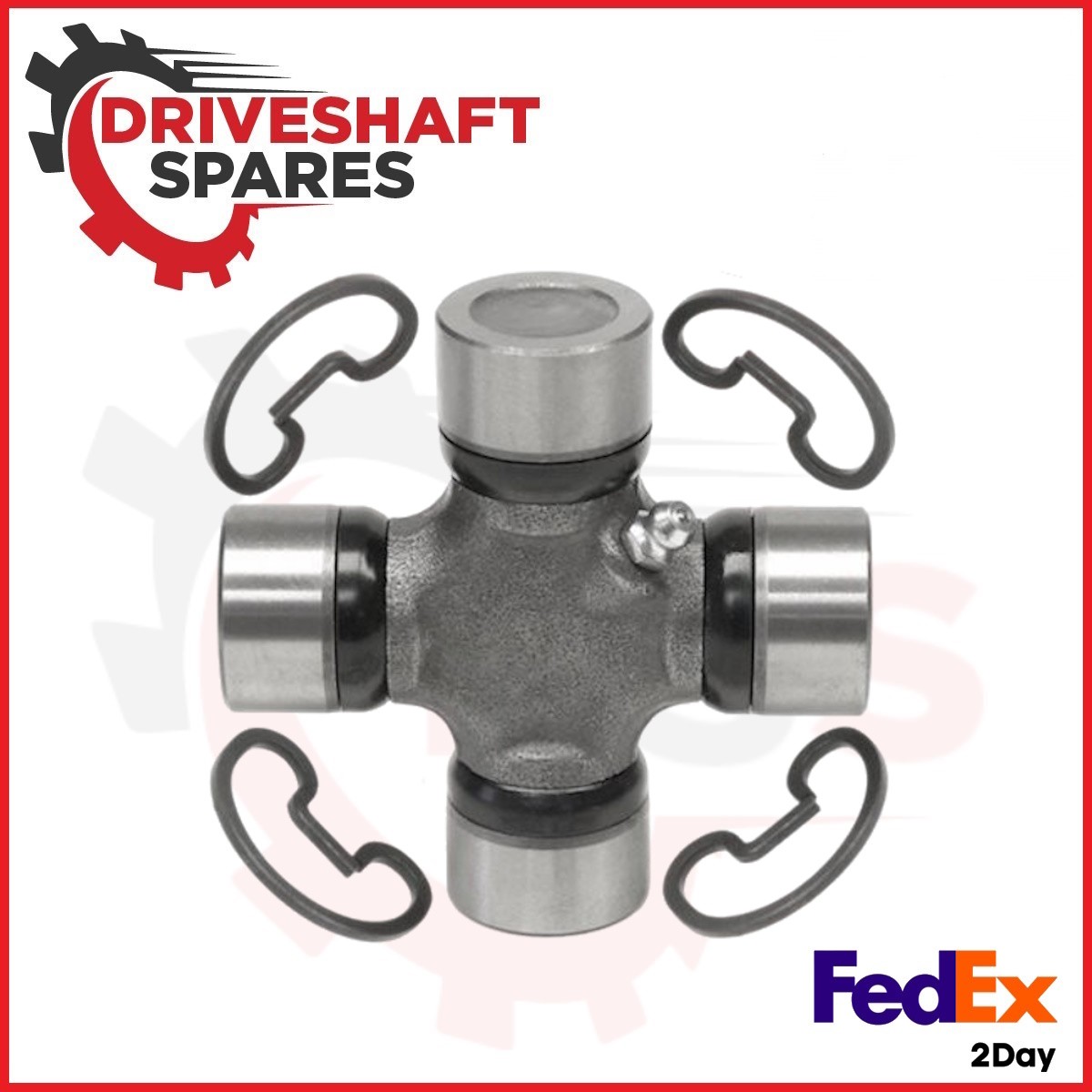

- 5-153X Greaseable Univeral Joint Grease Fitting in body of u-joint 1310 series
- A 3.219 inches (3-7/32 inches)
- B 3.219 inches (3-7/32 inches)
- C 1.062 inch (1-1/16 inch) diameter
- D 1.062 inch (1-1/16 inch) diameter
- Outside snap rings
- Part Number: 5-153X
