Description

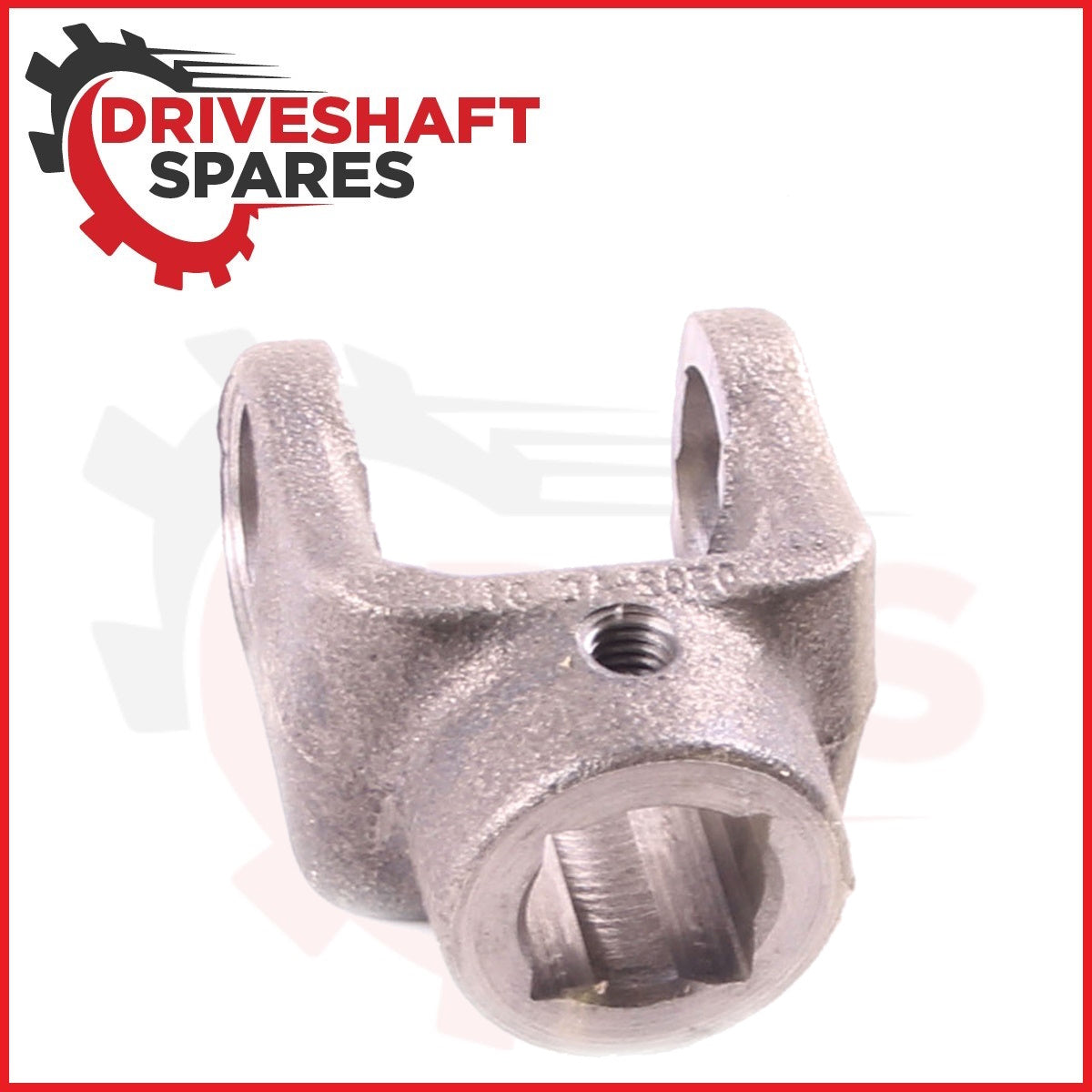

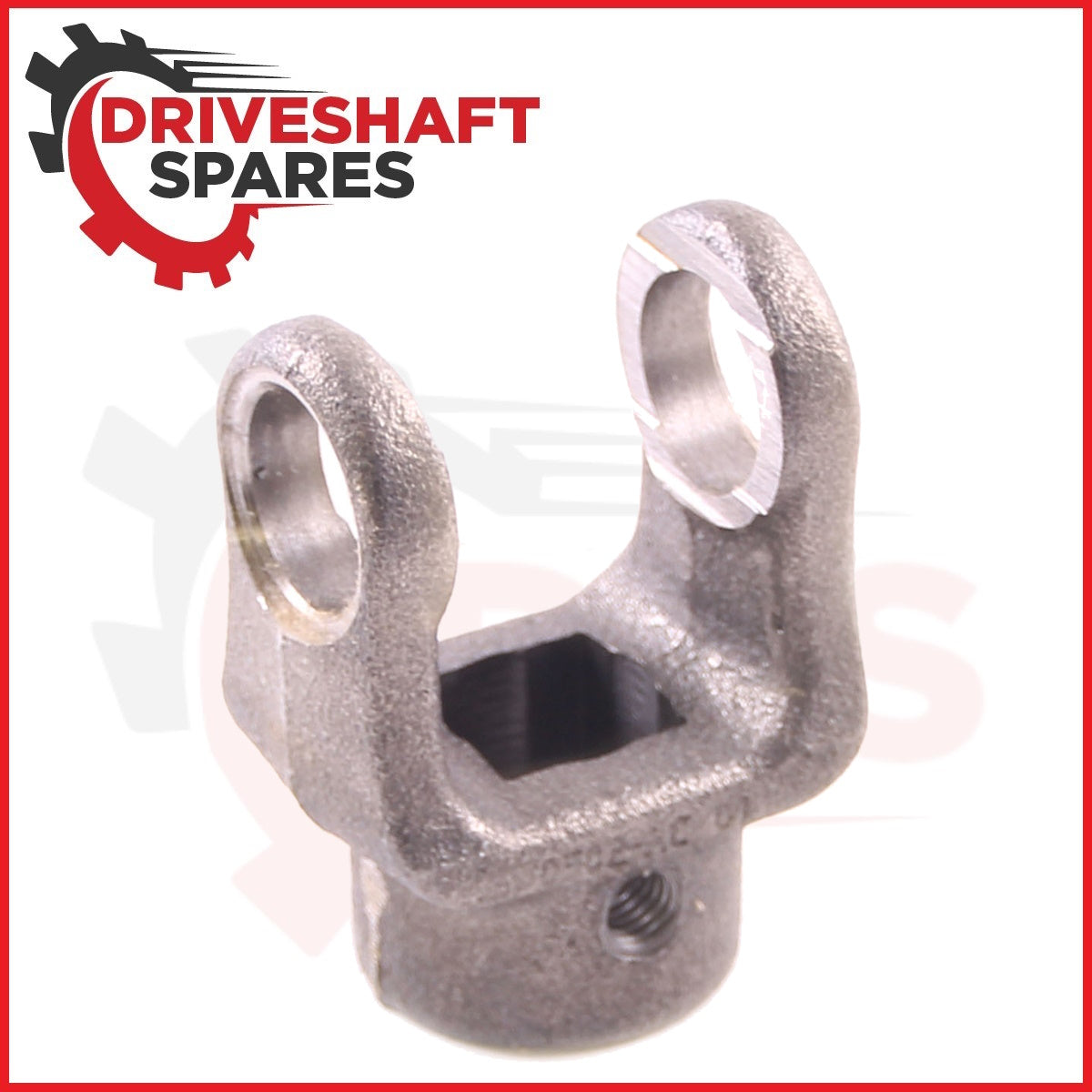

10-4-12, End Yoke – Square Bore 1000 series, 0.875 Bore, Ø1.969 hub diameter
| End Yokes | |
| Series | 1000 (0.938 x 1.500 I/C) |
| (P) | 0.875 |
| (R) | 1.969 |
| (S) | 2.500 |
- General Design Type Square Bore
- U-Joint Series 1000
- Bore Diameter P 0.875
- SAE Keyway Width X 0.000
- Hub Diameter R 1.969
- Universal Joint Retaining Width E 1.500
- Universal Joint Bearing Diameter D 0.938
- Length Thru Bore Q 0.000
- Centerline of Joint to End of Hub S 2.500
- Set Screw Thread 0.375
- Set Screw Location W3
- Clock position viewed at Hub End and Keyway at 12
