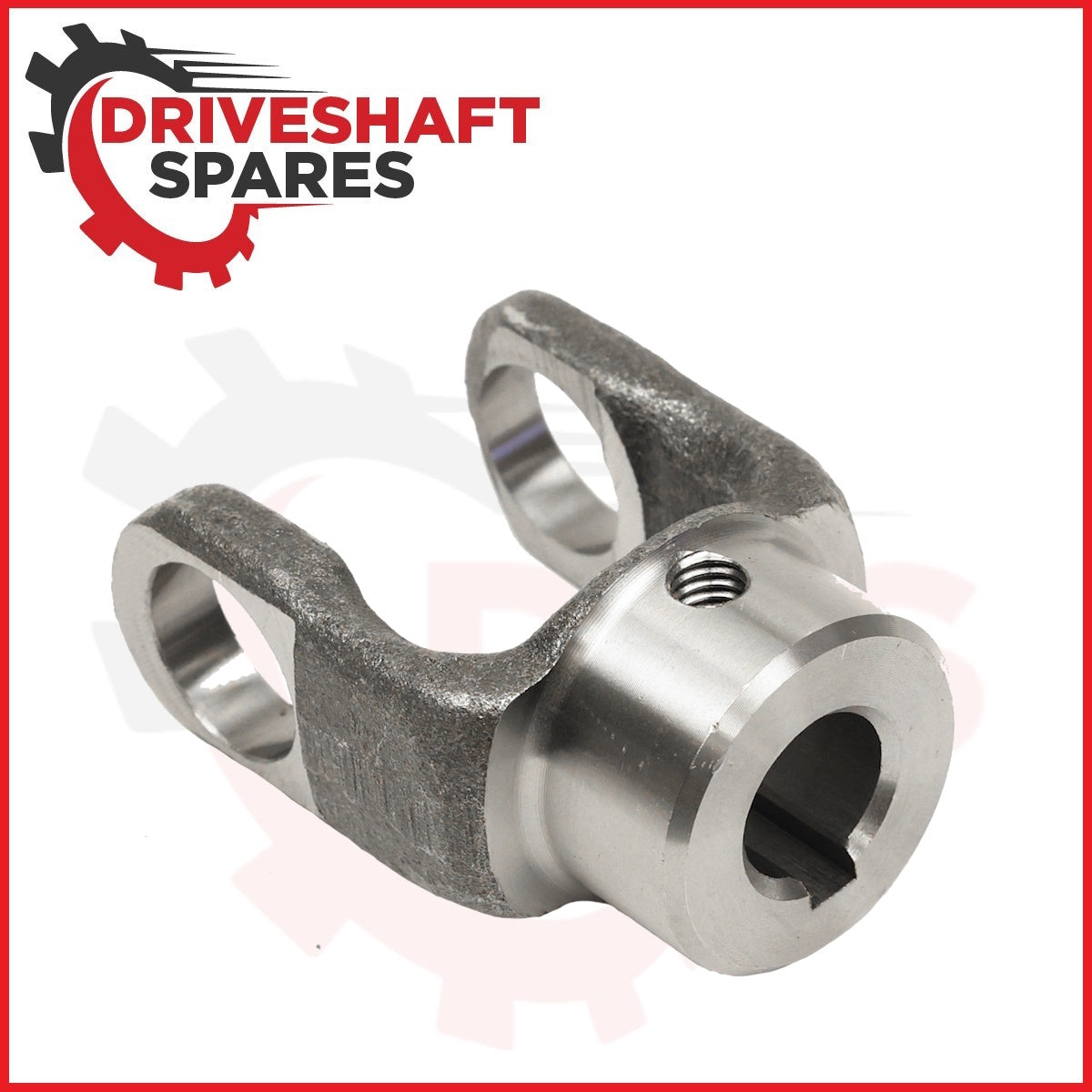

10-4-33, End Yoke – Round Bore 1000 Series – 0.812 Bore, 0.188 keyway, 1.6

10-4-33, End Yoke - Round Bore 1000 Series - 0.812 Bore, 0.188 keyway, 1.6
10-4-33, End Yoke - Round Bore 1000 Series - 0.812 Bore, 0.188 keyway, 1.6 - Image 2
10-4-33, End Yoke - Round Bore 1000 Series - 0.812 Bore, 0.188 keyway, 1.6 - Image 3

$14,40

119 in stock

Description

10-4-33, End Yoke – Round Bore 1000 Series, 0.812 Bore, 0.188 keyway, 1.6

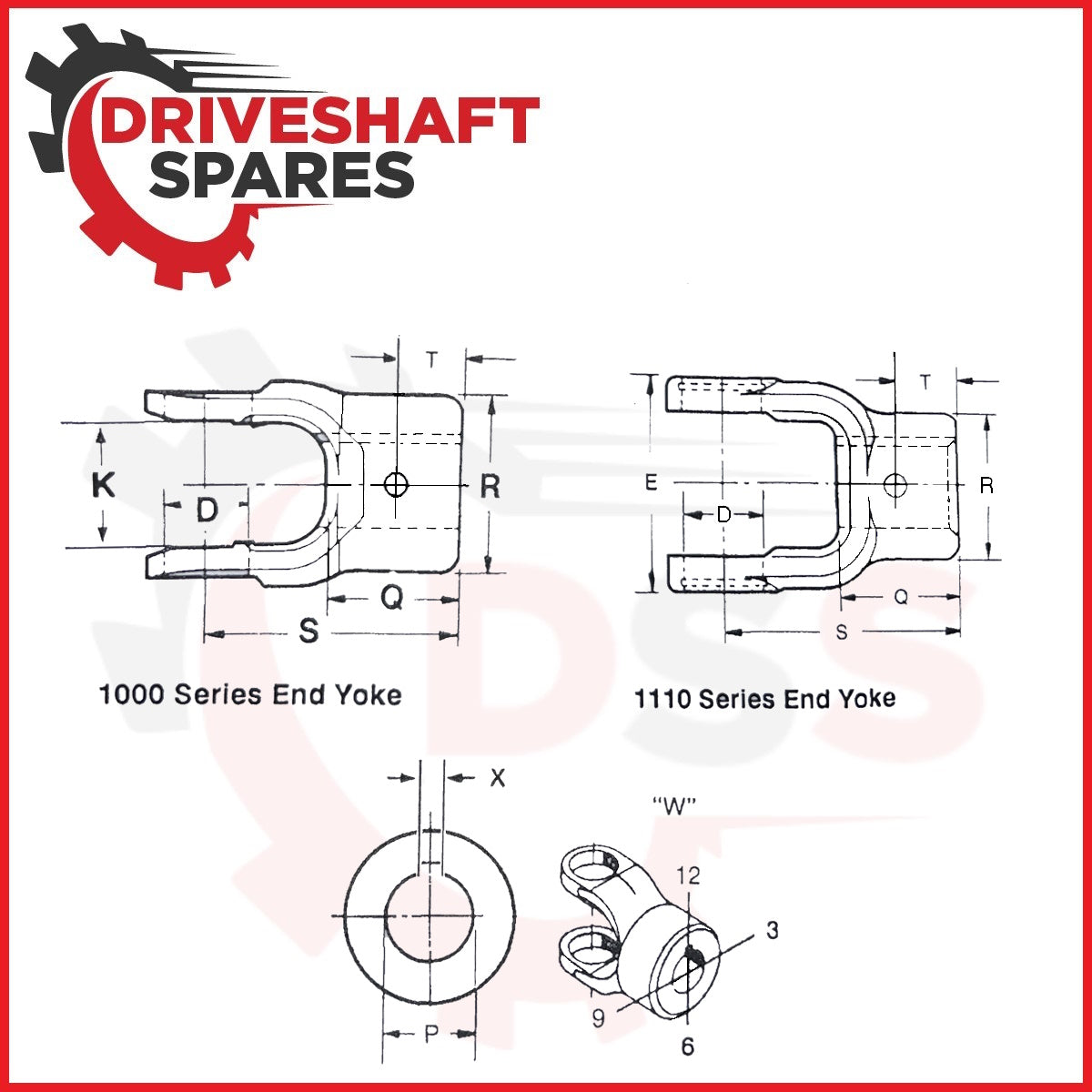

Series 1000
Yoke Style ISR
Hub Diameter R 1.625
C/L To End Hub S 2.500
Type Straight Round Hole
Inside Yoke Dimension (In) K 1.500
Yoke Bearing Dimension (In) D 0.938
Hole Diameter (In) P 0.812
Sae Keyway Width (In) X 0.188
Set Screw Hole Diameter (In) 0.375
Keyway Location W 3
Set Screw Location W 9
Length Thru Bore Hole  1.030
Material Steel
Joint Angle #1 60
Weight 0.8 LB
Returnable Yes

Additional information

Weight 0,5 kg

Reviews

There are no reviews yet.

Be the first to review “10-4-33, End Yoke – Round Bore 1000 Series – 0.812 Bore, 0.188 keyway, 1.6”

Your email address will not be published. Required fields are marked *

3-2-1859s-5-178xs
3-2-1859S, SPICER Flange Yoke 1350 Series + 5-178XS, SPICER U-Joint (1350).
$118,00
cbjs

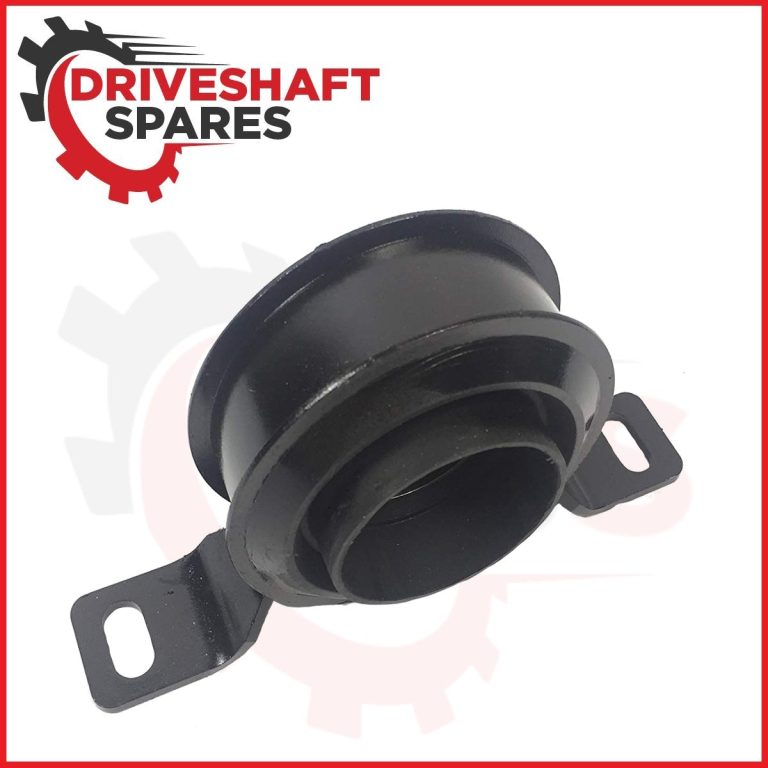

Jaguar S-Type 1999-2008 Driveshaft Center Support Bearing XJ18 X350 XJ350
