Description

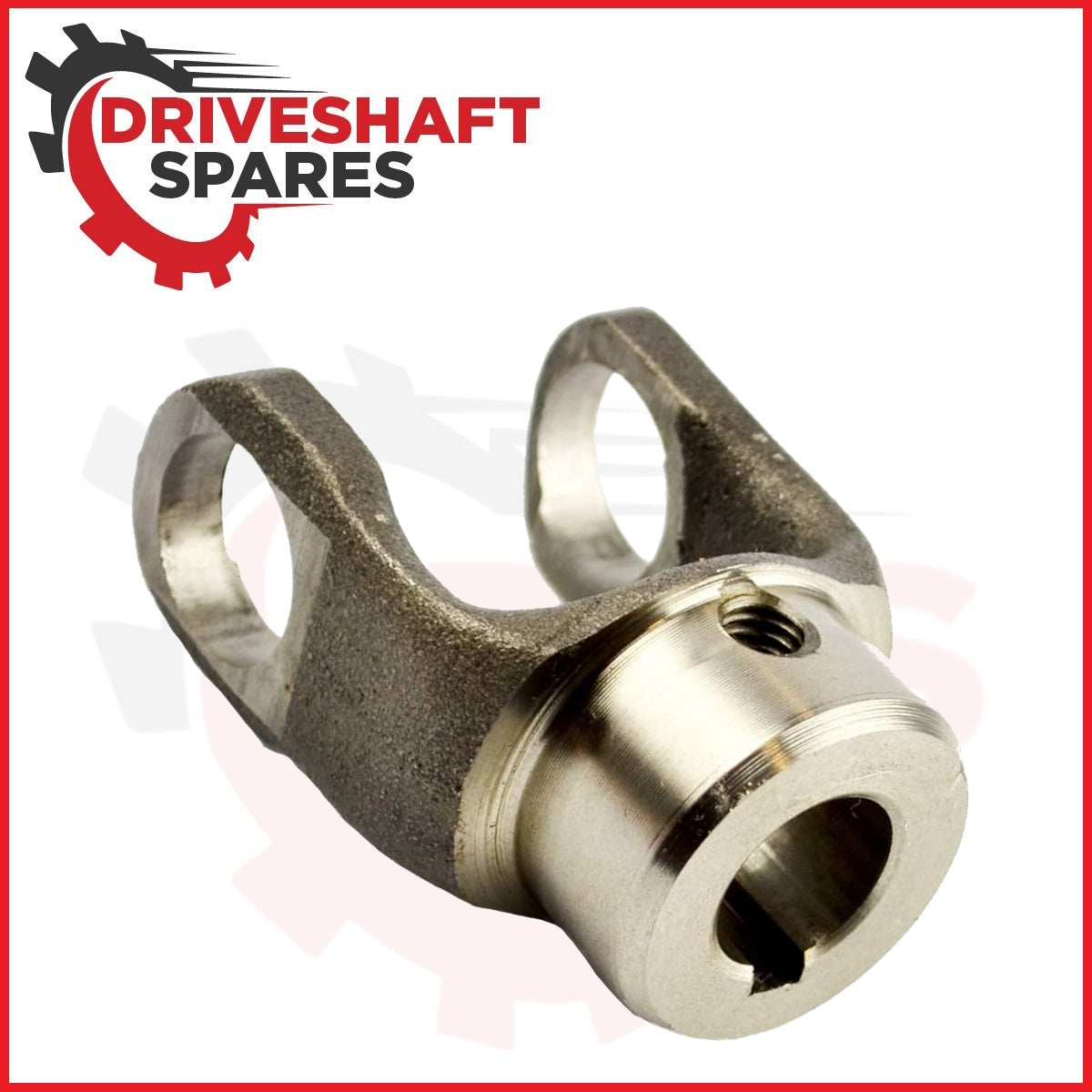

10-4-43, End Yoke – Round Bore 1000 series, Ø0.812 Bore w/0.25 keyway, Ø1.625 hub diameter
| End Yokes | |
| Series | 1000 (0.938 x 1.500 I/C ) |
| (P) | 0.812 |
| (R) | 1.625 |
| (S) | 2.500 |
| (X) | 0.250 |

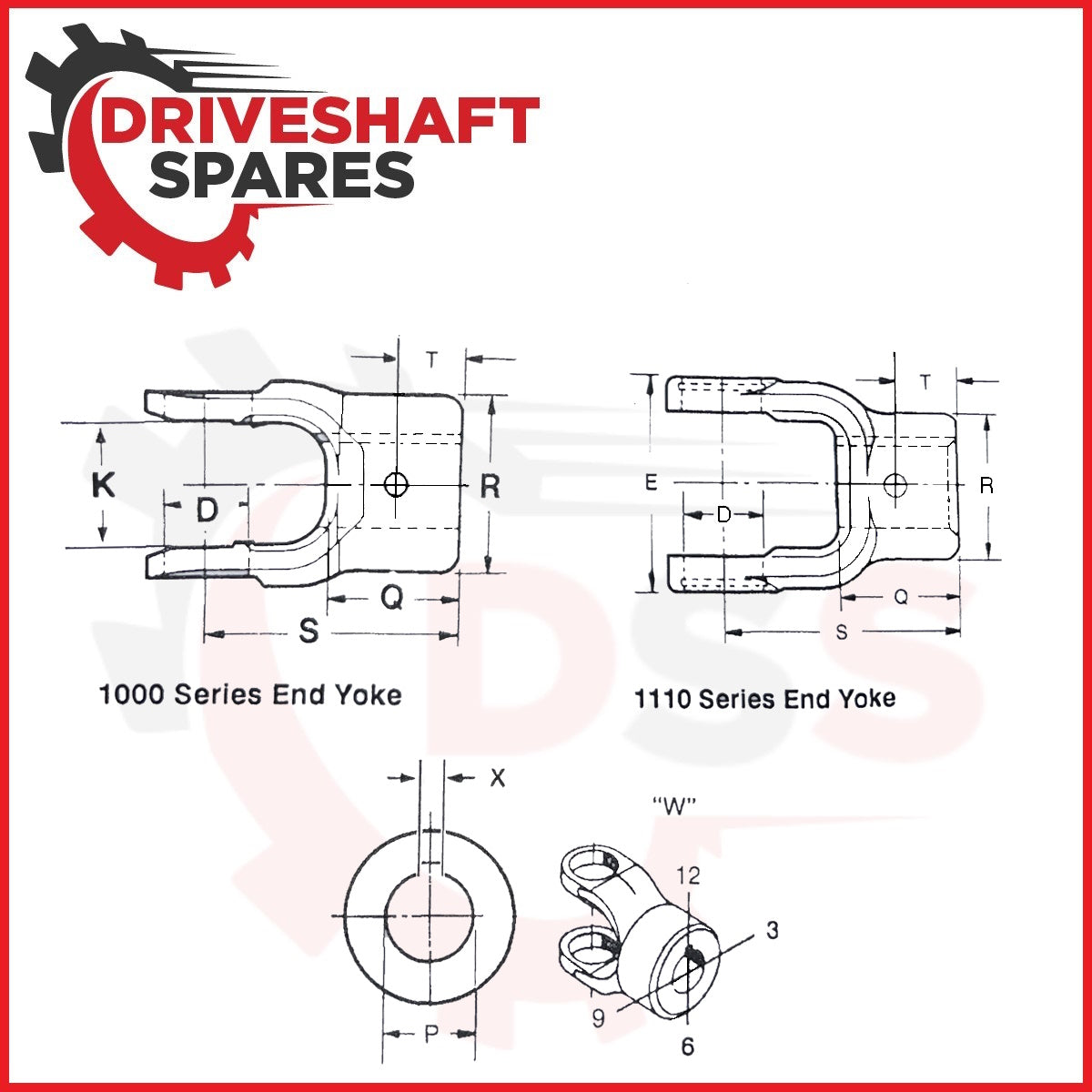

- General Design Type Round Bore
- U-Joint Series 1000
- Bore Diameter P 0.812
- SAE Keyway Width X 0.250
- Hub Diameter R 1.625
- Universal Joint Retaining Width E 1.500
- Universal Joint Bearing Diameter D 0.938
- Length Thru Bore Q 1.030
- Centerline of Joint to End of Hub S 2.500
- Set Screw Thread 0.375
- Keyway Location 3 Set Screw Location Clock position viewed at Hub End
- Keyway at 12 W 6viewed at Hub End
