Description

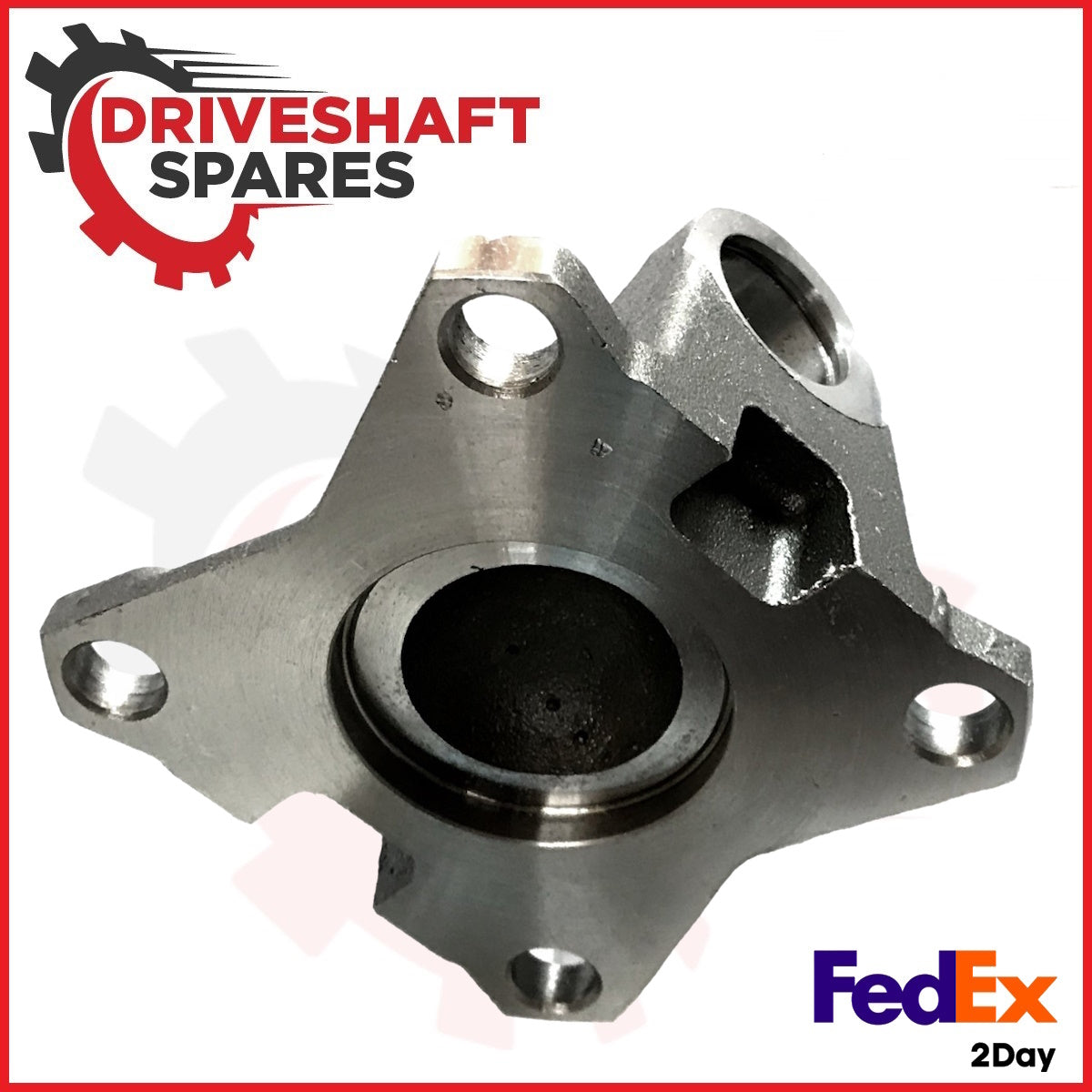

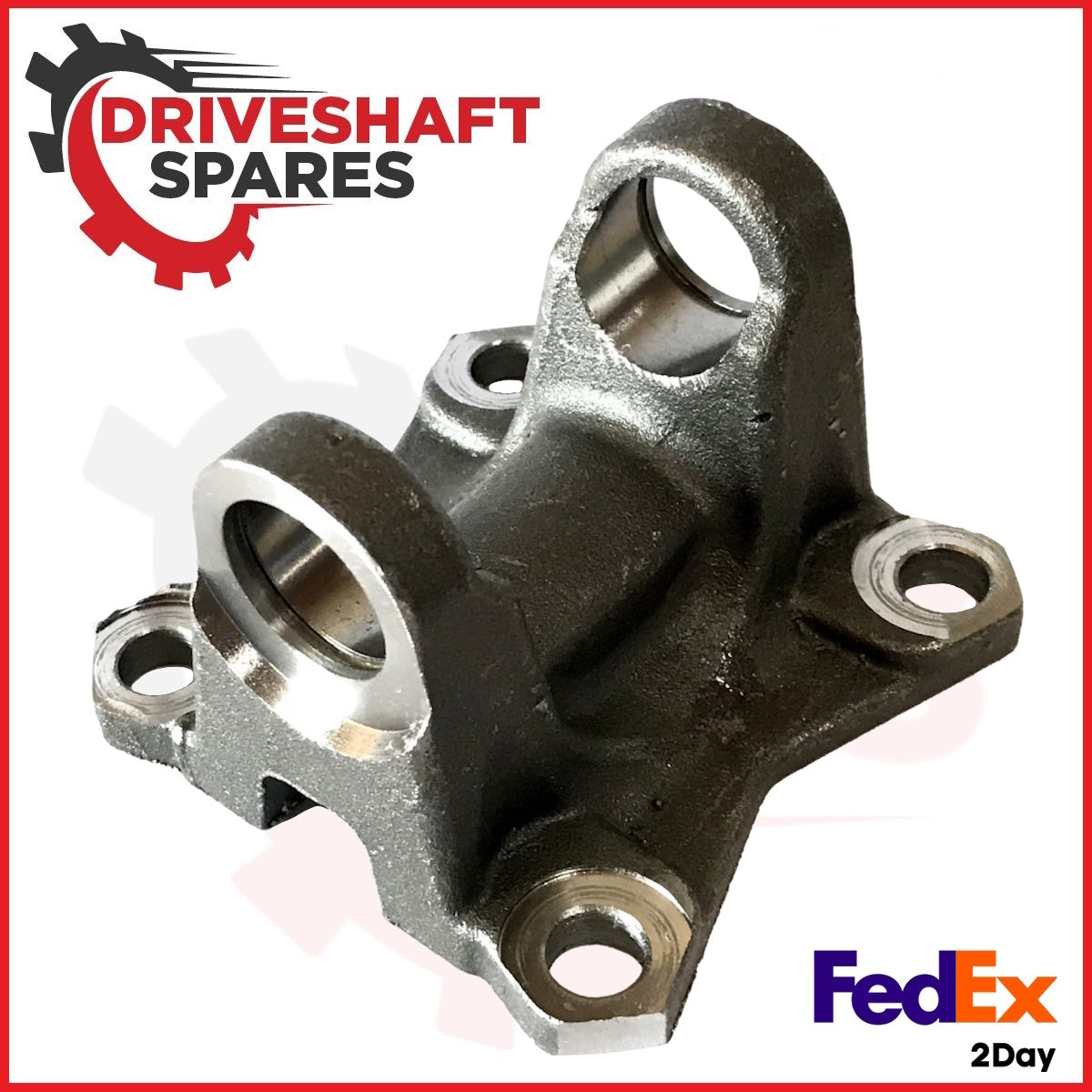

3102-216. THIS IS A “CONVERSION” FLANGE USED TO MAKE NEW
JEEP REPLACEMENT REAR DRIVE SHAFTS. THIS FLANGE ALLOWS YOU TO REPLACE THE
FACTORY ALUMINUM DRIVESHAFT WITH AN AFTERMARKET SOLUTION. FITS AT THE REAR
DIFFERENTIAL END.
- TECH TIP: FOR THE REAR T-CASE OUTPUT CONVERSION FLANGE = SEE SKU# 3102-063
- TECH TIP: WILL NOT FIT THE OEM DRIVESHAFT ASSEMBLY
| Flanges | |
| Series | 1310 (1.062 x 3.219) |
| (OD) | 5.307 |
| Pilot | 2.161 |
| (H) | 2.082 |
| (X) | 3.192 |
| (Y) | 3.192 |
| (Z) | 4.515 |
| Holes | 4 |
- 1310 Series Conversion Flange Yoke For 2005+ Jeep Commander, Grand Cherokee Models With Rear Aluminum Driveshaft Fits at differential Hole size: 0.480”x4 Alt: 3102-216
| Weight | 4.1 lbs |
|---|---|
| Shipping Dimensions | 5 × 5 × 5 in |
| Year | |
| Make | |
| Model | |
| Engine |
3.7L / V6, 4.7L / V8, 5.7L / V8, 3.0L / V6 (non turbo), 6.1L / V8 |
