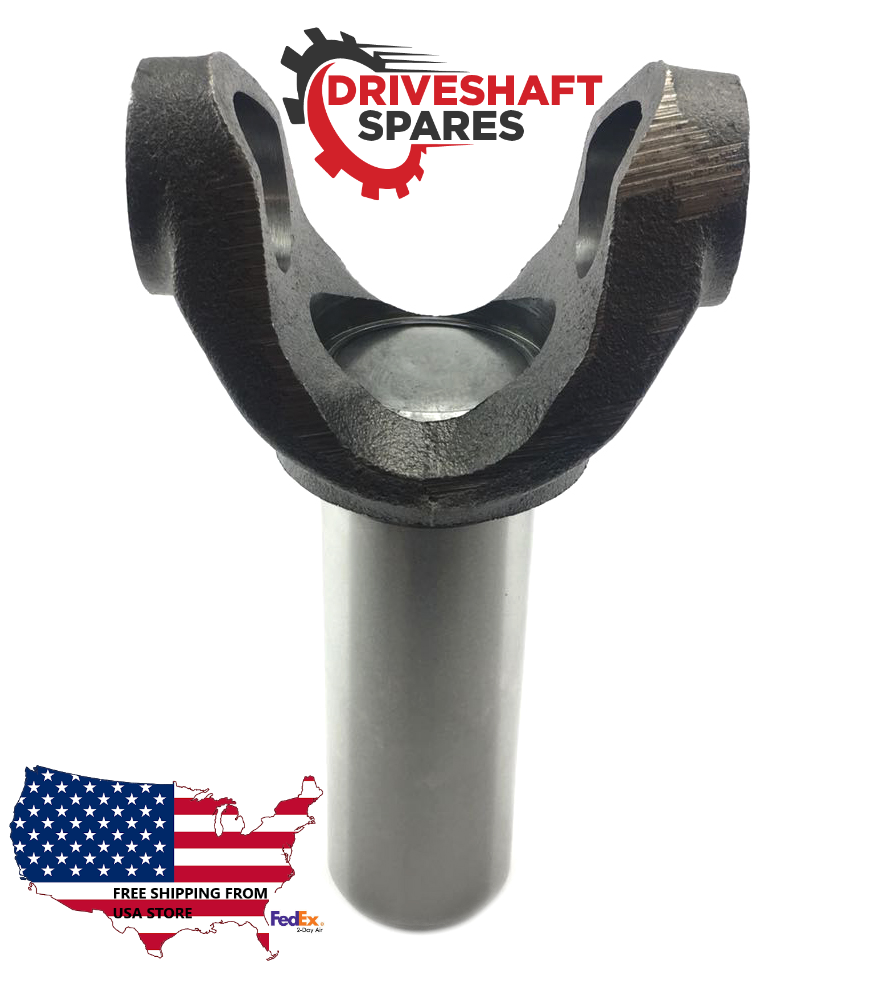

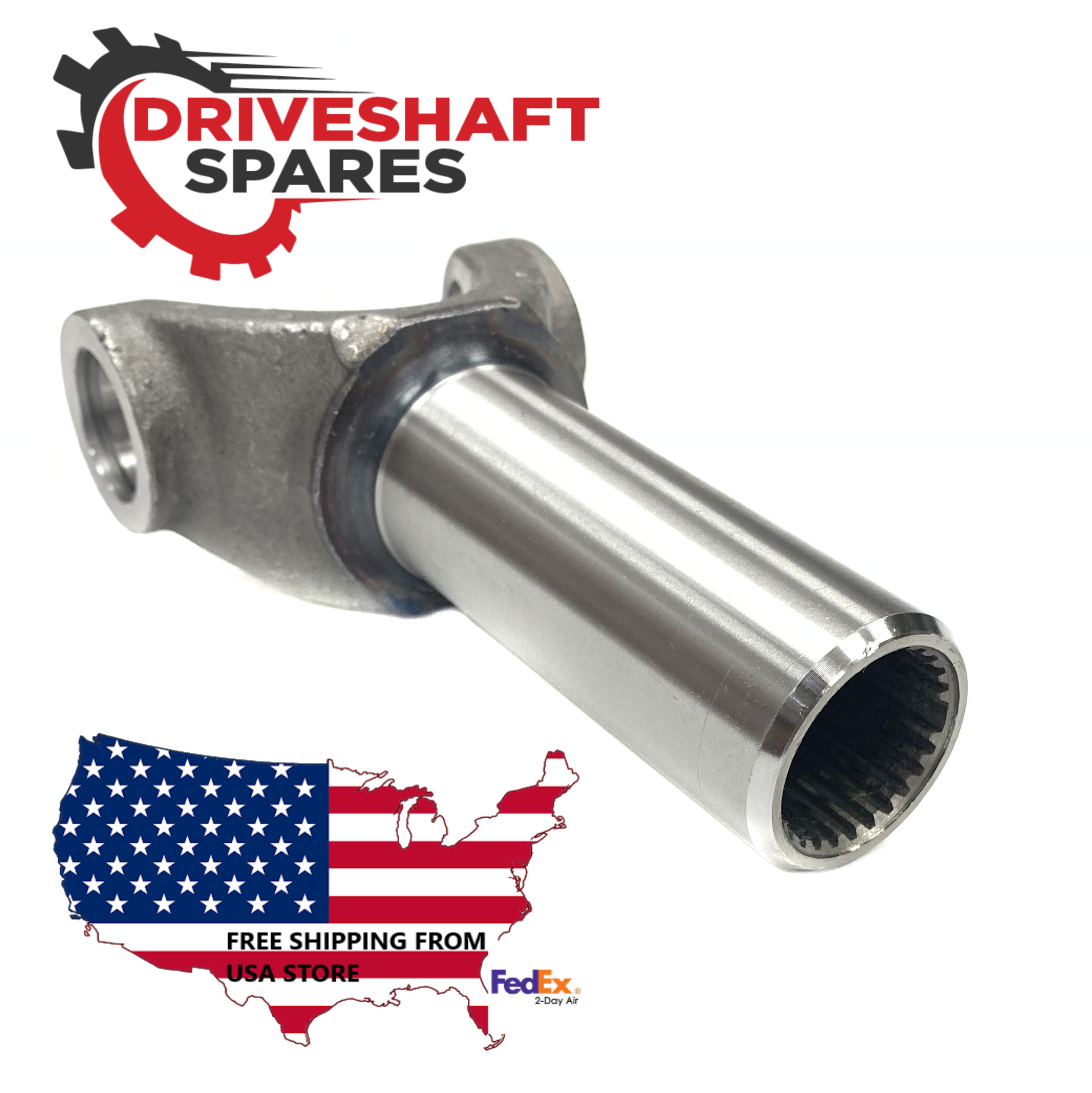

1310 Trans Yoke, 1.176x 27 spline, 1.502 Ground Hub⌀ 2-3-12411X

You are buying a High-Quality Aftermarket Transmission Slip Yoke and High-Quality Universal Joint that fits the following transmission cases:

• 1310 Series transmission slip yoke to Jeep NP231 Transfer Case

---

Transmission Slip Yoke Specifications

U-Join tSeries		1310
Spline Major Diameter		1.176″
Spline Count		27
Spline Type		26 Based on 27
Universal Joint Retaining Width	(E)	3.469″
Universal Joint Bearing Diameter	(D)	1.062″
Centerline of Joint to End of Spline	(J)	5.750″
Ground Hub Diameter	(R)	1.502″
Counterbore Diameter		0.000″
Counterbore Depth		0.000″
Style		Snap Ring

• Compatible with SPICER Reference Numbers:  5-153X / 5-1310X / 5-1310-1X /
• Spicer Reference Number: 2-3-12411X
