Description

You

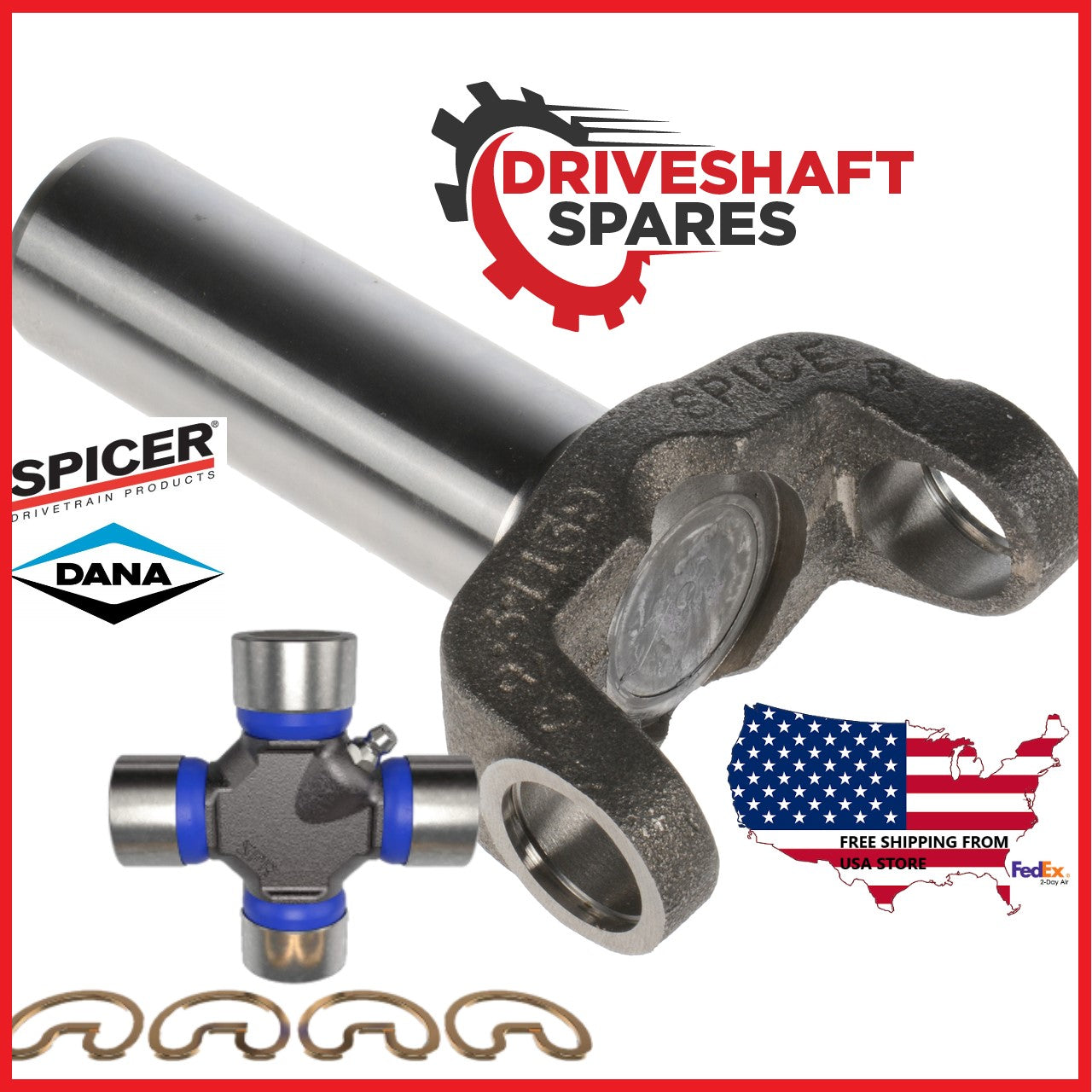

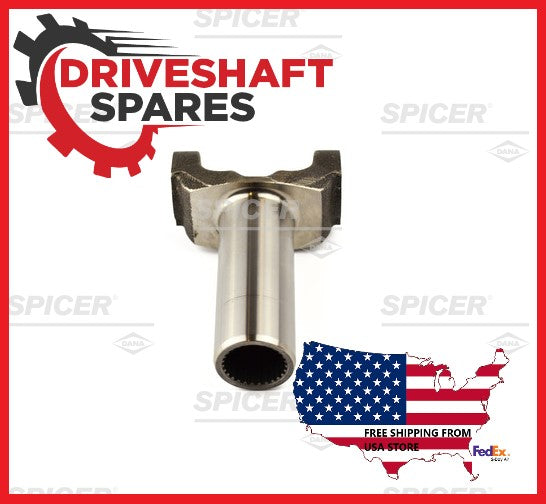

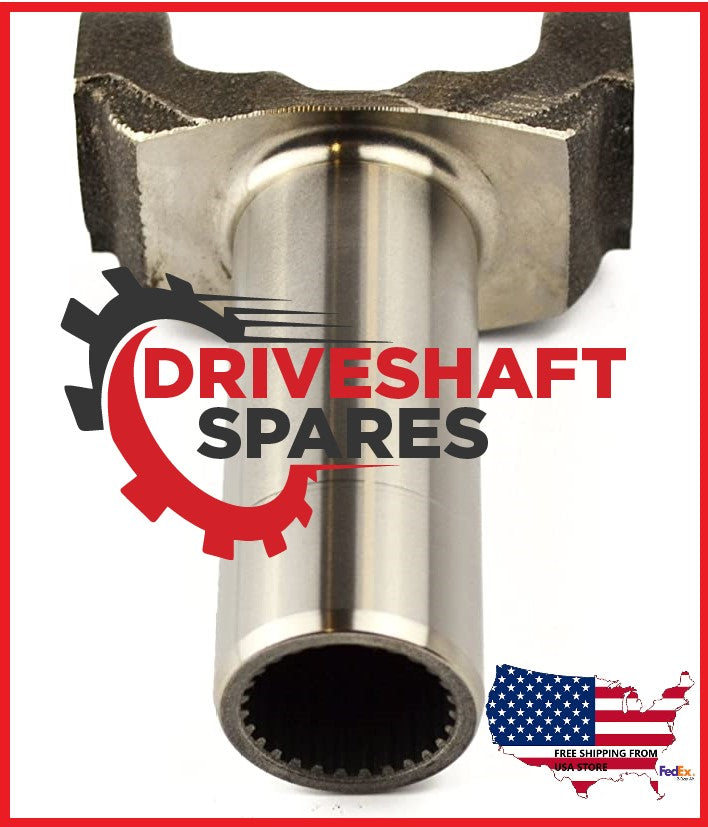

are buying a High-Quality Aftermarket Transmission Slip Yoke and
Genuine SPICER Universal Joint that fits the following transmission
cases:

• 1310
  Series 27 spline Powerglide, T-350, 700R, 200R and 4L60 Transmission
  Slip yoke.   Also fits Muncie M20 & M21, Saginaw, Borg Warner T-5
  T-10 & T-56 27 spline manual transmissions and other GM automatic
  transmissions with 27 spline output.

---

Transmission Slip Yoke Specifications

U-Join tSeries		1310
Spline Major Diameter		1.176″
Spline Count		27
Spline Type		26 Based on 27
Universal Joint Retaining Width	(E)	3.469″
Universal Joint Bearing Diameter	(D)	1.062″
Centerline of Joint to End of Spline	(J)	4.875″
Ground Hub Diameter	(R)	1.500″
Counterbore Diameter		0.000″
Counterbore Depth		0.000″
Style		Snap Ring

Compatible with SPICER Reference Numbers:  5-153X / 5-1310X / 5-1310-1X /

Spicer Reference Number: 2-3-4911X

NeapCo Part Reference Number : N2-3-4911X

Universal Joint Specifications:

Genuine SPICER Blue Seal Universal Joint 5-153X

1310 Series

U-Joint Style: Outside Snap Ring

(D) Cap Size: 1.062″

(D1) Cap Outside Diameter: 1.062″

(G1) Distance between Retainer Rings: 3.219″

(D2) Cap Outside Diameter: 1.062″

(G2) Distance between Retainer Rings: 3.219″

Greasable: Yes
