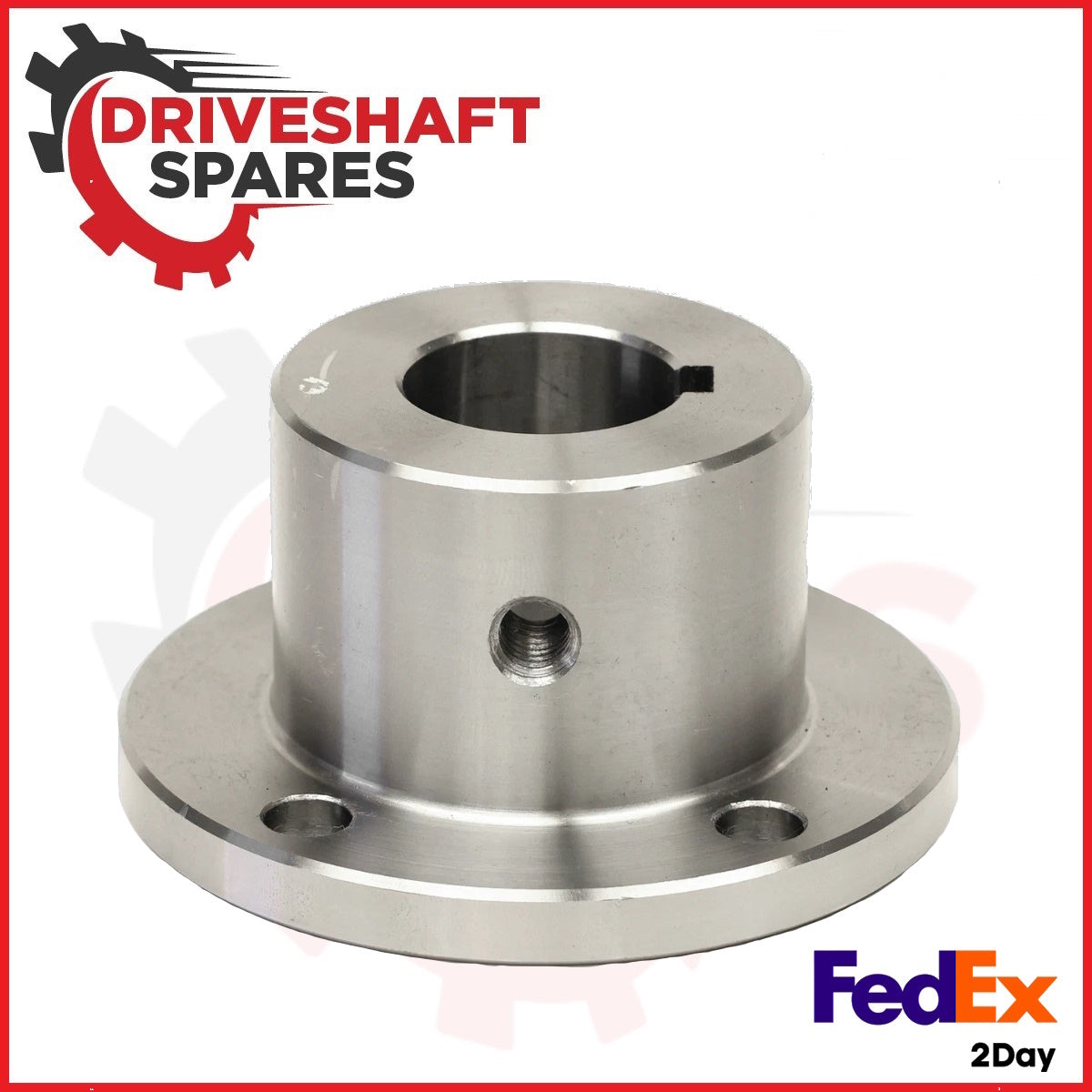

2-1-1313-1 Companion Flange – Bore: 1″ – Keyway: .250″ – Pilot: 2.735″F – 4 Hole

2-1-1313-1 Companion Flange - Bore: 1" - Keyway: .250" - Pilot: 2.735"F - 4 Hole

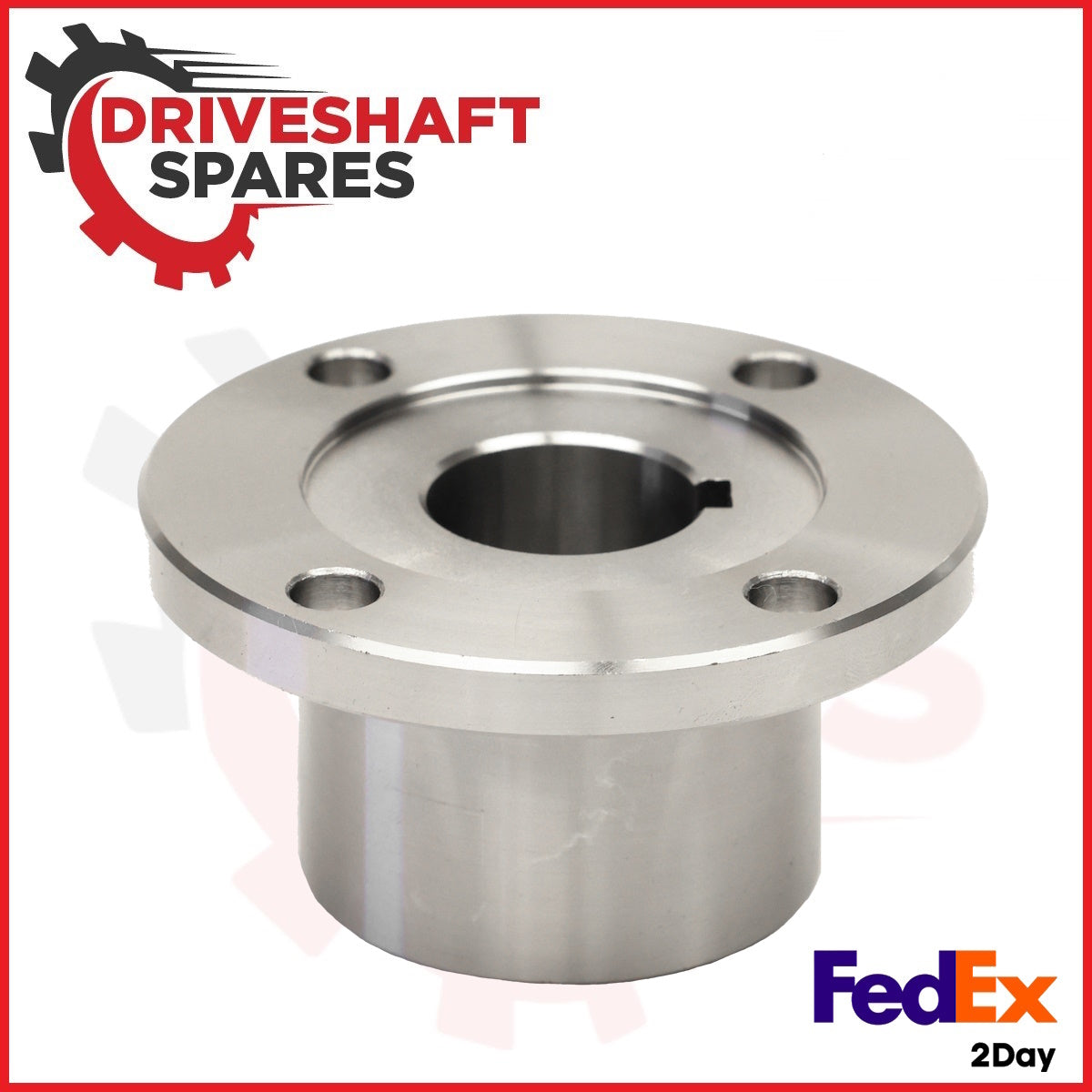

2-1-1313-1 Companion Flange - Bore: 1" - Keyway: .250" - Pilot: 2.735"F - 4 Hole - Image 2

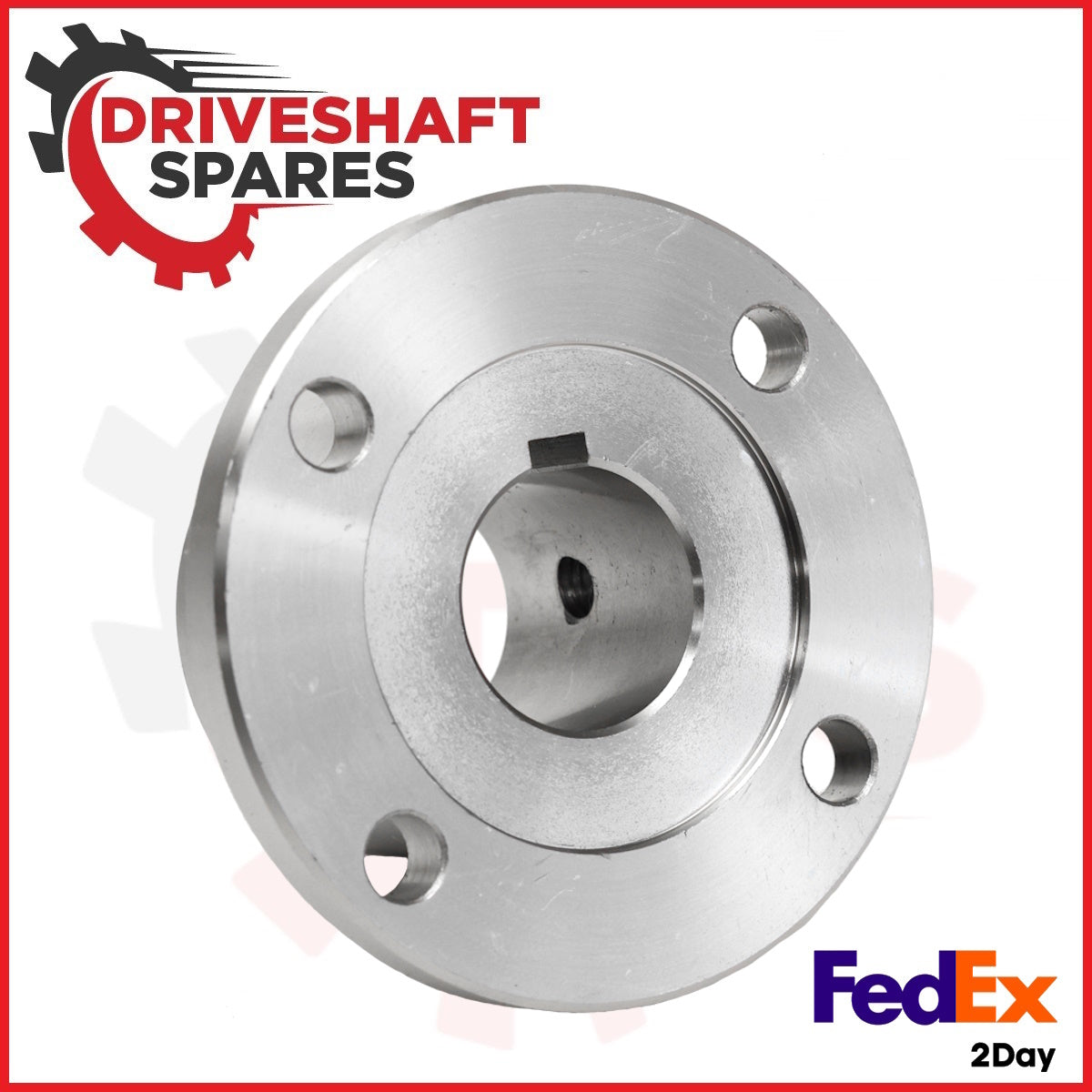

2-1-1313-1 Companion Flange - Bore: 1" - Keyway: .250" - Pilot: 2.735"F - 4 Hole - Image 3

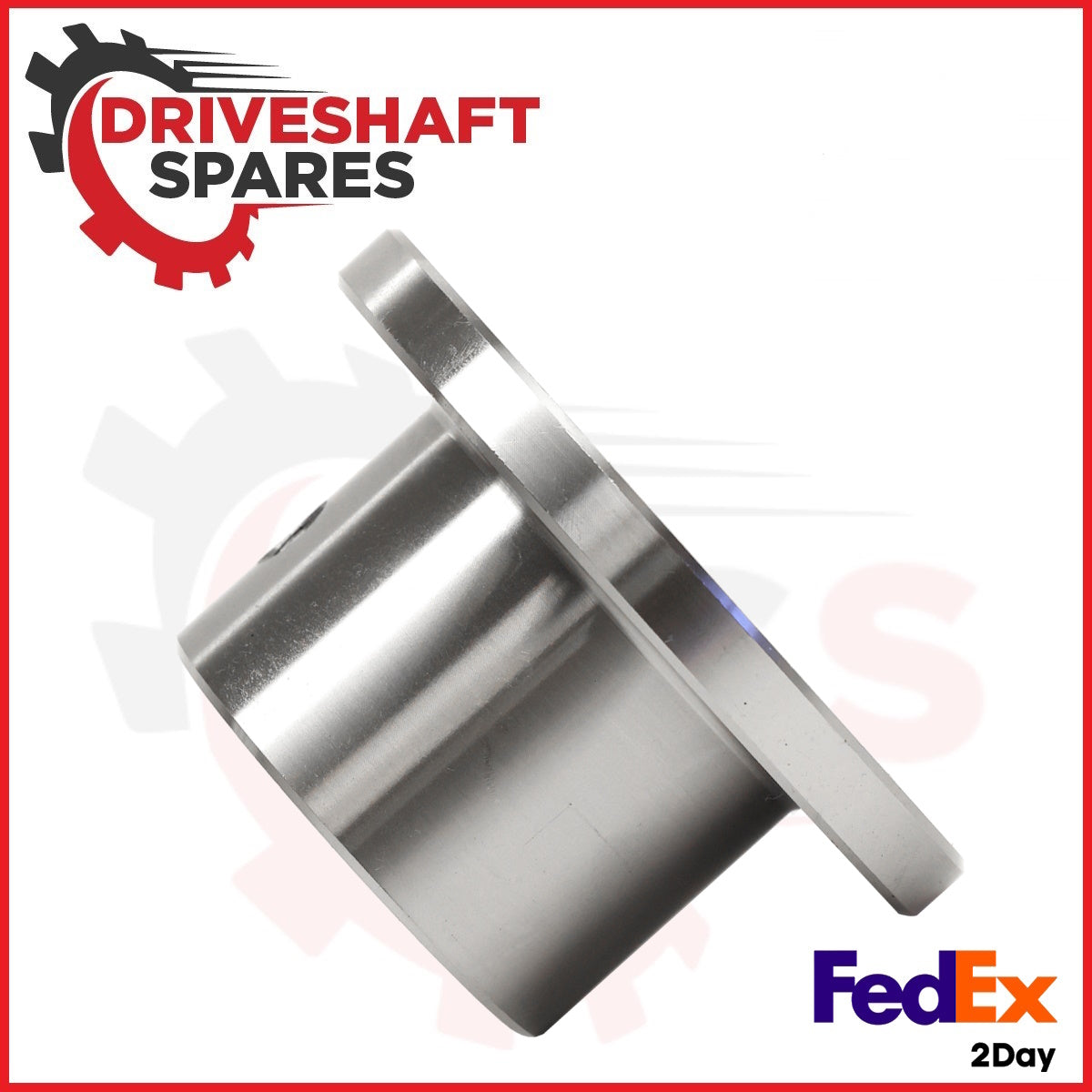

2-1-1313-1 Companion Flange - Bore: 1" - Keyway: .250" - Pilot: 2.735"F - 4 Hole - Image 4
2-1-1313-1 Companion Flange - Bore: 1" - Keyway: .250" - Pilot: 2.735"F - 4 Hole - Image 5
2-1-1313-1 Companion Flange - Bore: 1" - Keyway: .250" - Pilot: 2.735"F - 4 Hole - Image 6

$30,00

Out of stock

Description

2-1-1313-1 Companion Flange – Bore: 1″ – Keyway: .250″ – Pilot: 2.735″F – 4 Hole

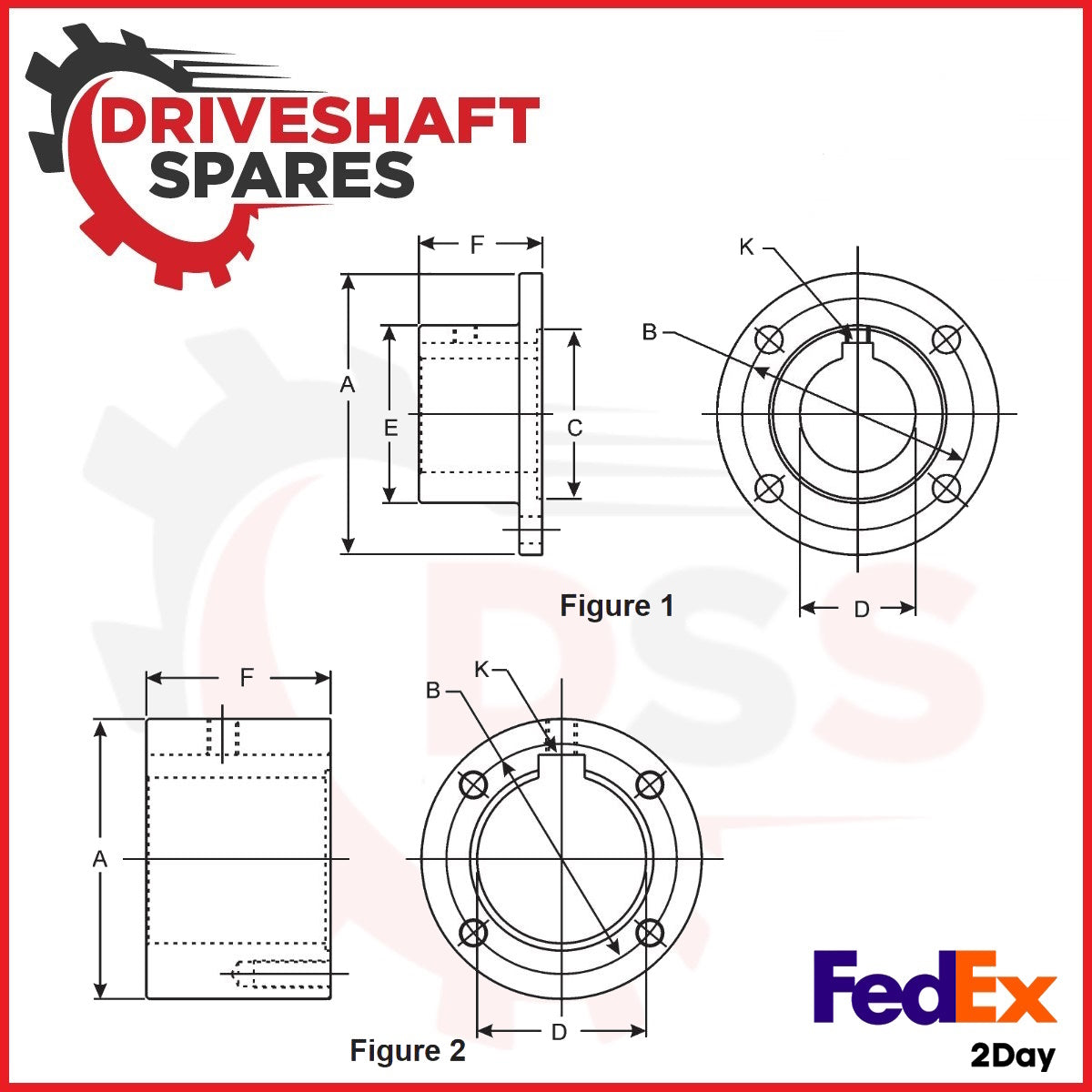

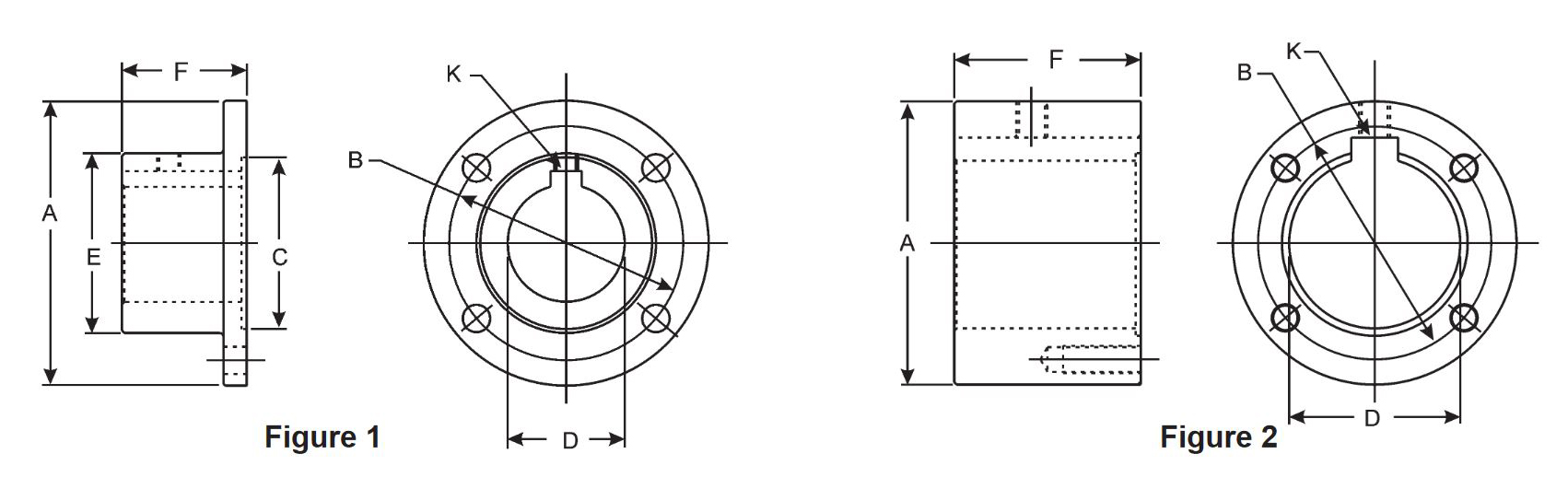

Companion Flanges
(D) 1.000
(A) 3.880
(B) 3.130
(C) 2.375F
(E) 2.438
(F) 2.000
(K) 0.250
Holes 4x .375 D
  • Companion Flange – Bore: 1″ – Keyway: .250″ – Pilot: 2.735″F – 4 Hole

Additional information

Weight 2,5 kg

Reviews

There are no reviews yet.

Be the first to review “2-1-1313-1 Companion Flange – Bore: 1″ – Keyway: .250″ – Pilot: 2.735″F – 4 Hole”

Your email address will not be published. Required fields are marked *

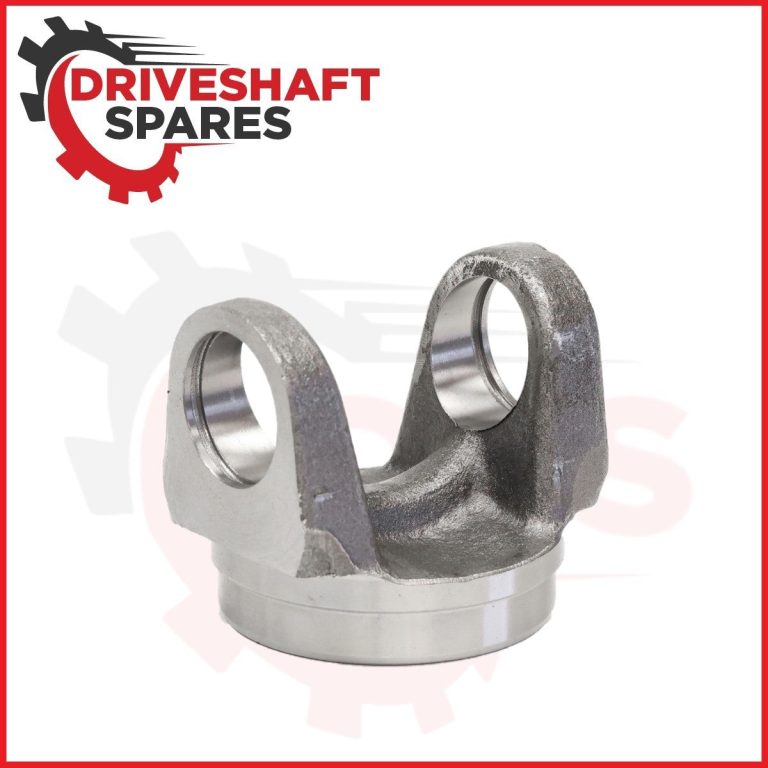

2-28-1947
BRAND NEW 2-28-1947 Tube Weld Yoke 1210 Series fits Tube Dia 2.5" x.065"
$15,60
me709sp
Jeep Grand Cherokee 1999-2004 Front CV Joint Spline Diff Side Front Drive Shaft
$36,00

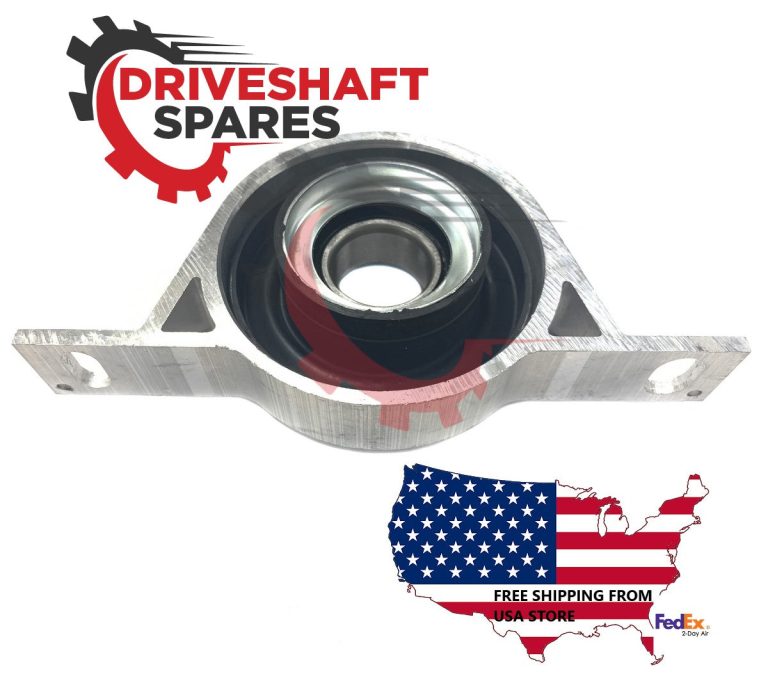

cbc5-r-1
