Description

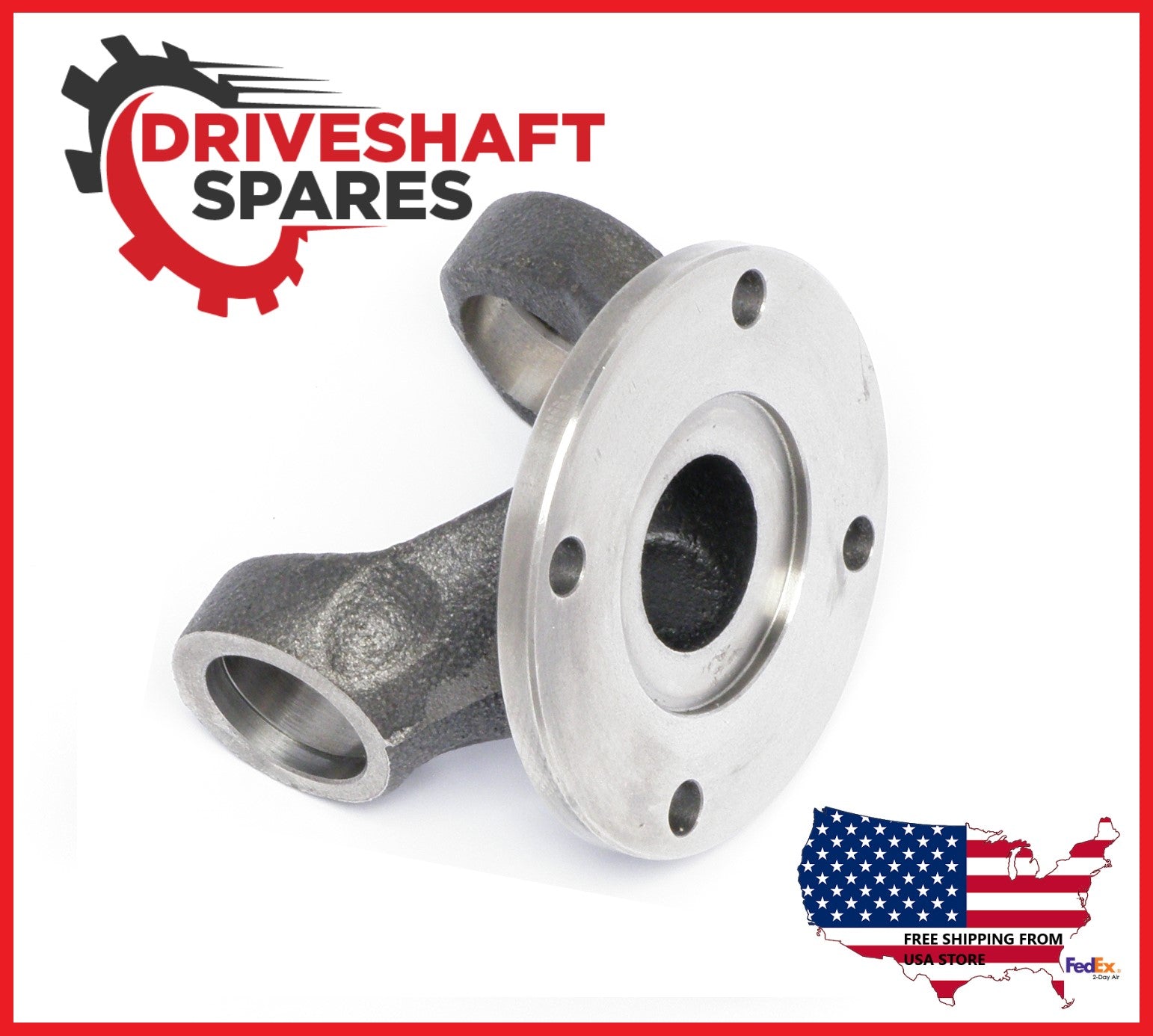

2-2-1329 Flange 3.543″ OD (90mm) 4 hole Female Pilot + 5-153X U-Joint – 1310 Series, Greaseable.

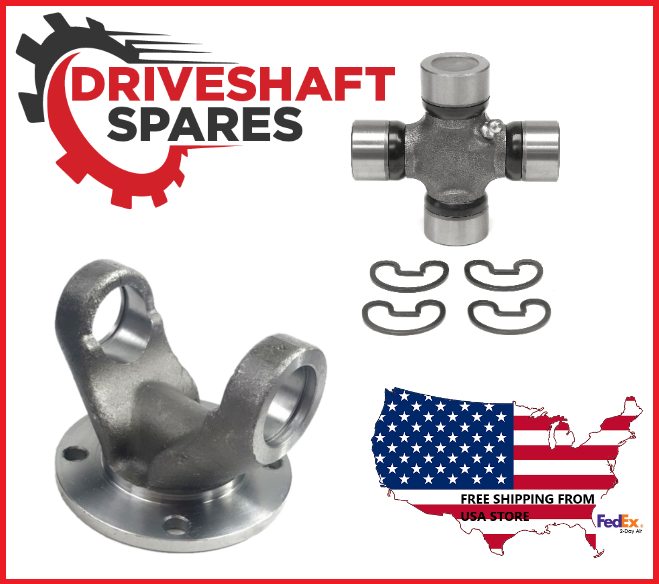

- YOU ARE BUYING a 2-2-1329 Flange Yoke + a 5-153X U-Joint in kit form as seen in the cover image.
| Flanges | |
| Series | 1310 (1.062 x 3.219) |
| (OD) | 3.543 |
| Pilot | 1.850F |
| (H) | 1.968 |
| (X) | 2.074 |
| (Y) | 2.074 |
| (Z) | 2.933 |
| Holes | 4 |
| Imperial Universal Joints | |
| (D) | 1.062 |
| (L) | 3.219 |
| Type | 2 |

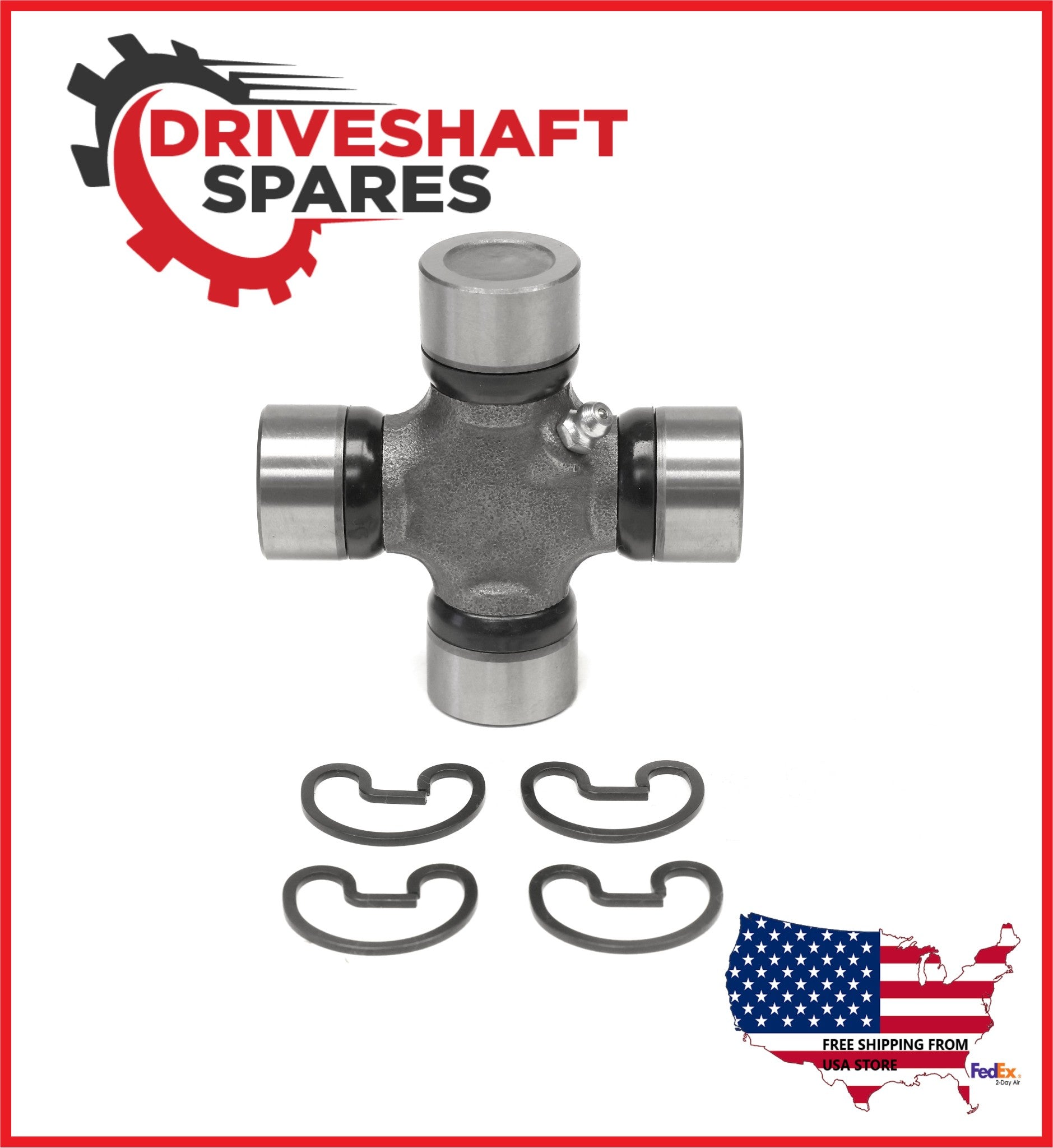

- 5-153X U-Joint – 1310 Series, Greaseable.
