Description
2-2-1949 / 2-2-1169 – 1310 Flange Yoke including SPICER 5-153X Universal Joint
FLANGE , UNIVERSAL JOINT IS SPICER BRAND
SPICER Driveshaft Flange 2-2-1949
| Design Style | Snap Ring | |
| Universal Joint Series | 1310 | |
| Universal Joint Retaining Width | 3.469 | |
| Universal Joint Bearing Diameter | (D) | 1.062 |
| Flange Diameter | (A) | 4.719 |
| Bolt Circle Diameter | (B) | 3.750 |
| Horizontal Distance Between Holes (center to center) | 2.652 | |
| Vertical Distance Between Holes (center to center) | 2.652 | |
| Bolt Hole Diameter | .481-D | |
| Bolt Hole Quantity | 4.000 | |
| Pilot Diameter (M-Male, F-Female) | (C) | 2.558M |
| Centerline of Joint to Flange Face | (G) | 1.781 |
| NOTES – 12 mm bolt holes equally spaced. |
Spicer Part No Ref: 2-2-1949 / 2-2-1169
Compatible with universal joints 5-153X / 5-1310X / 5-1310-1X

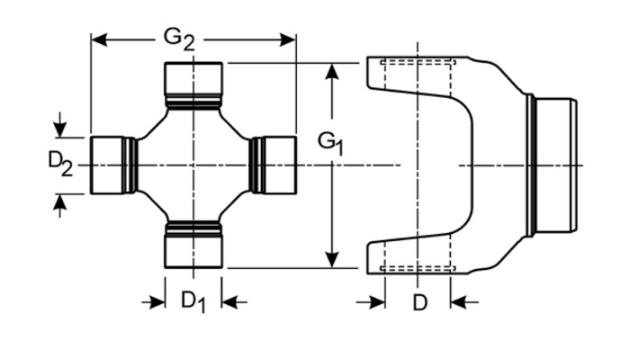

Universal Joint Specifications:
Genuine Blue seal Spicer Universal Joint 5-153X
1310 Series
U-Joint Style: Outside Snap Ring
(D) Cap Size: 1.062″
(D1) Cap Outside Diameter: 1.062″
(G1) Distance between Retainer Rings: 3.219″
(D2) Cap Outside Diameter: 1.062″
(G2) Distance between Retainer Rings: 3.219″
Greaseable: Yes
Features
- Full 2 year no hassle warranty
- high quality brand
- fast shipping
- no hassle returns
- Ships from Fort Lauderdale, Florida with FedEx 2nd Day
- Tracking number provided
