Description

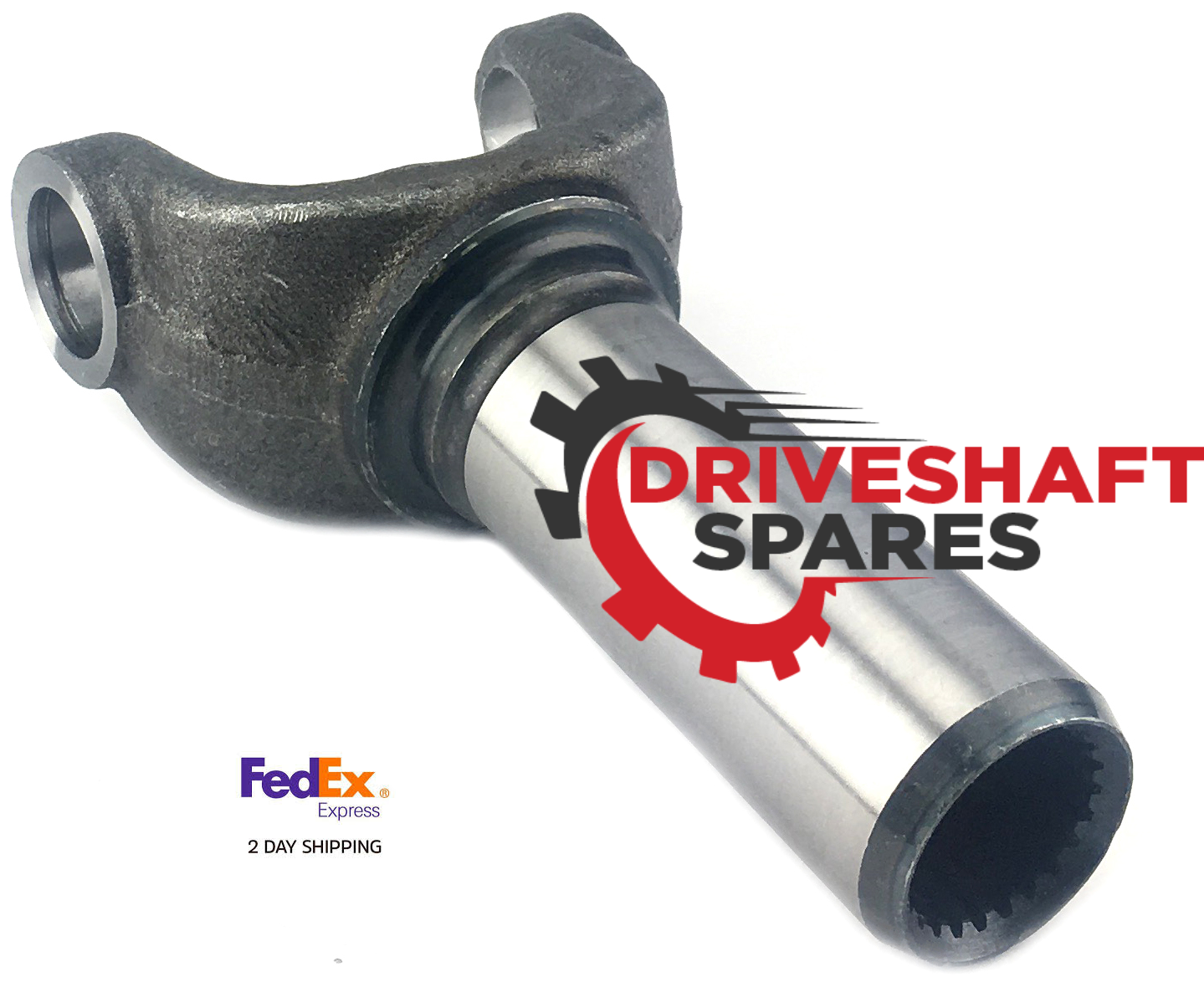

Toyota Tacoma 2WD Driveshaft 1330 Toyota Transmission Yoke 1.574″ OD 23 Spline (5002274)
You are buying a High-Quality Aftermarket Transmission Slip Yoke and a SPICER Blue Seal Universal Joint that fits the following transmission cases:
- 2005-2008 Toyota Tacoma 2WD 3.0 V6 Turbo
- Aftermarket Transmission Yoke Specifications – GY5002274
| U-Joint Series | 13530 | |
| Spline Major Diameter | 1.201″ | |
| Spline Count | 23 | |
| Spline Type | Involute | |
| Universal Joint Retaining Width | (L) | 3.875″ |
| Universal Joint Bearing Diameter | (D) | 1.062″ |
| Centerline of Joint to End of Spline | (LENGTH) | 6.319″ |
| Ground Hub Diameter | (OD) | 1.574″ |
| Counterbore Diameter | 0.000″ | |
| Counterbore Depth | 0.000″ | |
| Style | Snap Ring |
- Compatible with SPICER Reference Numbers: 5002274 / 2-3-02274X
- Compatible with the following Universal Joints – 5-213X / 5-1330X / SPL25-1X
