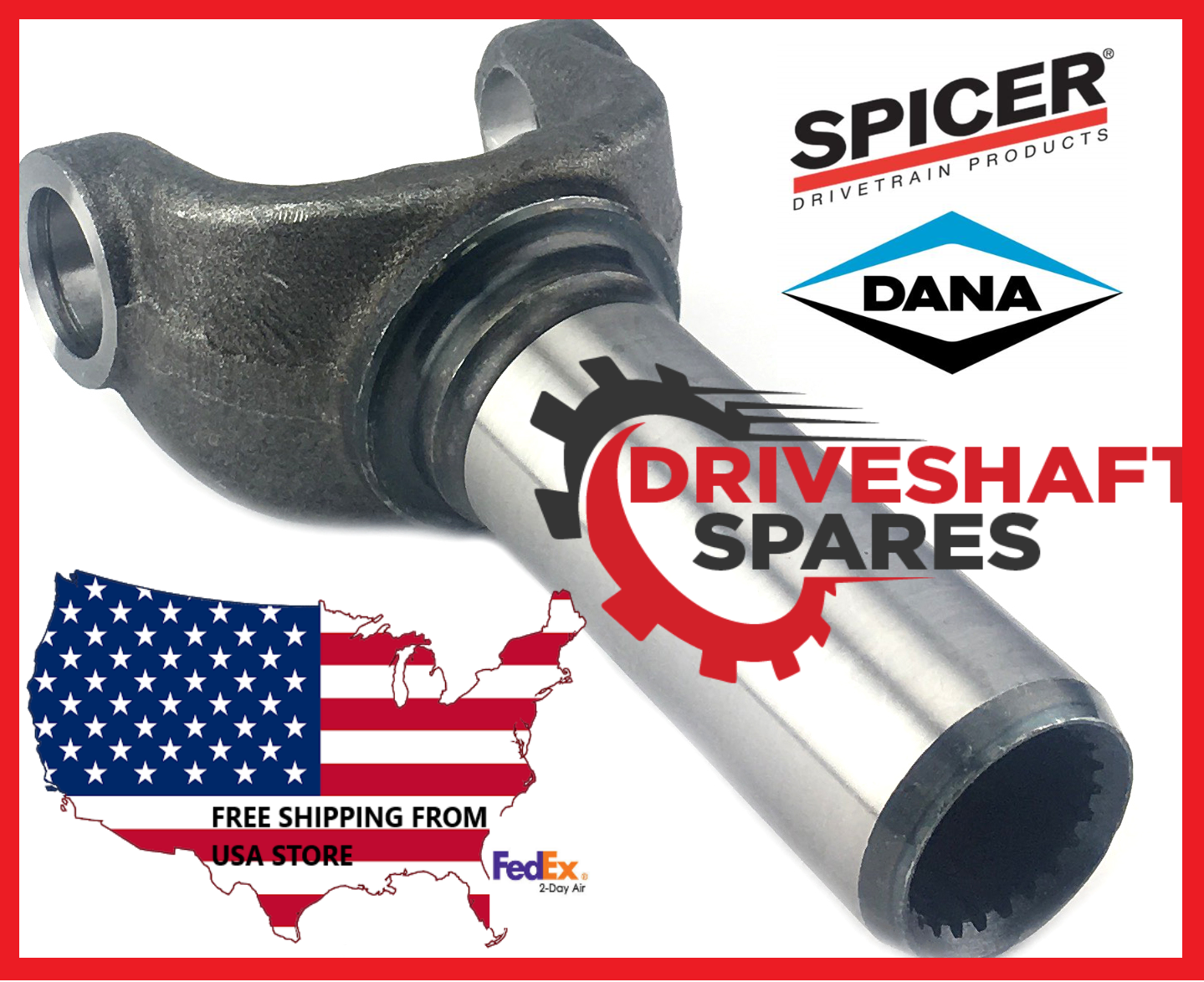

DANA SPICER1330 Toyota Tacoma 2WD Driveshaft 23 Spline Slip Yoke
You are buying a High-Quality Aftermarket Transmission Slip Yoke that fits the following transmission cases:
- 2005-2008 Toyota Tacoma 2WD 3.0 V6 Turbo
- Compatible with SPICER Reference Numbers: 5002274 / 2-3-02274X
- Compatible with the following Universal Joints – 5-213X / 5-1330X / SPL25-1X
| Transmission Yokes | |
| Series | 1330 (1.062 x 3.625) |
| OD | 1.574 |
| Splines | 23 |
| Length | 6.319 |
- 1330 Transmission yoke
- Snap Ring Style
- U-Joint Series 13530
- Spline Major Diameter 1.201″
- Spline Count 23
- Spline Type Involute
- Universal Joint Retaining Width (L) 3.875″
- Universal Joint Bearing Diameter (D) 1.062″
- Centerline of Joint to End of Spline (LENGTH) 6.319″
- Ground Hub Diameter (OD) 1.574″
- Counterbore Diameter 0.000″
- Counterbore Depth 0.000″
