Description

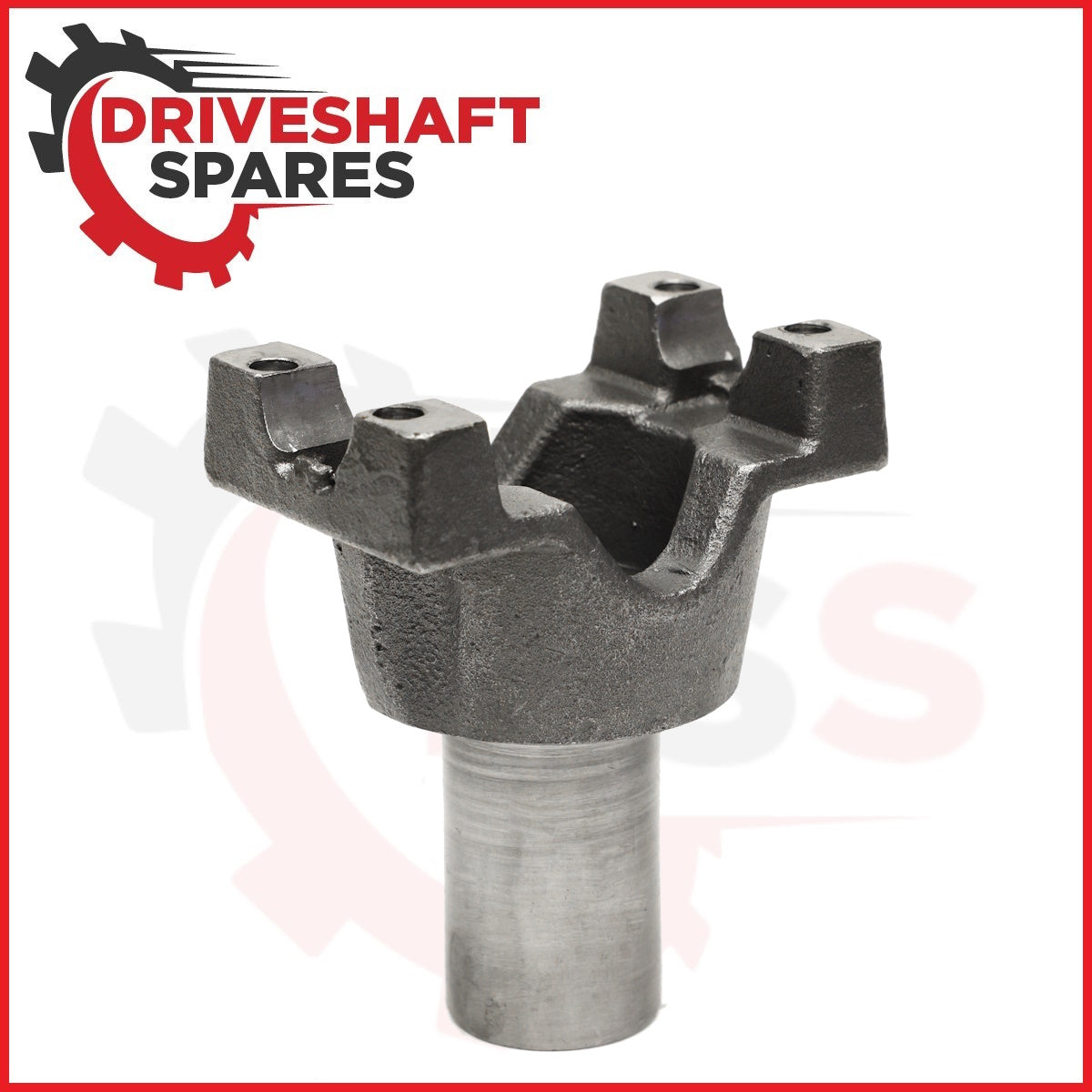

2-4-6291, End Yoke Assy – Splined Bore1330-F series, U Bolt Style, 1.219x
| U-Joint Series | 1330F | |
| Spline Major Diameter | 1.219 | |
| Spline Count | 28.000 | |
| Spline Type | Involute | |
| Spline Pressure Angle | 30 deg. | |
| Ground Hub Diameter | R | 1.500 |
| Length Thru Bore | Q | 2.844 |
| Centerline of Joint to End of Spline | S | 4.750 |
| Universal Joint Retaining Width | E | 3.625 |
| Universal Joint Bearing Diameter | D | 1.125 |
| Counterbore Depth | 0.550 | |
| Joint Angle | 0.000 | |
| Style | U Bolt | |
| Compatible U-Joint Kits | SPI-5-1204X,SPI-5-7438X | |
| U-Bolt or Strap Assembly | SPI-2-94-58X | |
| Bare Yoke part number (if assembly – included) | ||
| Slinger Part Number (if assembly – included) | ||
| Notes | T18/T19/T98 bolt on trans yoke | |
| Cast/Forged | Cast |
- End Yoke Assy – Splined Bore 1330-F series, U Bolt Style, 1.219×28 spline, 1.500 hub diameter
