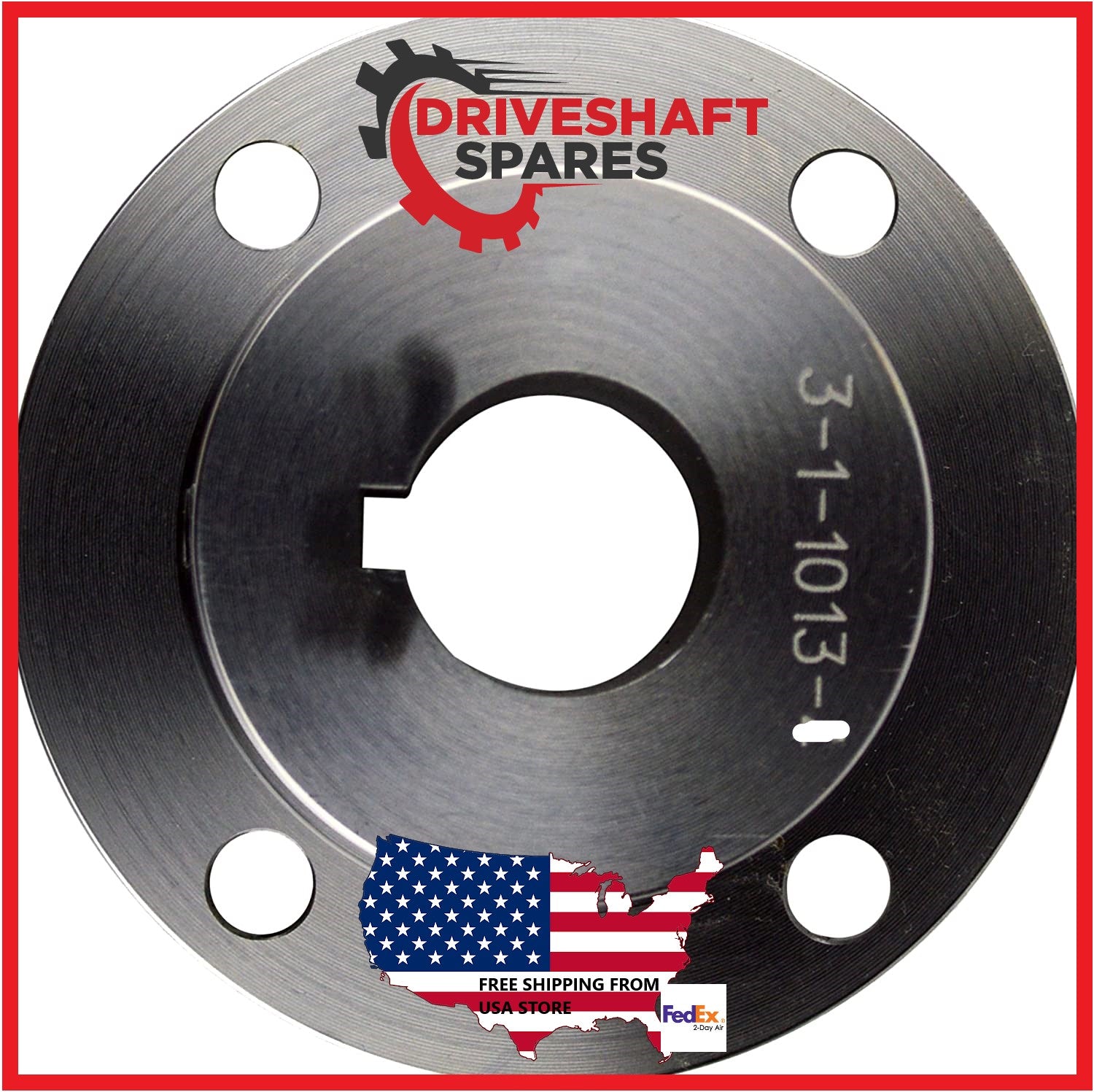

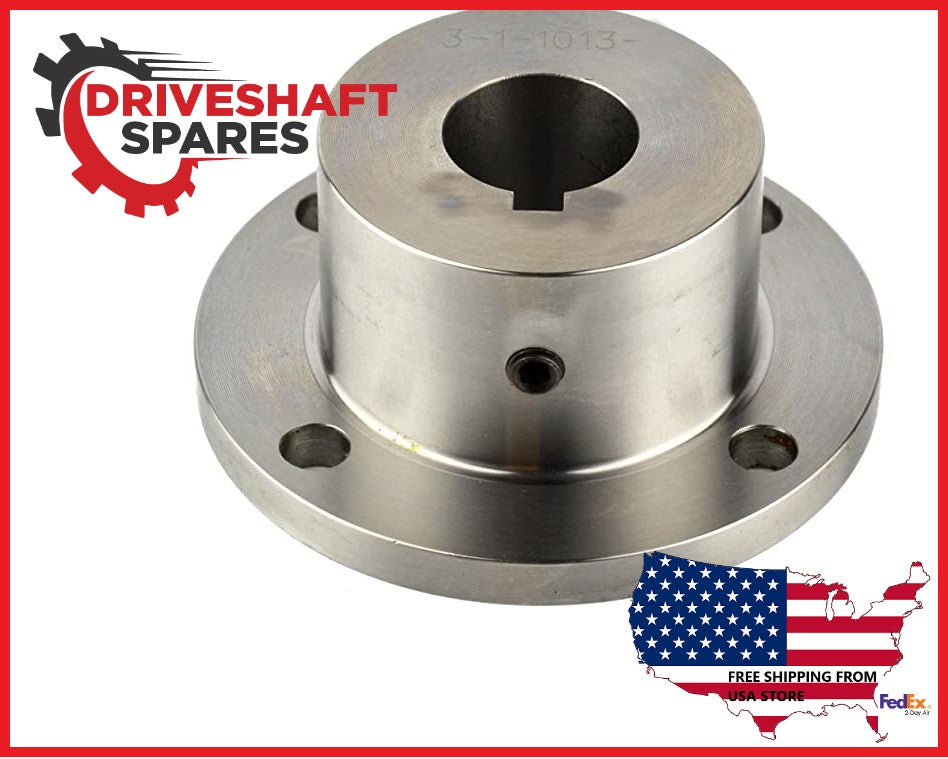

3-1-1013-1 Spicer Companion Flange – Circular 1350 series
| Brand | Spicer |
| Flange Type | Circular |
| Series | 1350 |
| Flange Width Diameter (A) In. | 4.56 |
| Bolt Circle Diameter (B) In. | 3.750 |
| Number Of Holes | 4 |
| Bore Diameter (D) In. | 1.000 |
| Key Width (K) In. | 0.250 |
| Pilot Diameter (C) In. | 2.750 – FEMALE |
| Set Screw Hole Diameter In. | 0.375 |
| Hub Diameter (E) In. | 2.875 |
| Circ Flnge Face To End Of Hub | 2.000 |
| Bolt Hole Diameter (In.) | .438 – DRILLED |
| Material | Steel |
| VMRS | 024002040 |
| Actual Hole Diameter (Max) | 1.001 |
| Actual Hole Diameter (Min) | 1.000
|
- 3-1-1013-1 Spicer Companion Flange – Circular 1350 series
- Brand Spicer
- Flange Type Circular
- Series1350
- Flange Width Diameter (A) In.4.56
- Bolt Circle Diameter (B) In.3.750
- Number Of Holes4
- Bore Diameter (D) In.1.000
- Key Width (K) In.0.250
- Pilot Diameter (C) In.2.750 – FEMALE
- Set Screw Hole Diameter In.0.375
- Hub Diameter (E) In.2.875
- Face To End Of Hub2.000
- Bolt Hole Diameter (In.).438 – DRILLED
- Material Steel Actual Hole Diameter (Max)1.001
- Actual Hole Diameter (Min)1.000
- Country of Origin United States
