3-1-1013-9 Companion Flange – Bore: 1.625″ – Keyway: .375″ – Pilot: 2.750″F

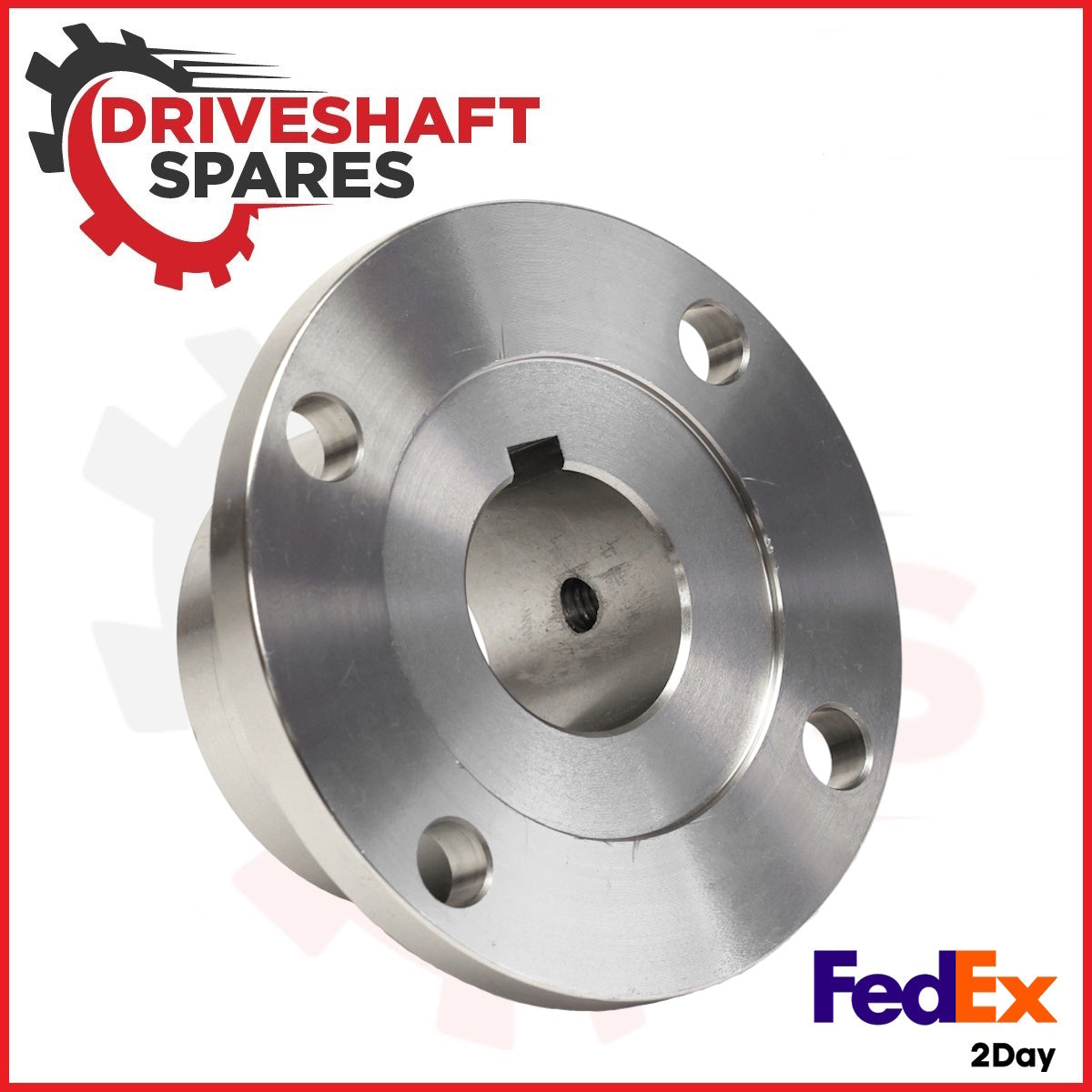

3-1-1013-9 Companion Flange - Bore: 1.625" - Keyway: .375" - Pilot: 2.750"F

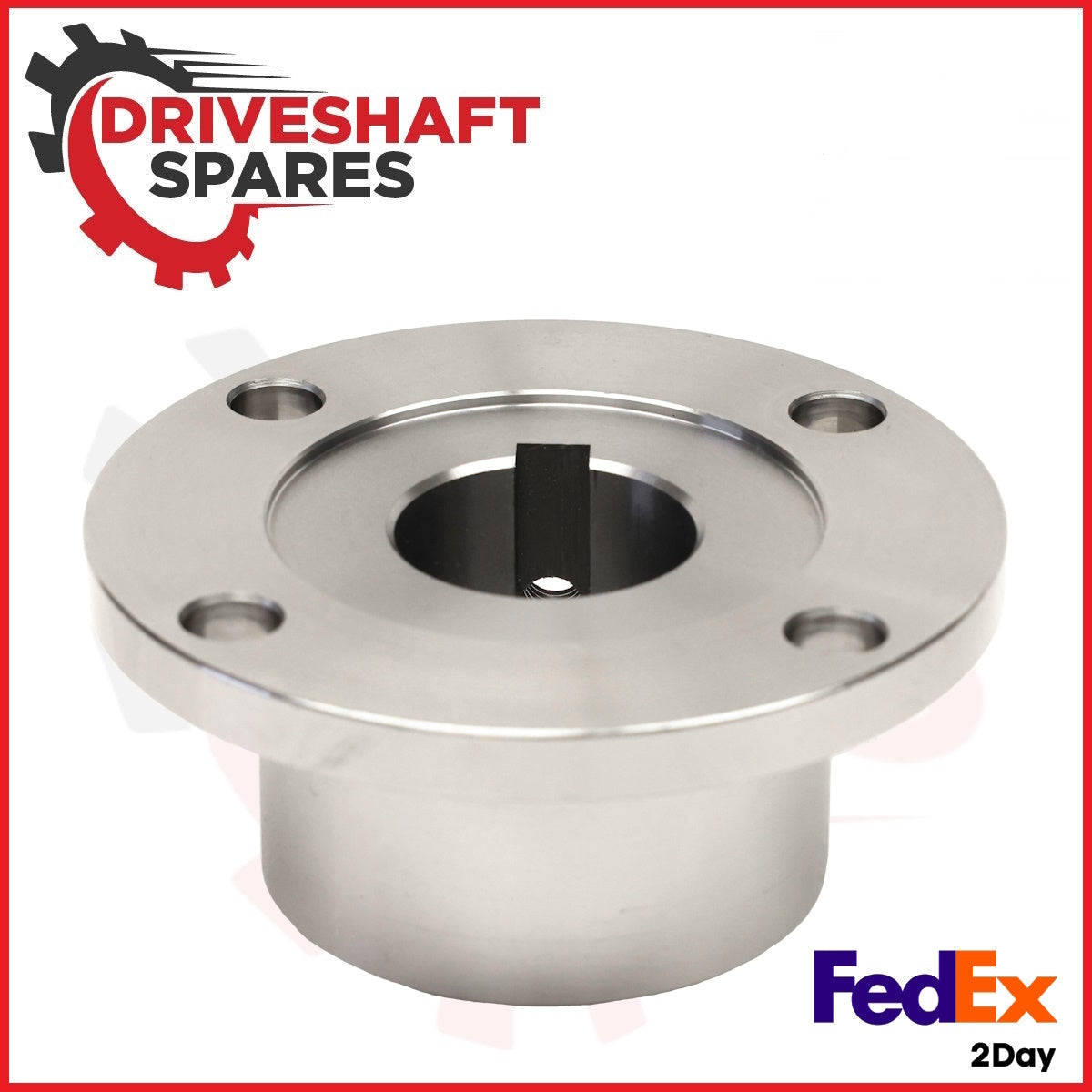

3-1-1013-9 Companion Flange - Bore: 1.625" - Keyway: .375" - Pilot: 2.750"F - Image 2

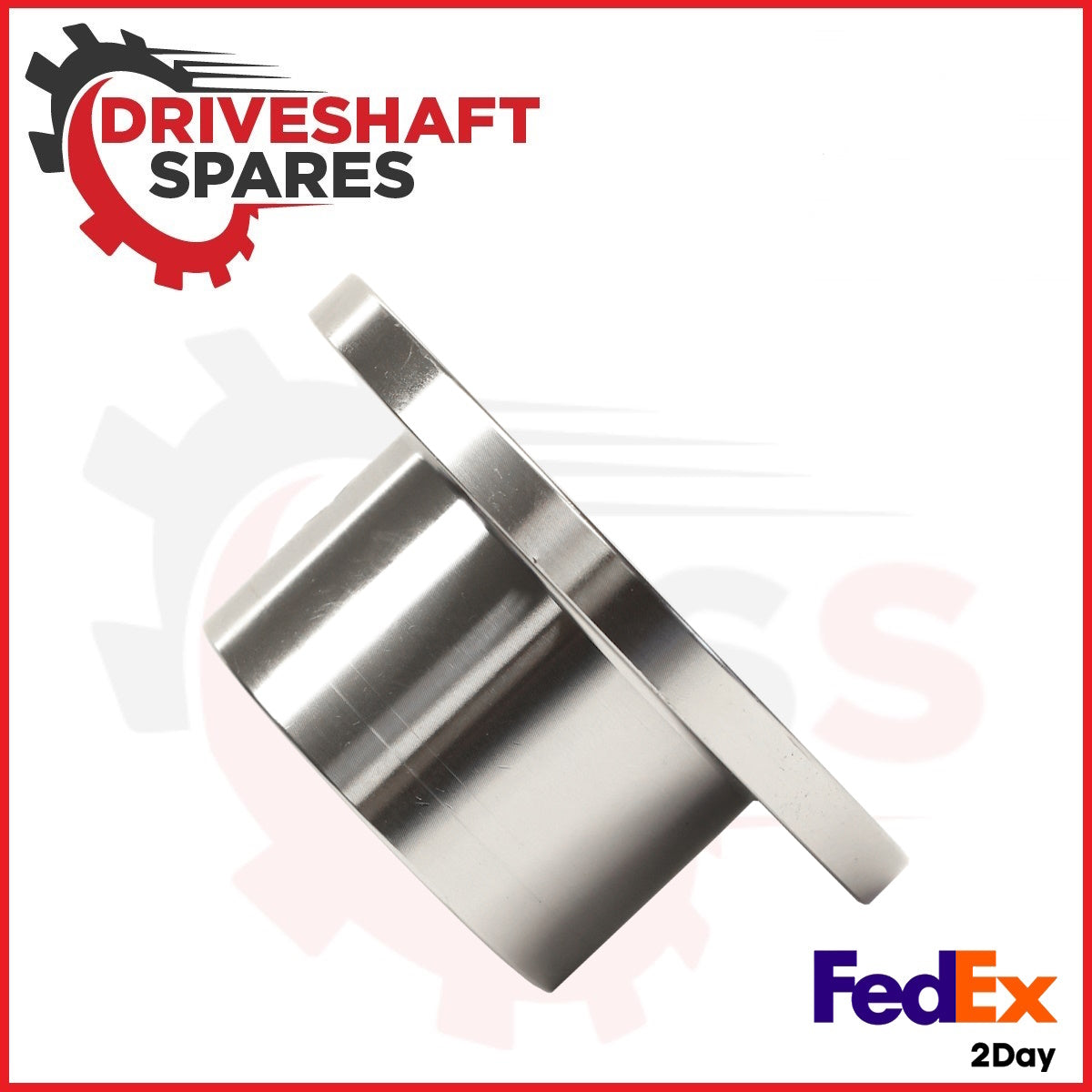

3-1-1013-9 Companion Flange - Bore: 1.625" - Keyway: .375" - Pilot: 2.750"F - Image 3

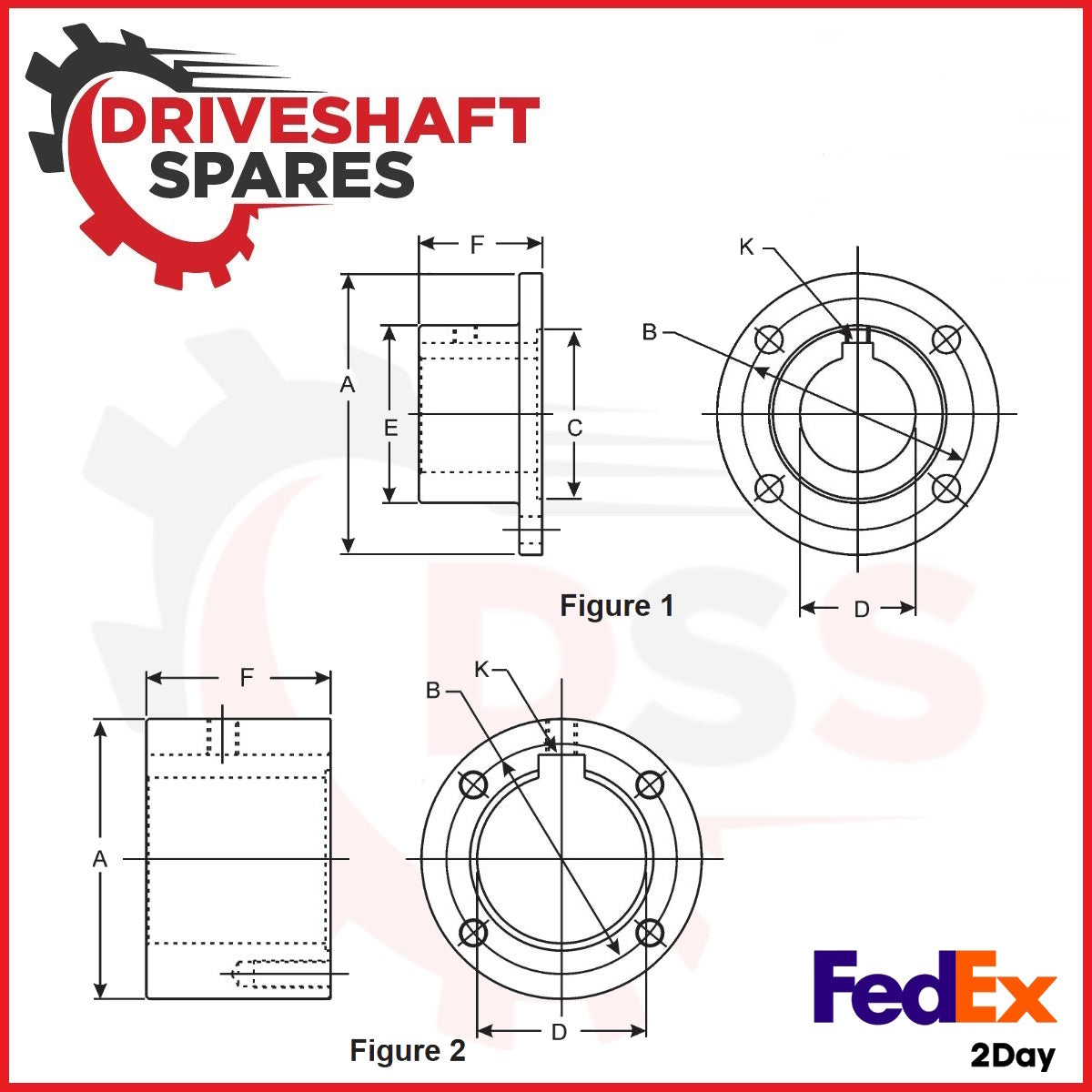

3-1-1013-9 Companion Flange - Bore: 1.625" - Keyway: .375" - Pilot: 2.750"F - Image 4
3-1-1013-9 Companion Flange - Bore: 1.625" - Keyway: .375" - Pilot: 2.750"F - Image 5

$37,80

11 in stock

Description

3-1-1013-9 Companion Flange – Bore: 1.625″ – Keyway: .375″ – Pilot: 2.750″F – 4 Hole


Companion Flanges
(D) 1.625
(A) 4.562
(B) 3.750
(C) 2.750F
(E) 2.875
(F) 2.000
(K) 0.375
Holes 4x .438 D
  • Companion Flange – Bore: 1.625″ – Keyway: .375″ – Pilot: 2.750″F – 4 Hole

Additional information

Weight 3,25 kg

Reviews

There are no reviews yet.

Be the first to review “3-1-1013-9 Companion Flange – Bore: 1.625″ – Keyway: .375″ – Pilot: 2.750″F”

Your email address will not be published. Required fields are marked *

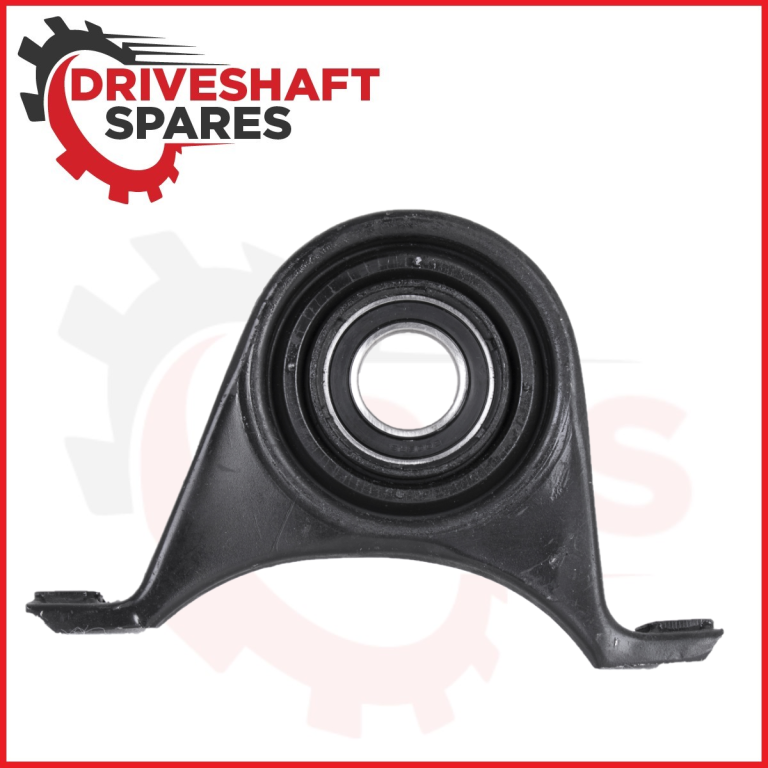

CBC300
5161435AA Drive Shaft Center Support Bearing for Dodge Challenger Charger
$22,08
gua5
200-8261 Weasler Cross And Bearing Kit-23.8mm x 61.3mm AB2 / AW20 Series
$32,00

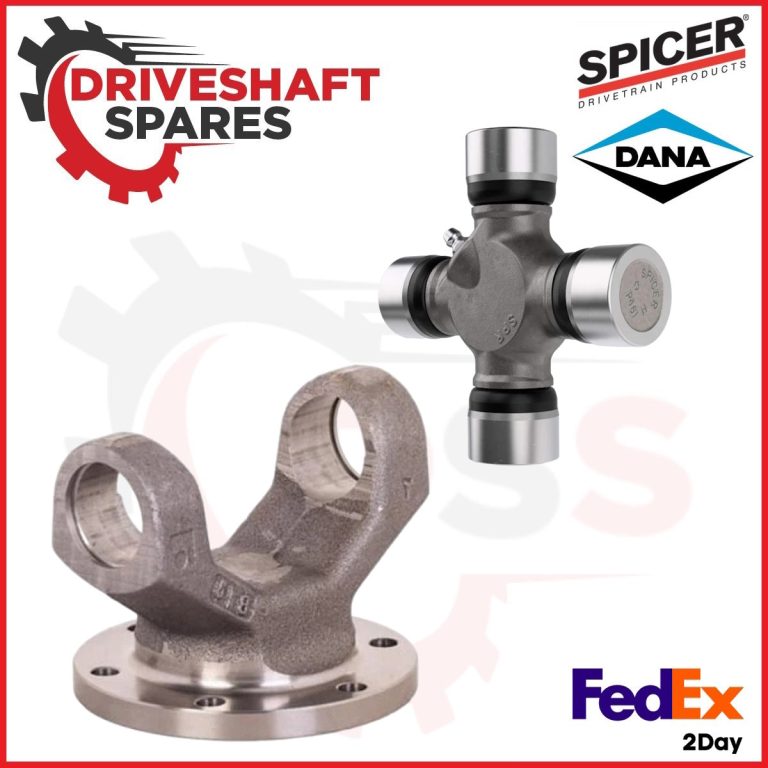

3-2-1239-5-160xs
