Description

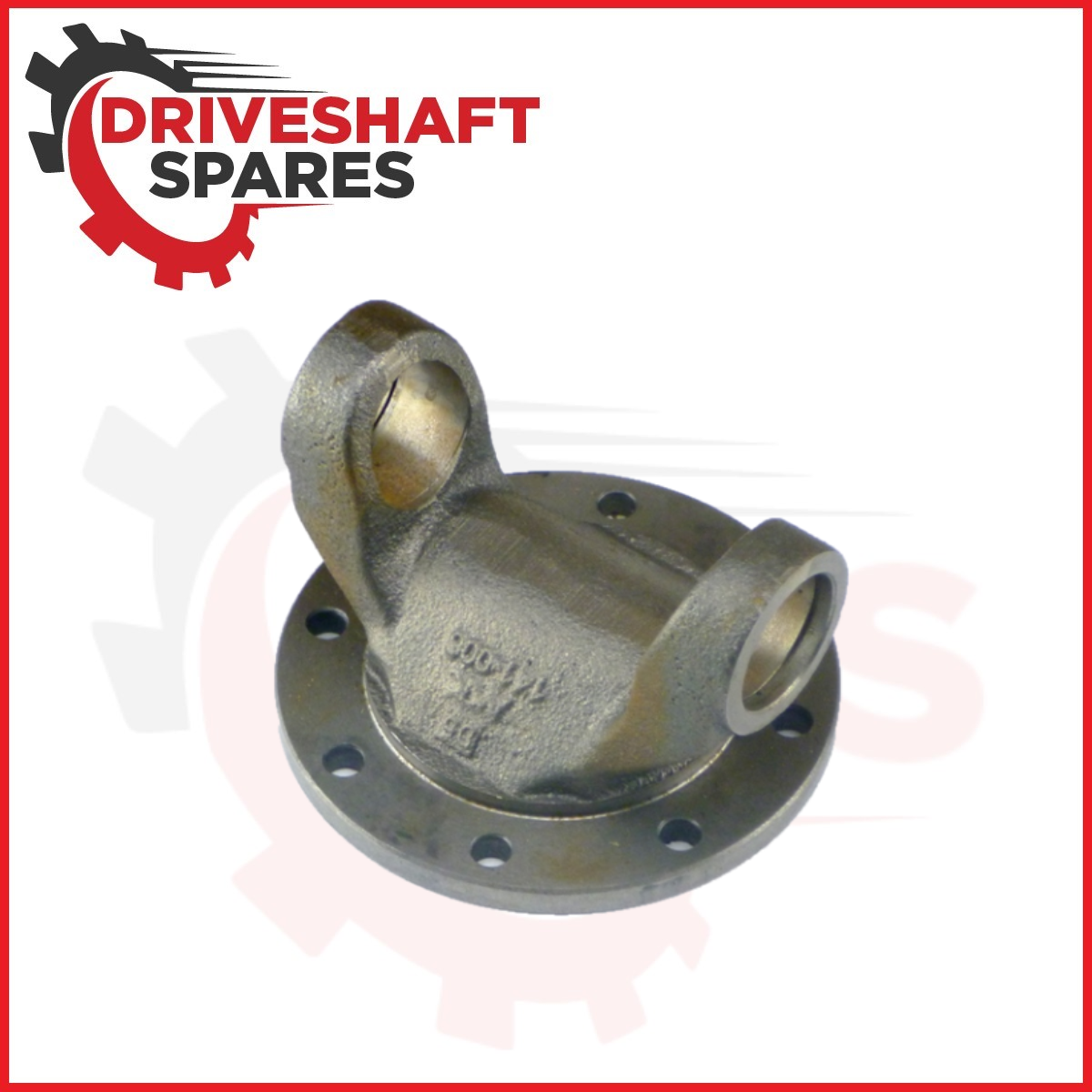

45/913201 1410 Series Circular Flange Yoke, 8x .394 Holes on 3.996BC, 2.954F pilot.
Flange fits propshaft 45/913200
| Flanges | |
| Series | 1410 (1.188 x 4.188) |
| (OD) | 4.724 |
| Pilot | 2.954F |
| (H) | 2.531 |
| (Z) | 3.996 |
| Holes | 8 |
- Brand: Driveshaft Parts
- U-Joint Series 1410 Universal Joint Retaining Width 4.438
- Universal Joint Bearing Diameter D 1.188
- Flange Diameter A 4.724
- Bolt Circle Diameter B 3.996
- Bolt Hole Diameter .394-D
- Bolt Hole Quantity 8.000
- Pilot Diameter (M-Male, F-Female) C 2.954F
- Centerline of Joint to Flange Face G 2.531
