Description

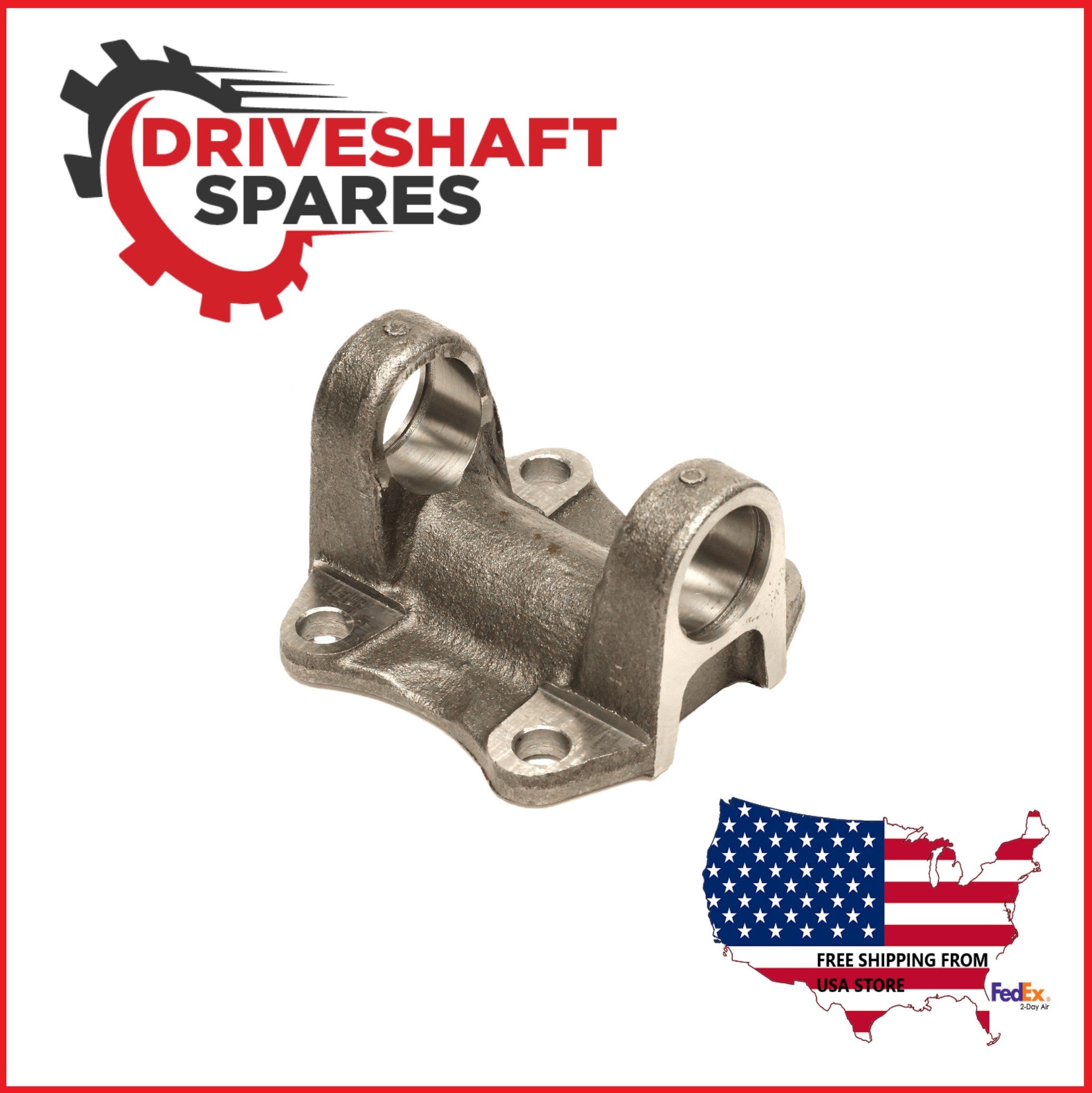

3-2-119, 1350 Series Flange Yoke, 4x .438 Holes on 3.750BC, 2.750M pilot.
| Flanges | |
| Series | 1350 (1.188 x 3.625) |
| (OD) | 4.625 |
| Pilot | 2.750M |
| (H) | 1.562 |
| (X) | 2.410 |
| (Y) | 2.873 |
| (Z) | 3.750 |
| Holes | 4 |
- U-Joint Series 1350 Universal Joint
- Retaining Width 3.875
- Universal Joint Bearing Diameter D 1.188
- Flange Diameter A 4.625
- Bolt Circle Diameter B 3.750
- Horizontal Distance Between Holes (center to center) 2.410
- Vertical Distance Between Holes (center to center) 2.873
- Bolt Hole Diameter .438-D
- Bolt Hole Quantity 4.000
- Pilot Diameter (M-Male, F-Female) C 2.750M
- Centerline of Joint to Flange Face G 1.562
