Description
3-2-1579, Flange Yoke 1350 series, Ford 4.250BC, 2.000F pilot + 5-178X SPICER U-Joint 1350 Series, Greaseable.

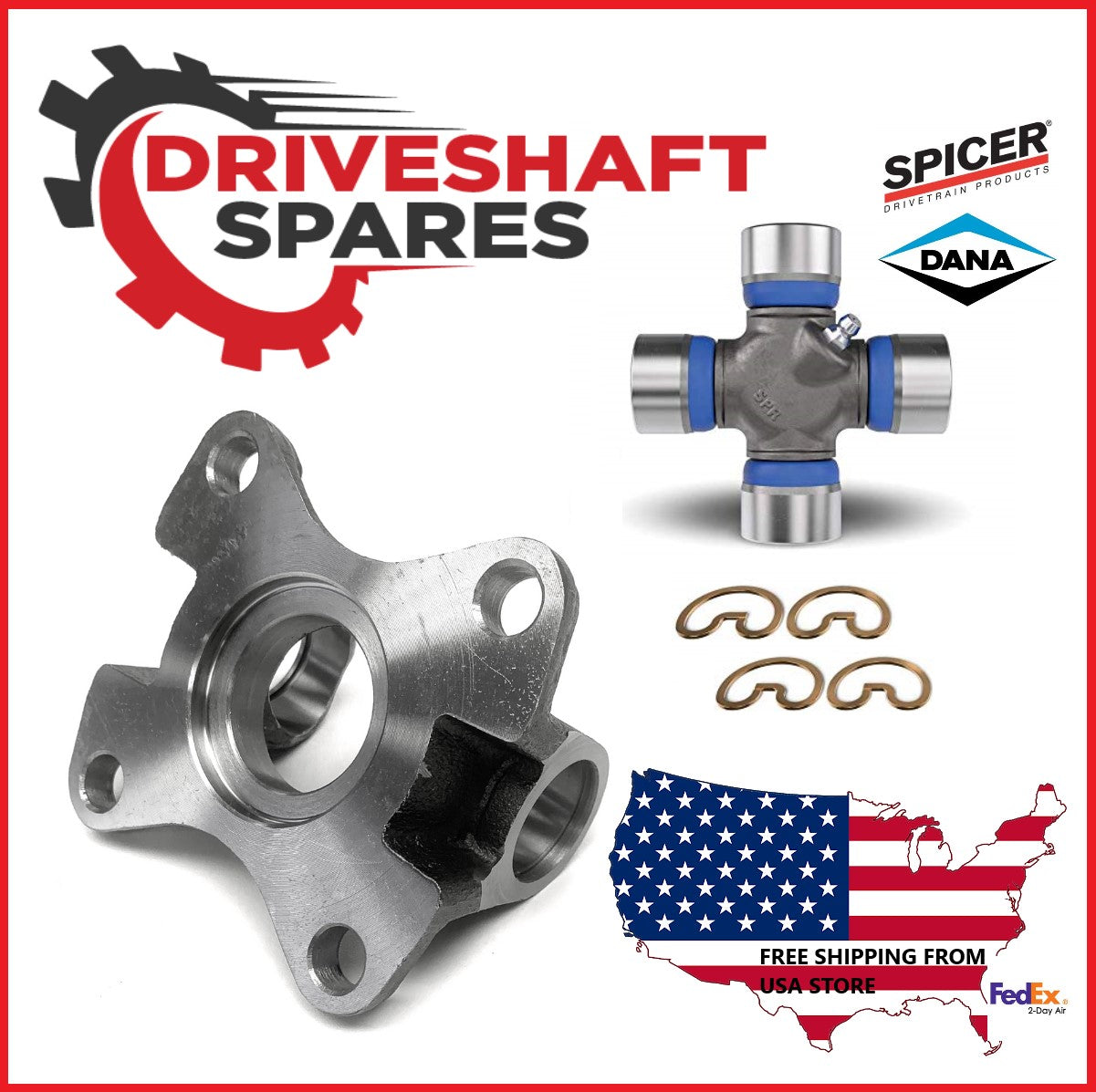

- YOU ARE BUYING a 3-2-1579, Flange Yoke 1350 series + a 5-178X SPICER U-Joint in kit form as seen in the cover image.
| Flanges | |
| Series | 1350 (1.188 x 3.625) |
| (OD) | 5.250 |
| Pilot | 2.000F |
| (H) | 1.625 |
| (X) | 3.005 |
| (Y) | 3.005 |
| (Z) | 4.250 |
| Holes | 4 |

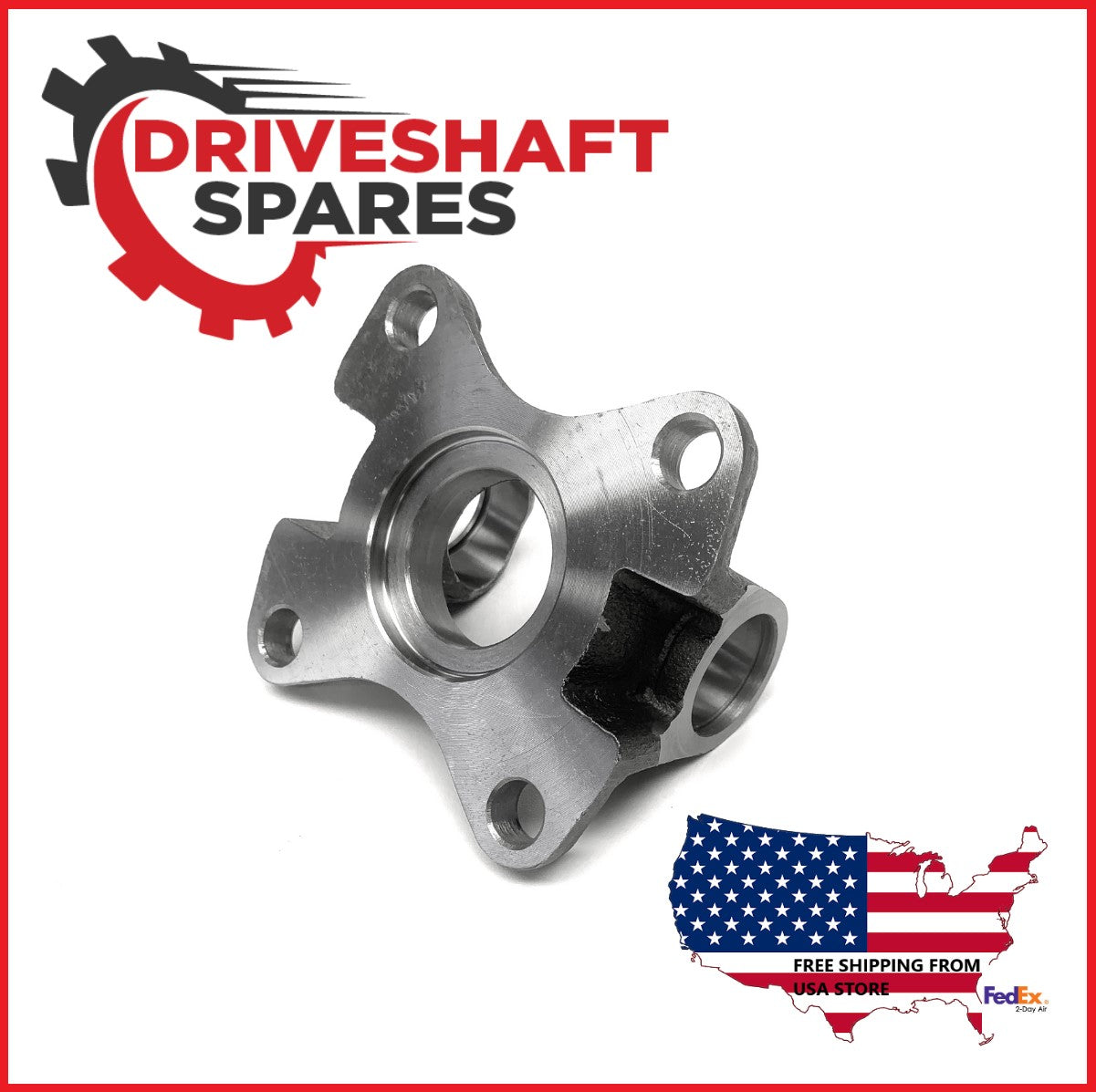

- Flange Yoke 1350 series, 4xØ.500 Holes on 4.250BC, Ø2.000F pilot
- Alt Ref: 3502-1579OE
- Refs: DL3Z4782A, F75Z4866GA, 4L3Z4782AC, 9L3Z4782B, AL3Z4782A, F65Z4782AA
| Imperial Universal Joints | |
| (D) | 1.188 |
| (L) | 3.625 |
| Type | 2 |

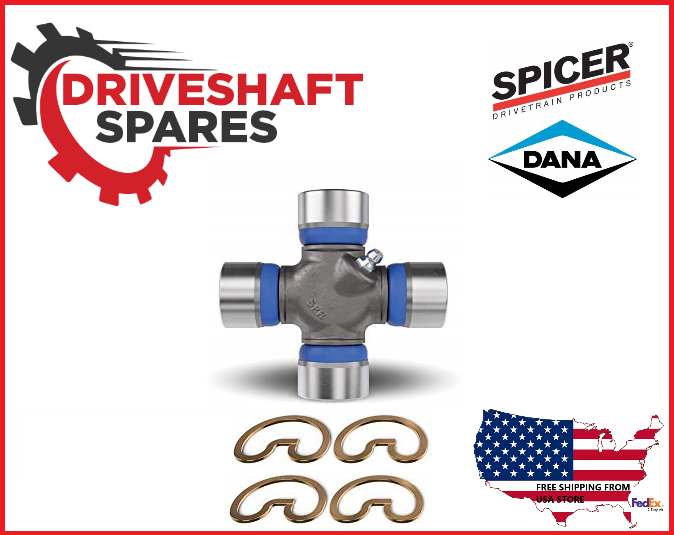

- Cap Diameter: 1.188″
- Distance between snaprings: 3.625″
- Spicer: 5-178X
- Precision: 331
- GMB: GU2200
- Rockwell/Meritor CP178X
- Borg Warner 114-635
- Neapco 2-0053
- Borg Warner 114-10HD, 114-578
- Chrysler 1516854, 2298823, 4797307, 4797307AB
- Ford 4OT7039A, 01T7039, B5T7039A, B5TZ4635A, C1TZ3249A, C5TZ4635E, F5TZ4635A, F81Z4635BB
- General Motors 374246, 609515
- Toyota 043710C094, 043710C080
