Description

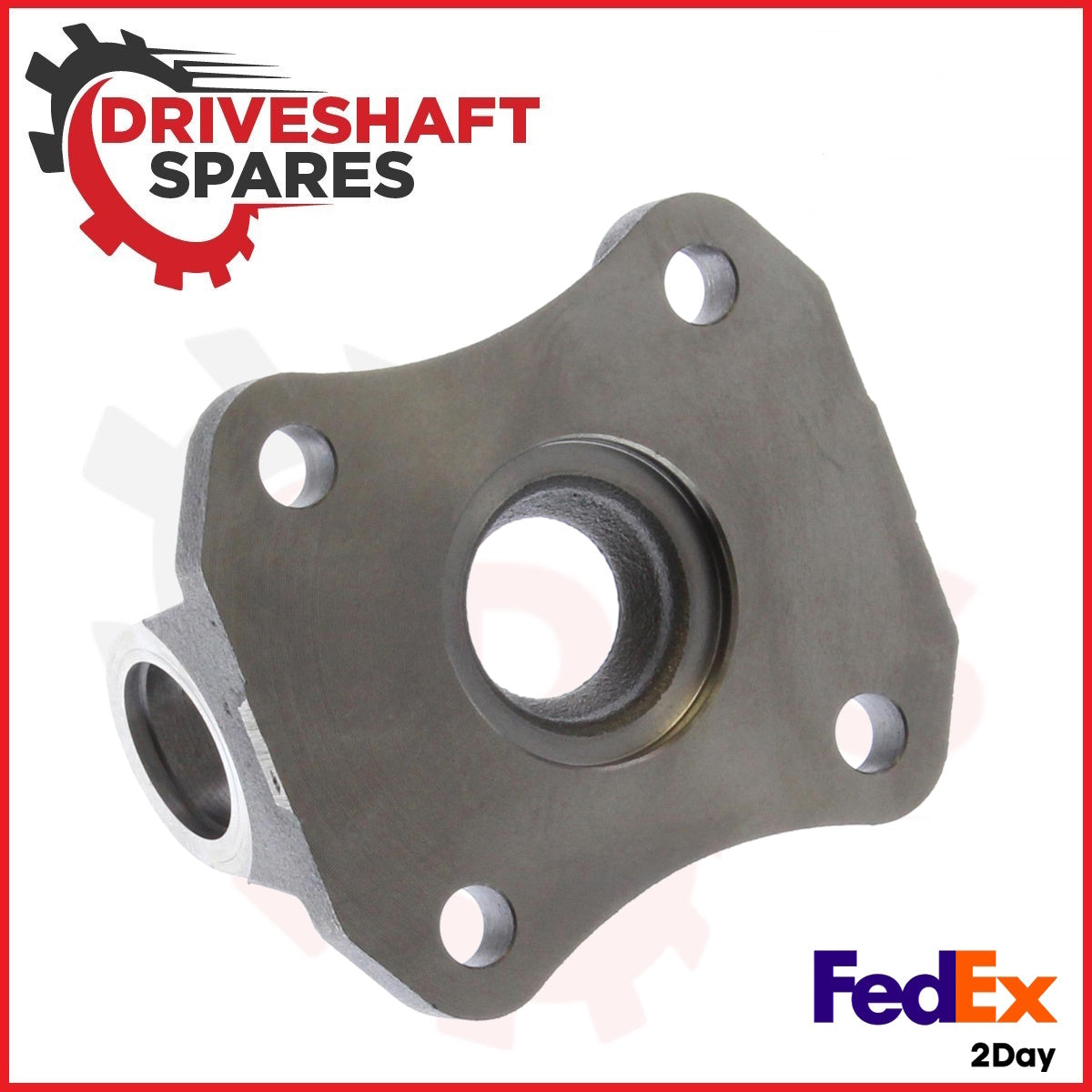

Driveshaft Flange Yoke 1410 series 4x.500 Holes on 4.250BC, 2.000F Pilot
| Design Style |
|
Snap Ring Design |
| U-Joint Series |
|
1410 |
| Universal Joint Retaining Width |
|
4.438 |
| Universal Joint Bearing Diameter |
D |
1.188 |
| Flange Diameter |
A |
5.240 |
| Bolt Circle Diameter |
B |
4.250 |
| Horizontal Distance Between Holes (center to center) |
|
3.005 |
| Vertical Distance Between Holes (center to center) |
|
3.005 |
| Bolt Hole Diameter |
|
.500-D |
| Bolt Hole Quantity |
|
4.000 |
| Pilot Diameter (M-Male, F-Female) |
C |
2.000F |
| Centerline of Joint to Flange Face |
G |
1.620 |
| Compatible U-Joint Kits |
|
SPI-5-160X,SPI-5-1410X |
| |
|
19.000 |
| Notes |
|
Part has hole thru center |
Cast/Forged
|
|
Cast
|
