Description

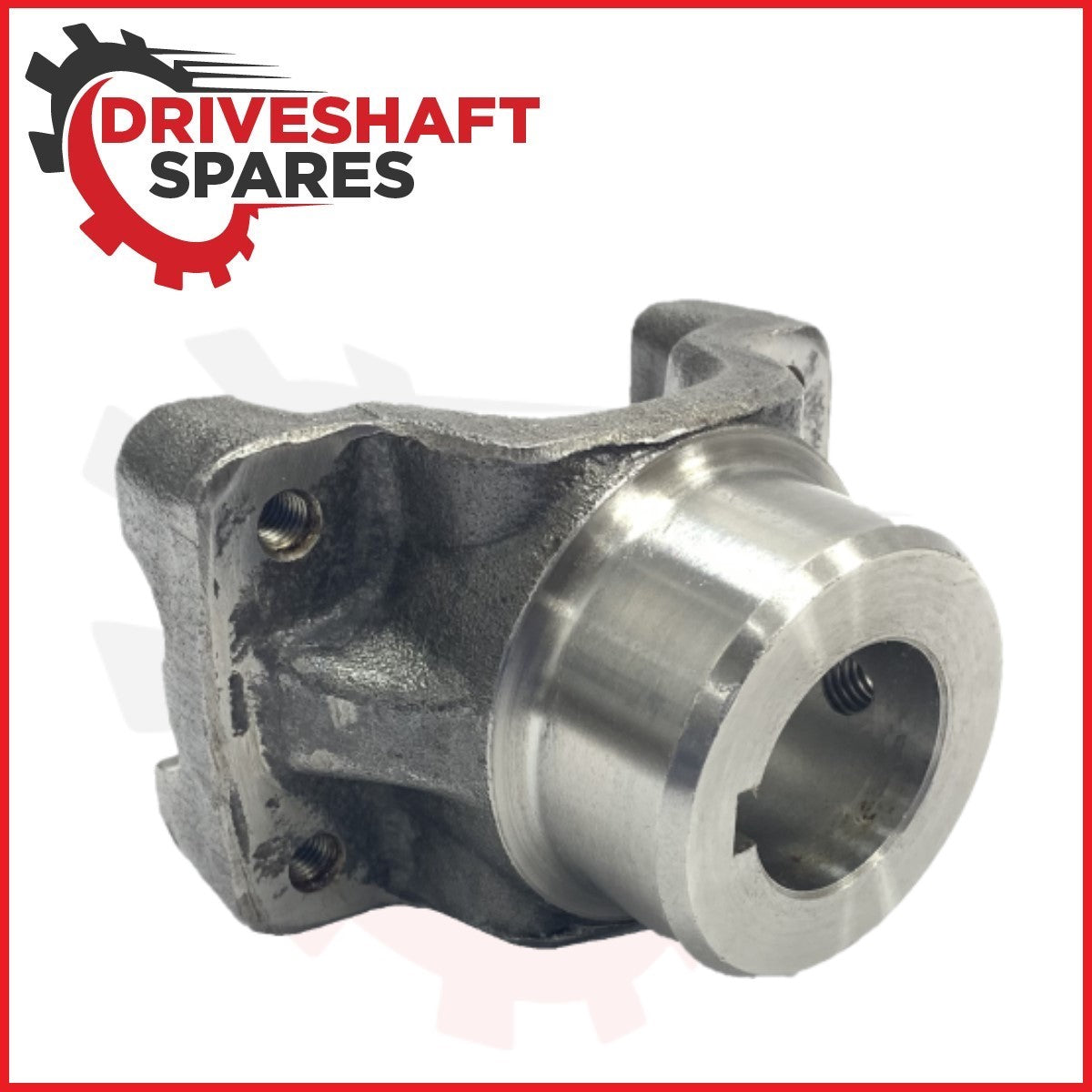

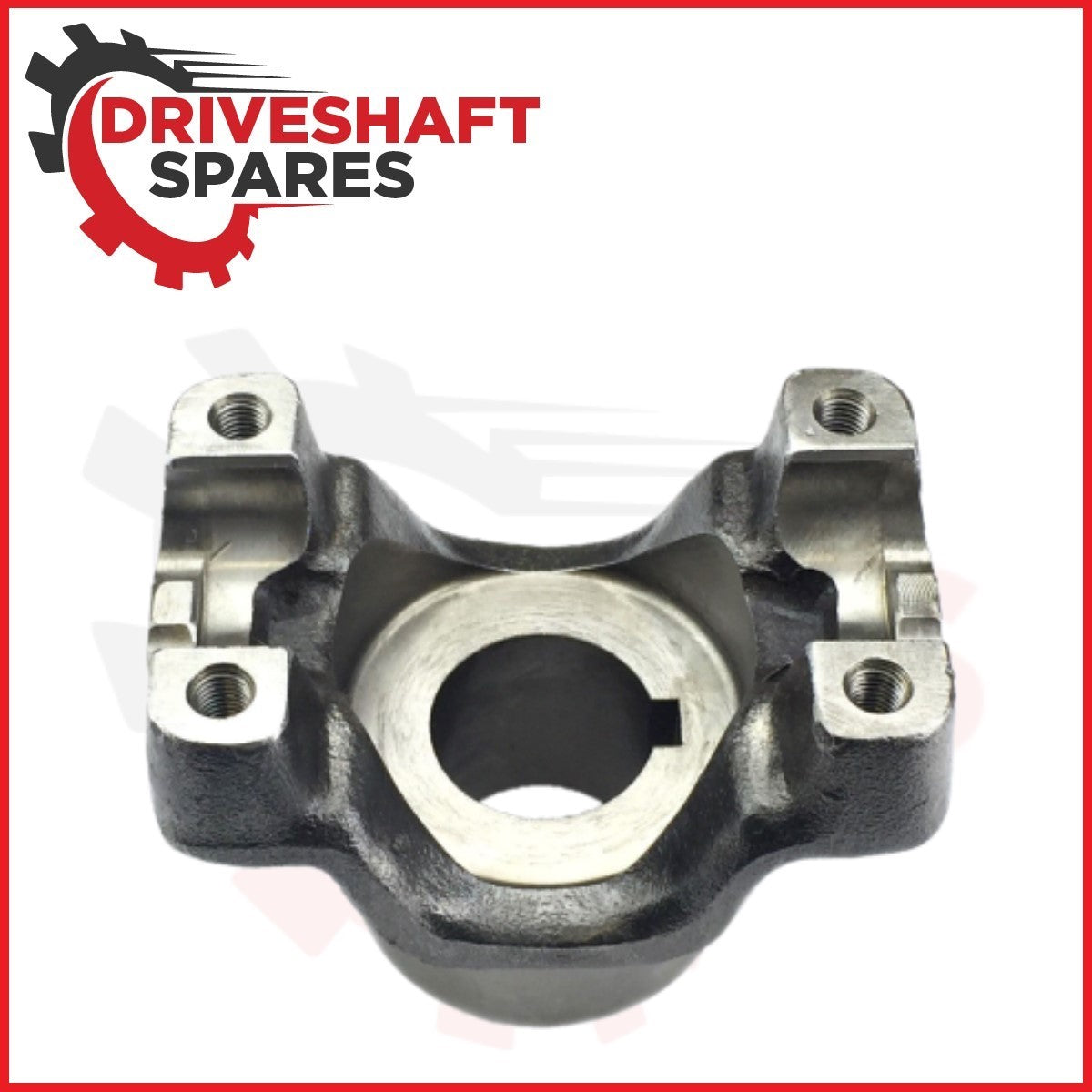

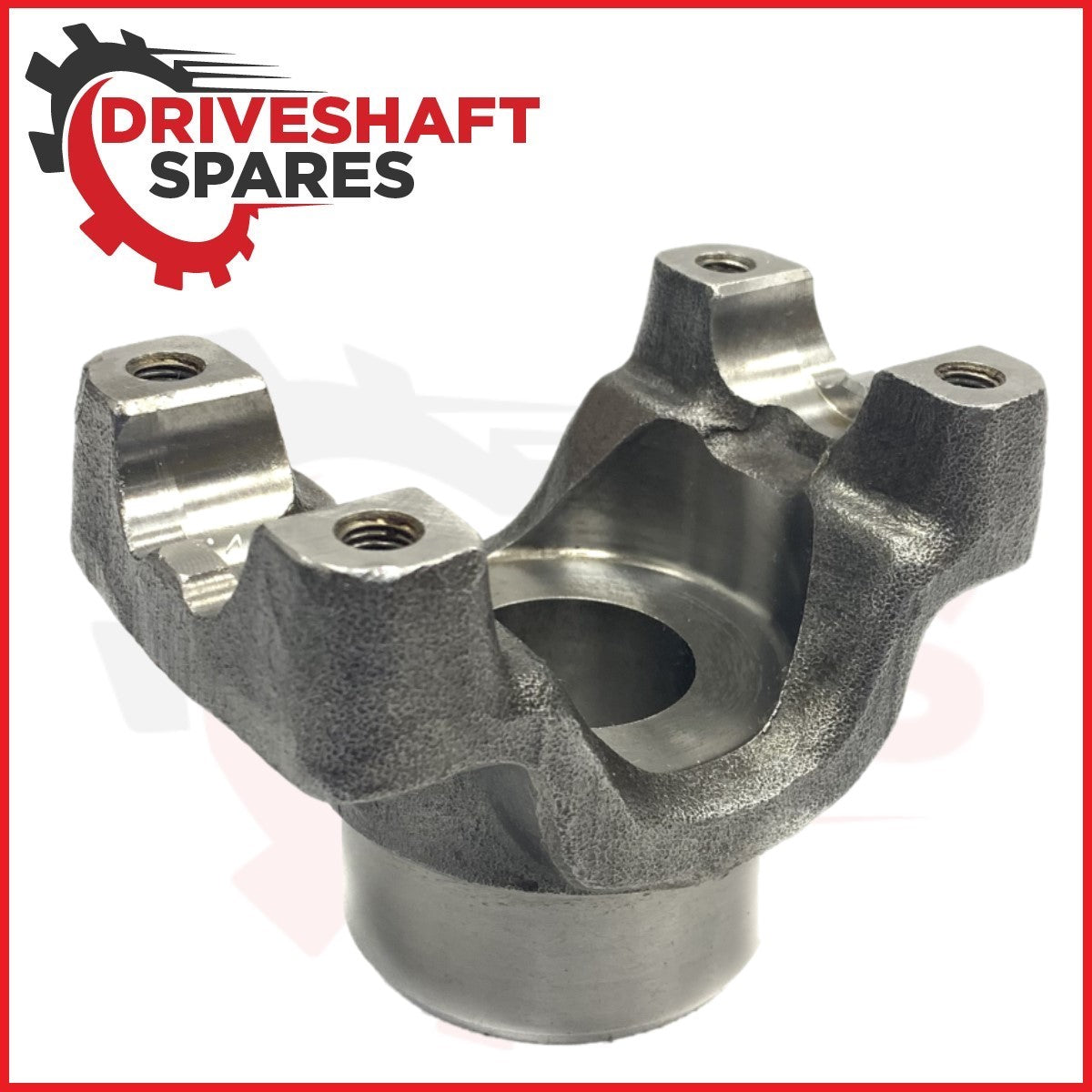

3-4-283-1 Round Bore End Yoke 1350 series 1.250 Bore w/0.314 keyway
| End Yokes | |
| Series | 1350 (1.188 x 3.625 ) |
| (P) | 1.250 |
| (R) | 2.250 |
| (S) | 3.000 |
| (X) | 0.314 |
- General Design Type Round Bore
- U-Joint Series 1350
- Bore Diameter P 1.250
- SAE Keyway Width X 0.314
- Hub Diameter R 2.250
- Universal Joint Retaining Width E 3.625
- Universal Joint Bearing Diameter D 1.188
- Length Thru Bore Q 1.500
- Centerline of Joint to End of Hub S 3.000
- Set Screw Thread 0.375
- Keyway Location 12
- Set Screw Location Clock position viewed at Hub End and Keyway at 12 W 6
