4-1-1133-1 Companion Flange – Bore: 1.500″ – Keyway: .375″ – Pilot: 3.750″F

4-1-1133-1 Companion Flange - Bore: 1.500" - Keyway: .375" - Pilot: 3.750"F

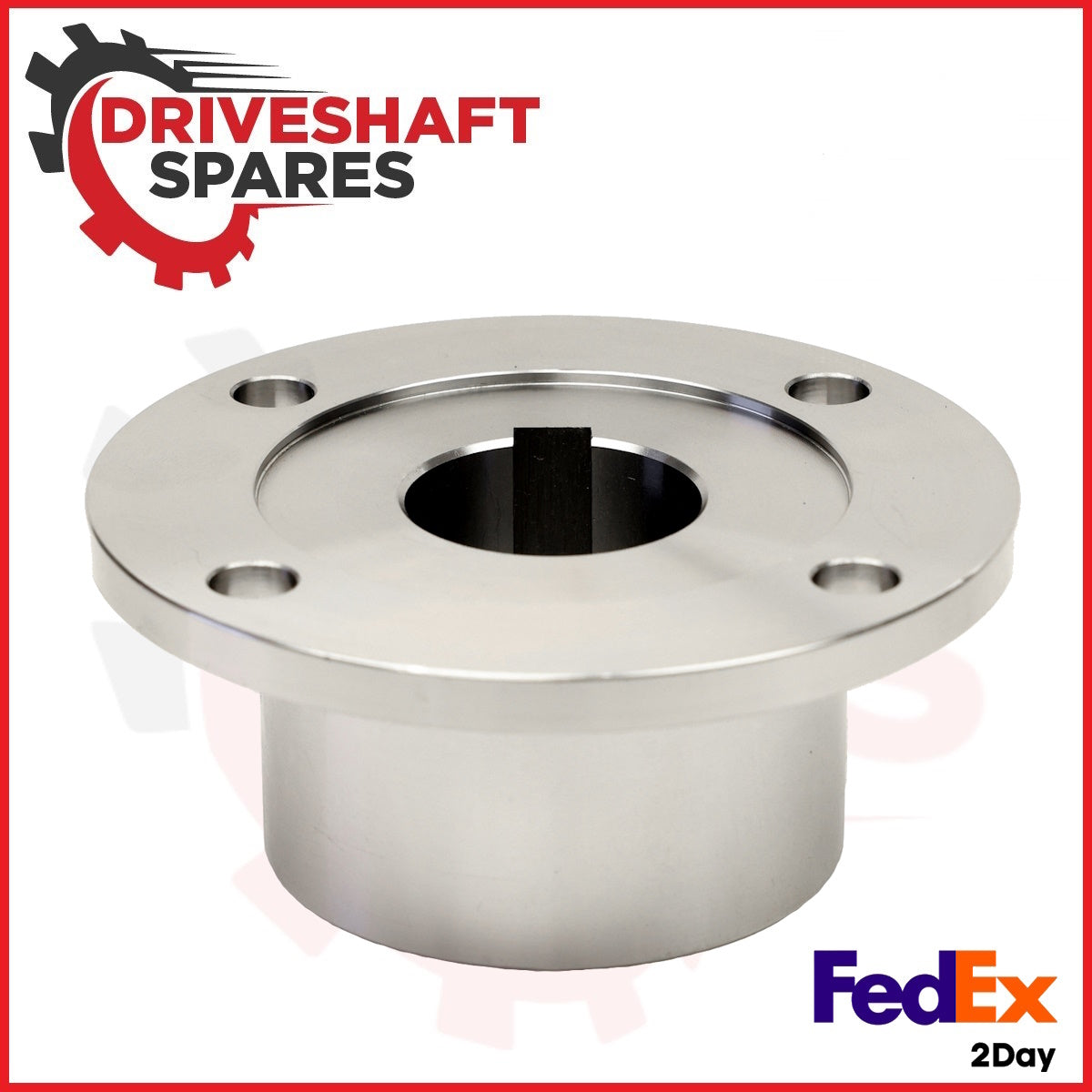

4-1-1133-1 Companion Flange - Bore: 1.500" - Keyway: .375" - Pilot: 3.750"F - Image 2

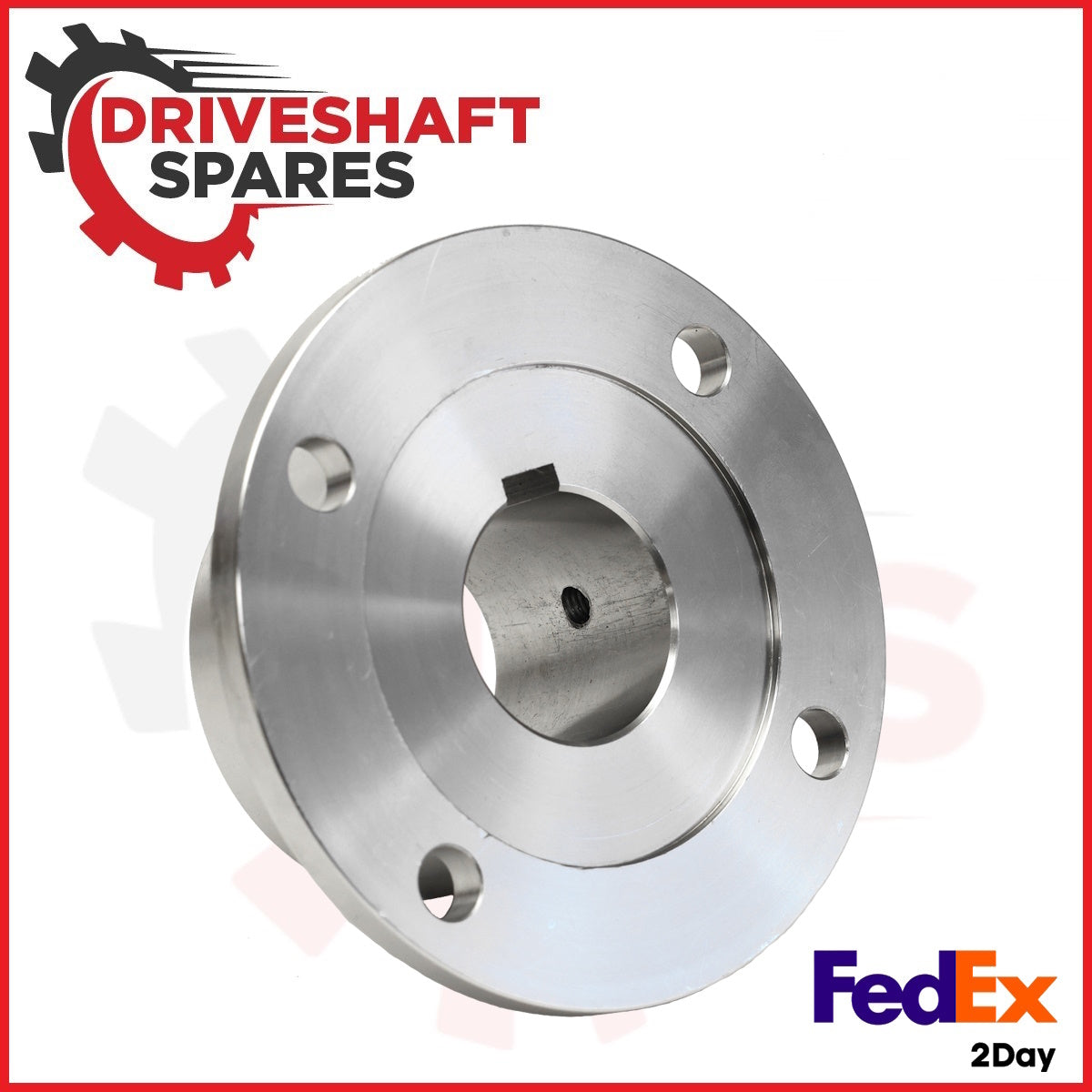

4-1-1133-1 Companion Flange - Bore: 1.500" - Keyway: .375" - Pilot: 3.750"F - Image 3

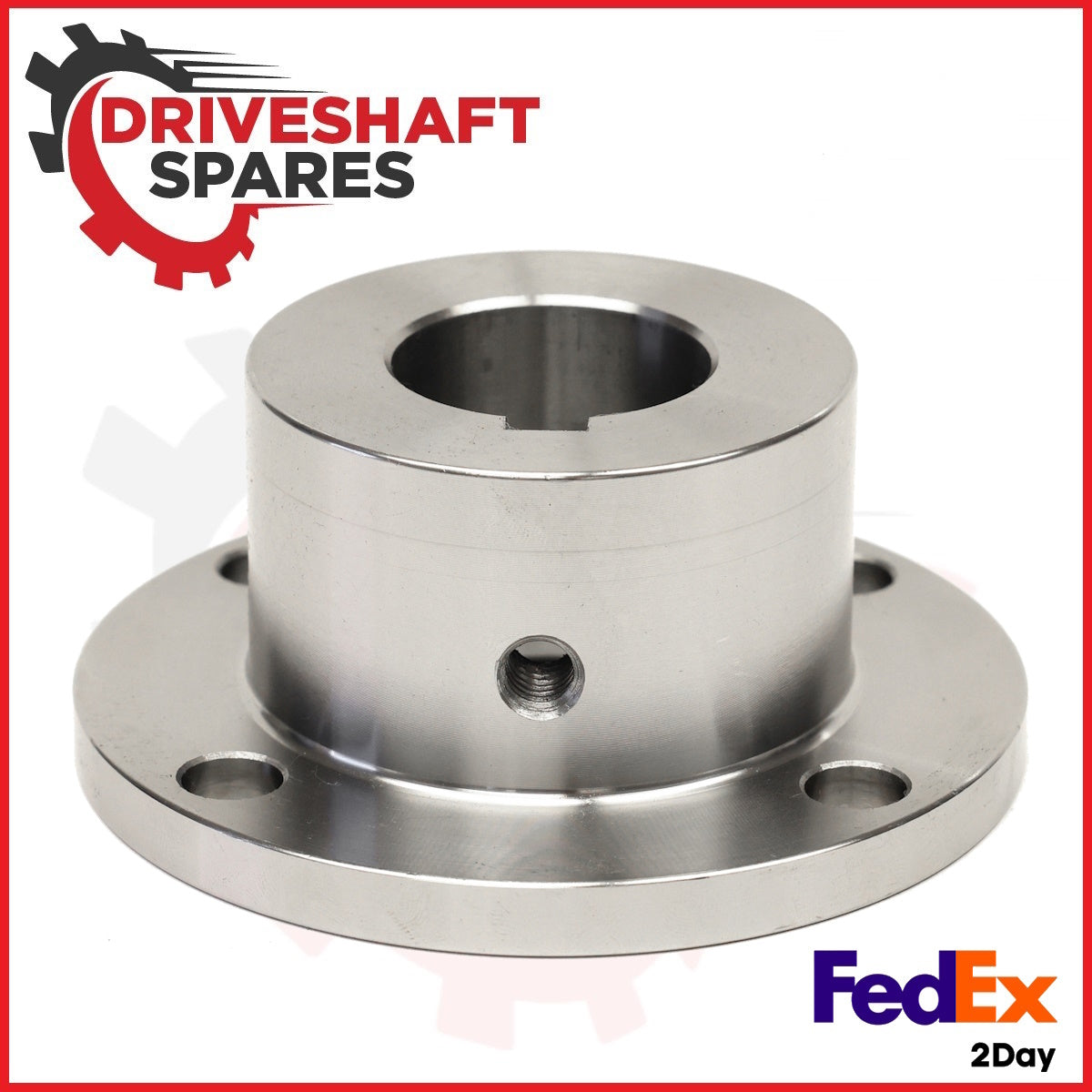

4-1-1133-1 Companion Flange - Bore: 1.500" - Keyway: .375" - Pilot: 3.750"F - Image 4
4-1-1133-1 Companion Flange - Bore: 1.500" - Keyway: .375" - Pilot: 3.750"F - Image 5

$41,40

19 in stock

Description

4-1-1133-1 Companion Flange – Bore: 1.500″ – Keyway: .375″ – Pilot: 3.750″F – 4 Hole

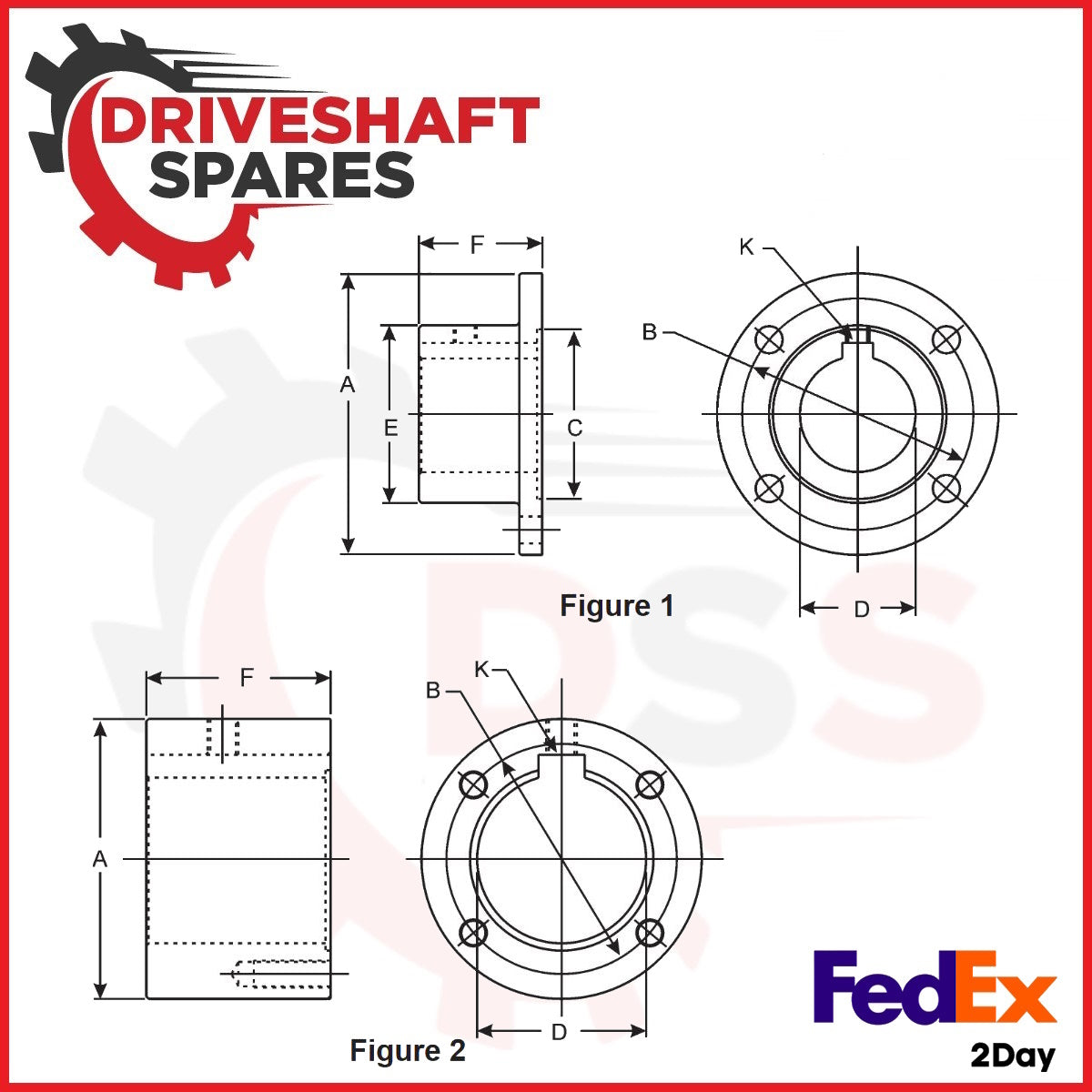

Companion Flanges
(D) 1.500
(A) 5.880
(B) 4.750
(C) 3.750F
(E) 3.750
(F) 2.500
(K) 0.375
Holes 4x .514 D
  • Companion Flange – Bore: 1.500″ – Keyway: .375″ – Pilot: 3.750″F – 4 Hole

Additional information

Weight 7,56 kg
