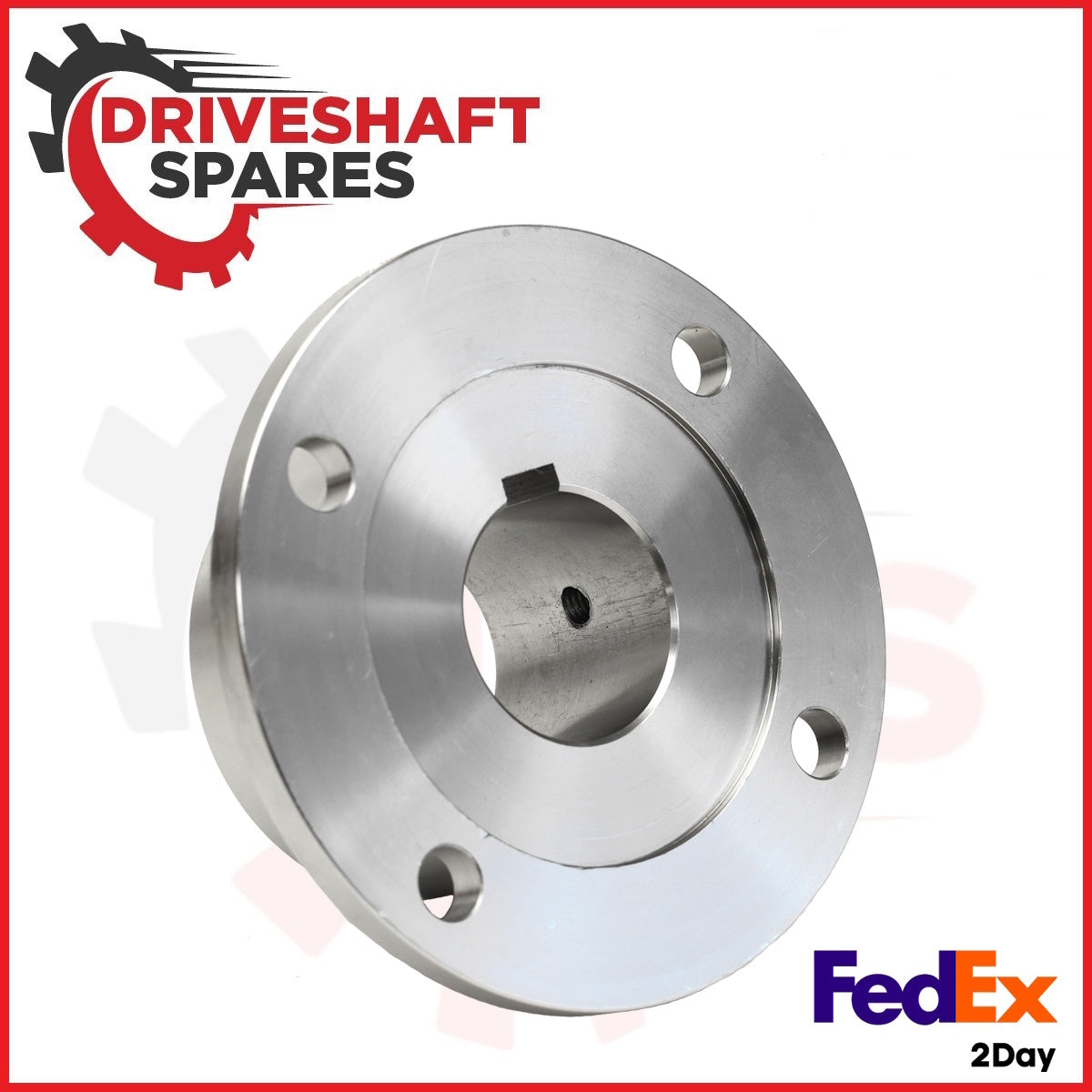

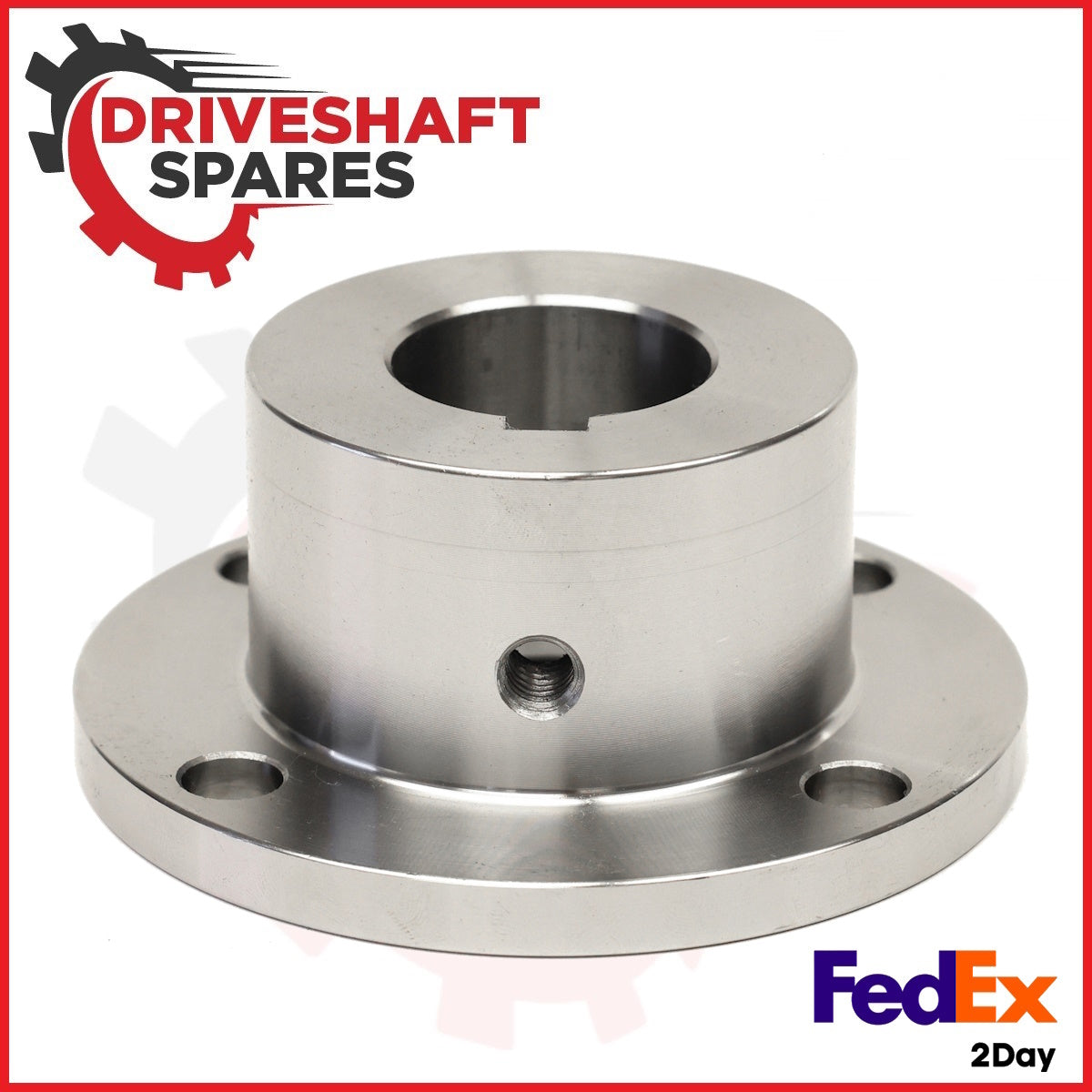

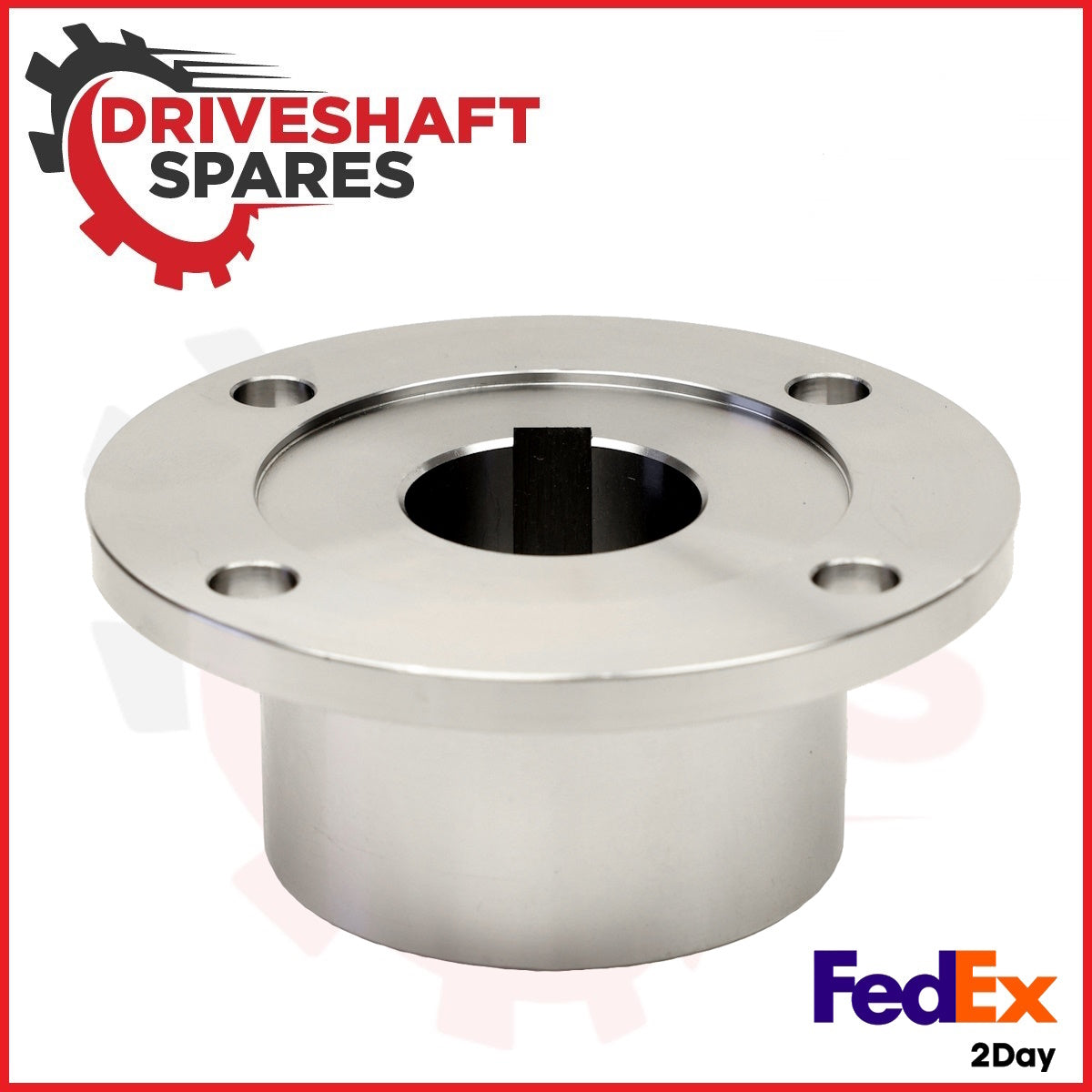

4-1-1133-5 Companion Flange – Bore: 1.875″ – Keyway: .500″ – Pilot: 3.750″F

4-1-1133-5 Companion Flange - Bore: 1.875" - Keyway: .500" - Pilot: 3.750"F
4-1-1133-5 Companion Flange - Bore: 1.875" - Keyway: .500" - Pilot: 3.750"F - Image 2
4-1-1133-5 Companion Flange - Bore: 1.875" - Keyway: .500" - Pilot: 3.750"F - Image 3
4-1-1133-5 Companion Flange - Bore: 1.875" - Keyway: .500" - Pilot: 3.750"F - Image 4
4-1-1133-5 Companion Flange - Bore: 1.875" - Keyway: .500" - Pilot: 3.750"F - Image 5

$41,40

17 in stock

Description

4-1-1133-5 Companion Flange – Bore: 1.875″ – Keyway: .500″ – Pilot: 3.750″F – 4 Hole

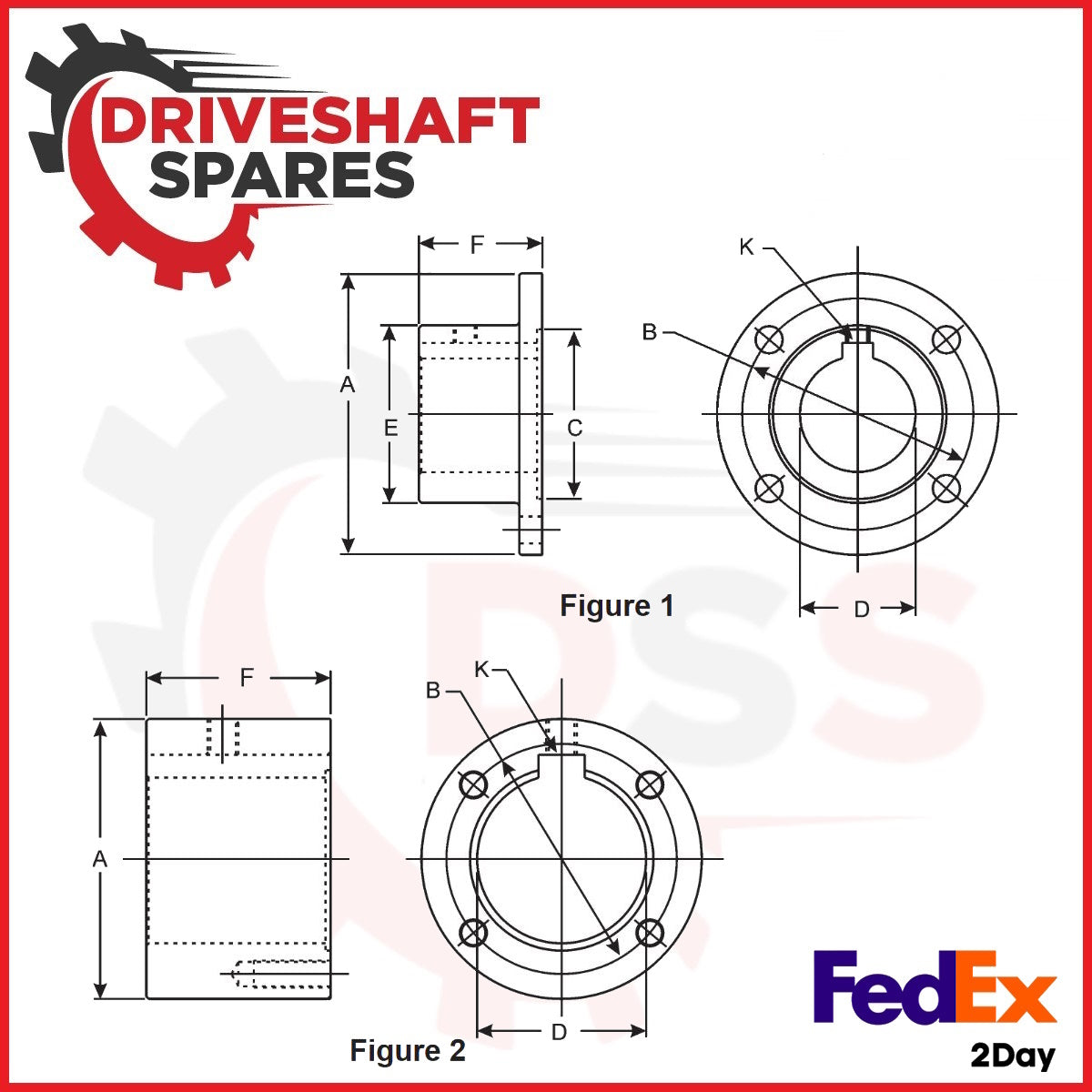

Companion Flanges
(D) 1.875
(A) 5.880
(B) 4.750
(C) 3.750F
(E) 3.750
(F) 2.500
(K) 0.500
Holes 4x .514 D
  • Companion Flange – Bore: 1.875″ – Keyway: .500″ – Pilot: 3.750″F – 4 Hole

Additional information

Weight 7,13 kg

Reviews

There are no reviews yet.

Be the first to review “4-1-1133-5 Companion Flange – Bore: 1.875″ – Keyway: .500″ – Pilot: 3.750″F”

Your email address will not be published. Required fields are marked *

3-3-2431xs5-178xs
GM Turbo TH400 Trans Slip Yoke + UJ SPICER Muncie M21 T10 1350 3-3-2431X 31
$145,00

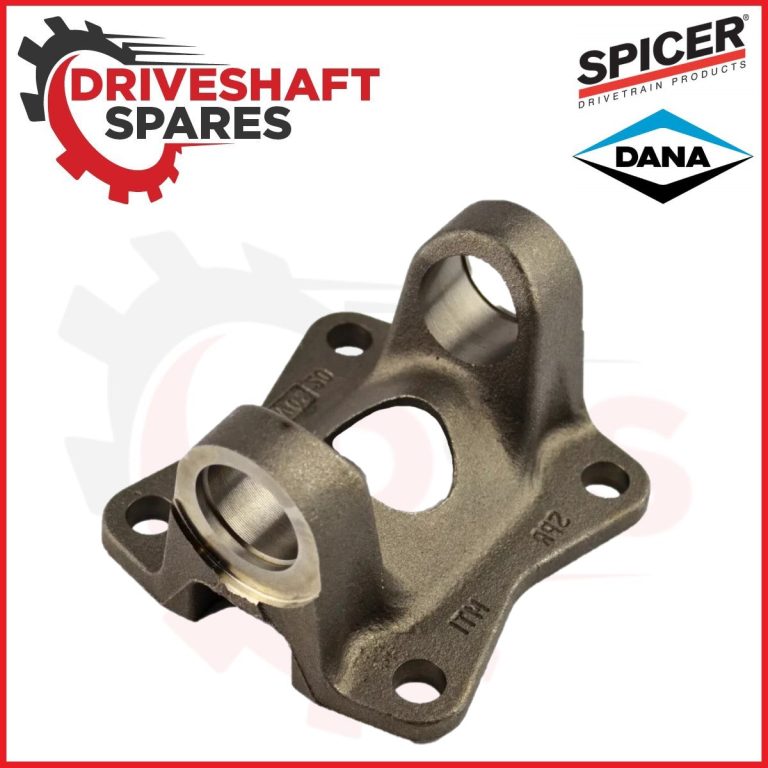

3-2-1839S
