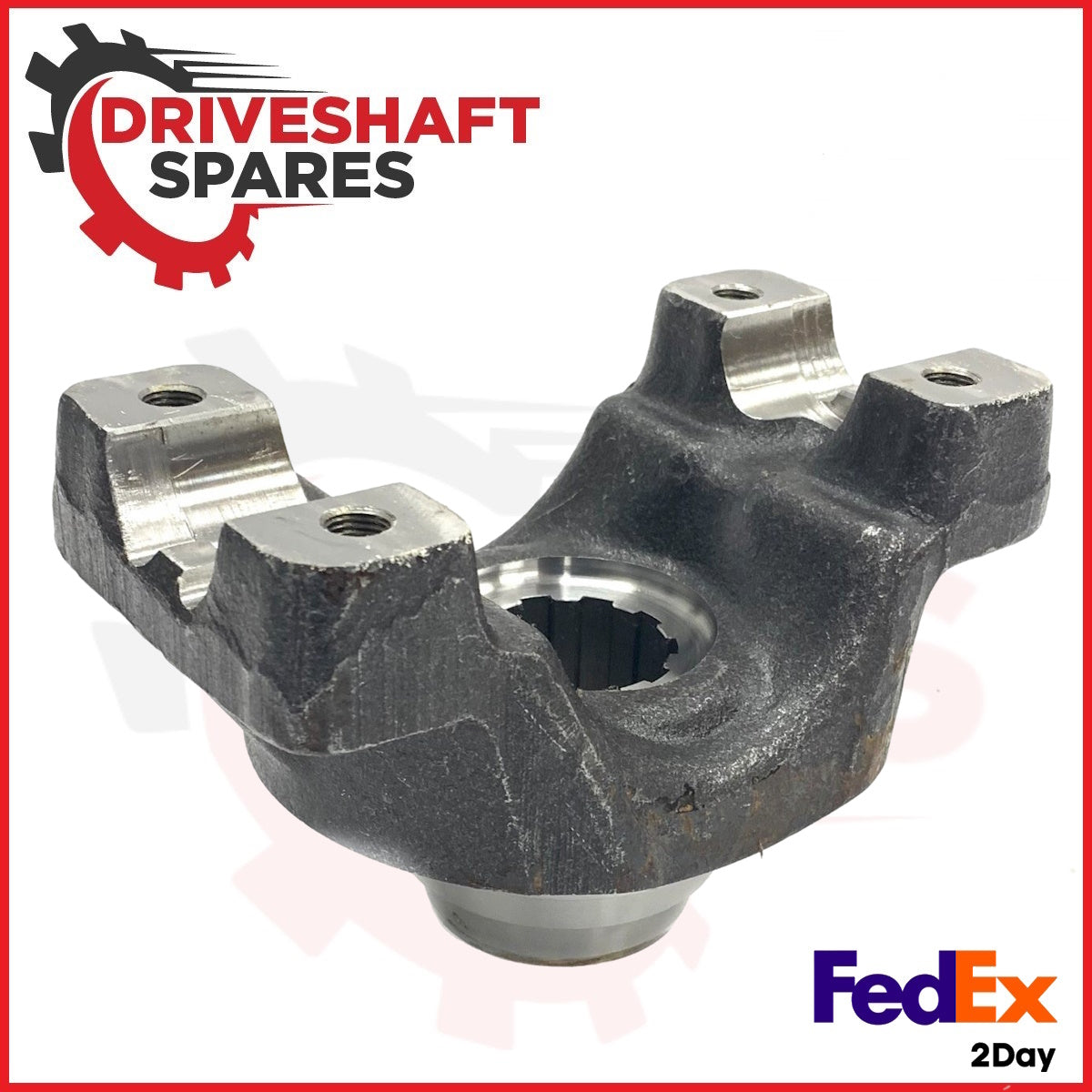

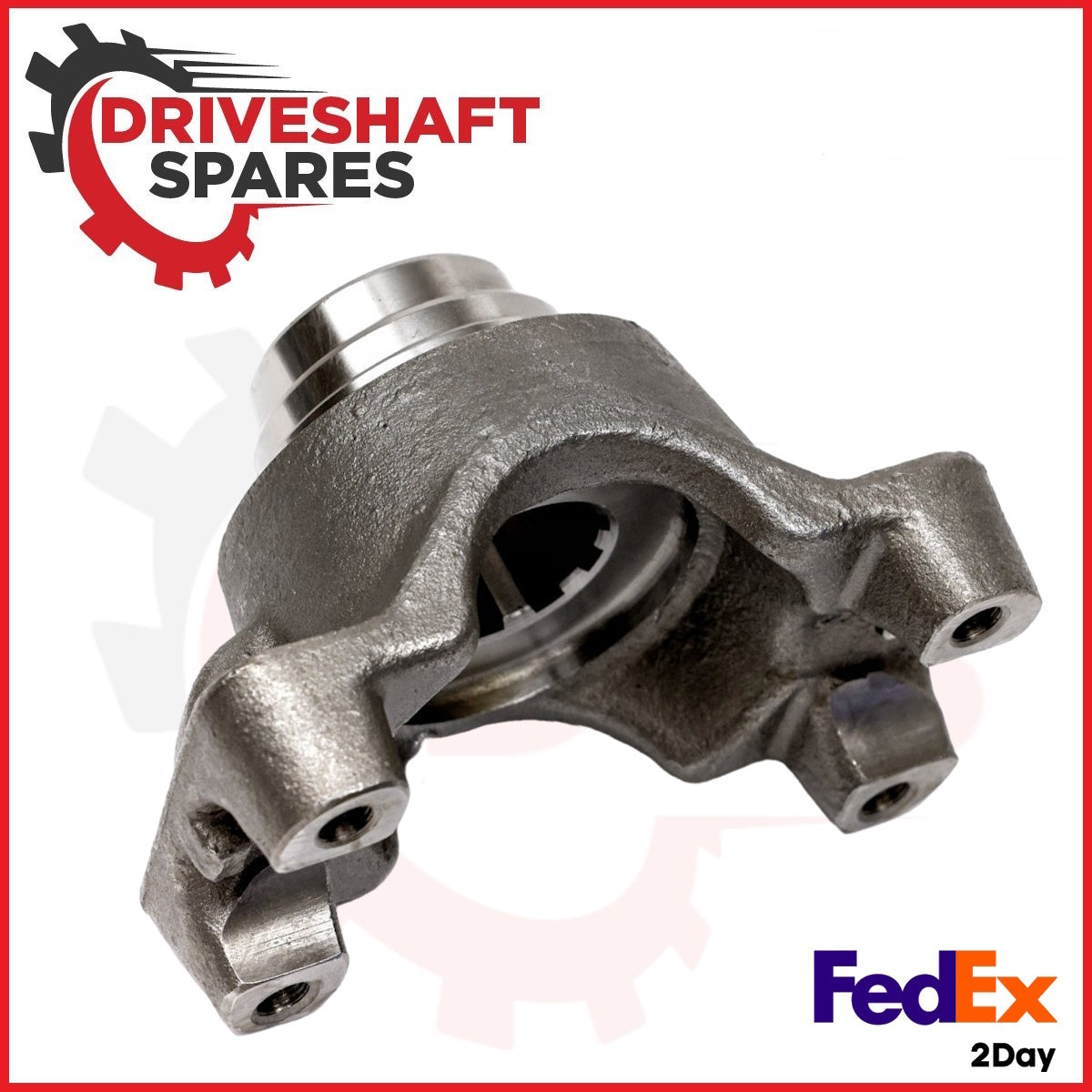

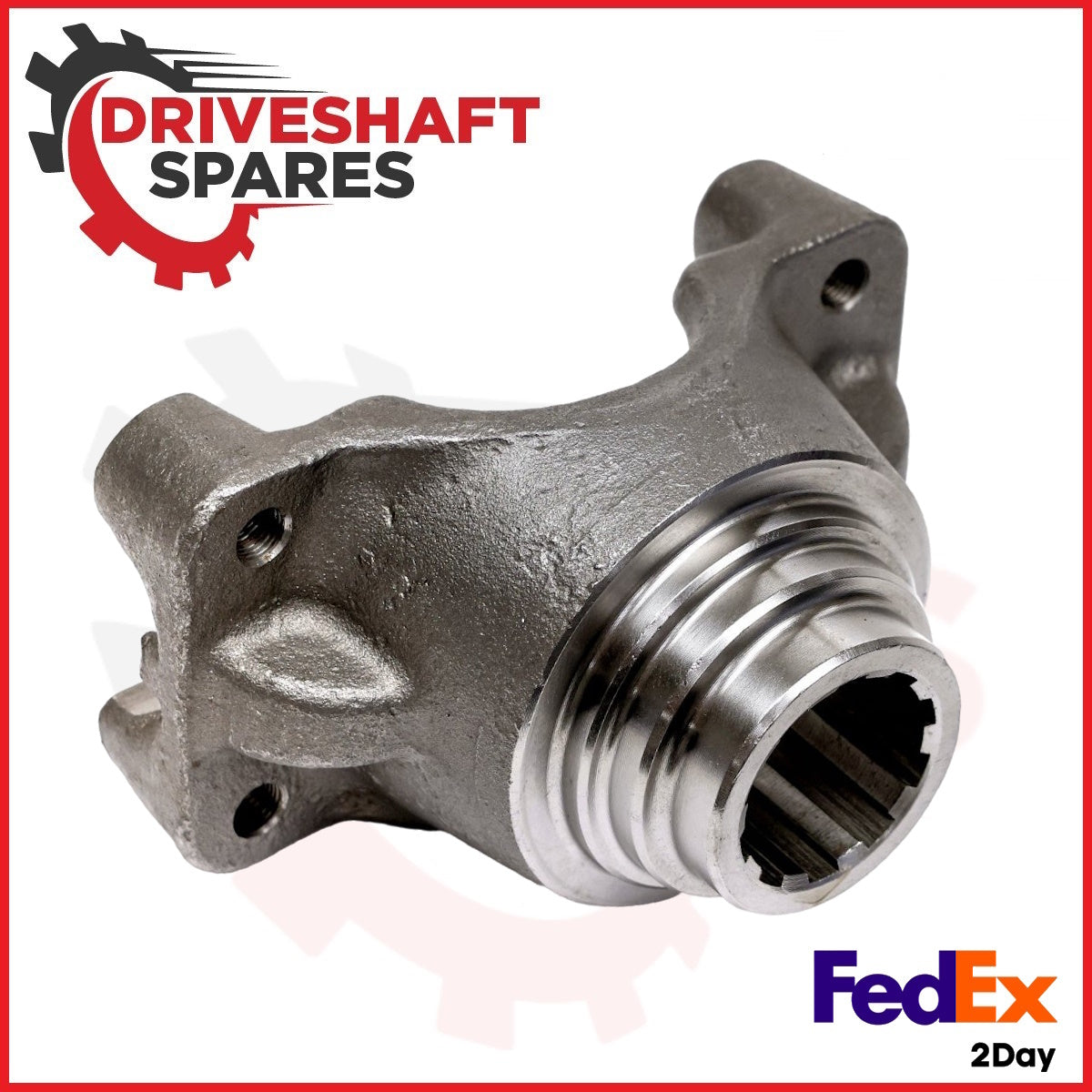

4-4-2051-1 End Yoke – Splined Bore 1550 Series, Strap Style, Ø1.500×10 Spline

$110,00

22 in stock

Description

 Splined Bore End Yoke 1550 Series Strap Style 4-4-2051-1

End Yokes
Series 1550
(D) 1.375
(L) 4.964
Splines 10
Major Dia 1.500
(R) 2.312
(S) 3.775
(Q) 2.000
Type 3
  • U-Joint Series 1550
  • Spline Major Diameter 1.500
  • Spline Count 10.000
  • Spline Type parallel Spline Pressure Angle n/a
  • Ground Hub Diameter R 2.312
  • Length Thru Bore Q 2.000
  • Centerline of Joint to End of Spline S 3.775
  • Universal Joint Retaining Width E 4.964
  • Universal Joint Bearing Diameter D 1.375
  • Counterbore Depth 0.000
  • Joint Angle 0.000
  • Style Strap
  • Compatible with the following U-Joint Kits:  5-155X / SPL-70X / 5-808X
Daimler: SP 4 4 4101 2 Daimler: SP 4 4 4101 2HP Freightliner Trucks: SP 4 4 4101 2 Freightliner Trucks: SP 4 4 4101 2HP International Harvester (IHC): 4441012
International Harvester (IHC): D4441012 International Harvester (IHC): E4441012 Meritor: 3260N248 Navistar: 4441012 Navistar: D4441012
Navistar: DS4441012 Navistar: E4441012 Paccar Parts: 4-4-4101-2 Rockwell International: 3260N248 Rockwell International: 3260-N-248
UAP: 4-4-4101-2 Volvo Cars: SP 4441012 P4-4-4101-2

Additional information

Weight 2,5 kg
