Description

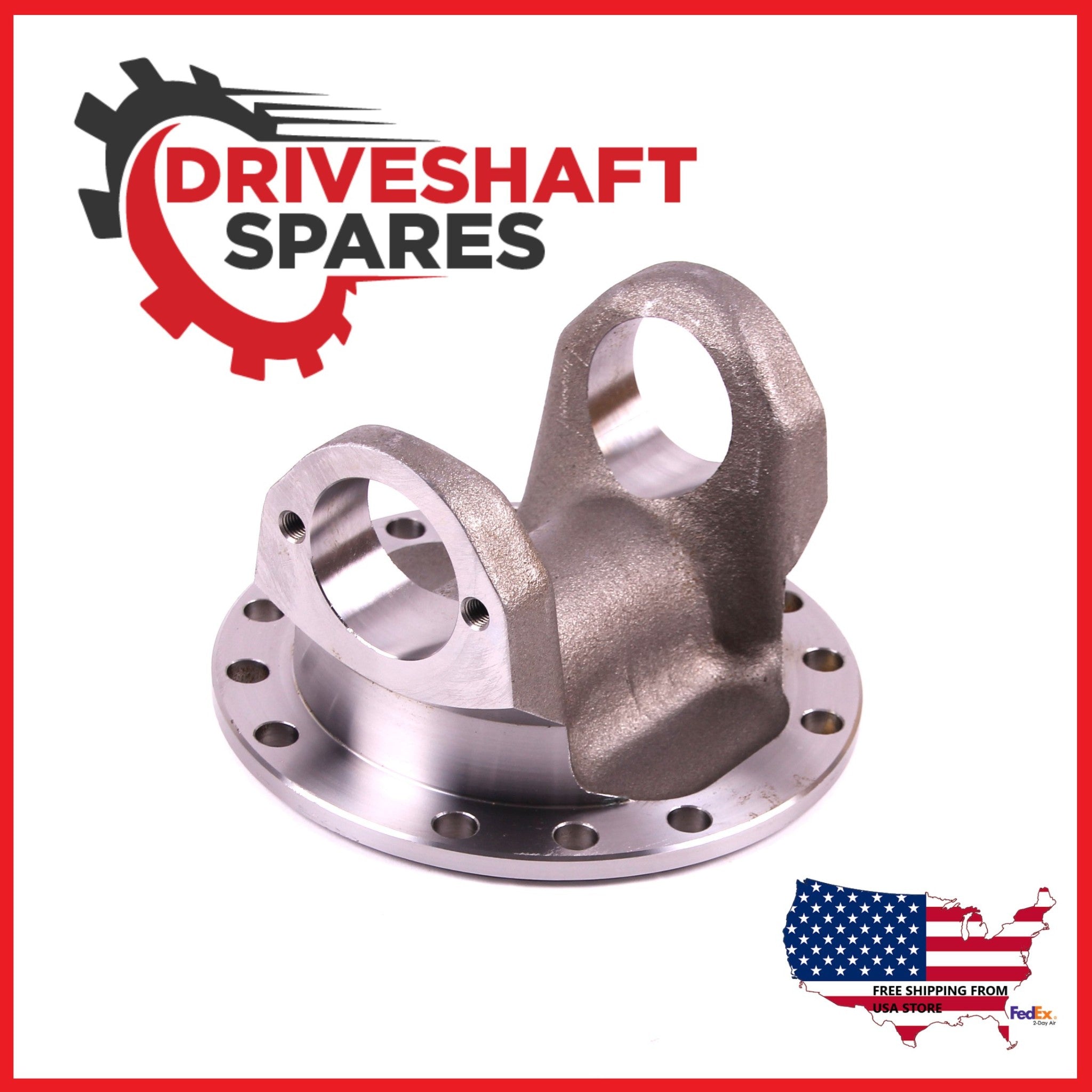

5-2-1159 Circular Flange Yoke 1610 series, 12 Holes .440 Holes on 6.125BC, 6.625M pilot.
| Flanges | |
| Series | 1610 (1.875 x 5.312) |
| (OD) | 6.875 |
| Pilot | 6.625M |
| (H) | 2.750 |
| (X) | |
| (Y) | |
| (Z) | 6.125 |
| Holes | 12 |
- U-Joint Series 1610 Universal Joint
- Retaining Width 5.312 Universal Joint
- Bearing Diameter D 1.875
- Flange Diameter A 6.875
- Bolt Circle Diameter B 6.125
- Bolt Hole Diameter .440-D
- Bolt Hole Quantity 12.000
- Pilot Diameter (M-Male, F-Female) C 6.625M
- Centerline of Joint to Flange Face G 2.750
