Description

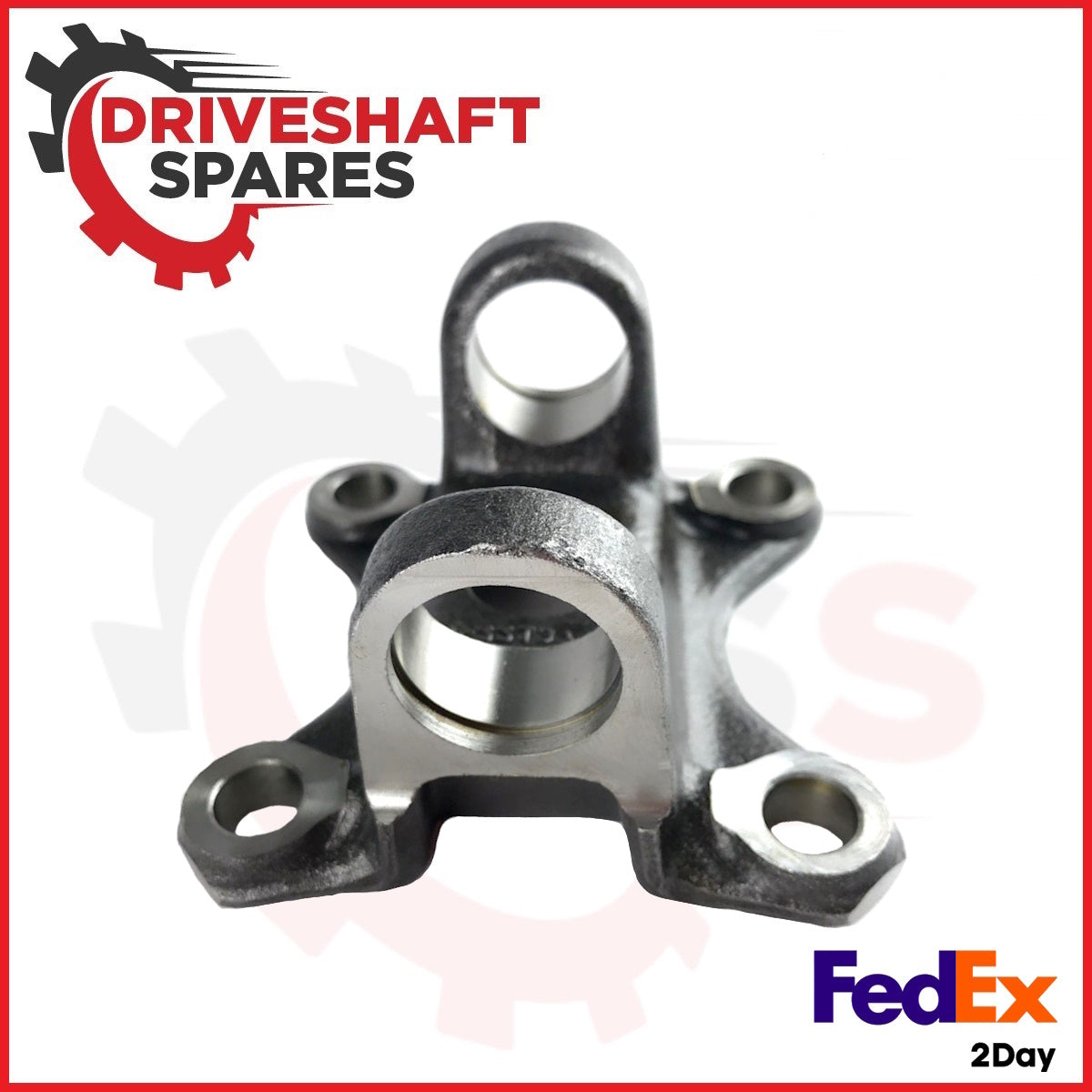

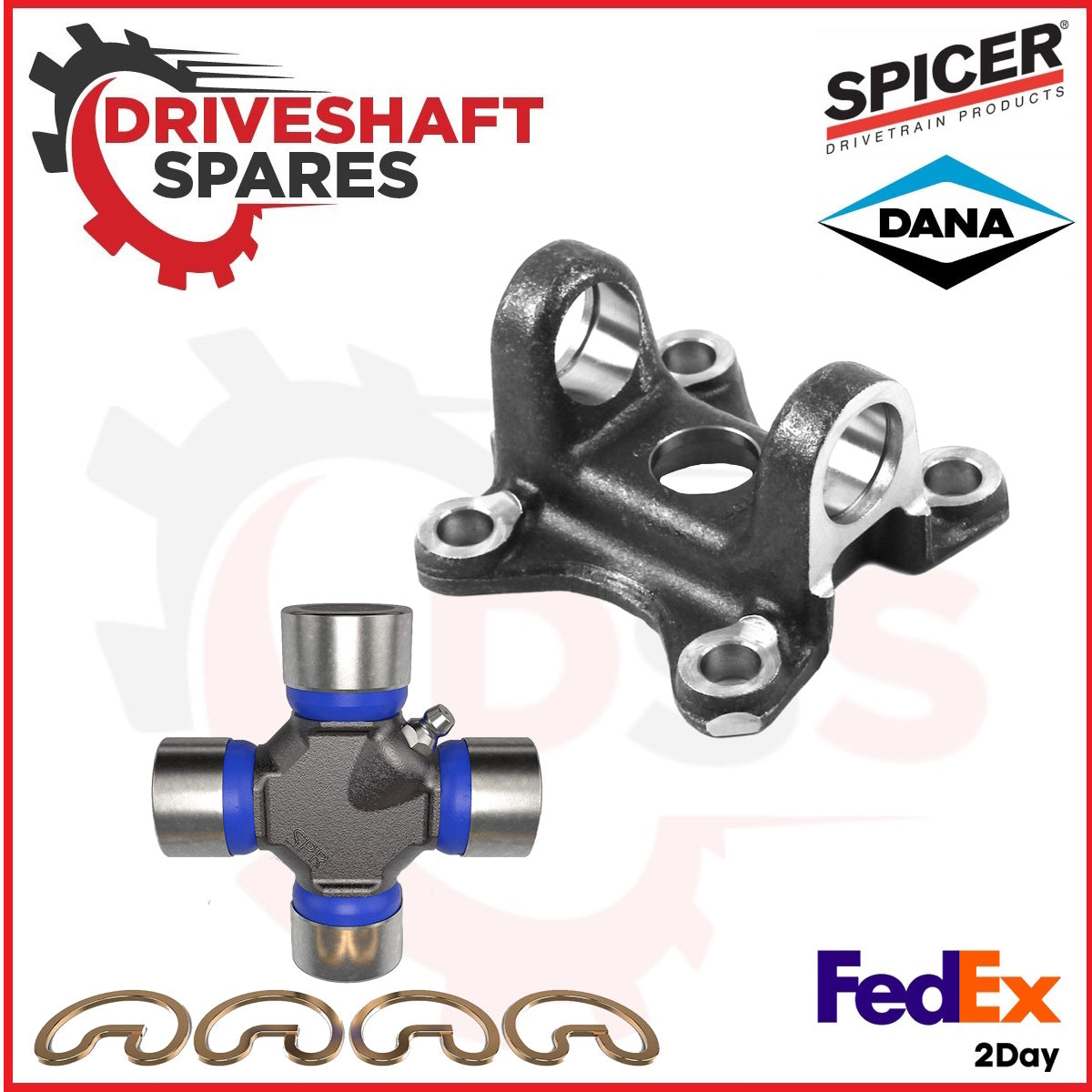

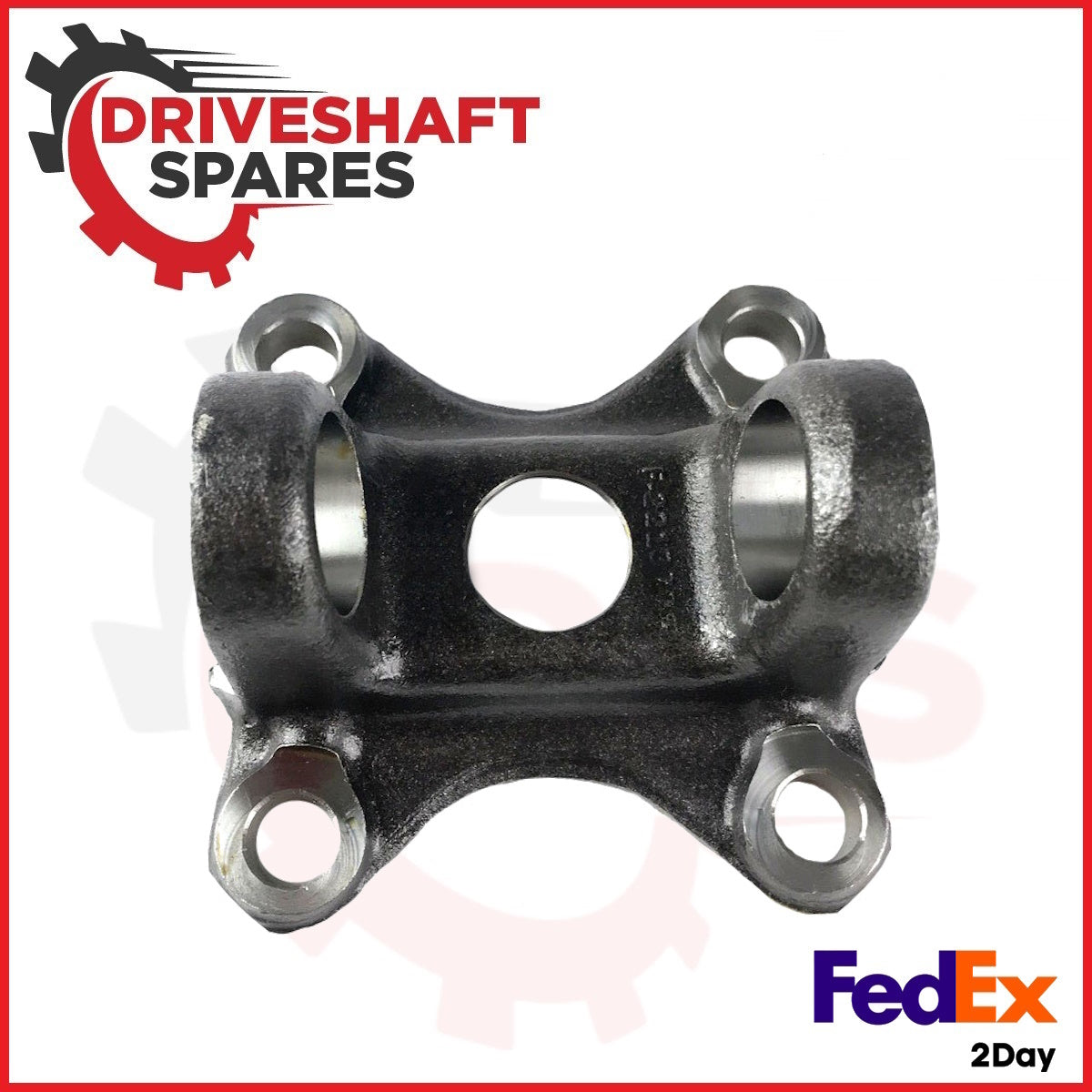

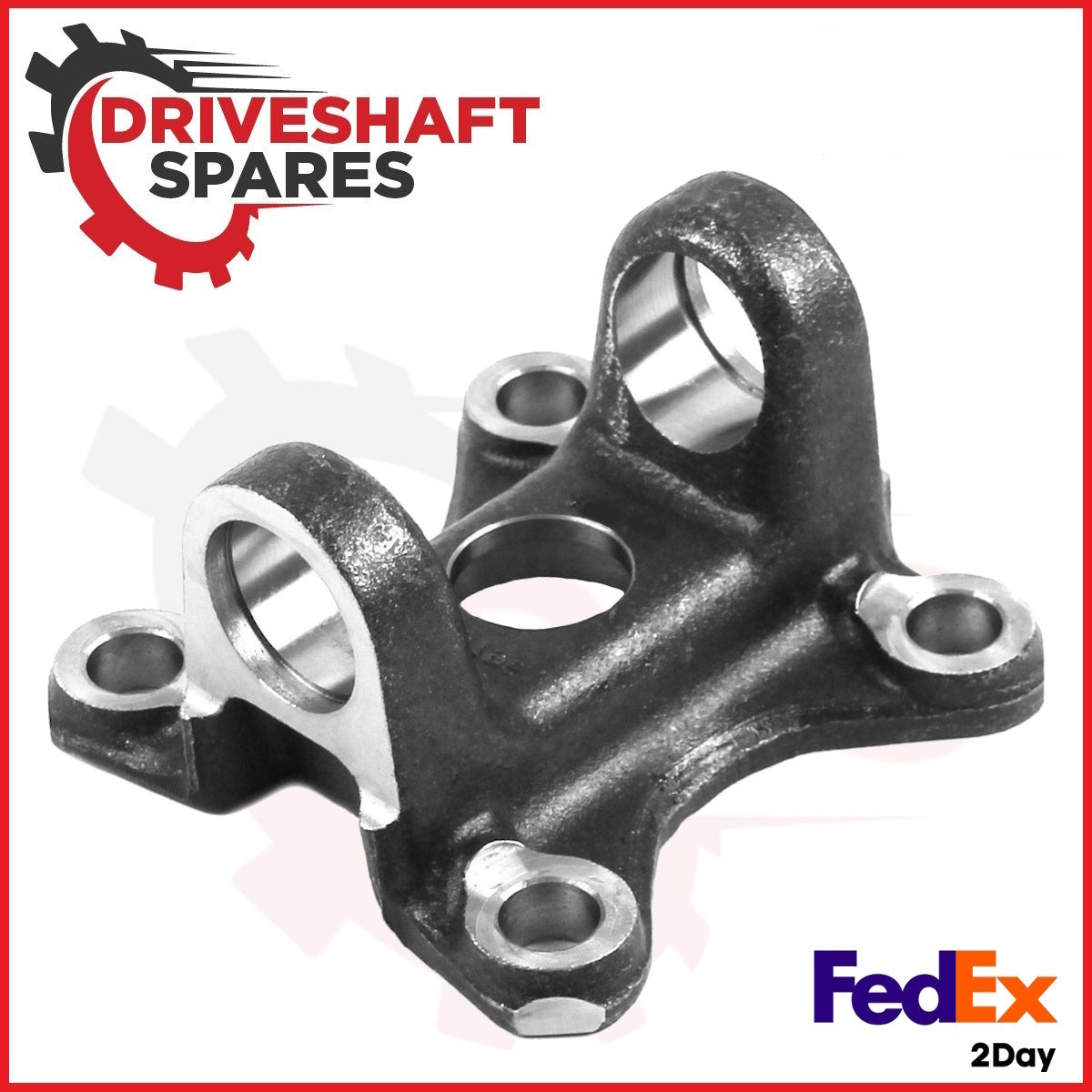

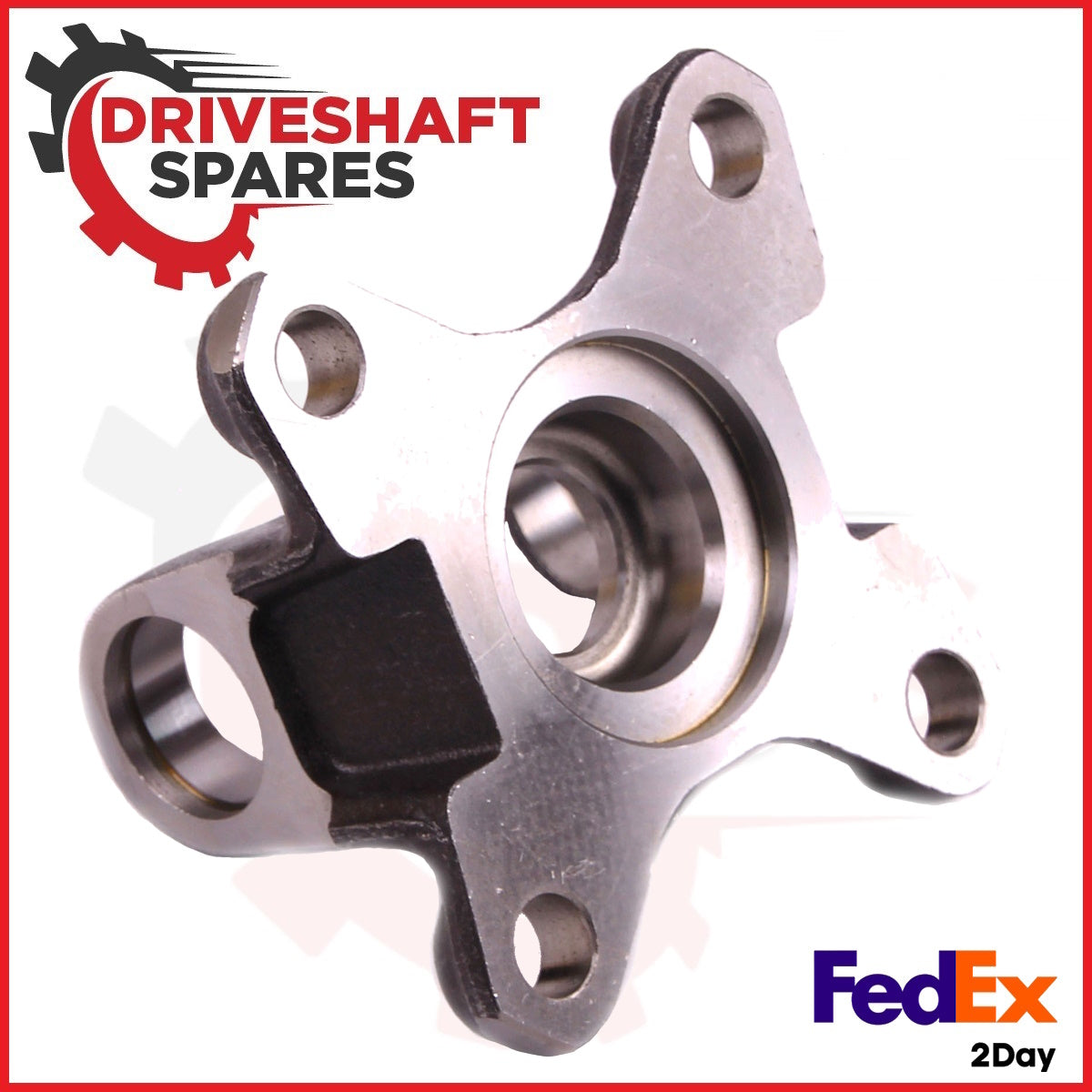

Flange Yoke 1310 series, 4x .484 Holes on 4.250BC, 2.000F pilot with 5-153X SPICER
- Please Verify this part fits your application, as there are several different bolt circles and joint series uses on the Ford 8.8 rear diffs.
| Flanges | |
| Series | 1310 (1.062 x 3.219) |
| (OD) | 5.219 |
| Pilot | 2.000F |
| (H) | 1.625 |
| (X) | 3.005 |
| (Y) | 3.005 |
| (Z) | 4.250 |
- Flange Yoke 1310 series
- 4x .484 Holes on 4.250BC, 2.000F pilot
- 1310 Series Ford Flange Yoke to fit Ford 8.8 inch rear ends with Large Bolt Pattern.
- Designed for the LARGE Ford bolt pattern typically found on Full Size Ford Cars, Light Trucks and Cobra Mustang 8.8 rear ends.
| Imperial Universal Joints | |
| (D) | 1.062 |
| (L) | 3.219 |
| Type | 2 |
- Cap Diameter: 1.062″
- Distance between snaprings: 3.219″
- Spicer: 5-1310X, 5-785X
- GMB: GU1000
- Series: 1310
