Description

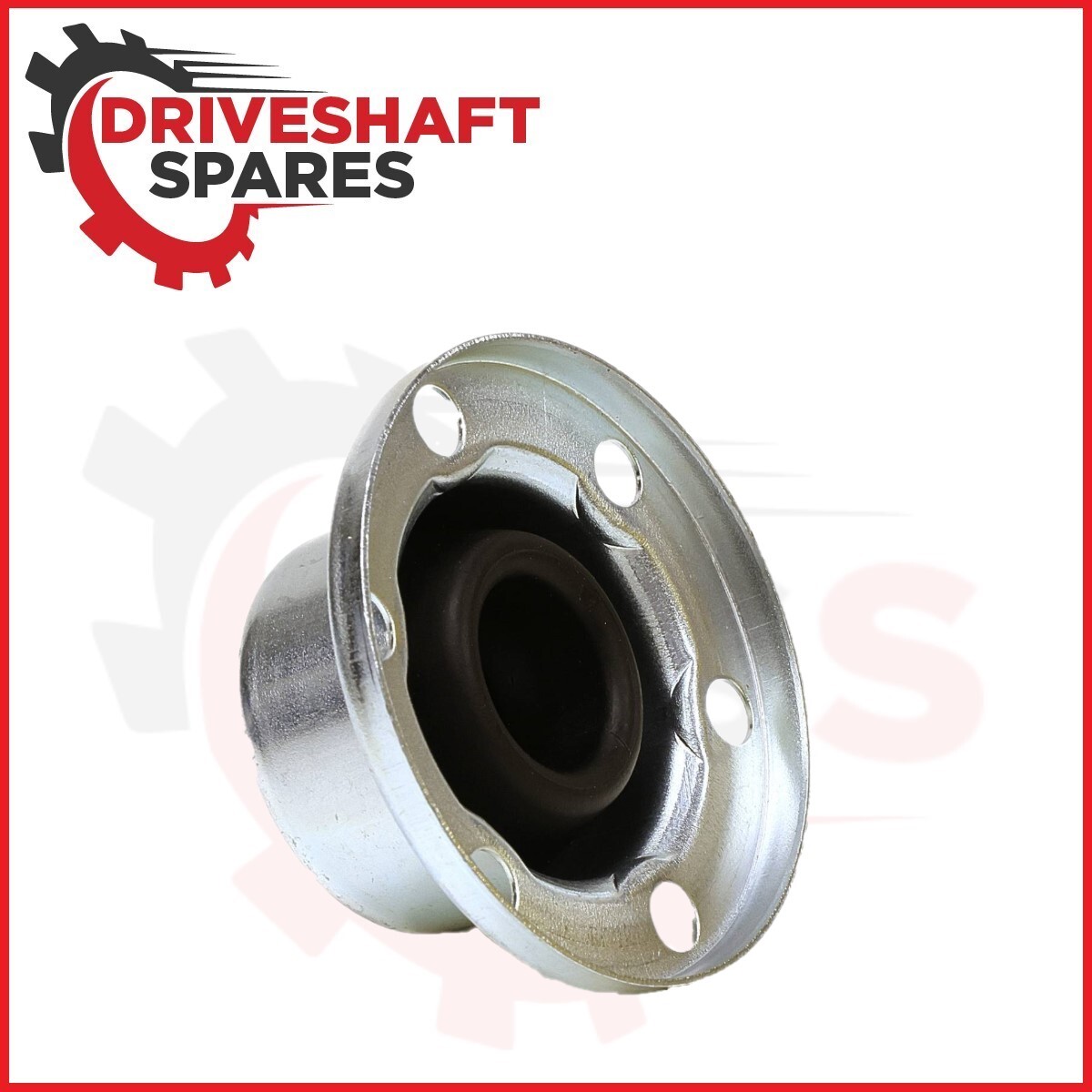

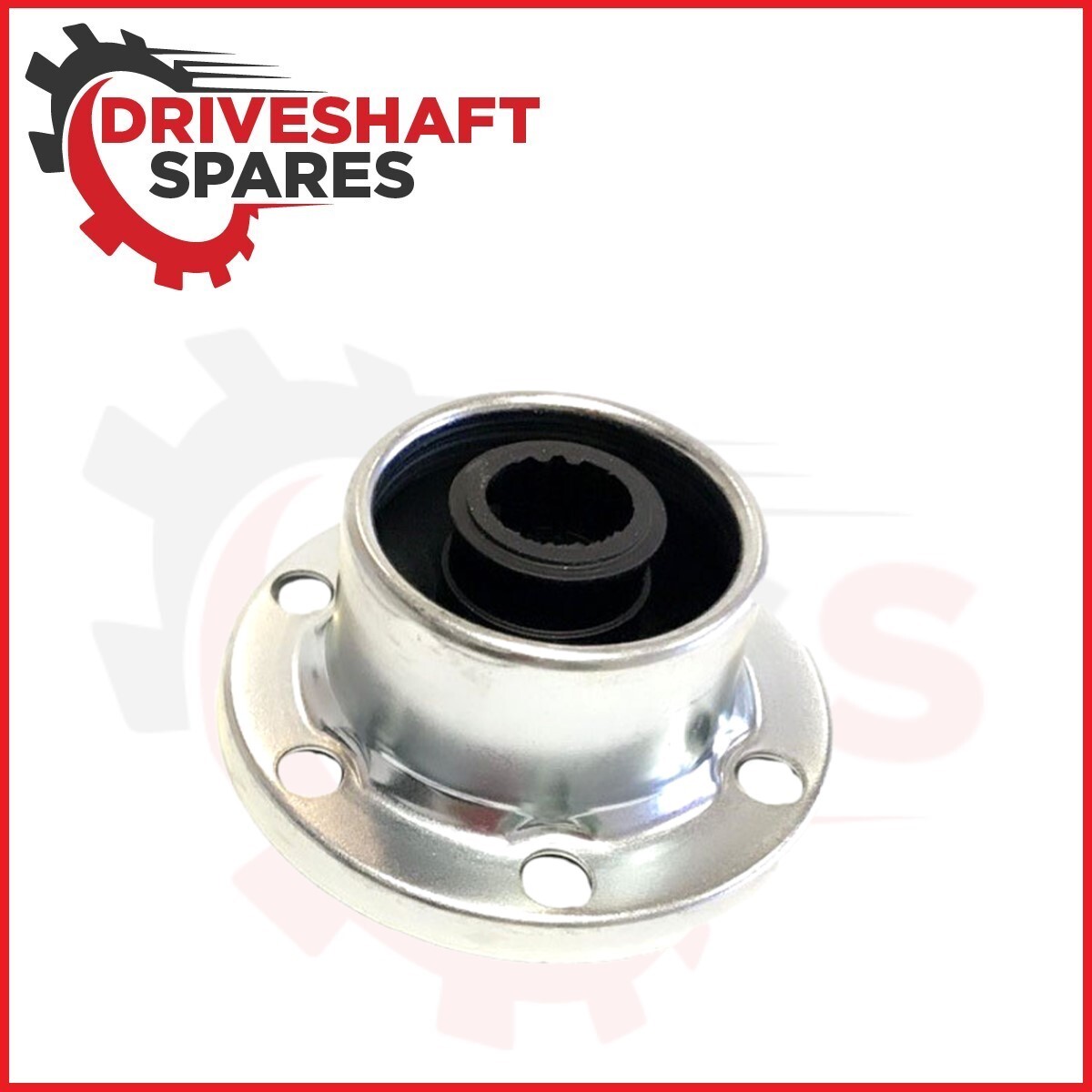

CV Joint Boot 31216175 Propeller Shaft HLJ75 for Volvo Driveshaft 78mm 24 Spline
- This is the Boot RETAINER Only – No CV Joint included
| Driveshaft CV Joint Boots | |
| (A) | 2.031 |
| (B) | 0.315 |
| (C) | 3.063 |
| (D) | 1.102 |
| (E) | 2.598 |
| (F) | 0.706 |
| Driveshaft CV Joint Boots (mm) | |
| (A) mm | 51.6 |
| (B) mm | 8 |
| (C) mm | 77.8 |
| (D) mm | 28 |
| (E) mm | 66 |
| (F) mm | 18 |
OE ref: 31216175
Volvo
CV Joints are marked on the CV joint. You can easily check this marking
before removing your shaft to make sure that you order the correct
item.
HLJ75 = ME733 (OE: 31216175)
LJ75 = ME735 (OE:31216176)
BJ75L = ME734 (OE:21216177)
Please check each cv joint for the reference number as most driveshafts will take 2 different size cv joints.
| Model | Years |
|---|---|
| Volvo S40 | 2005-2010 |
| Volvo S40 2.5l 5 cylinder Turbo | 2005-2010 |
| Volvo S60 2.4l 5 cylinder Turbo | 2002-2003 |
| Volvo S60 2.5l 5 cylinder Turbo | 2003-2009 |
| Volvo S60 2.5l 5 cylinder Turbo (T5) | 2003-2009 |
| Volvo V50 | 2005-2010 |
| Volvo V50 2.5l 5 cylinder Turbo | 2005-2010 |
| Volvo V70 2.3l 5 cylinder Turbo XC | 2001-2004 |
| Volvo V70 2.4l 5 cylinder Turbo | 2000-2002 |
| Volvo V70 2.4l 5 cylinder Turbo (Diesel) | 2003-2007 |
| Volvo V70 2.4l 5 cylinder Turbo (Diesel) XC | 2003-2007 |
| Volvo V70 2.4l 5 cylinder Turbo XC | 2001-2006 |
| Volvo V70 2.5l 5 cylinder Turbo | 2003-2007 |
| Volvo V70 2.5l 5 cylinder Turbo (T5) | 2003-2007 |
| Volvo V70 2.5l 5 cylinder Turbo XC | 2003-2007 |
| Volvo V70 XC 2.3l 5 cylinder Turbo | 2001-2004 |
| Volvo V70 XC 2.4l 5 cylinder Turbo | 2001-2006 |
| Volvo V70 XC 2.5l 5 cylinder Turbo (T5) | 2003-2007 |
| Volvo XC90 2.4l 5 cylinder Turbo (Diesel) | 2003-2014 |
| Volvo XC90 2.5l 5 cylinder Turbo | 2003-2014 |
| Volvo XC90 2.5l 5 cylinder Turbo (T5) | 2003-2011 |
| Volvo XC90 2.9l 6 cylinder Turbo | 2003-2006 |
| Volvo XC90 2.9l 6 cylinder Turbo (T6) | 2003-2006 |
| Volvo XC90 3.2l 6 cylinder | 2007-2014 |
| Volvo XC90 4.4l 8 cylinder | 2005-2011 |
