Description
Center Support Bearing + Boot For Dodge Challenger & Charger / Chrysler 300.

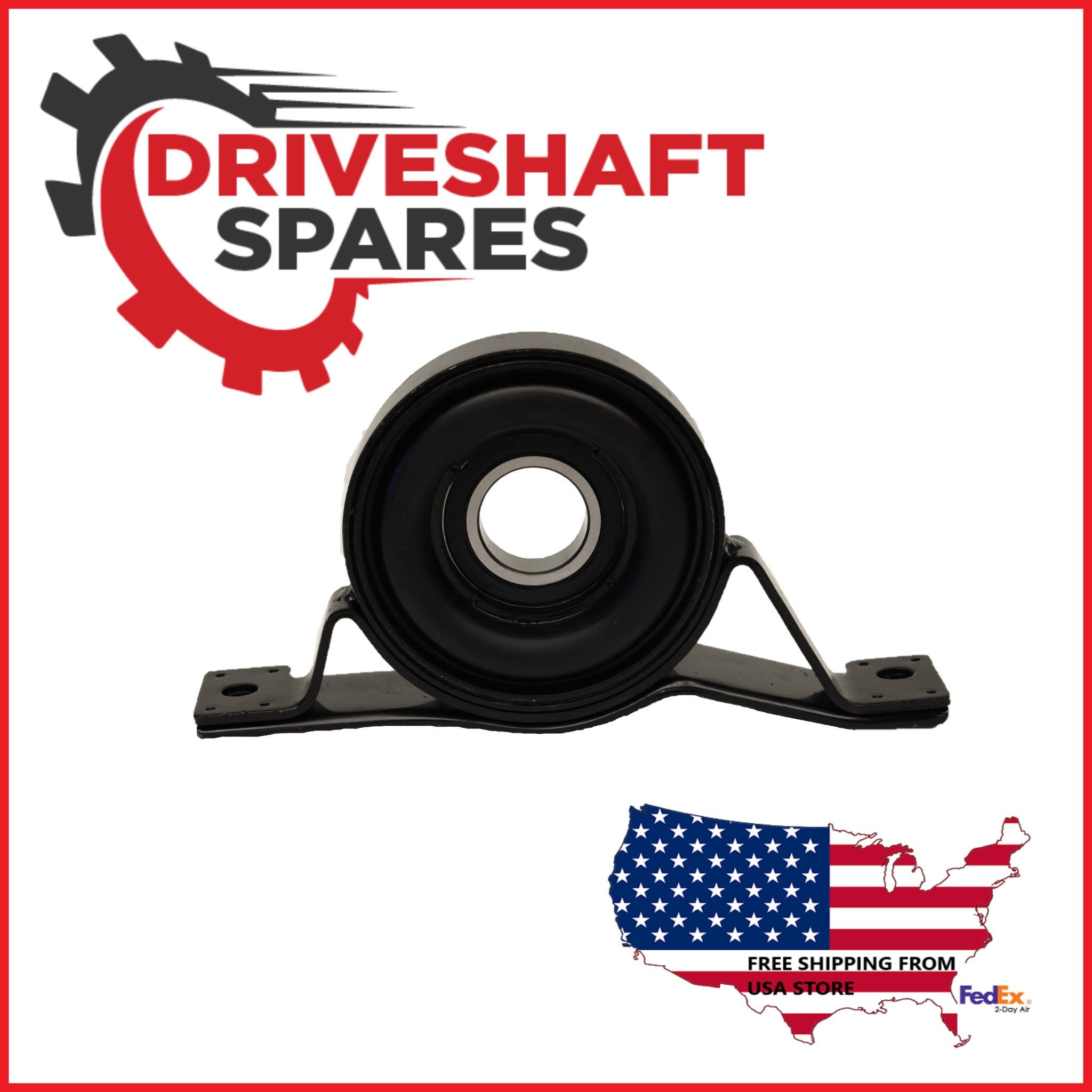

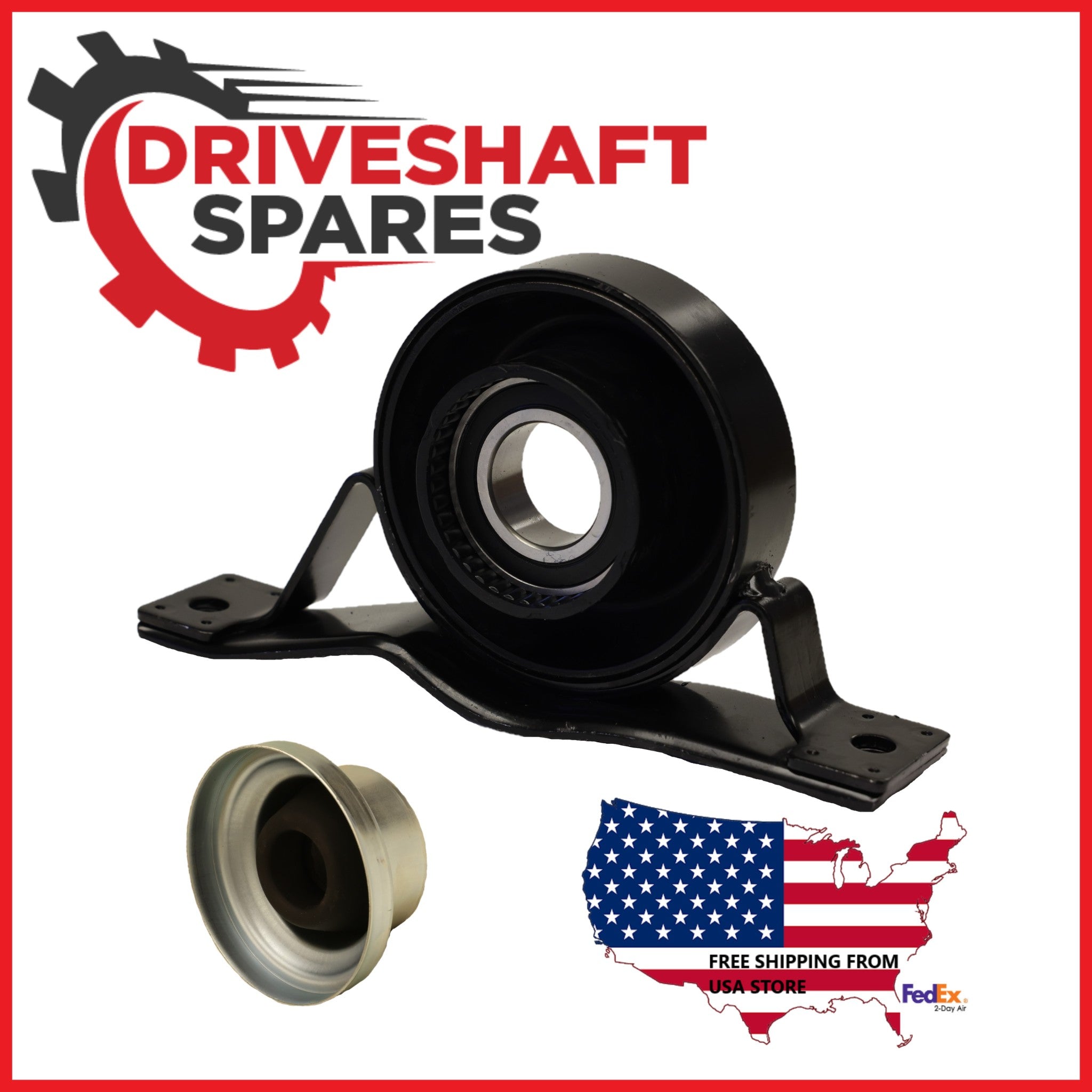

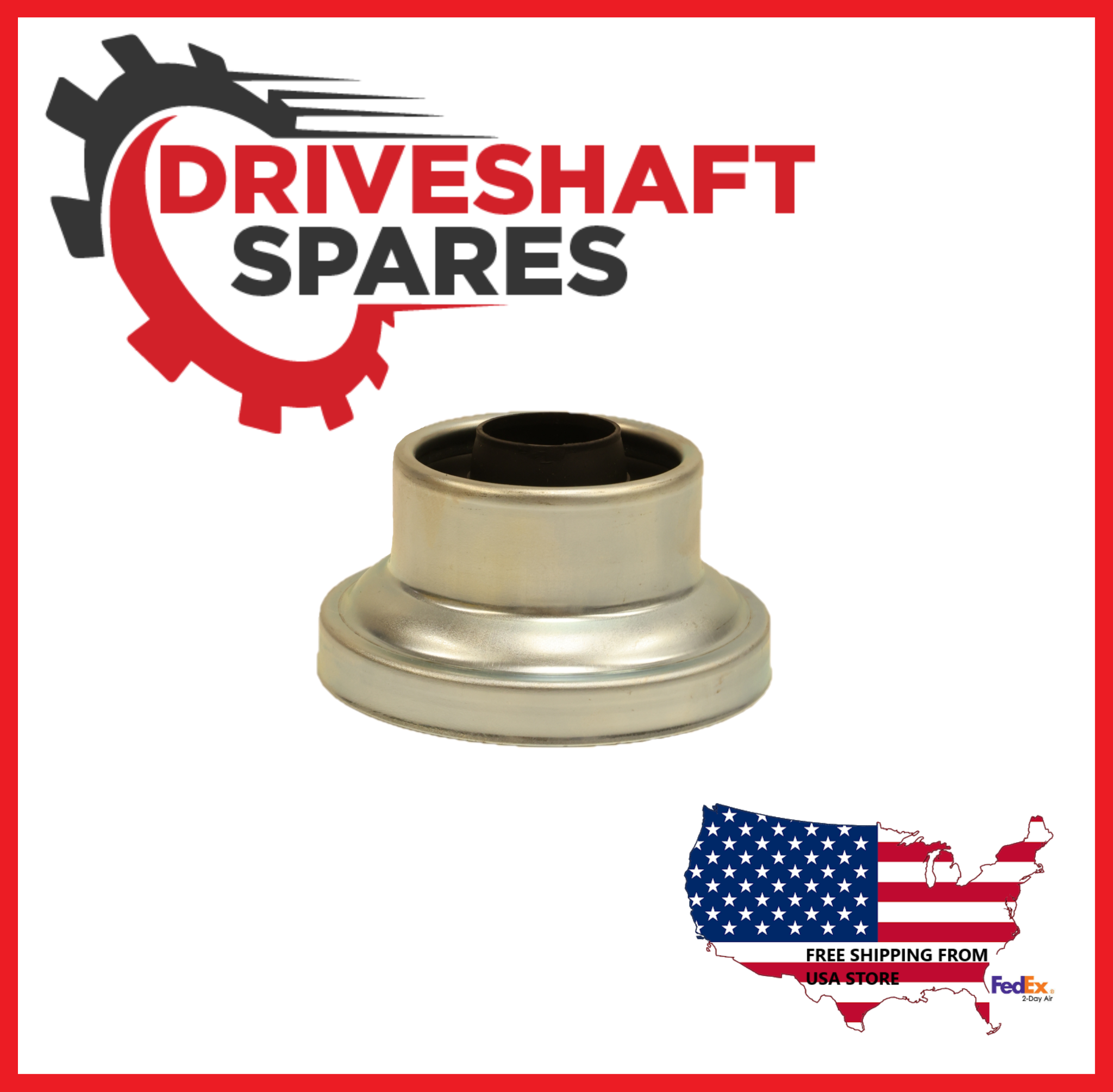

- YOU ARE BUYING (1X) CBD3 Center Bearing + a CVJ051B CV-Joint Boot in kit form as seen in the cover image.
| Center Bearings | |
| Make | Dodge |
| Internal Diameter | 1.181 |
| Width | |
| Hole Centers | 7.375 |
- These are not easy to replace but yes all these shafts are able to separate so you can replace the bearing. There is a blind snapring behind the cv joint knuckle. Similar to an inner cv joint on a cv axle. You just need to get the snapring in the correct location and press or knock the cv joint off the shaft.
- Dodge Challenger 2015-2020
- Dodge Charger 2015-2018
- Chrysler 300 2015-2018
- DODGE – CHARGER – 4WD/AWD
- Engine 3.6L / V6, 5.7L / V8
Shaft OE:
53010735AB, 52123974AH, 52123974AC, 52123974AD, 52123974AG, 52123974AE, 52123974AF, 68272626AB, 68272626AA, 52123980AG, 52123980AC, 52123980AF, 52123980AE, 52123980AD, 52123977AB, 52123977AC, 52123977AD, 52123977AE, 52123977AF, 52123977AG, 68212031AB, 68212031AC, 68212031AD, 68261528AA, 68261528AB, 68261528AC, 68261528AD, 68212030AB, 68212030AC, 68212030AD, 68212030AE, 68212030AF, 68212030AG, 68212030AH, 52123973AB, 52123973AC, 52123973AD, 52123973AE, 52123973AF, 52123973AG, 52123973AH, 53010846AB
Alt Ref: 3180-31
| Driveshaft CV Joint Boots | |
| (A) | 2.559 |
| (B) | 0.520 |
| (C) | 3.693 |
| (D) | 1.300 |
| (E) | — |
| (F) | 1.024 |
| Driveshaft CV Joint Boots (mm) | |
| (A) mm | 65 |
| (B) mm | 13.2 |
| (C) mm | 93.8 |
| (D) mm | 33 |
| (E) mm | — |
| (F) mm | 26 |
- Center CV Joint Inside Dia. 93.35mm (3.675”) Width of metal 47.33mm (1.863”)
