Description

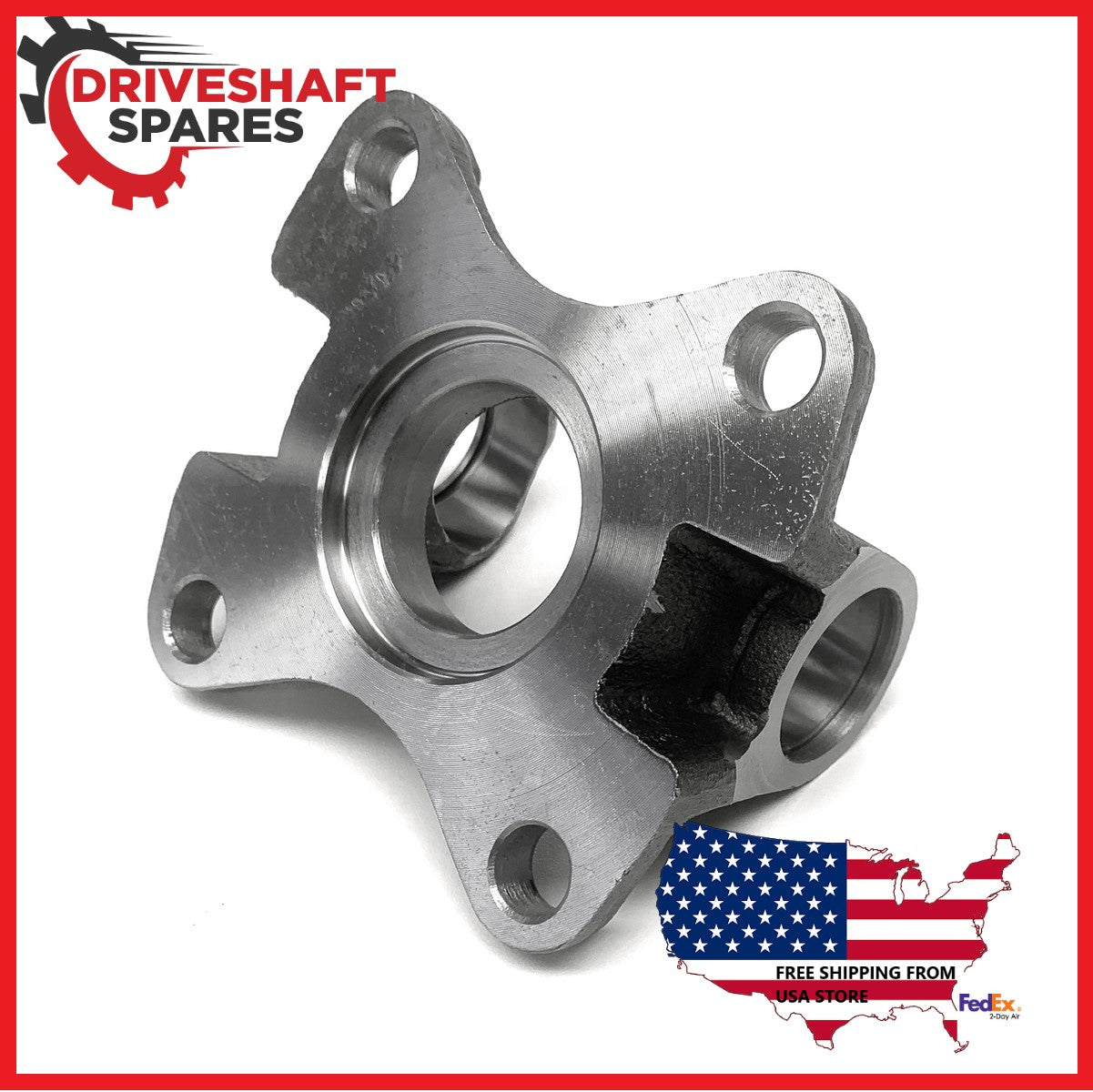

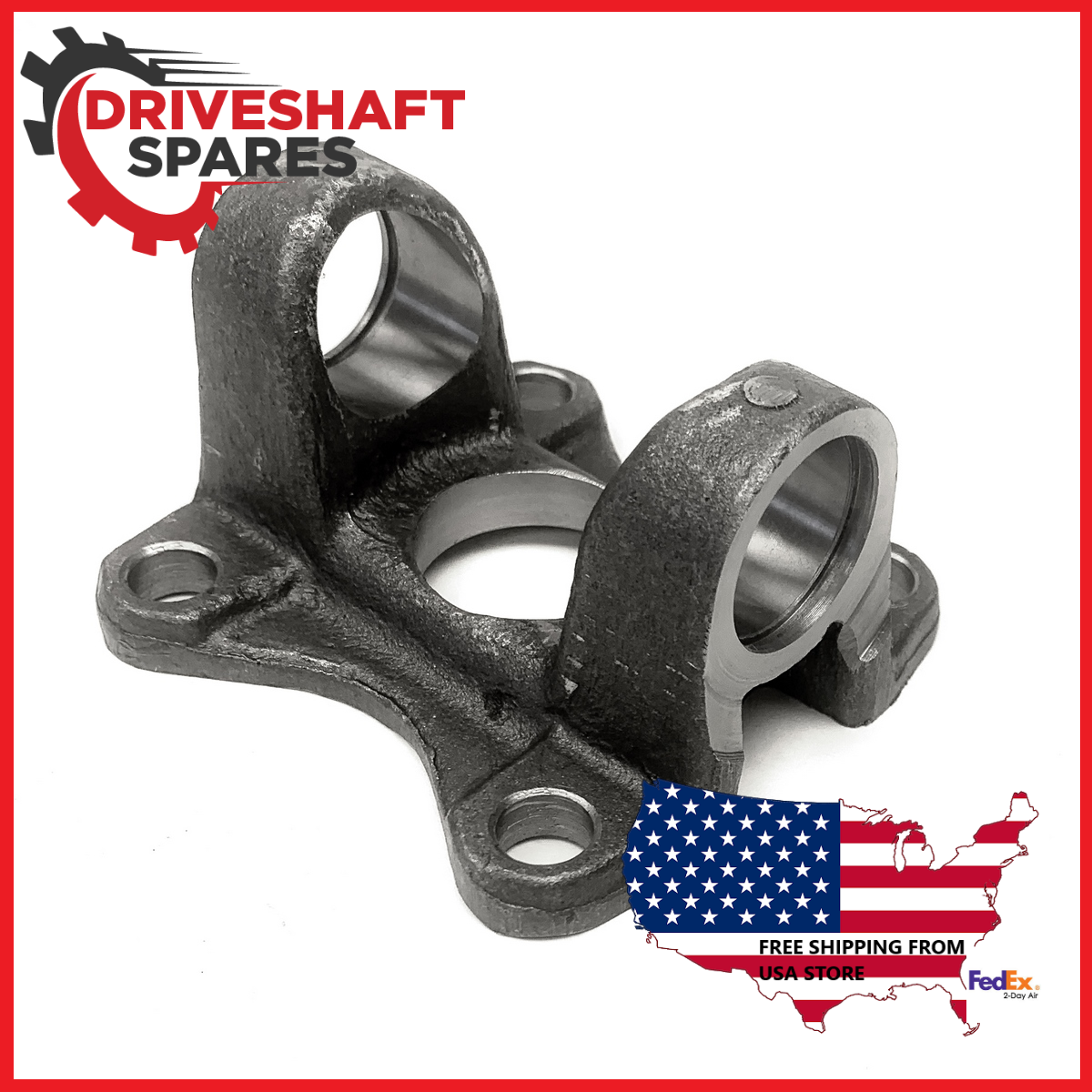

Drive Shaft Flange Yoke 1350 Series, 4.25 In Bolt Circle 080066142005
| Design Style | Snap Ring Design | |
| U-Joint Series | 1350 | |
| Universal Joint Retaining Width | 3.875 | |
| Universal Joint Bearing Diameter | D | 1.188 |
| Flange Diameter | A | 5.250 |
| Bolt Circle Diameter | B | 4.250 |
| Horizontal Distance Between Holes (center to center) | 0.000 | |
| Vertical Distance Between Holes (center to center) | 0.000 | |
| Bolt Hole Diameter | .500-D | |
| Bolt Hole Quantity | 4.000 | |
| Pilot Diameter (M-Male, F-Female) | C | 2.000F |
| Centerline of Joint to Flange Face | G | 1.625 |
| Compatible U-Joint Kits | SPI-5-178X,SPI-5-1350X,SPI-SPL30-1X |
