Description

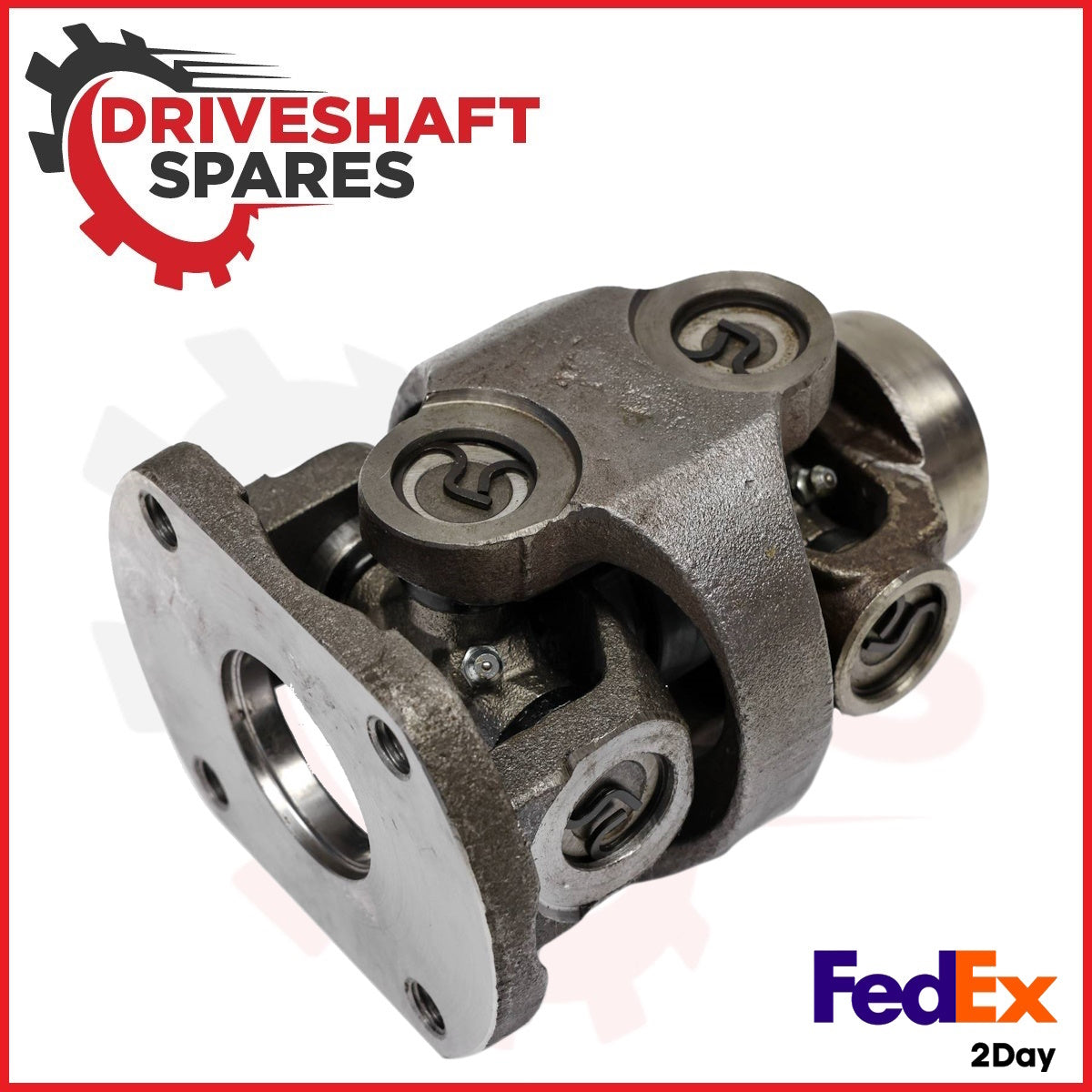

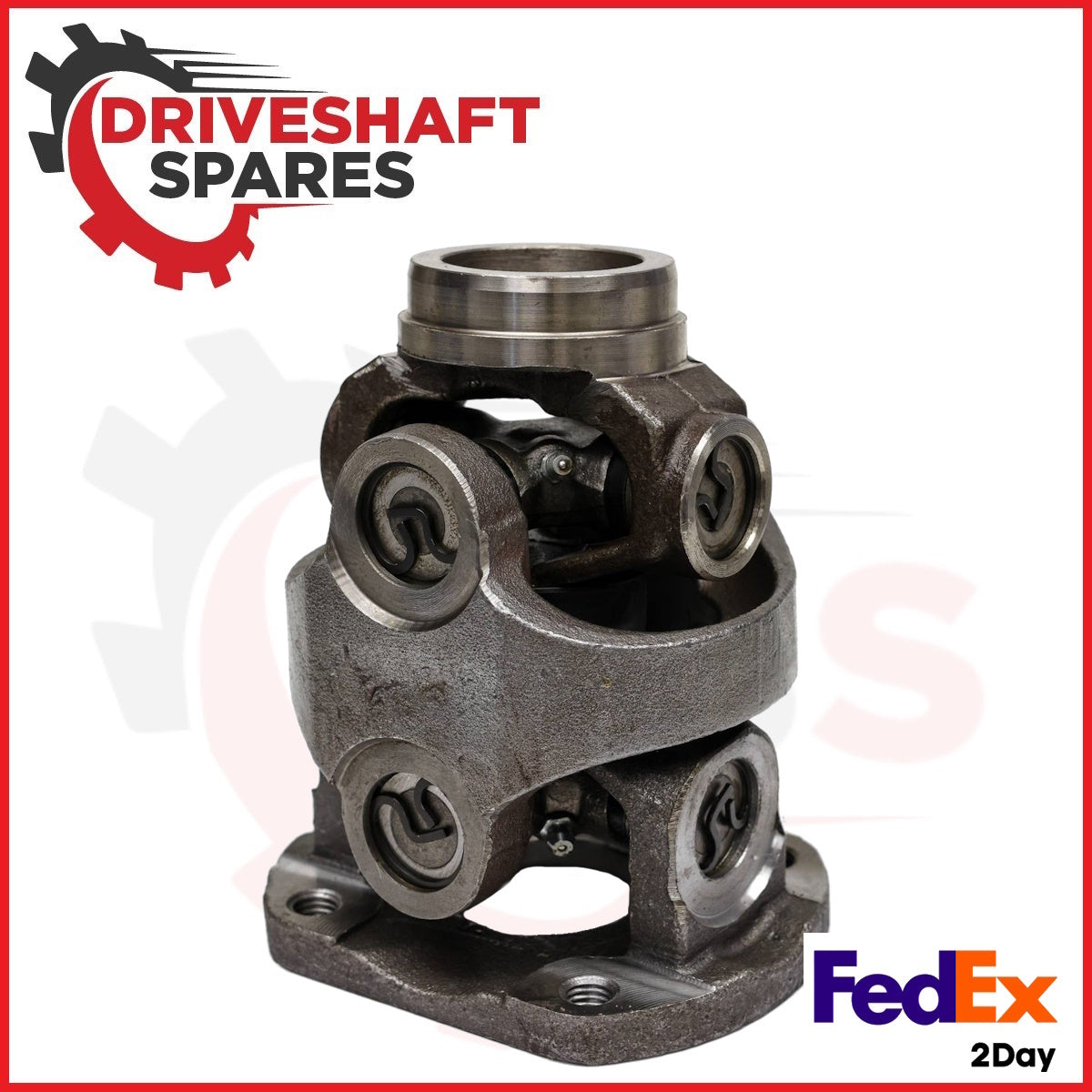

Driveshaft CV Head Complete 1330 Series Tube Diameter 2.500″ x .083″ Pilot 2.000″.

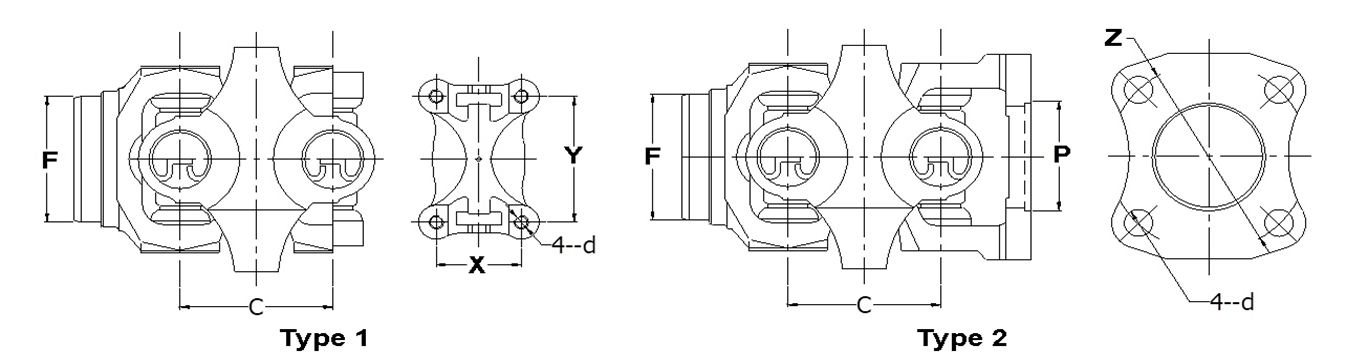

| CV Heads | |
| Series | 1330 (1.062 x 3.625) |
| Tube | 2.500 x .083 |
| (F) | 2.344 |
| Pilot | 2.000F |
| (X) | 3.000 |
| (Y) | 3.000 |
| (Z) | 4.250 |
| (C) | 2.750 |
| (d) | M12x1.75 |
| Type | 2 |
- CV Head Break Down Items
- Ball Stud Tube Yoke
- CV Center Yoke 2-26-527
- CV Flange Yoke 2-21-1631
- Alt refs: R2-91-23067. N918585
