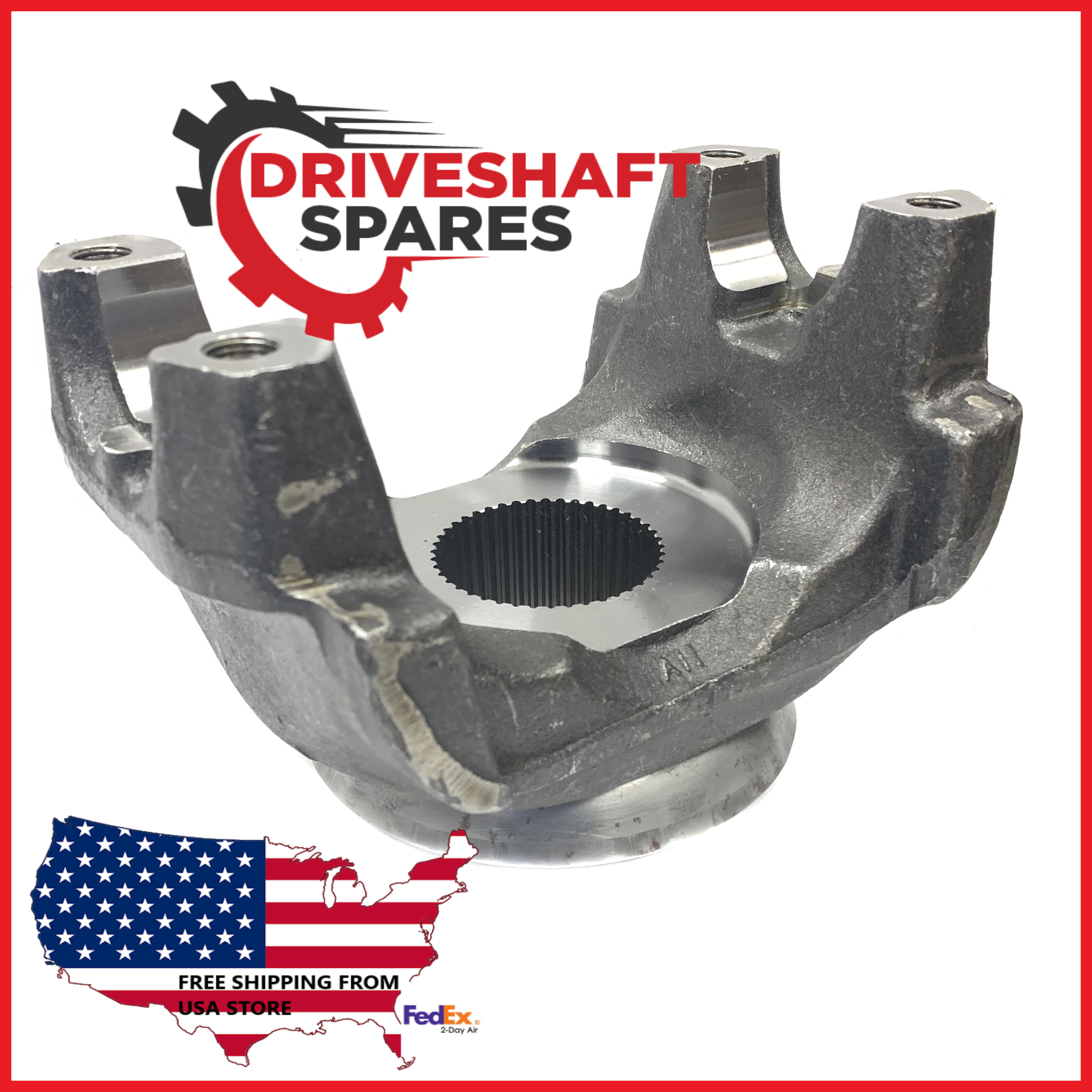

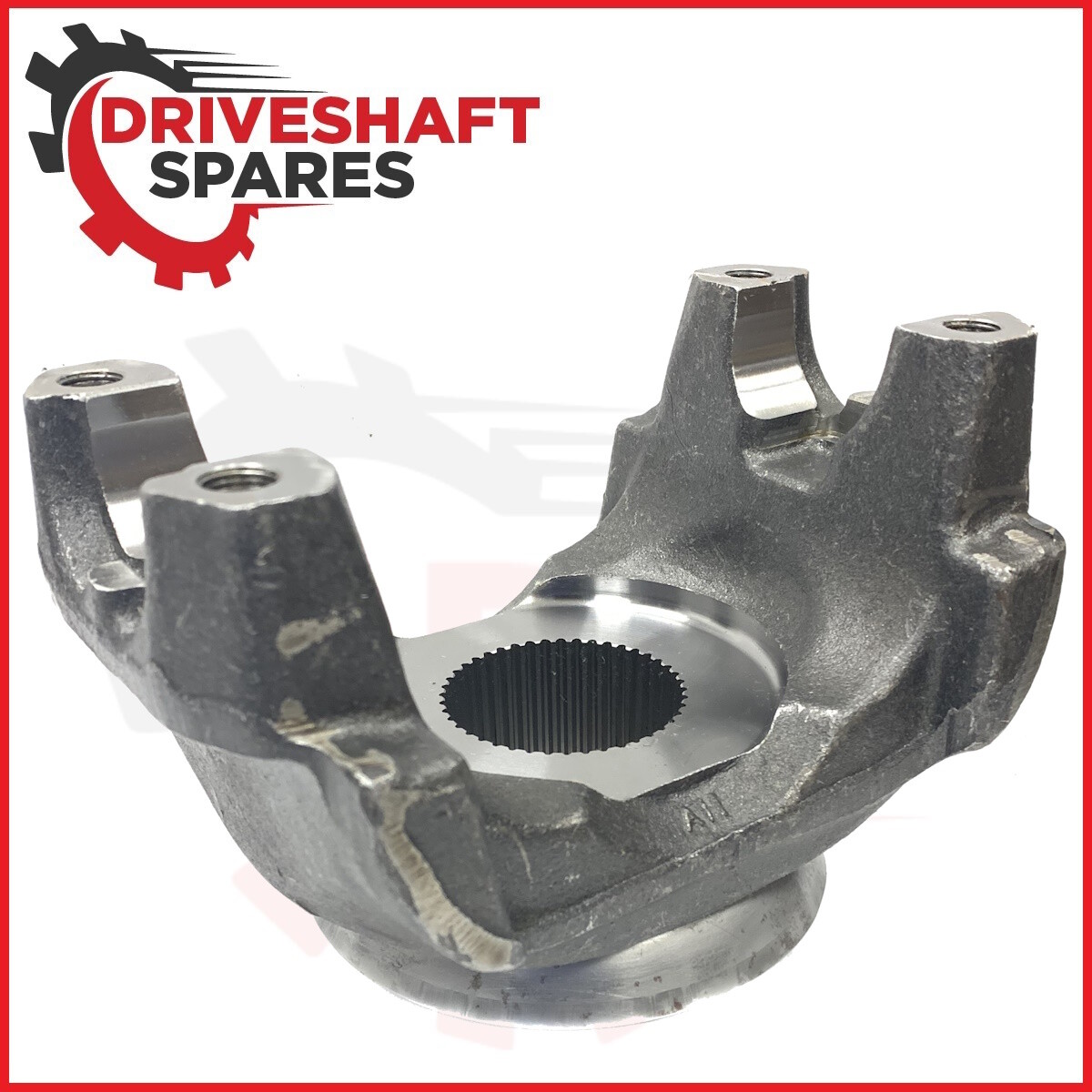

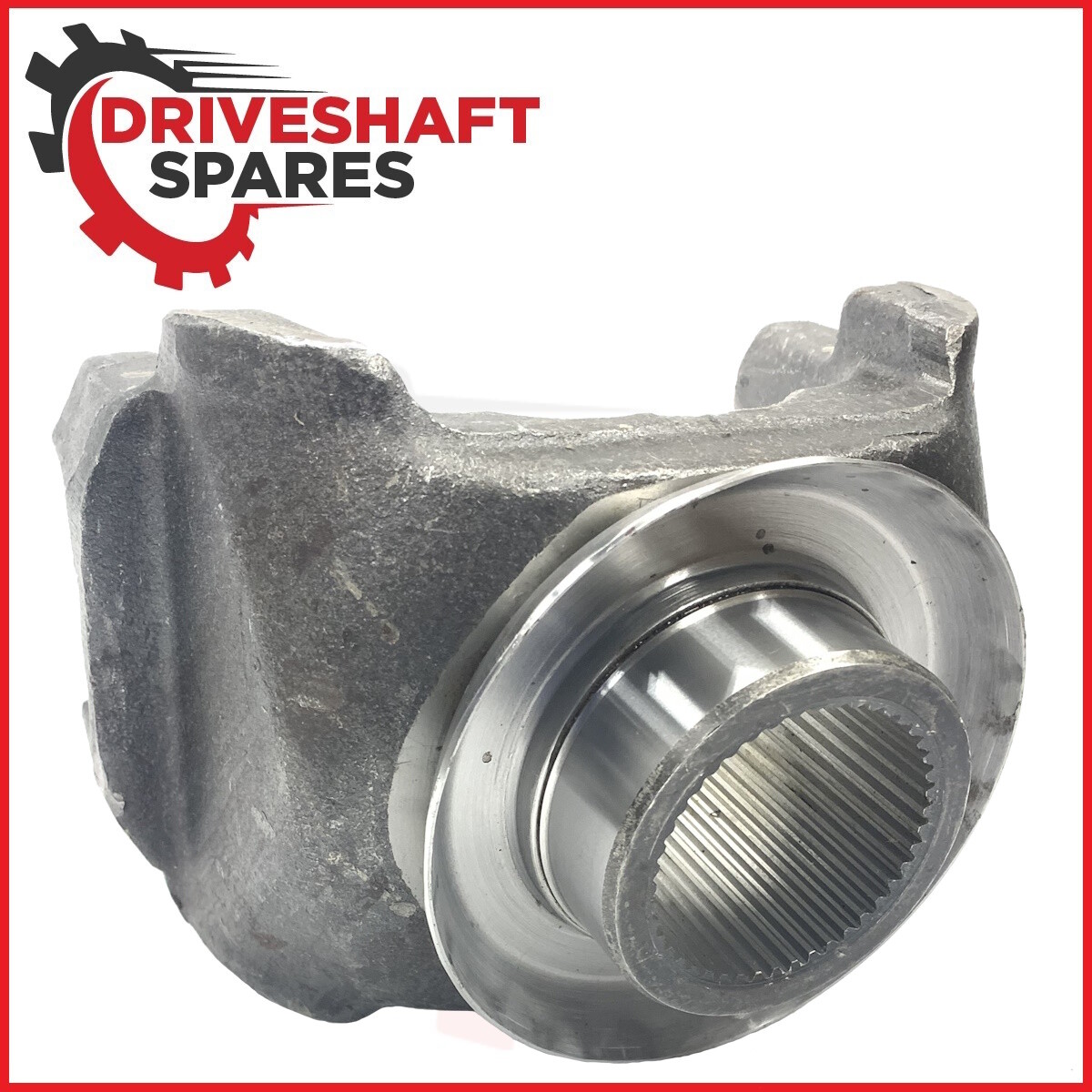

EATON 341.381.401.402.End Yoke Splined Bore 1760 Series Strap Style 6.3-4-331-1X

		End Yoke Splined Bore 1760 Series Strap Style 6.3-4-331-1X You are buying a High-Quality 1760 Series Strap Style Splined End Yoke. End Yokes Series 1760 (1.938 x 7.000) Splines 44 Major Dia 2.274 (R) 2.938 (S) 5.250 (Q) 2.500 Type 3  End Yoke Specifications Spicer Driveshaft Slip Yoke –  6.3-4-331-1X General Design Type Splined Bore Strap Style U-Joint Series 1760 Spline Major Diameter 2.274 Spline Count 44.000 Spline Type Involute Spline Pressure Angle Ground Hub Diameter (R) 2.938 Length Through Bore (Q) 2.500 Centerline of Joint to End of Spline (S) 5.250 Universal Joint Retaining Width (E) 7.094 Universal Joint Bearing Diameter (D) 1.938 Counterbore Depth 0.000 Joint Angle  0.000 Style Strap DANA Spicer Part No. Ref: 6.3-4-331-1X Compatible with the following U-Joint Kits: 5-407X / 5-677X EATON END YOKE FOR TANDEM AXLE 1ST AXLE INPUT. MODEL 341-381-401-402-451
