Description

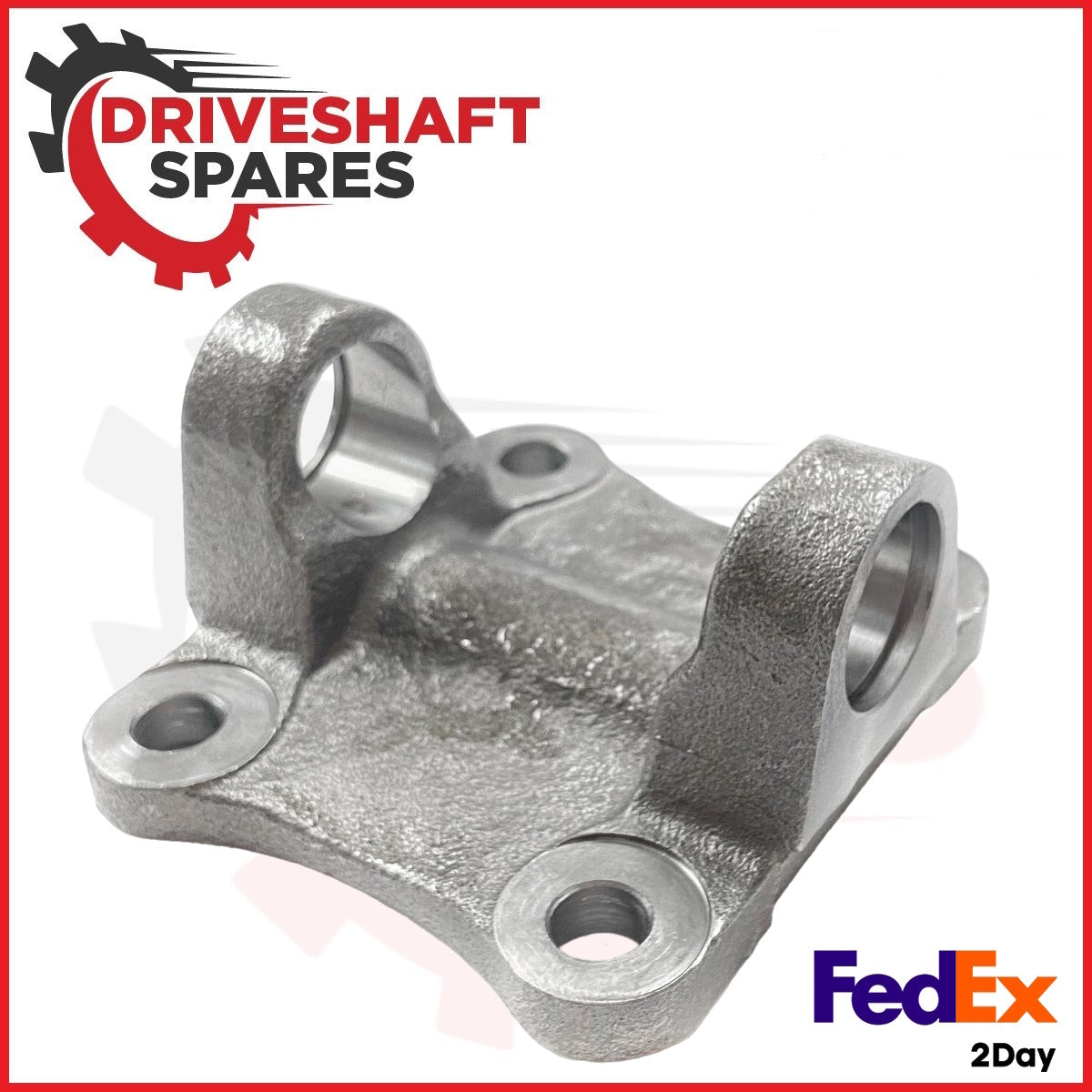

Flange Yoke 1410 series, 4xØ.500 Holes on 4.750BC, Ø3.750M pilot 3-2-559
- 360913 / 00360913 (OEM#, 1975-1979era)
- 3832048 (OEM#, 1963era)
| Design Style | Snap Ring Design | |
| U-Joint Series | 1410 | |
| Universal Joint Retaining Width | 4.438 | |
| Universal Joint Bearing Diameter | D | 1.188 |
| Flange Diameter | A | 5.875 |
| Bolt Circle Diameter | B | 4.750 |
| Horizontal Distance Between Holes (center to center) | 0.000 | |
| Vertical Distance Between Holes (center to center) | 0.000 | |
| Bolt Hole Diameter | .500-D | |
| Bolt Hole Quantity | 4.000 | |
| Pilot Diameter (M-Male, F-Female) | C | 3.750M |
| Centerline of Joint to Flange Face | G | 1.500 |
| Compatible U-Joint Kits | SPI-5-160X,SPI-5-1410X |
