Ford F250 F350 Excursion Dana 50/60 Spicer Axle Spindle Thrust Washer Kit

Description

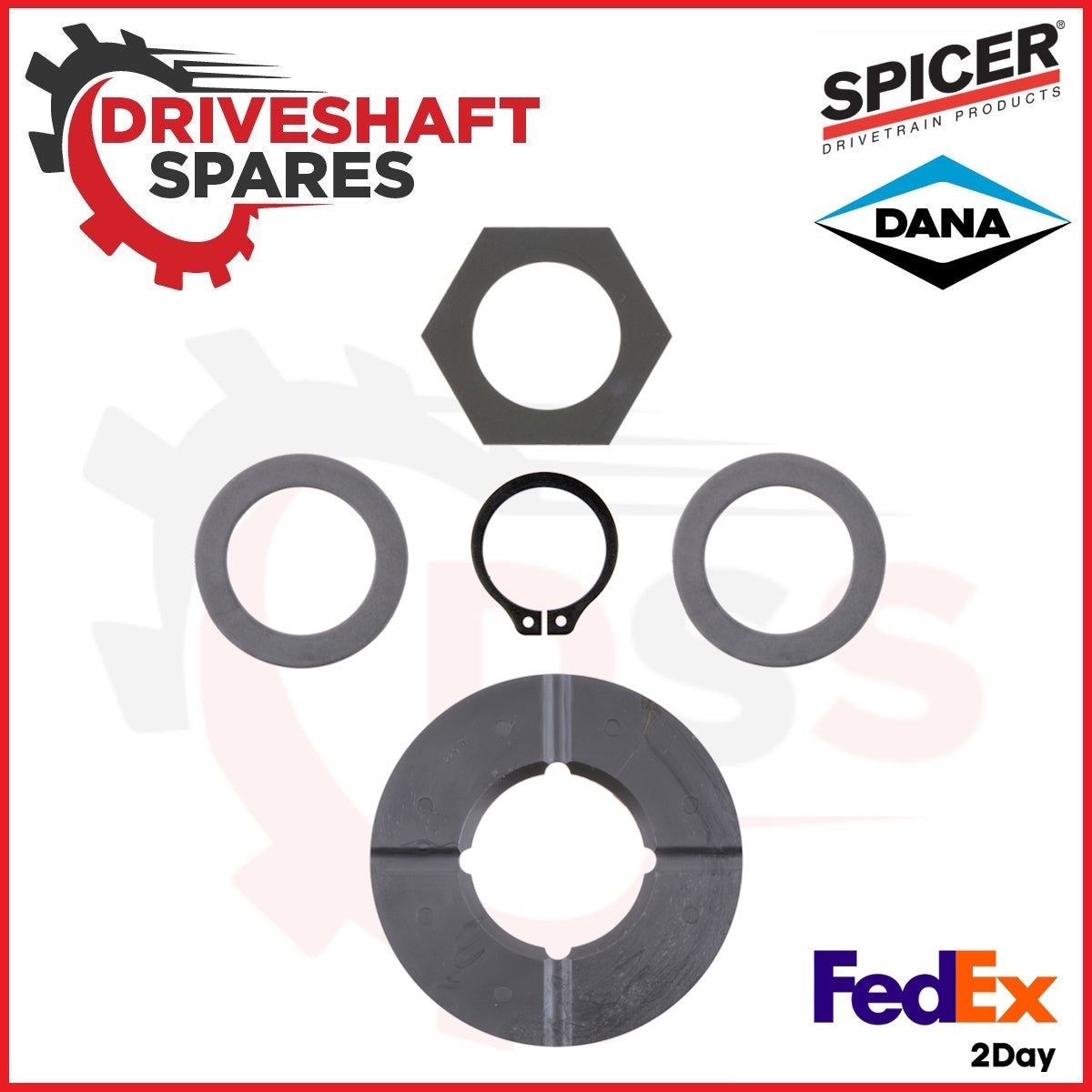

Ford F250 F350 Excursion Dana 50/60 Spicer Axle Spindle Thrust Washer Kit

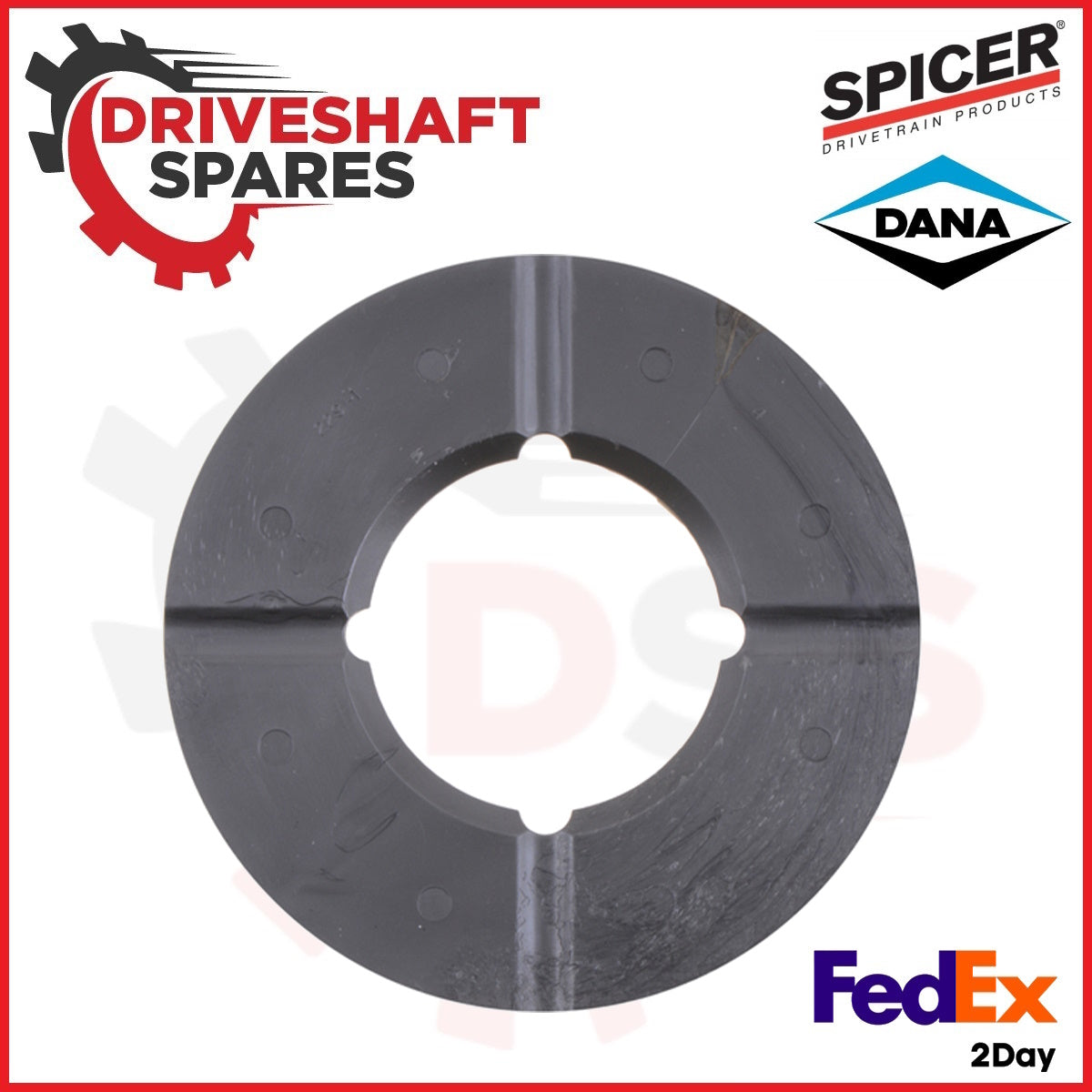

47766 Axle Spindle Thrust Washer

• Thrust Washer that sets next to the vacuum seal inside the knuckle joint on all 4×4 models 1999-2004.
• Front Hub Vacuum Thrust Washer.
• Inner Diameter: 1.320
• Outer Diameter: 2.850
• Thickness: 0.160

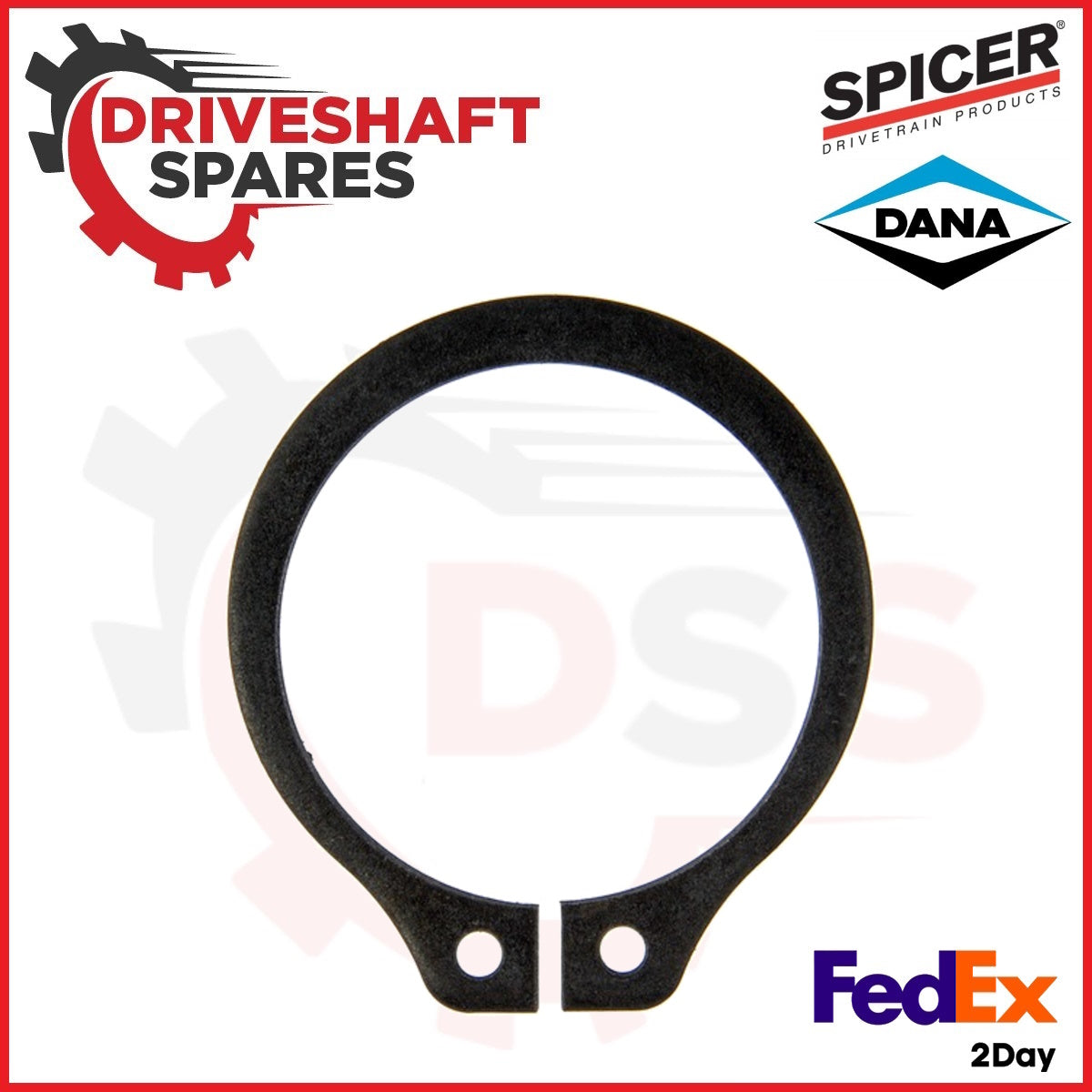

620142 Drive Axle Shaft Lock C-Clip

• Thickness (In): 0.093
• Outer Diameter (In): 1.955
• Inner Diameter (In): 1.205
• OE Spec

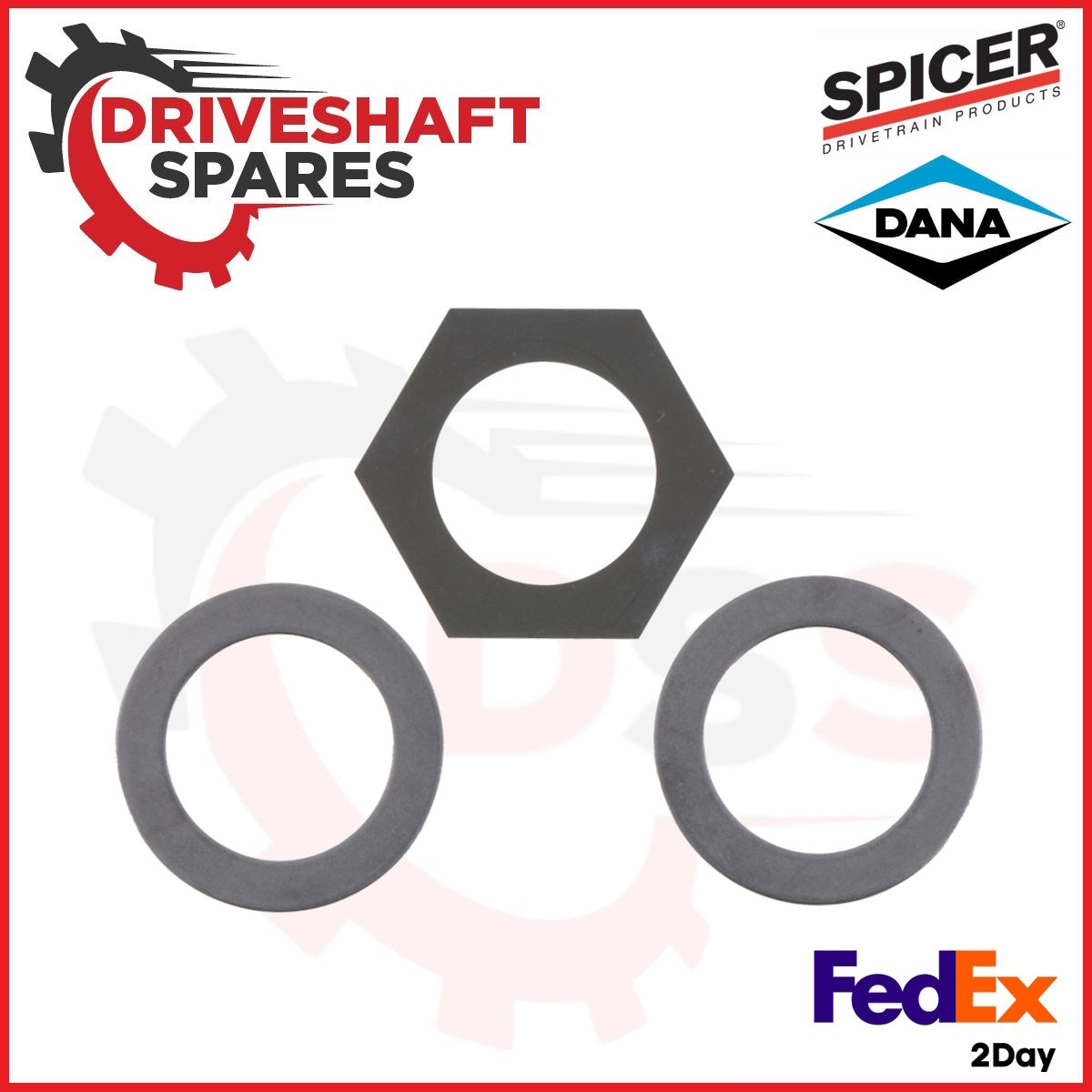

701166X Axle Nut Washer

• Thrust washer kit includes: 2 round metal washers;1 Composite hexagon washer.
• Thrust Washers on the outer side of the bearing hub, retained on the axle by the c-clip.
• All 3 washers are necessary for the proper spacing.
