FULLER 6613-11600 End Yoke Splined Bore 1810 Series Full Round 6.5-4-3551X

FULLER 6613-11600 End Yoke Splined Bore 1810 Series Full Round 6.5-4-3551X
FULLER 6613-11600 End Yoke Splined Bore 1810 Series Full Round 6.5-4-3551X - Image 2
FULLER 6613-11600 End Yoke Splined Bore 1810 Series Full Round 6.5-4-3551X - Image 3

$246,00

15 in stock

Description

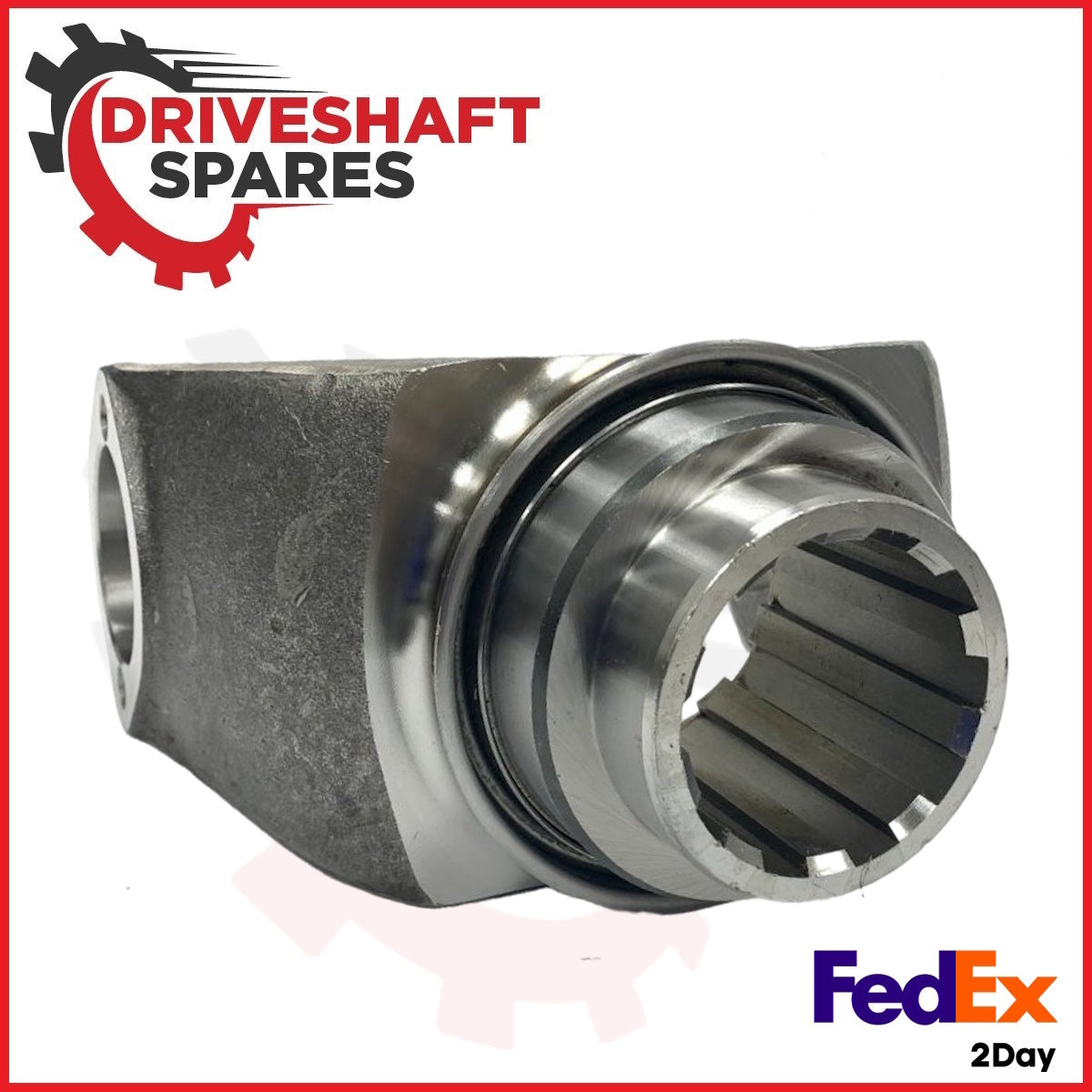

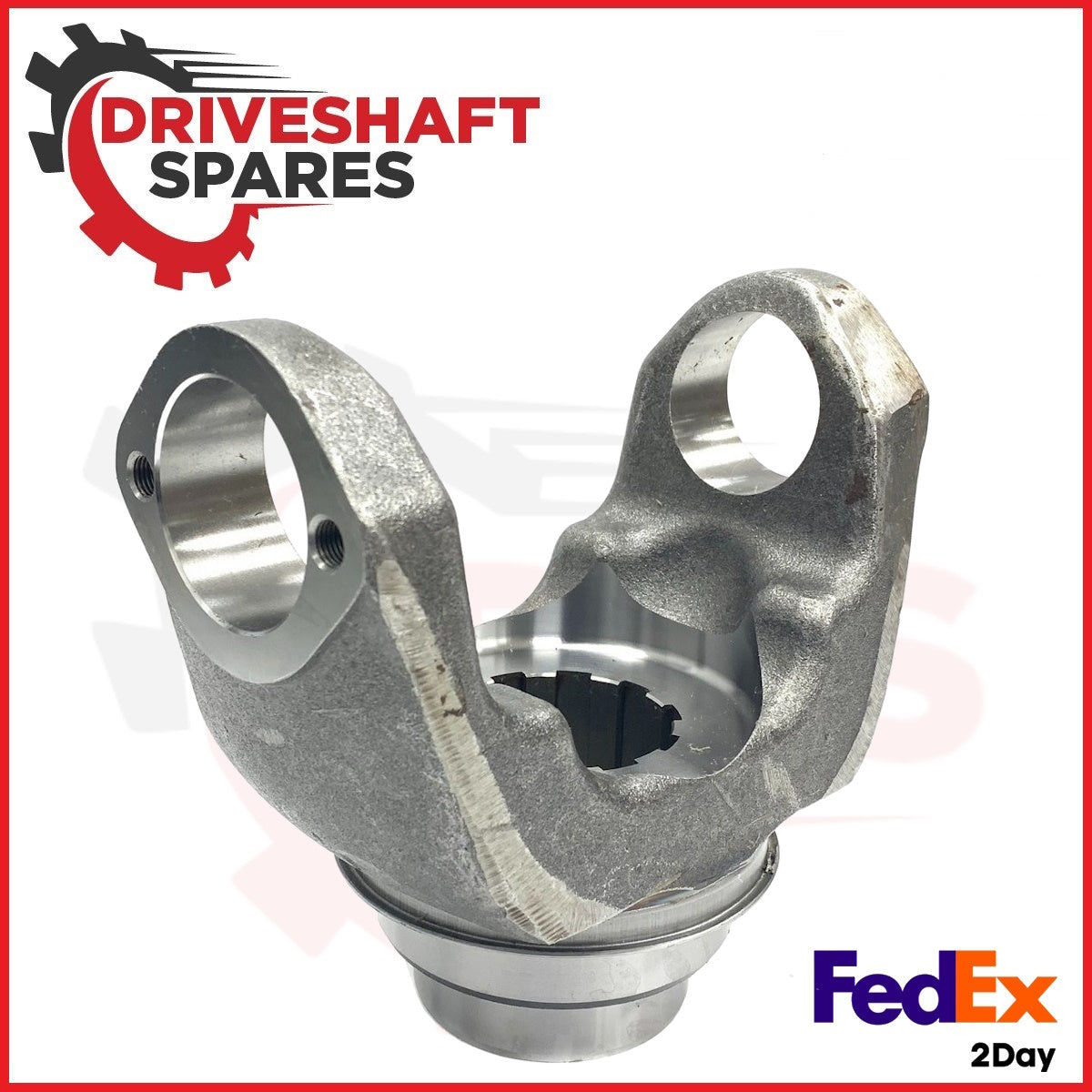

End Yoke Splined Bore 1810 Series Full Round 6.5-4-3551X

You are buying a High-Quality 1810 Series Full Round Splined End Yoke.

General Design Type Splined Bore Full Round
U-Joint Series
1810
Spline Major Diameter 2.500
Spline Count
10.000
Spline Type
Spline Pressure Angle
Ground Hub Diameter (R) 3.750
Length Through Bore (Q) 3.000
Centerline of Joint to End of Spline (S) 5.875
Universal Joint Retaining Width (E) 7.547
Universal Joint Bearing Diameter (D) 1.938
Counterbore Depth 0.000
Joint Angle
0.000
Style Bolt Plate
  • DANA Spicer Part No. Ref: 6.5-4-3551X
  • Compatible with the following U-Joint Kits: 5-281X / 5-676X

Additional information

Weight 2,5 kg
