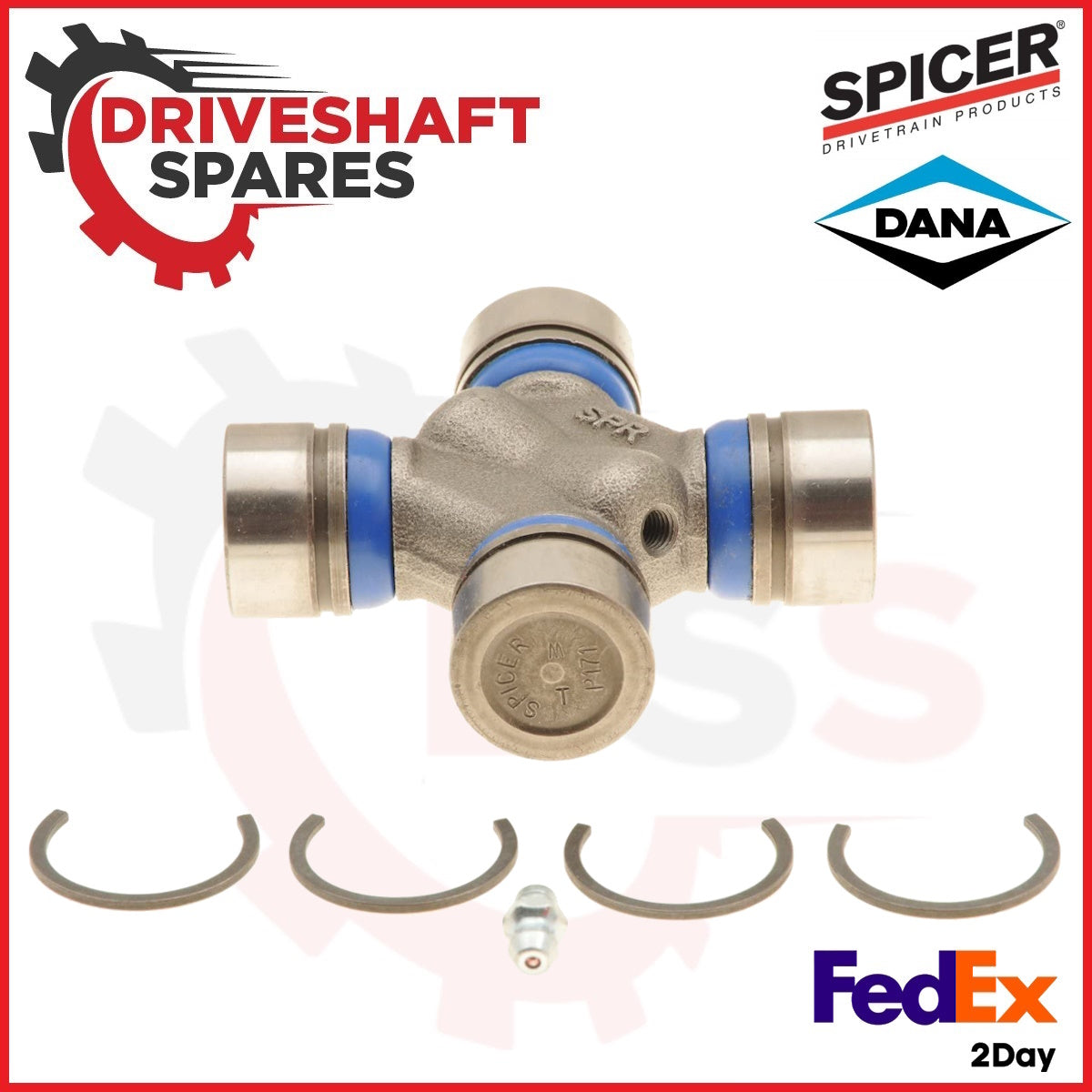

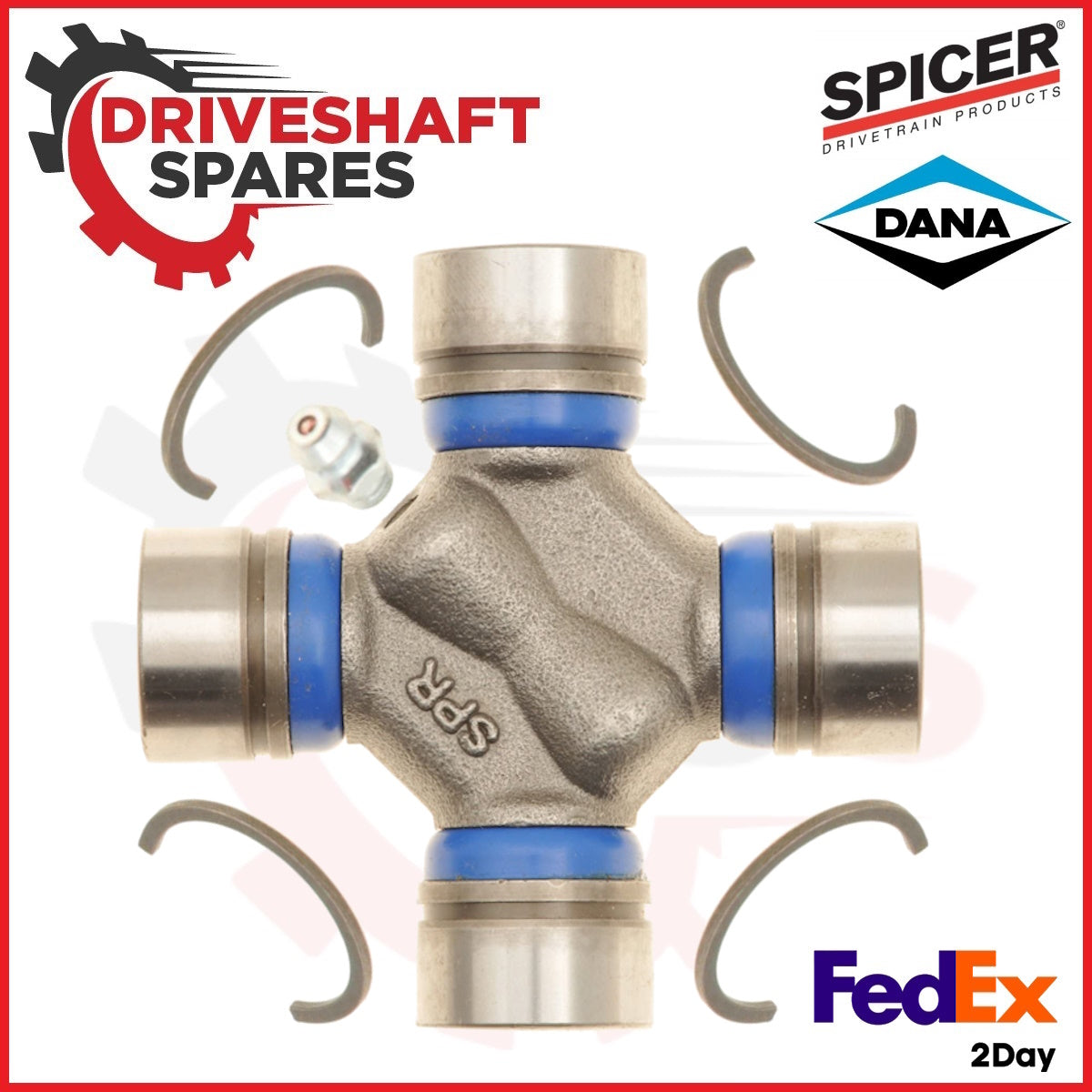

Genuine Spicer U-Joint 5-3147X Inside Snap Rings MECHANICS S44 Series Greaseable

$27,44

Part Number:

5-3147XS

31 in stock

Description



Genuine Spicer U-Joint 5-3147X Inside Snap Rings MECHANICS S44 Series Greaseable

Genuine Spicer U-Joint 5-3147X Inside Snap Rings MECHANICS S44 Series Greaseable

Genuine Dana Spicer U-Joint Inside Snap Rings MECHANICS S44 Series Greaseable 5-3147X

  • Series: Mechanics 3, Saginaw 44, AAM 1344

active modal image

Brand Spicer
Greaseable Yes
Type ISR Style
Invoice U-Joint Kit
OEM Mfg Mechanics
OEM Series S44/3R
Bearing Cap Diameter (1) 1.125
Bearing Cap Diameter (2) 1.125
VMRS 024002046
Bearing Cap Type Round with ISR Groove
Snap Ring Type Internal
Snap Ring Included Yes
Grease Fitting Location Side of Cross
Material Steel
Mounting Hardware Included No
Model Number 3R, Saginaw 44, AAM 1344
Bearing Cap Finish Ground
Seal Material Rubber
Seal Color/Finish Blue
Coating Type None
Pre Greased No
Grease Type N.L.G.I. Grade 2
Grease Zerk Included Yes
Hardware Included No
Length A (In) 2.556
Length B (In) 2.556
Length A (mm) 64.922
Length B (mm) 64.922
Bearing Cap Type A ISR
Bearing Cap Type B ISR
Bearing Cap Diameter A (mm) 28.575
Bearing Cap Diameter B (mm) 28.575
Distance Btw Snap Ring Grooves 2.556
Package Type EACH
Package Qty 1
Weight 1.5 LB
Country of Origin United States

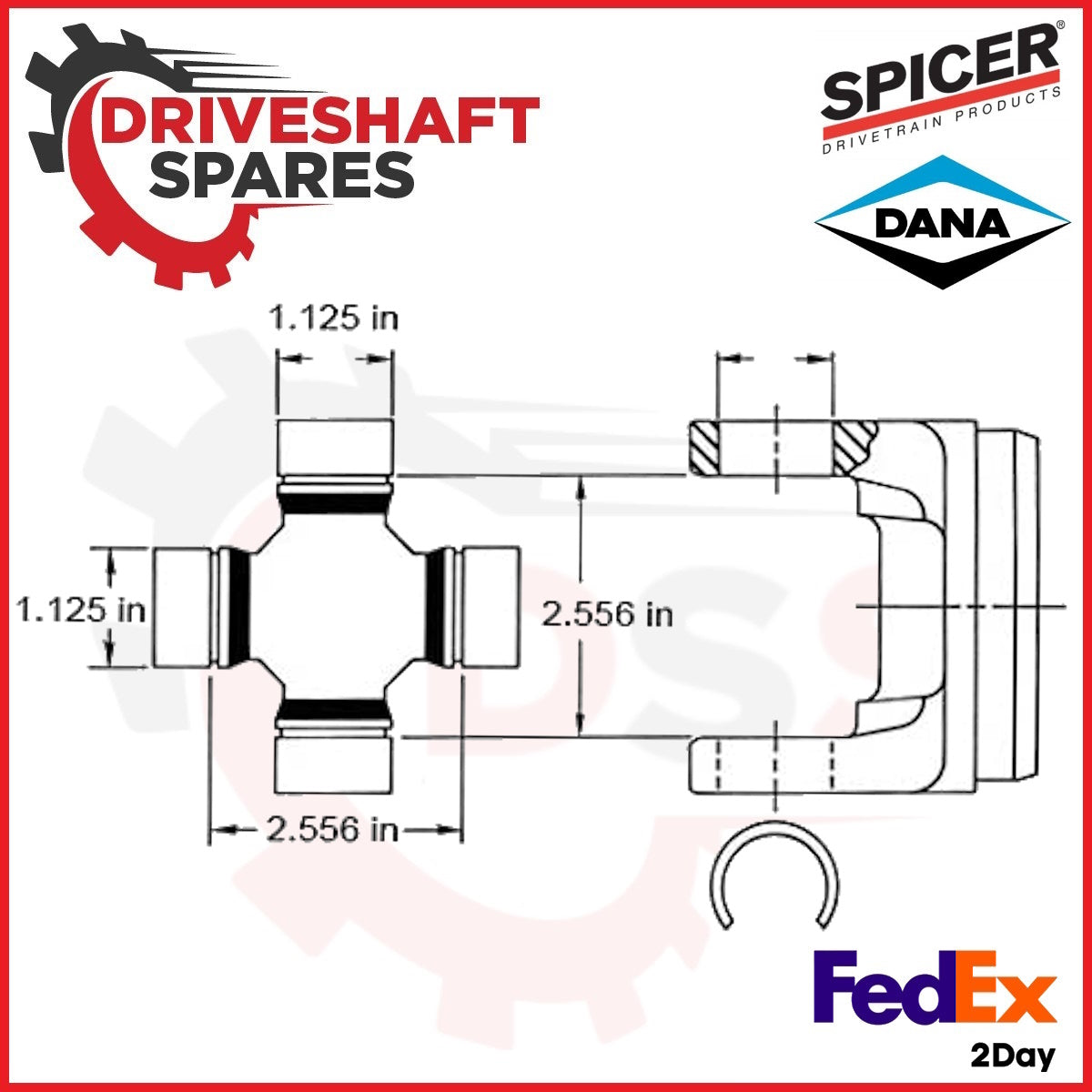

U-Joint
Style (Inside or Outside snap ring)



ISR


Distance
between retaining rings

G1

2.556


Cap
Outside Diameter

D1

1.125


Distance
between retaining rings

G2

2.556


Cap
Outside Diameter

D2

1.125




    Alternative OEM/Part No. Reference:

  • Spicer: 5-3147X

  • Precision: 492

  • Other: 3031B

  • Rockwell/Meritor CP3147X

  • Borg Warner 114-3011

  • Chrysler 5093377AB

  • Ford C8SZ4635A

  • Ford E7TZ4635B

  • General Motors 522163

  • General Motors 535554

  • General Motors 565987

  • General Motors 1456525

  • General Motors 1463548

  • General Motors 3382446

  • General Motors 5671712

  • General Motors 5677656

  • General Motors 7806140

  • General Motors 12471502

  • General Motors 12479126

  • General Motors 26042371

  • Rockwell/Meritor CP3008

  • Series: 3R
