Description

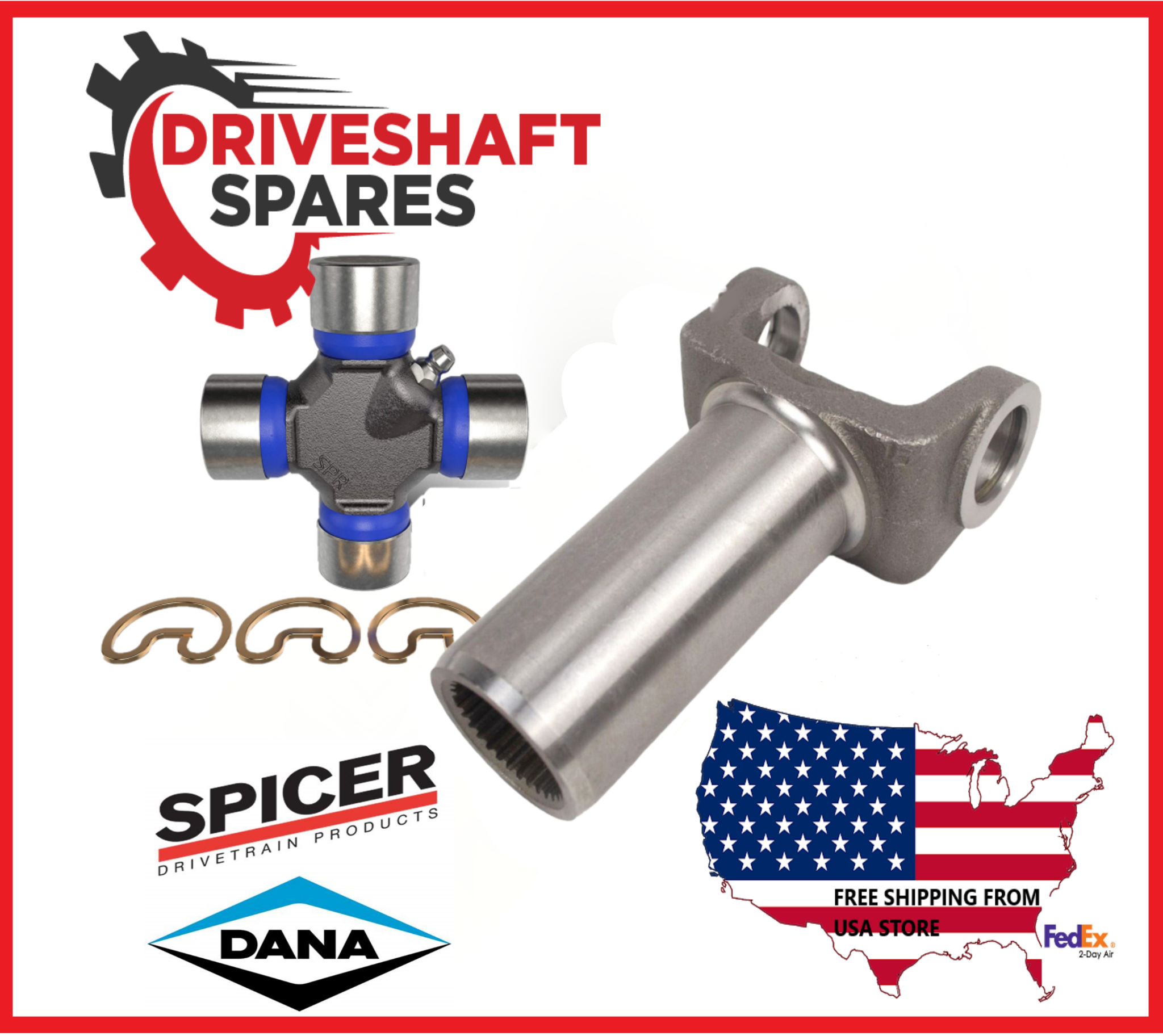

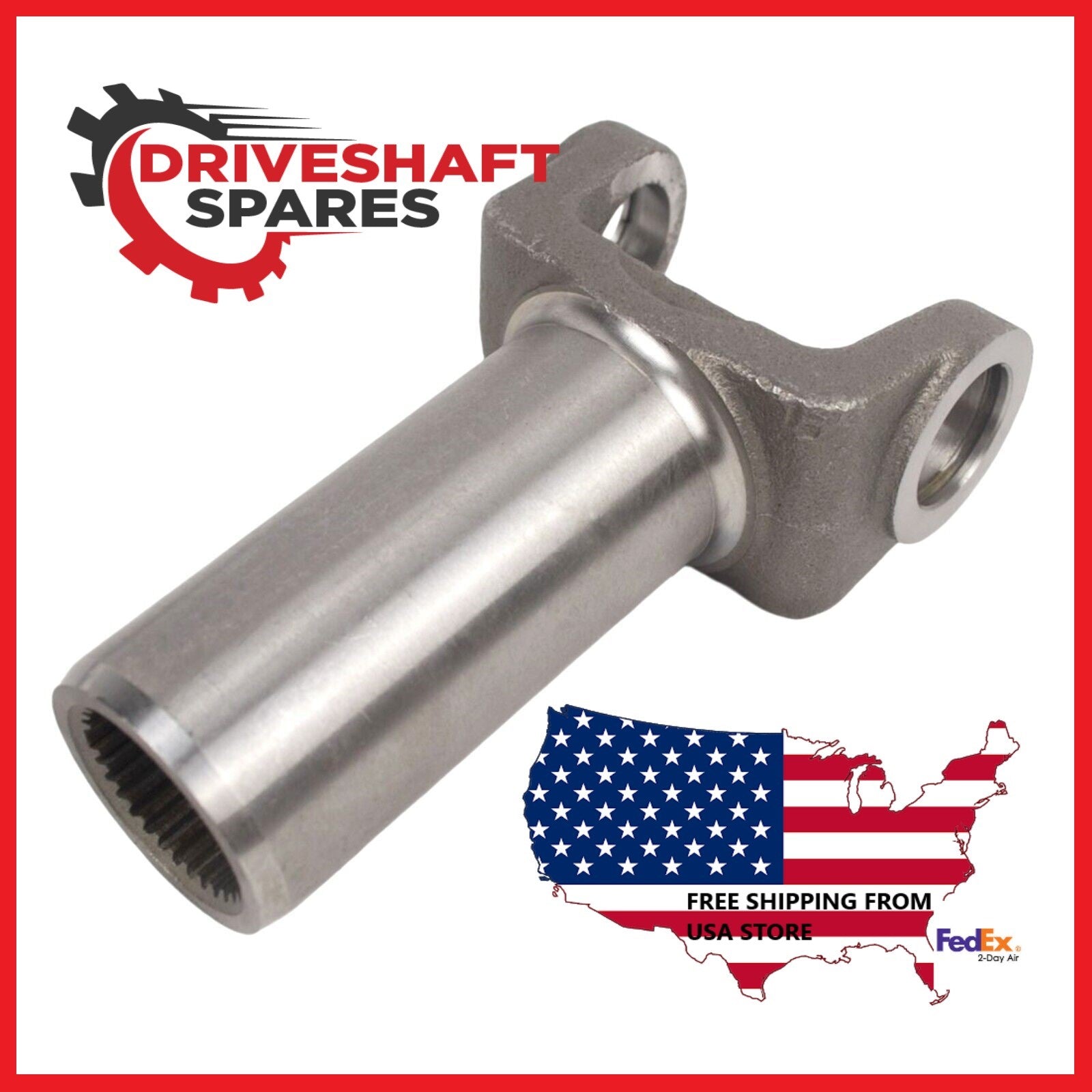

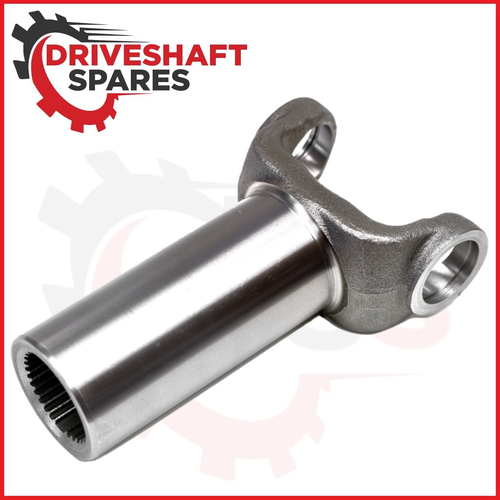

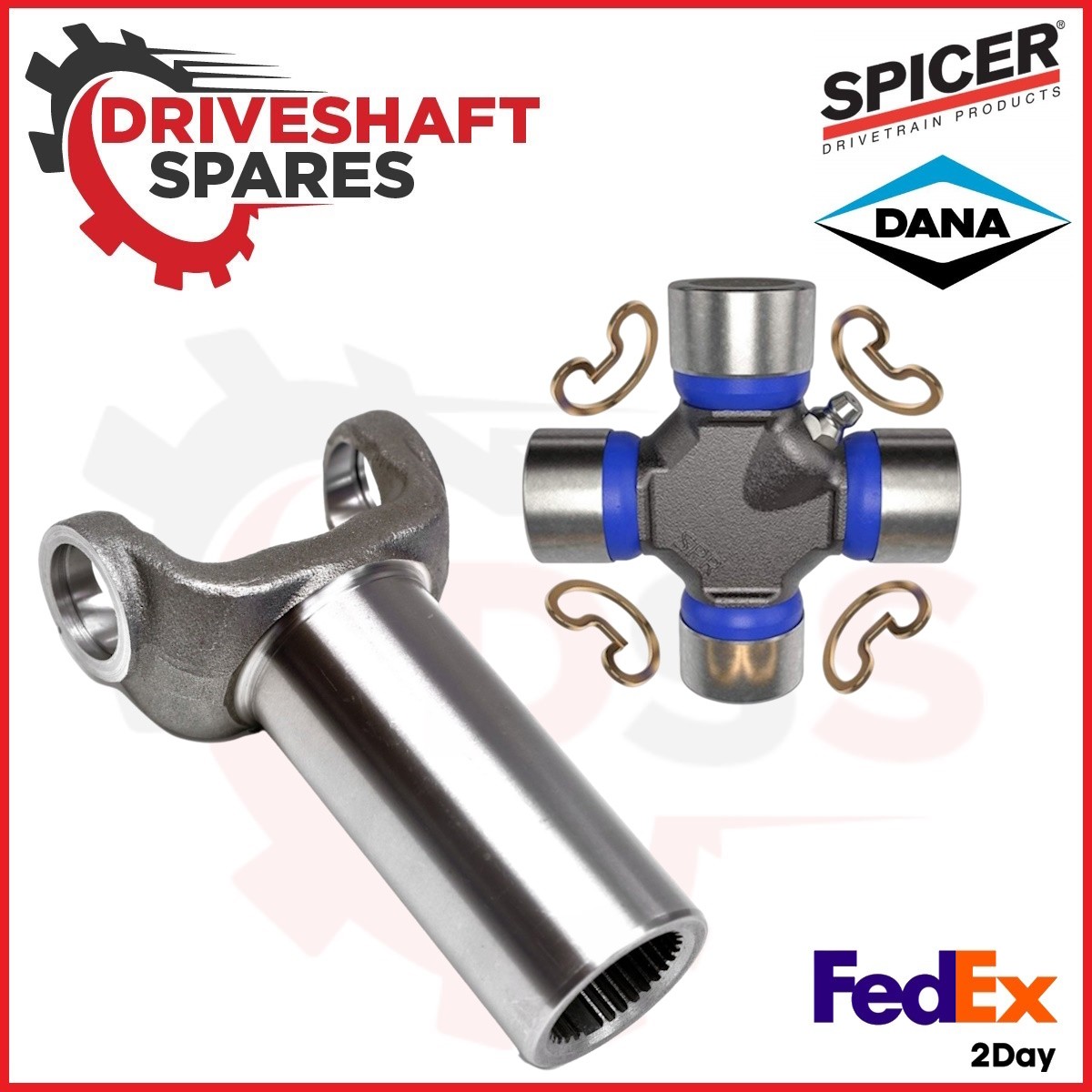

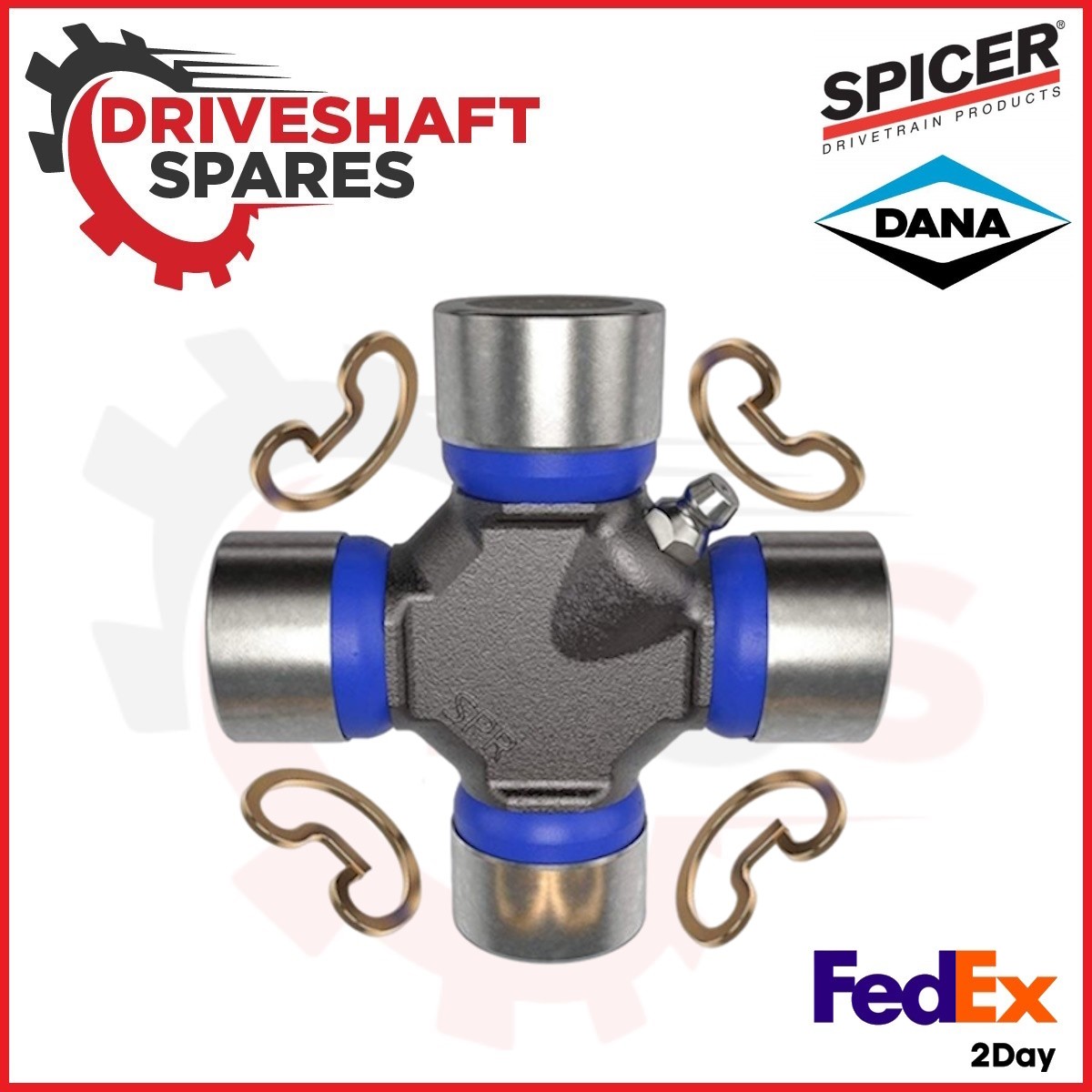

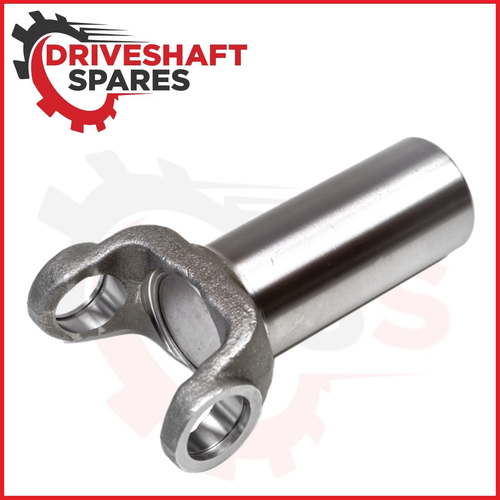

GM Turbo 400, TH400, MUNCIE 4L80E SUPER T10 TRANSMISSION SLIP YOKE 1310 Series FITS 32 SPLINE OUTPUT (369) + 5-153x SPICER U-JOINT 3.219 X 1.062

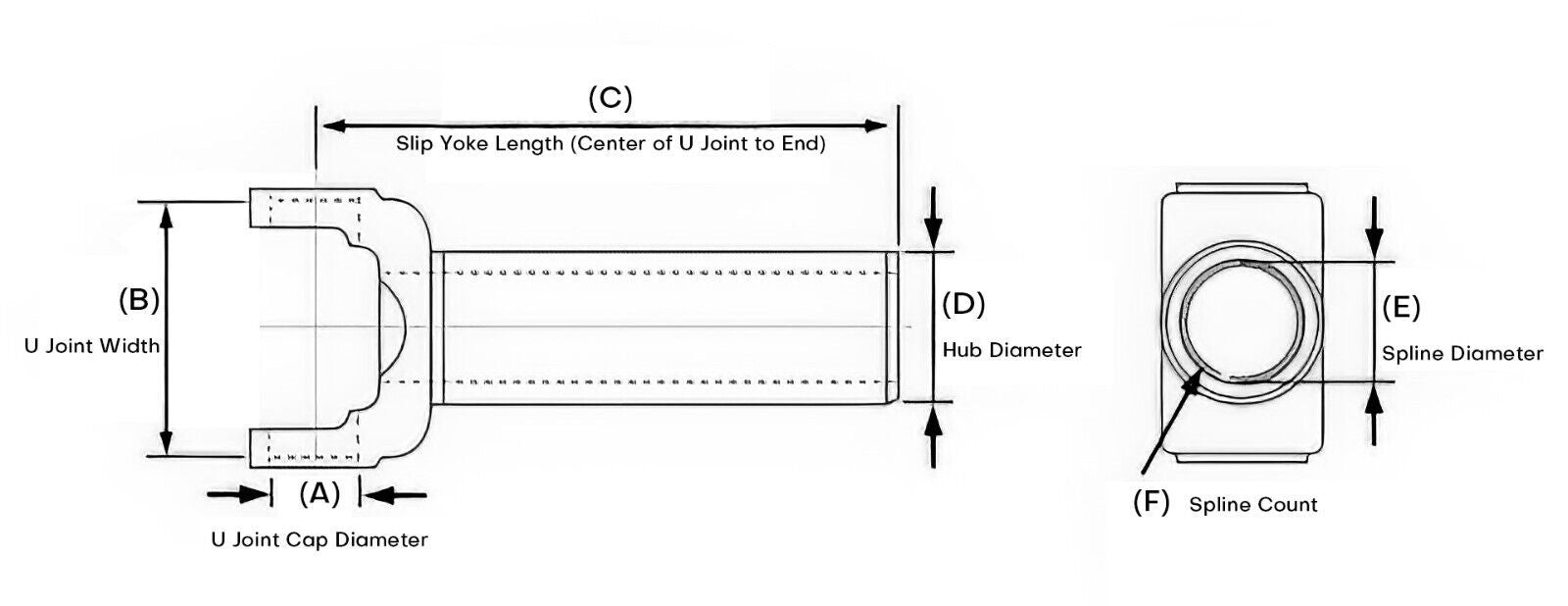

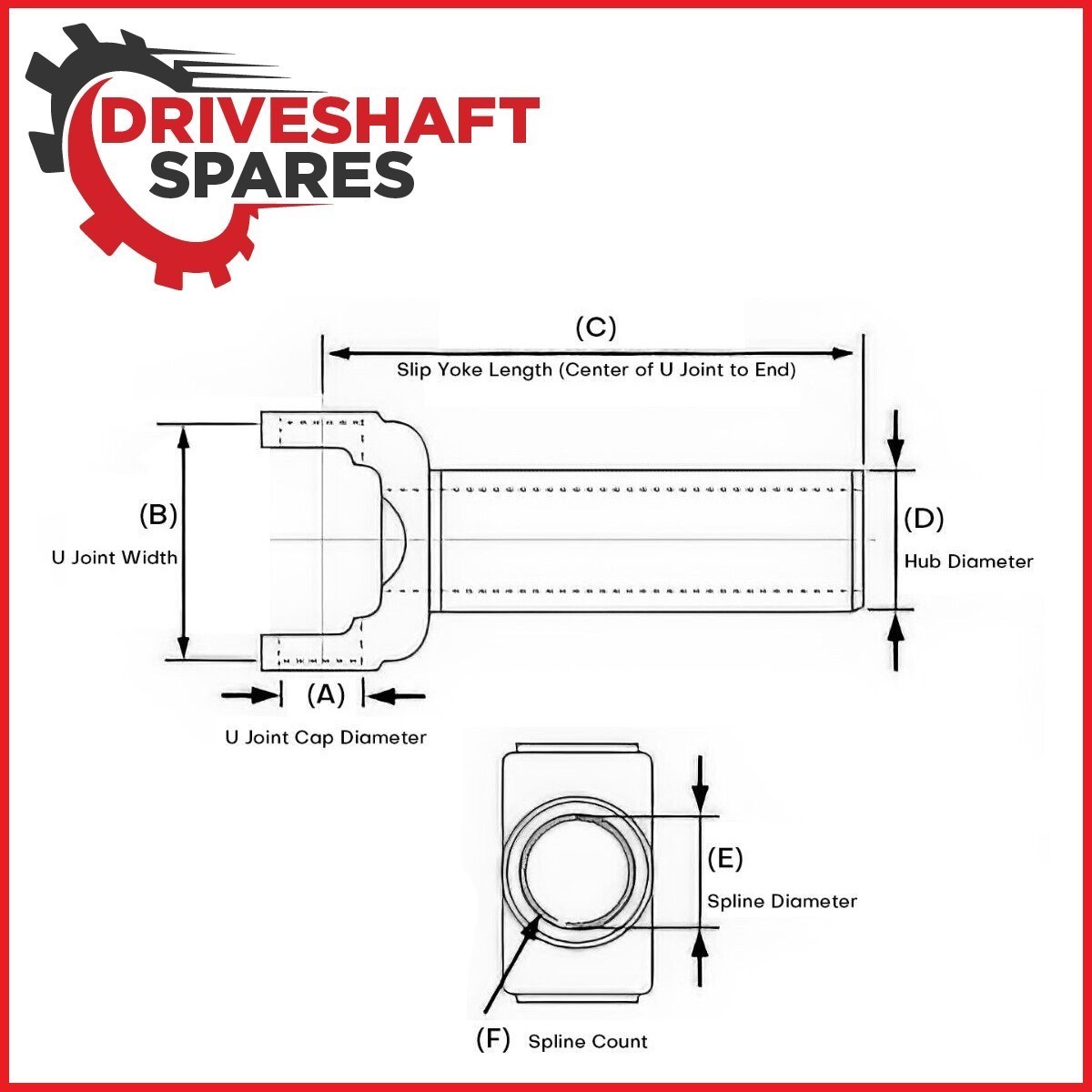

| U-Joint Series | 1310 | |
| Spline Major Diameter | 1.397 | |

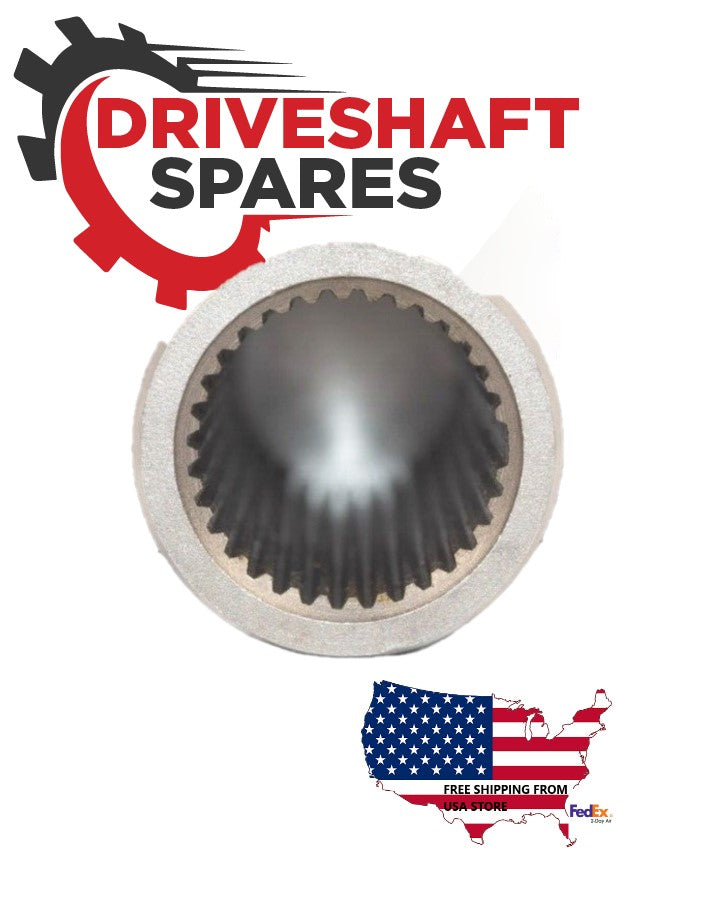

| Spline Count | 32.000 | |
| Spline Type | 31 Based On 32 Spline | |
| Universal Joint Retaining Width | E | 3.469 |
| Universal Joint Bearing Diameter | D | 1.062 |
| Centerline of Joint to End of Spline | J | 5.500 |
| Ground Hub Diameter | R | 1.885 |
| Counterbore Diameter | 0.000 | |
| Counterbore Depth | 0.000 | |
| Style | Snap Ring | |
| Slip Yoke Plug part number (included) | SPI-500166-22 | |

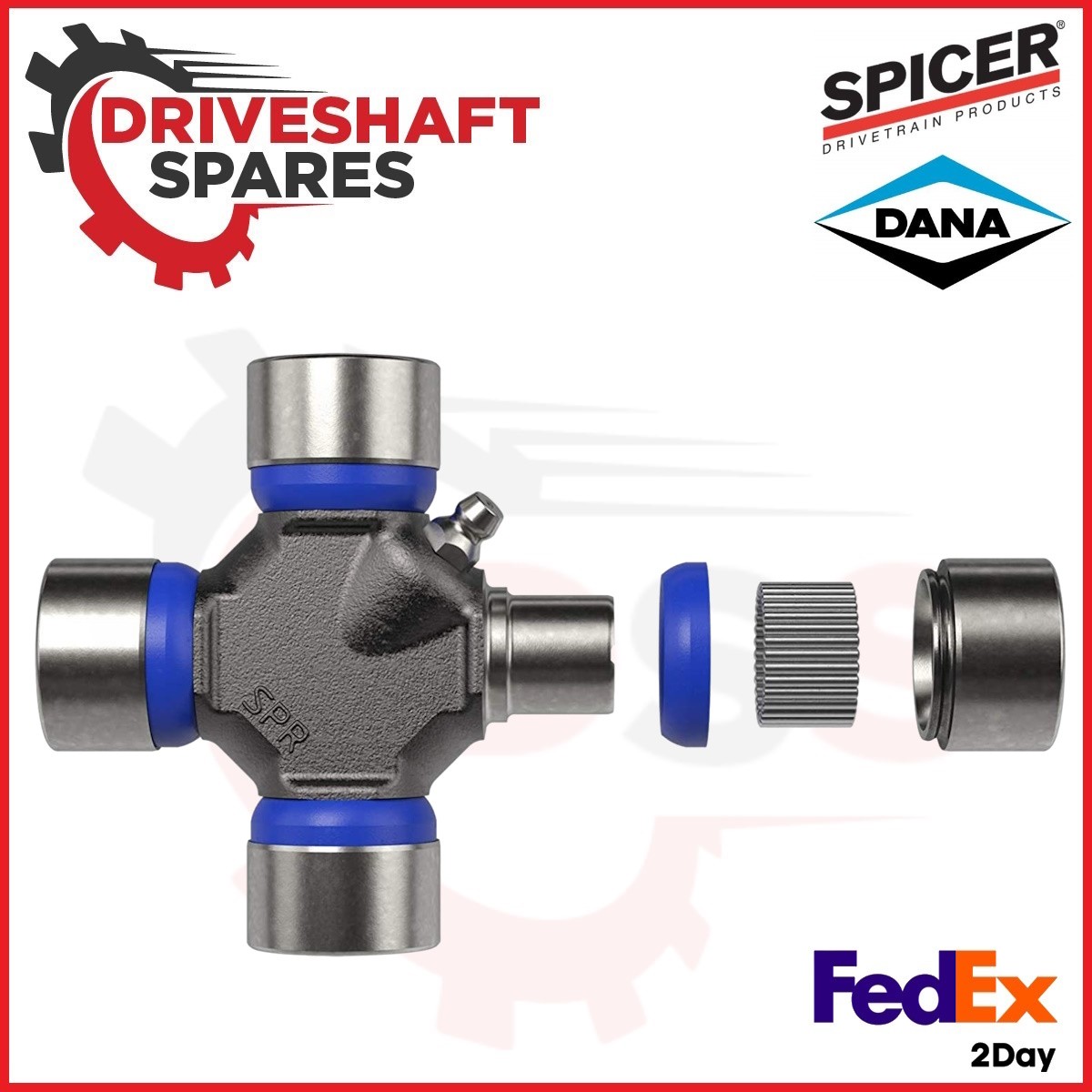

| Compatible U-Joint Kits | SPI-5-153X,SPI-5-1310X,SPI-5-1310-1X |
| U-Joint Style (Inside or Outside snap ring) | OSR | |

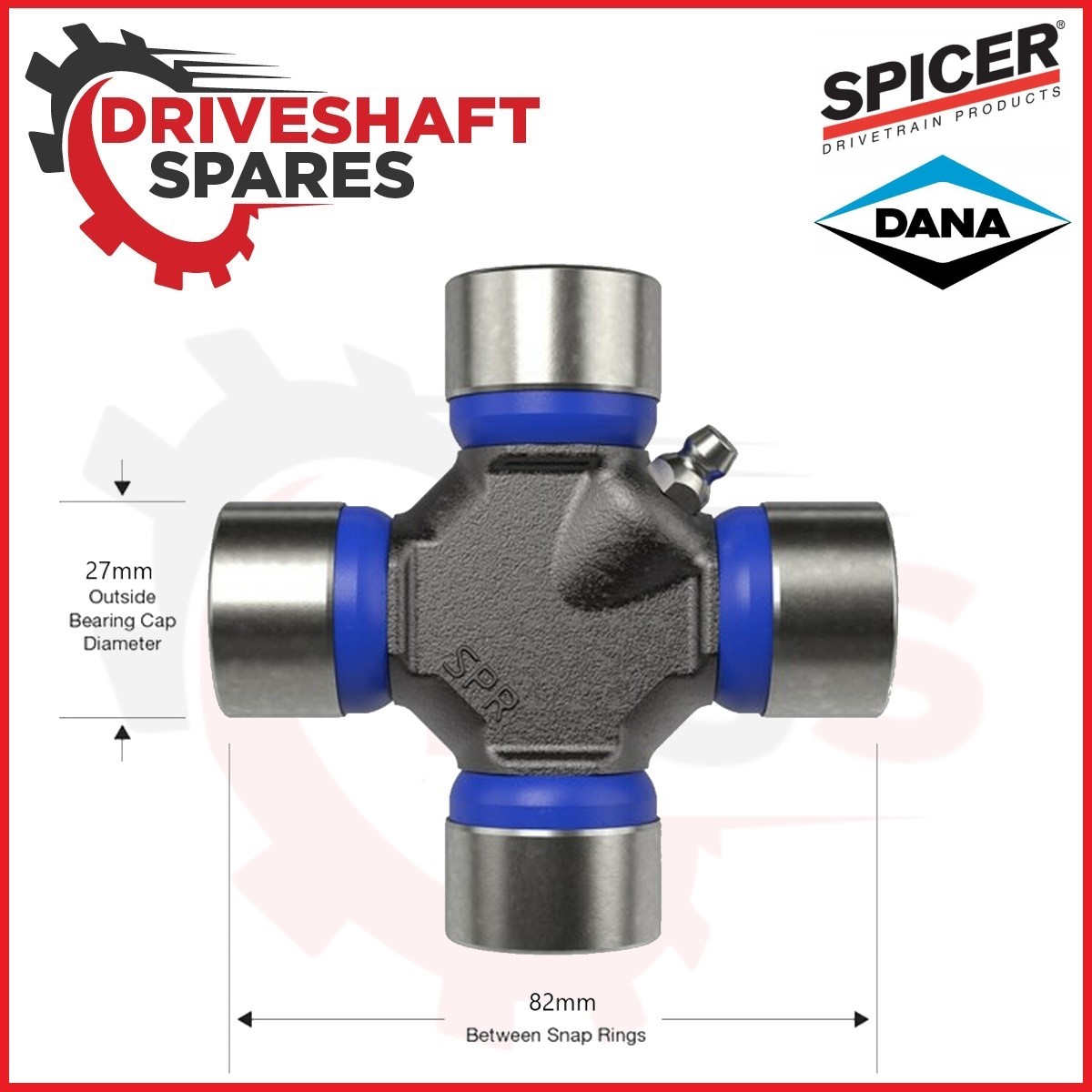

| Distance between retaining rings | G1 | 3.219 |
| Cap Outside Diameter | D1 | 1.062 |
| Distance between retaining rings | G2 | 3.219 |
| Cap Outside Diameter | D2 | 1.062 |
| OE Manufacturer | SPICER | |
| OE Series | 1310 | |
| Converts From Joint | ||
| Converts To Joint | ||
| Greasable | Y | |
| Notes |
This Slip
Yoke fits the Following GM Transmissions & Transfer Cases since
the 1960’s:
TH /
Turbo Hydromatic / Turbo 400
4l80E
& 4L85E
Muncie
M21 & M22
Borg
Warner Super T10
